T-MOTOR U15XL KV38 Big Drone Motor for Manned UAV

T-MOTOR U15XL KV38 BLDC motor delivers up to 81kg thrust, engineered for enhanced heavy-lift UAVs and manned aircraft. With 3550 W rated power, it provides stronger output and reliable performance for demanding missions such as logistics transport and emergency rescue.

Key Features

  • High Thrust – up to 81kg for heavy-lift applications
  • Powerful Output – 3550 W rated power with strong load capacity
  • Stable & Reliable – consistent performance under high load
  • Industrial-Grade Use – ideal for logistics, rescue, and aerial operations
  • Optimized Compatibility – supports matched propulsion systems

Recommended Kit

U15XL Manned Aircraft Kit

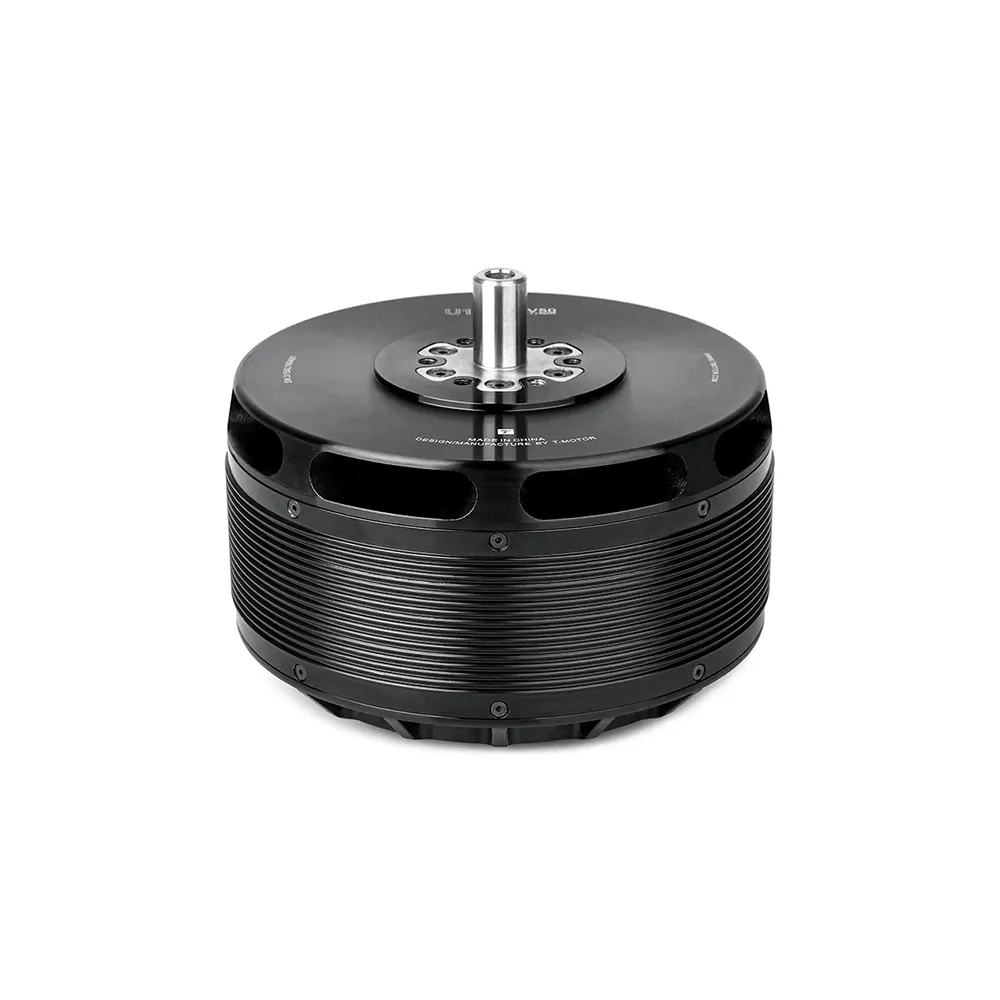

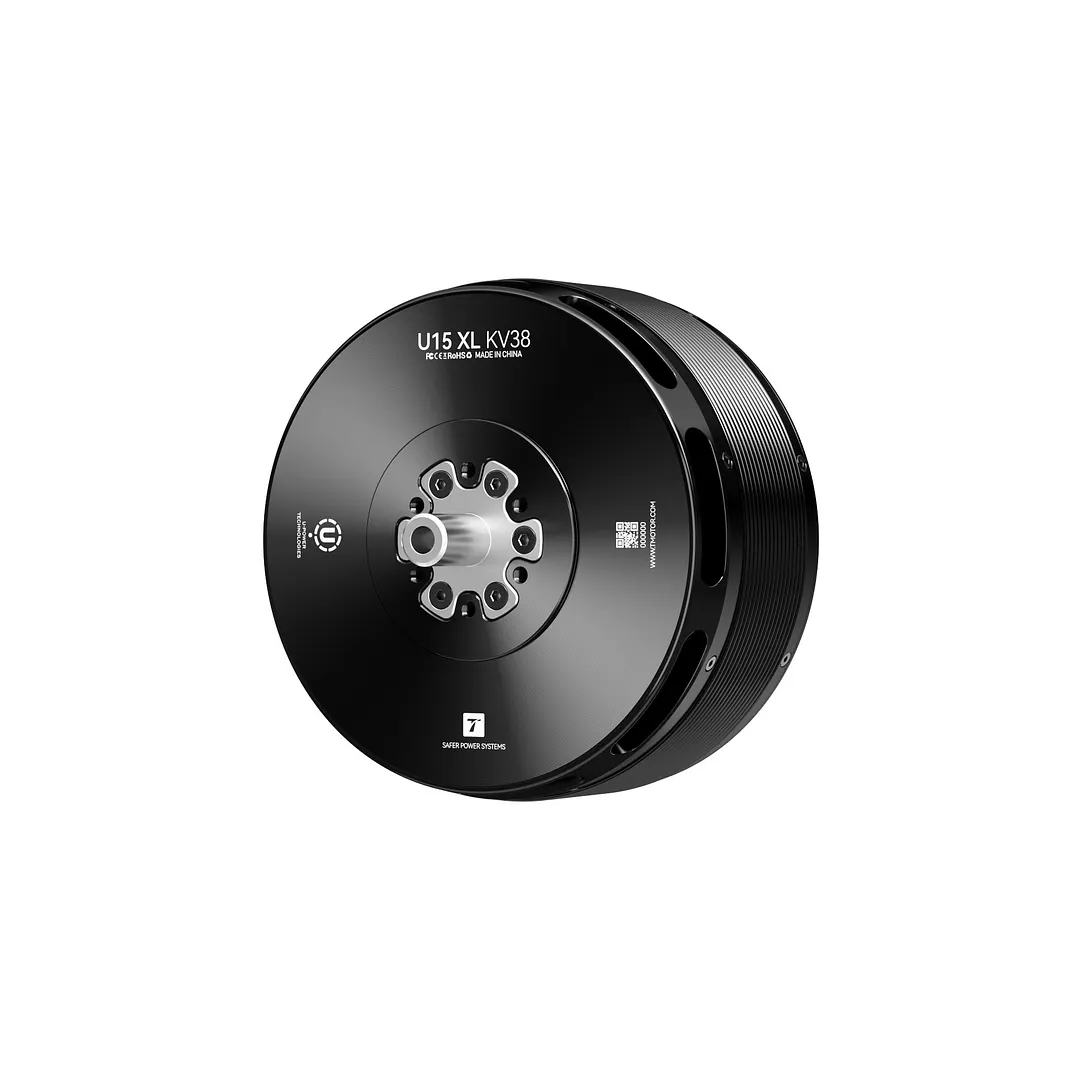

T-MOTOR U15XL KV38 big drone motor with 81kg max thrust

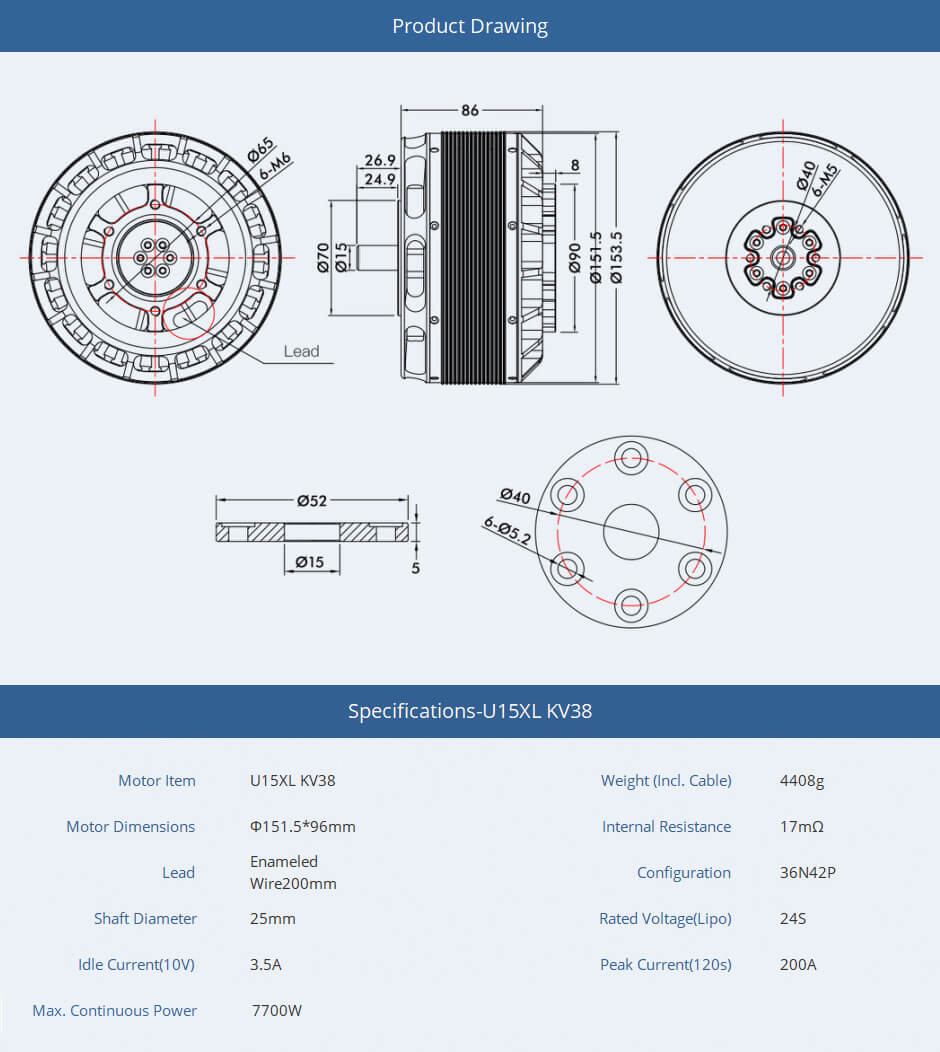

T-MOTOR U15XL KV38 motor technical drawing
Specifications-U15XL KV38
Motor Item U15XL KV38 Weight (Incl. Cable) 4408g
Motor Dimensions Φ151.5*96mm Internal Resistance 17mΩ
Lead Enameled Wire200mm Configuration 36N42P
Shaft Diameter 25mm Rated Voltage(Lipo) 24S
Idle Current(10V) 3.5A Peak Current(120s) 180A
Rated Power 3550W

Test Data
Type Propeller Throttle Voltage
(V)		 Thrust
(g)		 Torque
(N*m)		 Current
(A)		 RPM Power
(W)		 Efficiency
(g/W)

Operating
Temperature

(℃)

U15XL

KV38

 52*20“ 30% 99 10959 6.78 10.84 1143 1069 10.30 187
（Ambient

Temperature：

32℃）
35% 98 14276 8.70 14.85 1266 1461 9.80
40% 98 18040 10.94 20.22 1443 1987 9.10
45% 98 23169 14.01 28.12 1596 2763 8.40
50% 98 30435 18.46 41.30 1836 4052 7.50
55% 98 36786 22.44 53.89 1986 5275 7.00
60% 98 41234 25.14 63.26 2133 6190 6.70
65% 98 44955 27.46 71.78 2223 7017 6.40
70% 98 51254 31.33 86.70 2345 8453 6.10
75% 97 56362 34.55 100.06 2466 9754 5.80
80% 97 61101 37.45 112.78 2556 10957 5.60
85% 97 71194 43.99 142.56 2712 13773 5.20
90% 97 74366 46.07 152.84 2796 14787 5.00
95% 97 77953 48.23 163.70 2872 15835 4.90
100% 96 81206 50.40 175.08 2910 16888 4.80
Note: Temperature is motor coiling temperature at 100% throttle running 2mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
