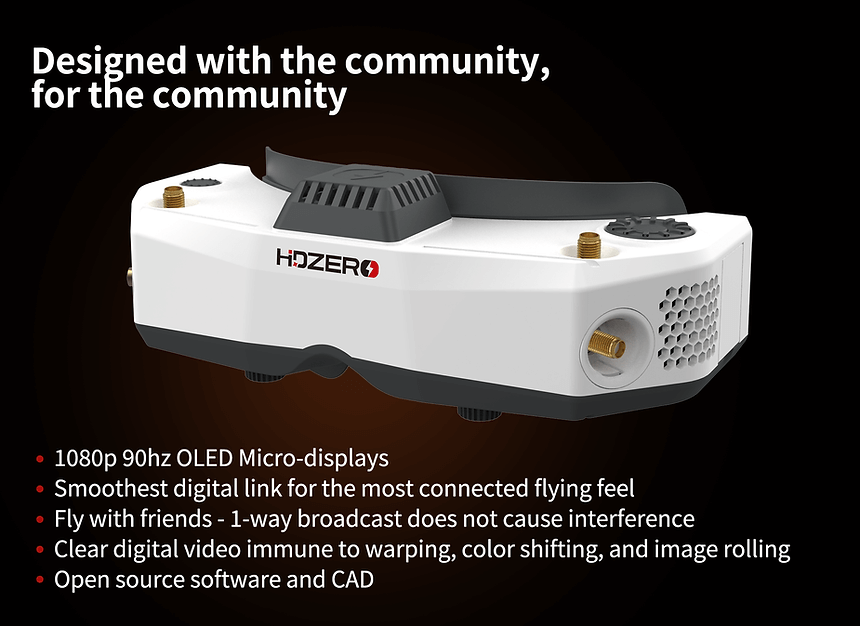

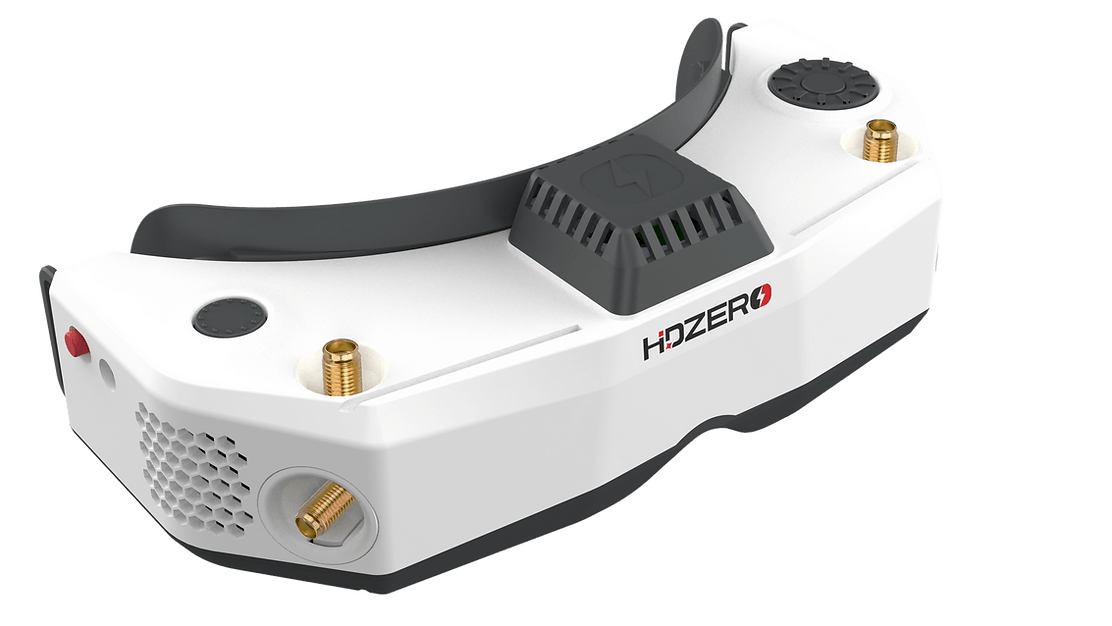

HDZero Goggle was designed with the FPV community for the FPV community. We asked what you wanted, and we delivered:
- Open-source goggle software and CAD files, so you can customize it to your preferences
- Clear digital video immune to warping, color shifting, and image rolling
- 1080p 90hz adaptive refresh rate OLED micro-displays
- Resolutions for different flying types: 1080p30, 720p60, 540p90, and 540p60
- Smoothest and fastest link for the most connected flying feel (3ms glass-to-glass)
- Fly with friends – 1-way broadcast doesn’t interfere with nearby pilots

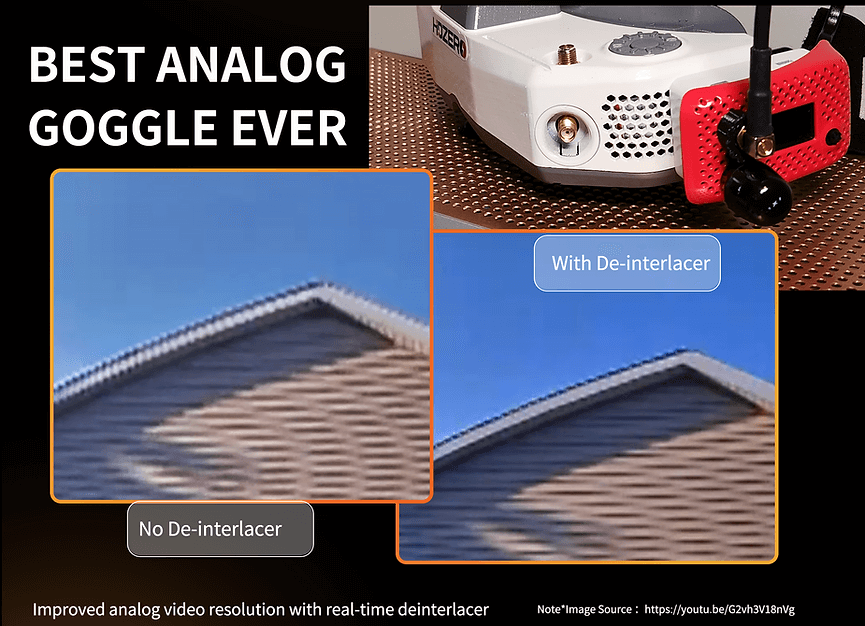

- Improved analog video resolution with real-time deinterlacer

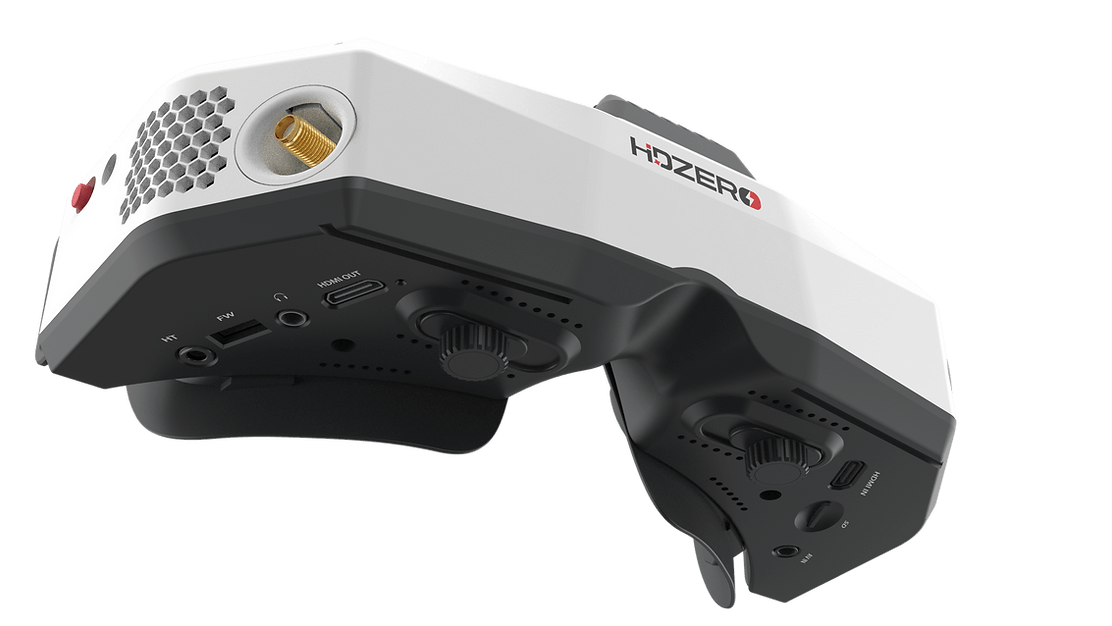

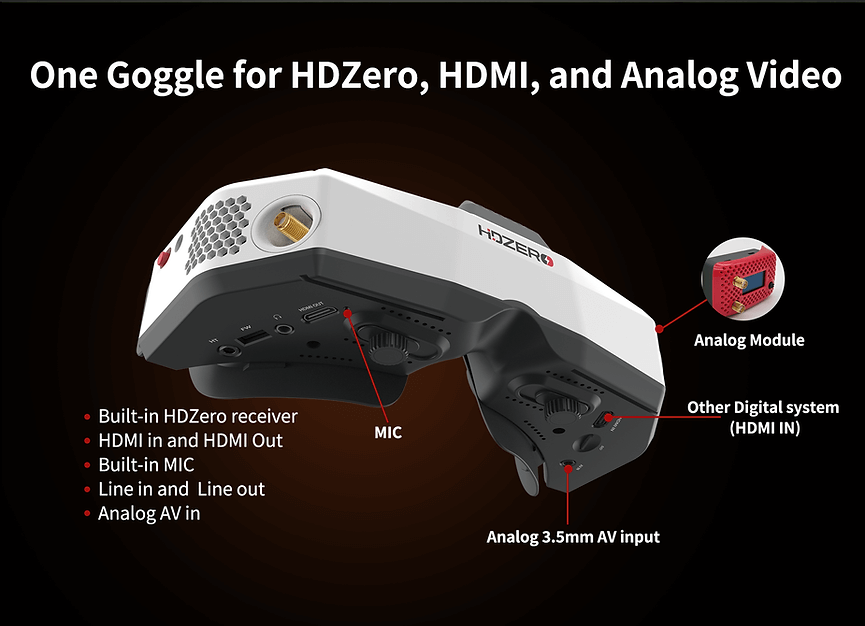

- All the video input and output you need – one goggle for digital, analog, and HDMI video
- Analog 3.5mm AV input
- HDMI input and output (yes, it is possible to have both)
- Headphone/microphone combo jack
- Add-on Analog Module Bay with 2.4Ghz Wi-Fi module for future expansion:
- Video streaming to phone (possible future capability)
- OTA Goggle FW updates (possible future capability)
- Mount antennas to innovative rail mount system
Features:
- On/off sliding switch – be confident that the goggle is on or off at a glance or by feel
- Designed for open source, the new goggle runs Linux. All code for the user interface is new and open source
- Support diopter lens inserts
- 90Hz 1080p OLED screens with sliding IPD adjustment and dials for focus adjustment

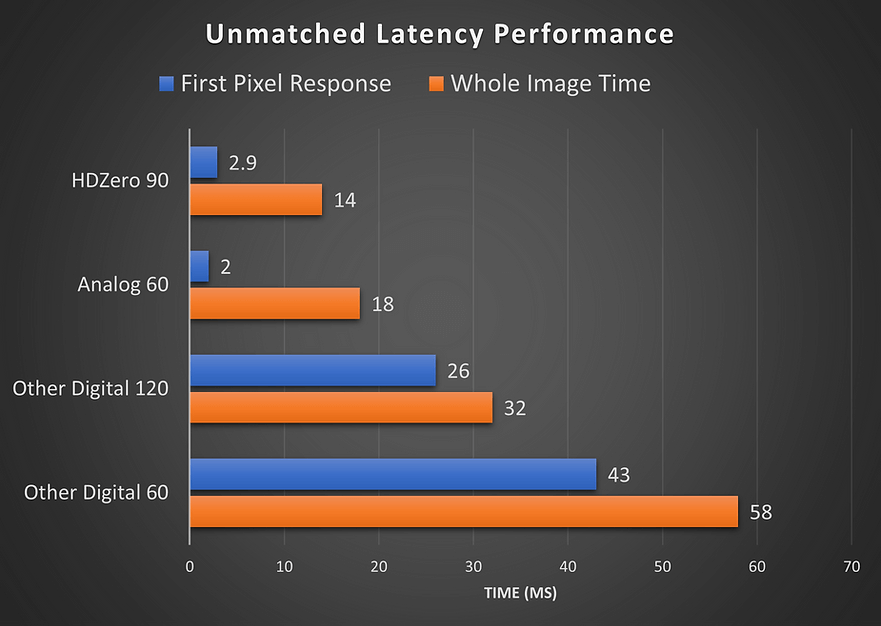

- By integrating the entire goggle display pipeline with HDZero’s fixed-latency video transmission, these goggles achieve 3ms glass-to-glass sub-frame latency with no jitter or dropped frames

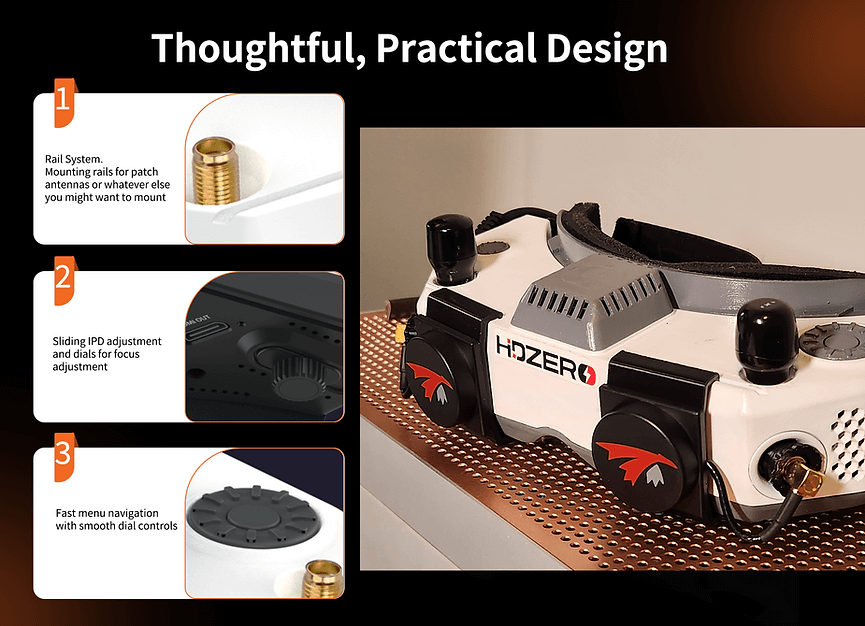

- Mounting rails for patch antennas or whatever else you might want to mount
- Recessed front SMA jacks so no need to remove antennas when packing the goggle away
- Three independently addressable fans work in combination to cool the internals and prevent fogging. They are soft mounted to prevent screen vibration and noise
- HDMI input and HDMI output
- Built-in microphone for DVR
- 3.5mm combination headphone / microphone jack for audio and external mic
- 3.5mm analog video/audio input for use with ground station inputs
- Integrated 2D deinterlacer that adds no delay for analog input
- Built-in ESP32
- Built-in H.265 DVR
- 6-axis smart inertial measurement for head tracking pan+tilt support
- Add-on side-mounted analog module bay that accepts most of today’s analog modules
- Add-on 2.4Ghz WiFi video streaming module for live steaming
Specification:
- HDZero Camera glass-to-goggle glass latency: <3ms
- Adjust IPD range: 57-70mm
- Adjustable focus range: +6 to -6 diopter
- Full HD 1920x1080p 90fps OLED micro display
- FOV: 46deg
- Input voltage: 7V-25.2V
Includes:
- 1x HDZero goggle
- 1x wide face plate
- 1x narrow face plate
- 1x foam padding
- 1x Goggle Strap
- 1x 1200mm XT60 cable
- 1x 150mm HDZero VTX programing cable
- 1x Thick Canvas Goggle Bag
- 1x Lens cloth
