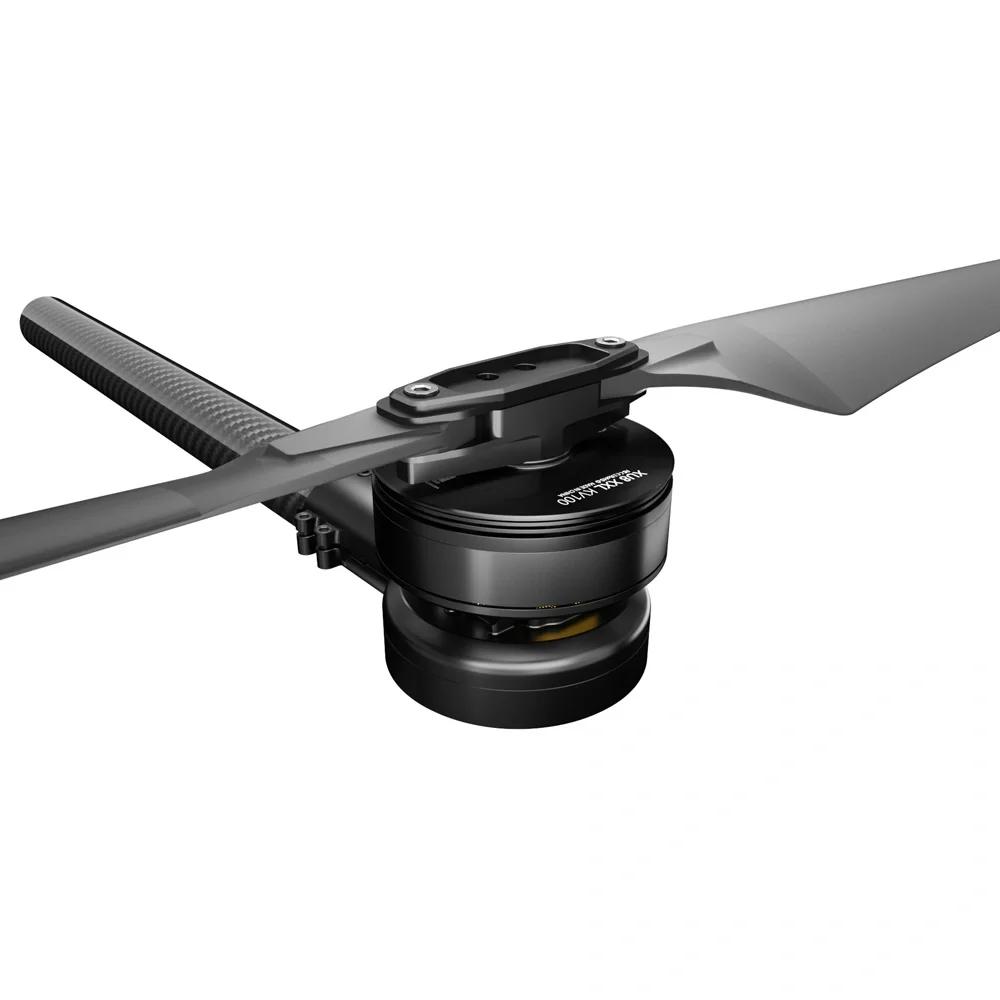

T-MOTOR XU8XXL-X Integrated Drone Propulsion System

The T-MOTOR XU8XXL-X is a modular propulsion system specifically designed for multirotor drones. It integrates a high-efficiency motor and an FOC ESC, and supports MF3016 carbon fiber propellers

The system features controllable LED lighting, easy installation, and a maximum thrust of up to 13.7kg, making it ideal for industrial drone applications.

Core Advantages

  • Integrated motor, FOC ESC, and carbon fiber folding propeller design for simplified UAV installation and improved propulsion system compatibility.
  • Modular plug-in motor and ESC structure enables fast installation and reduced maintenance costs for industrial UAV operation.
  • FOC ESC with advanced sine-wave control algorithm provides efficient, accurate, and stable motor control for multirotor UAV applications.
  • Compatible with MF3016 Polymer Folding Propeller for high-efficiency thrust output and improved aerodynamic performance.
  • Gold-plated high-current power connector enhances electrical reliability and durability for industrial UAV systems.
  • Built-in LED lighting system improves visibility and maneuverability during low-light UAV operations.

Technical Specifications

  • Motor: XU8XXL KV100 Motor
  • ESC: Alpha 60A FOC ESC
  • Propeller: MF3016 Polymer Folding Propeller
  • Rated Current: 40A
  • System Type: Integrated Multirotor UAV Propulsion System

T-MOTOR XU8XXL-X integrated UAV propulsion systemT-MOTOR XU8XXL-X with recommended motor, ESC, and propeller combinationsT-MOTOR XU8XXL-X propulsion system designed to reduce user maintenance costs T-MOTOR XU8XXL-X propulsion system with FOC ESCT-MOTOR XU8XXL-X propulsion system with high-efficiency carbon propellerT-MOTOR XU8XXL-X propulsion system with color-changing LED lights controlled by magnetsT-MOTOR XU8XXL-X propulsion system ready for use with simple installationT-MOTOR XU8XXL-X custom-engineered gold-plated power connector

T-MOTOR XU8XXL-X UAV propulsion system technical drawing

Specification
Model XU8XXL-X KV100 Lead Cable Length 610mm
Dimension 150.9*87.8*82.9mm Arm Set Weight(Incl. Cable) 705g
Configuration 36N42P Shaft Diameter 8mm
Idle Current (24V) 1.4A Rated Voltage (LiPo) 12S
Internal Resistance 65mΩ Ingress Protection  Level IP45
Peak Current (180s) 52A ESC Recommendation ALPHA 60A 12S V1.2
Max. Power (180s) 2000W Propeller Recommendation MF3016
Test Data
Type Voltage
(V)		 Propeller Throttle Thrust
(gf)		 Torque
(N·m)		 Current
(A)		 RPM Power
(W)		 Efficiency
(gf/W)		 Operating
Temperature
(℃)
XU8XXL-X
KV100
（ALPHA 60A 12S V1.2）		 48V T-MOTOR
MF30*16		 40% 3020 1.1 5.23 1780 250 12.06 58
（Ambient Temperature:
25）
45% 3745 1.36 7.08 1975 339 11.06
50% 4528 1.63 9.30 2167 445 10.19
55% 5397 1.93 11.95 2355 570 9.47
60% 6298 1.93 15.01 2541 715 8.81
65% 7275 2.59 18.58 2726 883 8.23
70% 8279 2.94 22.63 2902 1074 7.71
75% 9288 3.3 27.08 3075 1281 7.25
80% 10328 3.68 32.10 3244 1515 6.82
90% 12427 4.42 43.24 3555 2027 6.13
100% 13726 4.85 50.95 3734 2378 5.77
Note: Motor temperature is motor surface temperature @75% throttle running 10min.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
