XU8-X Integrated Drone Arm – Modular UAV Propulsion System

The T-MOTOR XU8-X Integrated UAV Propulsion System is a modular propulsion system specially designed for multirotor drones. Featuring a detachable motor and FOC ESC system, it significantly reduces downtime and improves fleet operation efficiency for industrial and commercial UAV applications.

Core Advantages

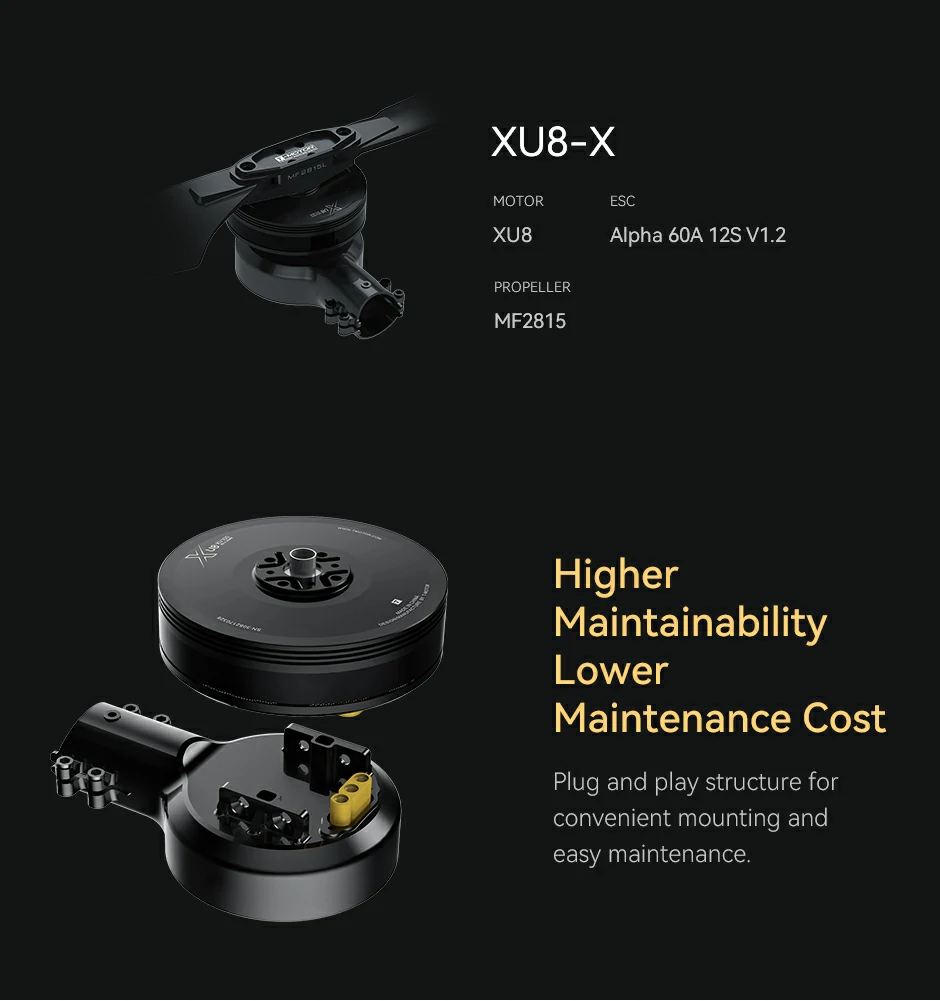

  • Integrated motor, FOC ESC, and carbon fiber folding propeller design for simplified UAV installation and improved propulsion system compatibility.

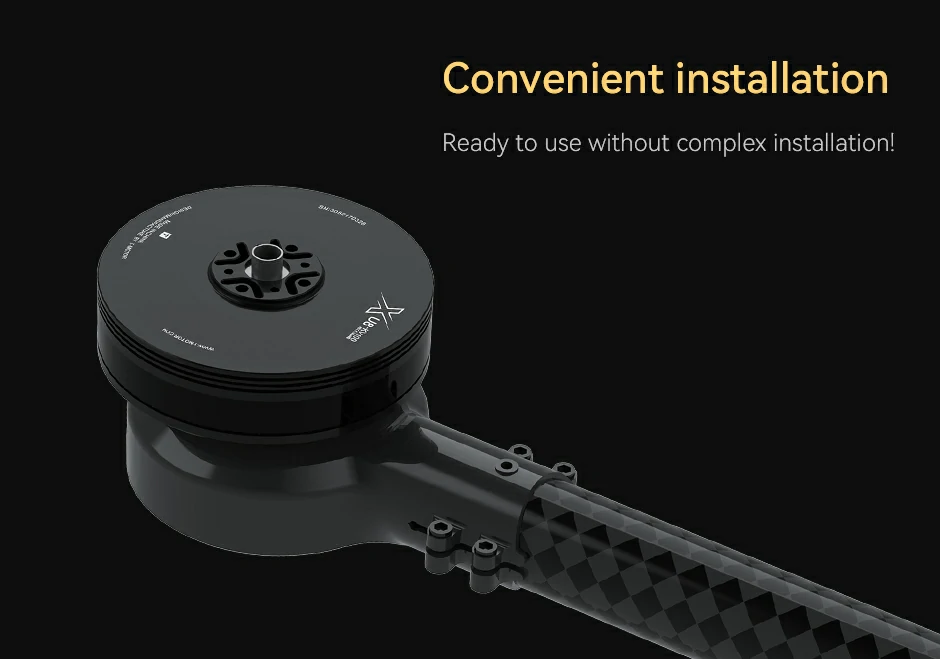

  • Modular plug-and-play structure supports fast motor and ESC replacement for reduced maintenance time and improved fleet operation efficiency.

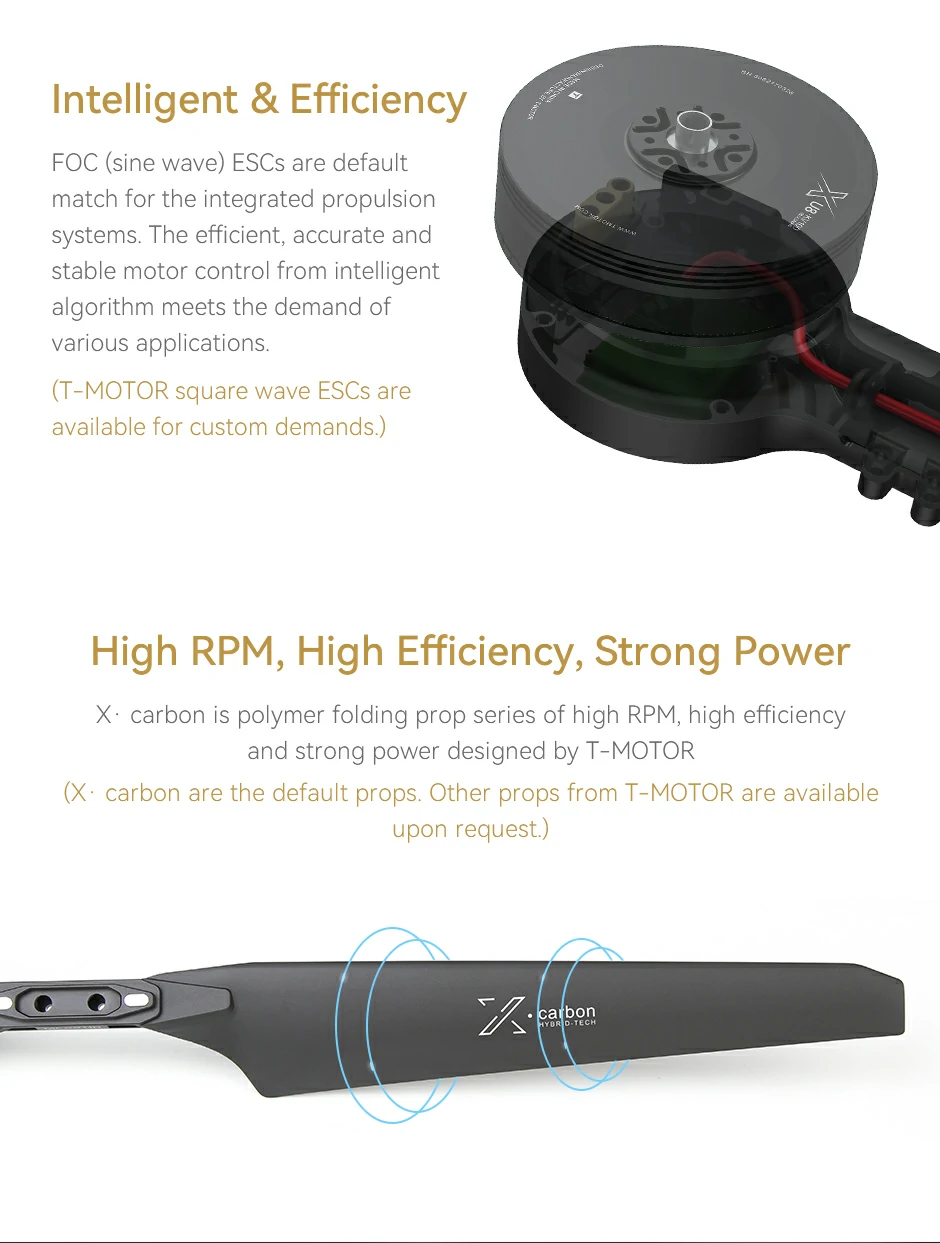

  • FOC intelligent control system provides efficient, accurate, and low-noise motor control for stable multirotor UAV operation.

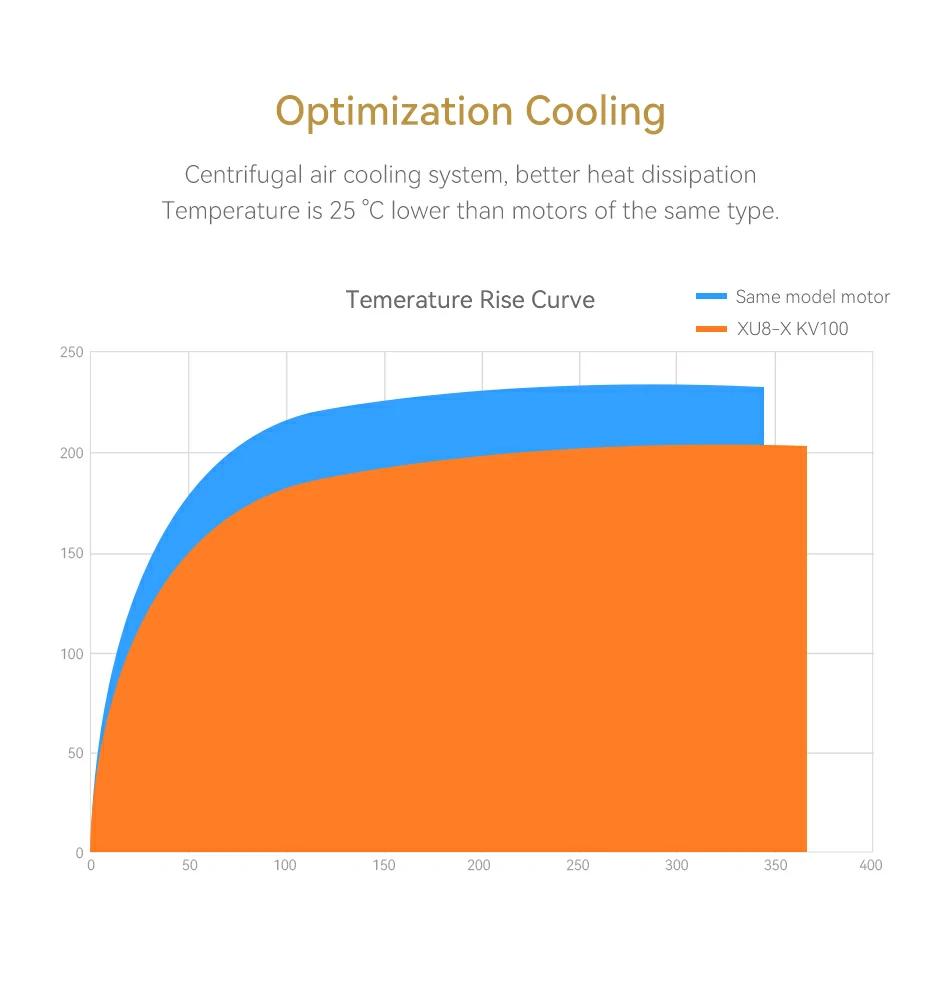

  • Advanced centrifugal cooling structure improves heat dissipation performance and enhances long-duration UAV reliability.
  • Available in KV85, KV100, KV150, and KV190 versions with 6S / 12S compatibility for flexible UAV platform integration.

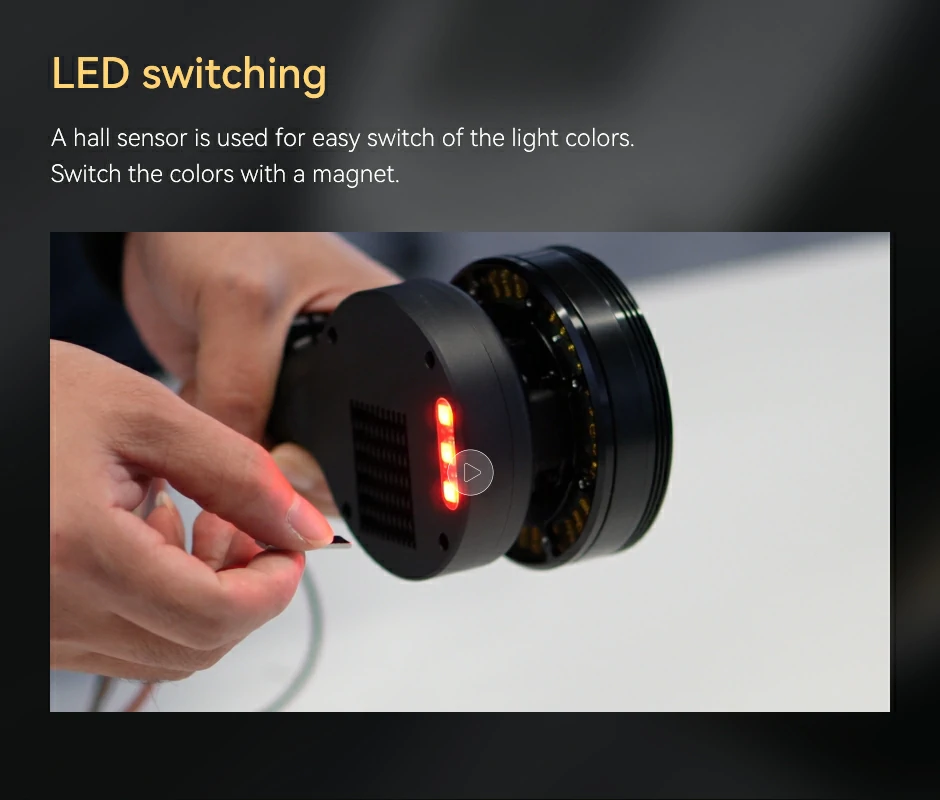

  • Built-in LED indicators and Hall sensor system support real-time status feedback and precise motor synchronization.

Technical Specifications

  • Motor: XU8 Motor
  • ESC: Alpha 60A ESC
  • Propeller: MF2815 Polymer Folding Propeller
  • Voltage: 6S / 12S
  • System Type: Integrated Multirotor UAV Propulsion System
  • Arm Size: 134.6 × 87.1 × 70.5 mm
  • Weight: 490g (arm + wires)
  • Motor Shaft: 8mm
  • Wire Length: 600mm exposed wiring

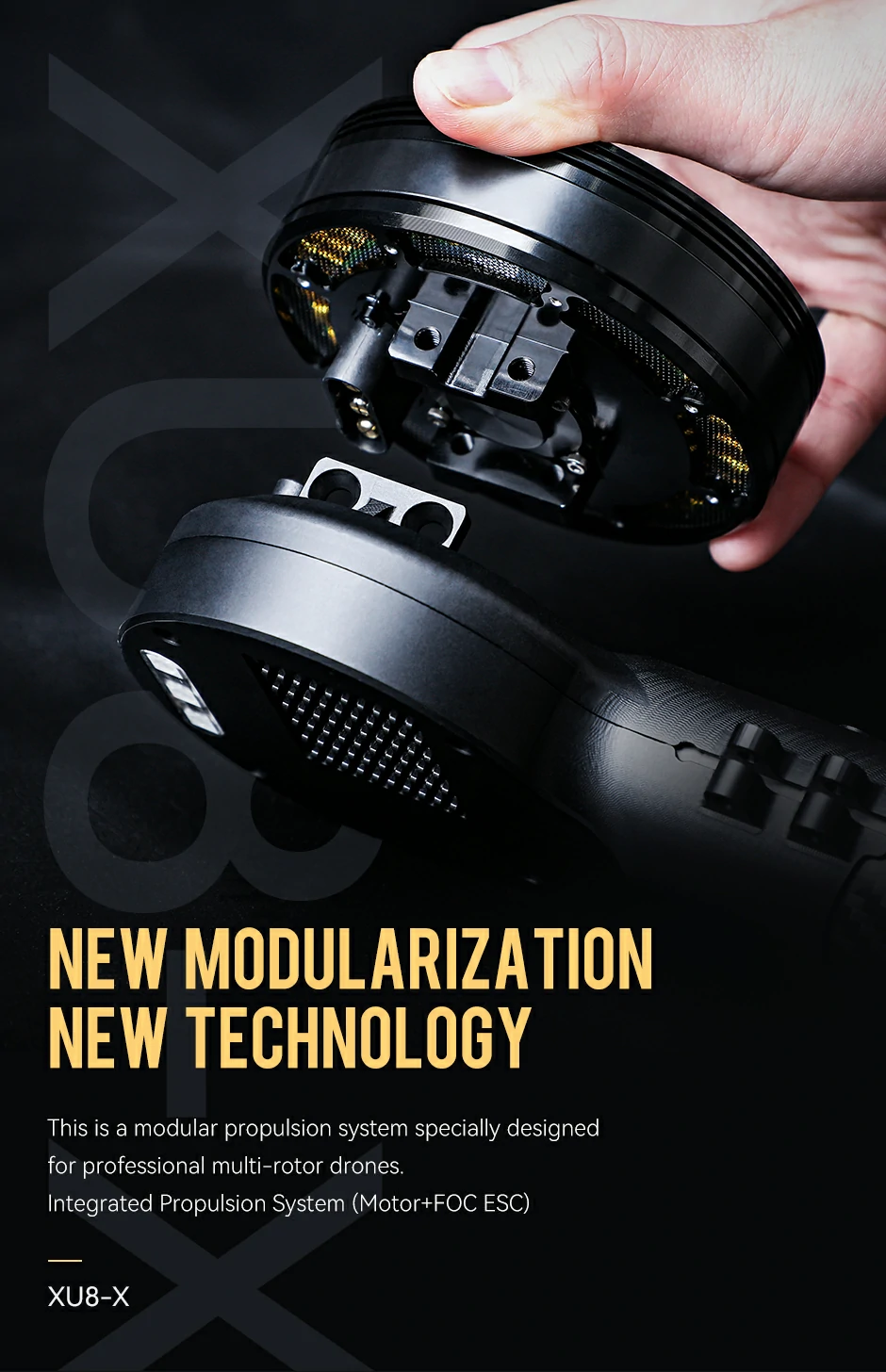

XU8-X is a modular propulsion system specifically designed for professional multirotor drones.XU8-X Modular propulsion system Plug and play structure for convenient mounting and easy maintenanceT-MOTOR XU8-X modular propulsion system offers better heat dissipationT-MOTOR XU8-X modular propulsion system is equipped with carbon fiber polymer propellersT-MOTOR XU8-X modular propulsion system enables free switching of LED light colorsXU8-X modular propulsion system can be used without complicated installation

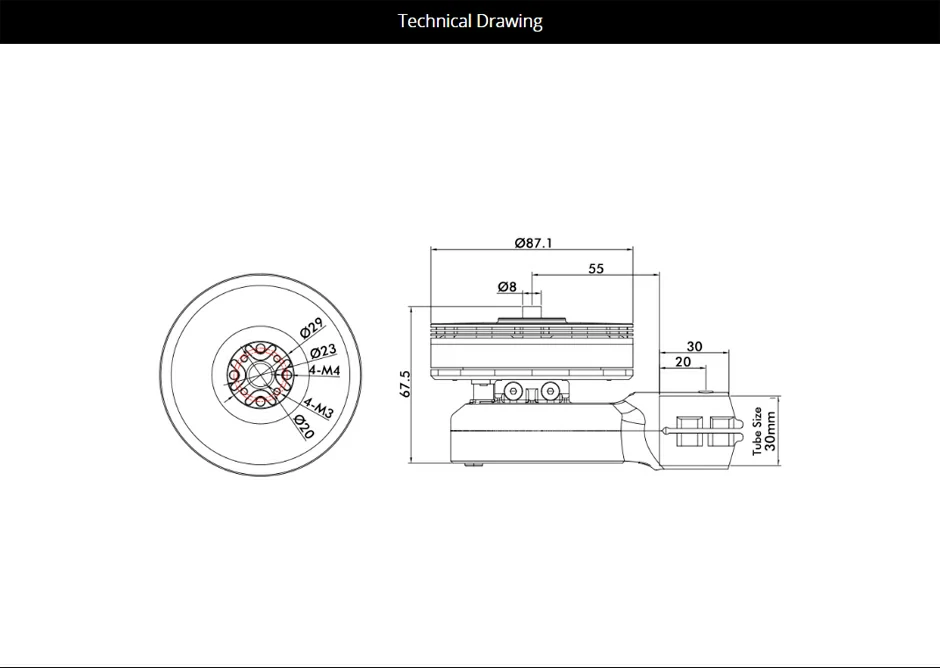

T-MOTOR XU8-X modular propulsion system technical drawing

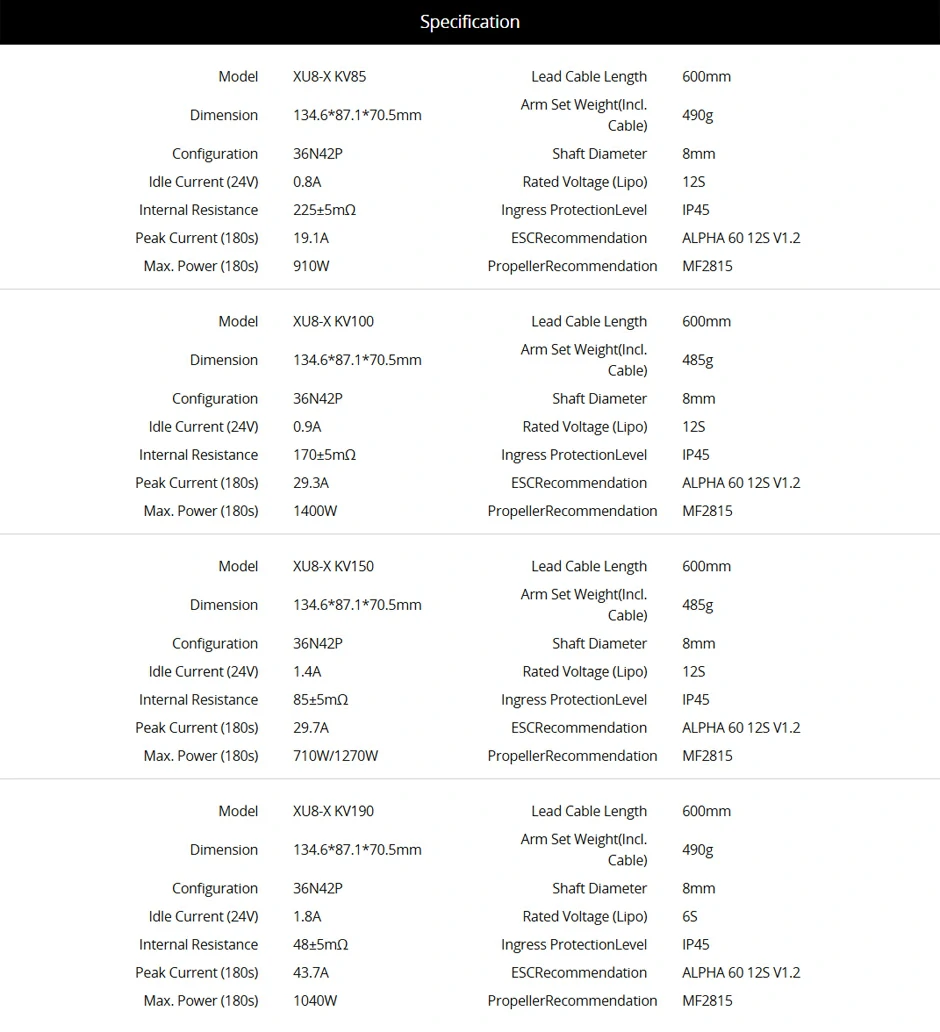

Specification
Model XU8-X KV85 Lead Cable Length 600mm
Dimension 134.6*87.1*70.5mm Arm Set Weight(Incl. Cable) 490g
Configuration 36N42P Shaft Diameter 8mm
Idle Current (24V) 0.8A Rated Voltage (Lipo) 12S
Internal Resistance 225±5mΩ Ingress ProtectionLevel IP45
Peak Current (180s) 19.1A ESCRecommendation ALPHA 60 12S V1.2
Max. Power (180s) 910W PropellerRecommendation MF2815
Model XU8-X KV100 Lead Cable Length 600mm
Dimension 134.6*87.1*70.5mm Arm Set Weight(Incl. Cable) 485g
Configuration 36N42P Shaft Diameter 8mm
Idle Current (24V) 0.9A Rated Voltage (Lipo) 12S
Internal Resistance 170±5mΩ Ingress ProtectionLevel IP45
Peak Current (180s) 29.3A ESCRecommendation ALPHA 60 12S V1.2
Max. Power (180s) 1400W PropellerRecommendation MF2815
Model XU8-X KV150 Lead Cable Length 600mm
Dimension 134.6*87.1*70.5mm Arm Set Weight(Incl. Cable) 485g
Configuration 36N42P Shaft Diameter 8mm
Idle Current (24V) 1.4A Rated Voltage (Lipo) 12S
Internal Resistance 85±5mΩ Ingress ProtectionLevel IP45
Peak Current (180s) 29.7A ESCRecommendation ALPHA 60 12S V1.2
Max. Power (180s) 710W/1270W PropellerRecommendation MF2815
Model XU8-X KV190 Lead Cable Length 600mm
Dimension 134.6*87.1*70.5mm Arm Set Weight(Incl. Cable) 490g
Configuration 36N42P Shaft Diameter 8mm
Idle Current (24V) 1.8A Rated Voltage (Lipo) 6S
Internal Resistance 48±5mΩ Ingress ProtectionLevel IP45
Peak Current (180s) 43.7A ESCRecommendation ALPHA 60 12S V1.2
Max. Power (180s) 1040W PropellerRecommendation MF2815

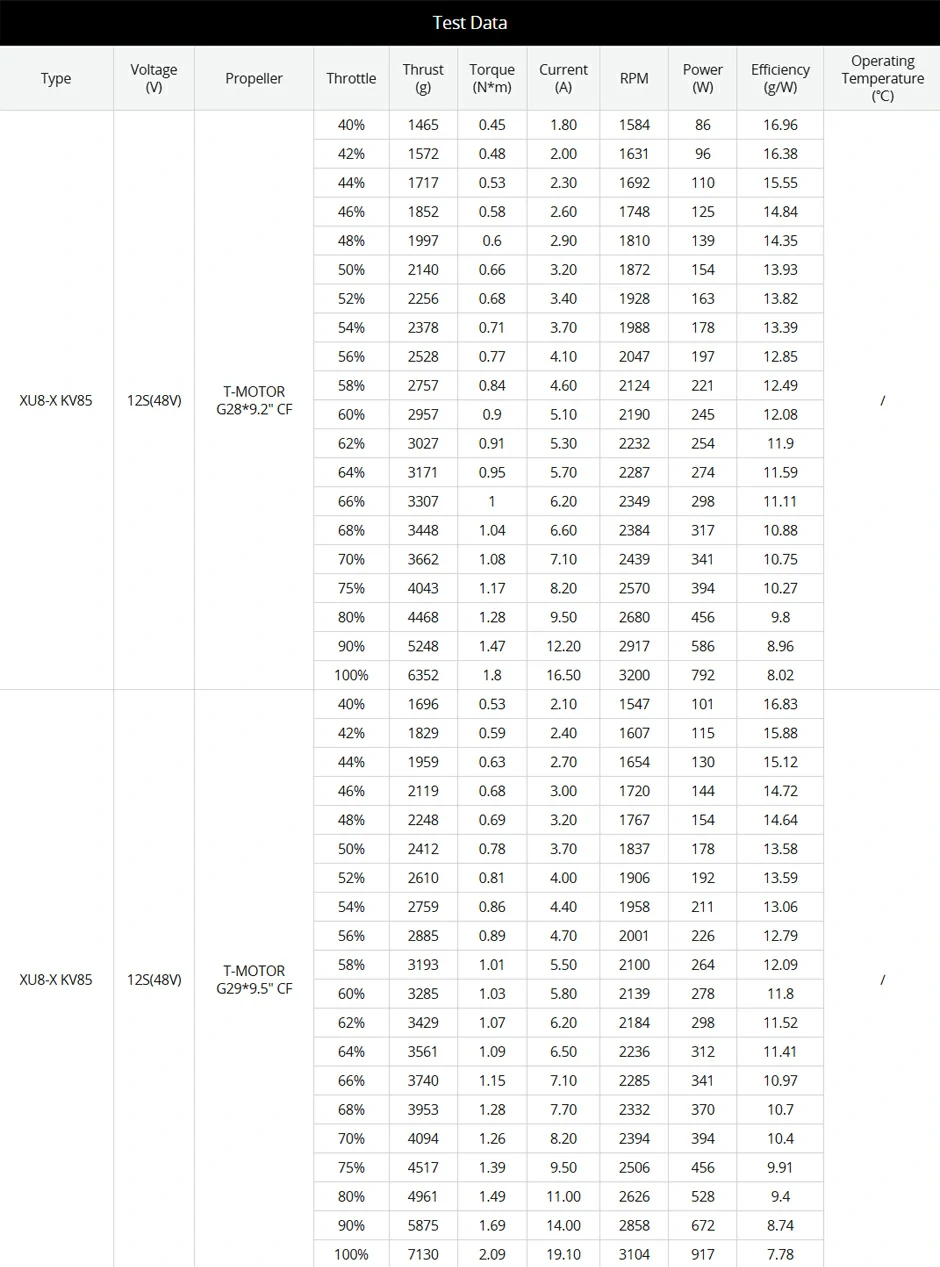

Test Data
Type Voltage
(V)		 Propeller Throttle Thrust
(g)		 Torque
(N*m)		 Current
(A)		 RPM Power
(W)		 Efficiency
(g/W)		 Operating
Temperature
(℃)
XU8-X KV85 12S(48V) T-MOTOR
G28*9.2” CF		 40% 1465 0.45 1.80 1584 86 16.96 /
42% 1572 0.48 2.00 1631 96 16.38
44% 1717 0.53 2.30 1692 110 15.55
46% 1852 0.58 2.60 1748 125 14.84
48% 1997 0.6 2.90 1810 139 14.35
50% 2140 0.66 3.20 1872 154 13.93
52% 2256 0.68 3.40 1928 163 13.82
54% 2378 0.71 3.70 1988 178 13.39
56% 2528 0.77 4.10 2047 197 12.85
58% 2757 0.84 4.60 2124 221 12.49
60% 2957 0.9 5.10 2190 245 12.08
62% 3027 0.91 5.30 2232 254 11.9
64% 3171 0.95 5.70 2287 274 11.59
66% 3307 1 6.20 2349 298 11.11
68% 3448 1.04 6.60 2384 317 10.88
70% 3662 1.08 7.10 2439 341 10.75
75% 4043 1.17 8.20 2570 394 10.27
80% 4468 1.28 9.50 2680 456 9.8
90% 5248 1.47 12.20 2917 586 8.96
100% 6352 1.8 16.50 3200 792 8.02
XU8-X KV85 12S(48V) T-MOTOR
G29*9.5” CF		 40% 1696 0.53 2.10 1547 101 16.83 /
42% 1829 0.59 2.40 1607 115 15.88
44% 1959 0.63 2.70 1654 130 15.12
46% 2119 0.68 3.00 1720 144 14.72
48% 2248 0.69 3.20 1767 154 14.64
50% 2412 0.78 3.70 1837 178 13.58
52% 2610 0.81 4.00 1906 192 13.59
54% 2759 0.86 4.40 1958 211 13.06
56% 2885 0.89 4.70 2001 226 12.79
58% 3193 1.01 5.50 2100 264 12.09
60% 3285 1.03 5.80 2139 278 11.8
62% 3429 1.07 6.20 2184 298 11.52
64% 3561 1.09 6.50 2236 312 11.41
66% 3740 1.15 7.10 2285 341 10.97
68% 3953 1.28 7.70 2332 370 10.7
70% 4094 1.26 8.20 2394 394 10.4
75% 4517 1.39 9.50 2506 456 9.91
80% 4961 1.49 11.00 2626 528 9.4
90% 5875 1.69 14.00 2858 672 8.74
100% 7130 2.09 19.10 3104 917 7.78

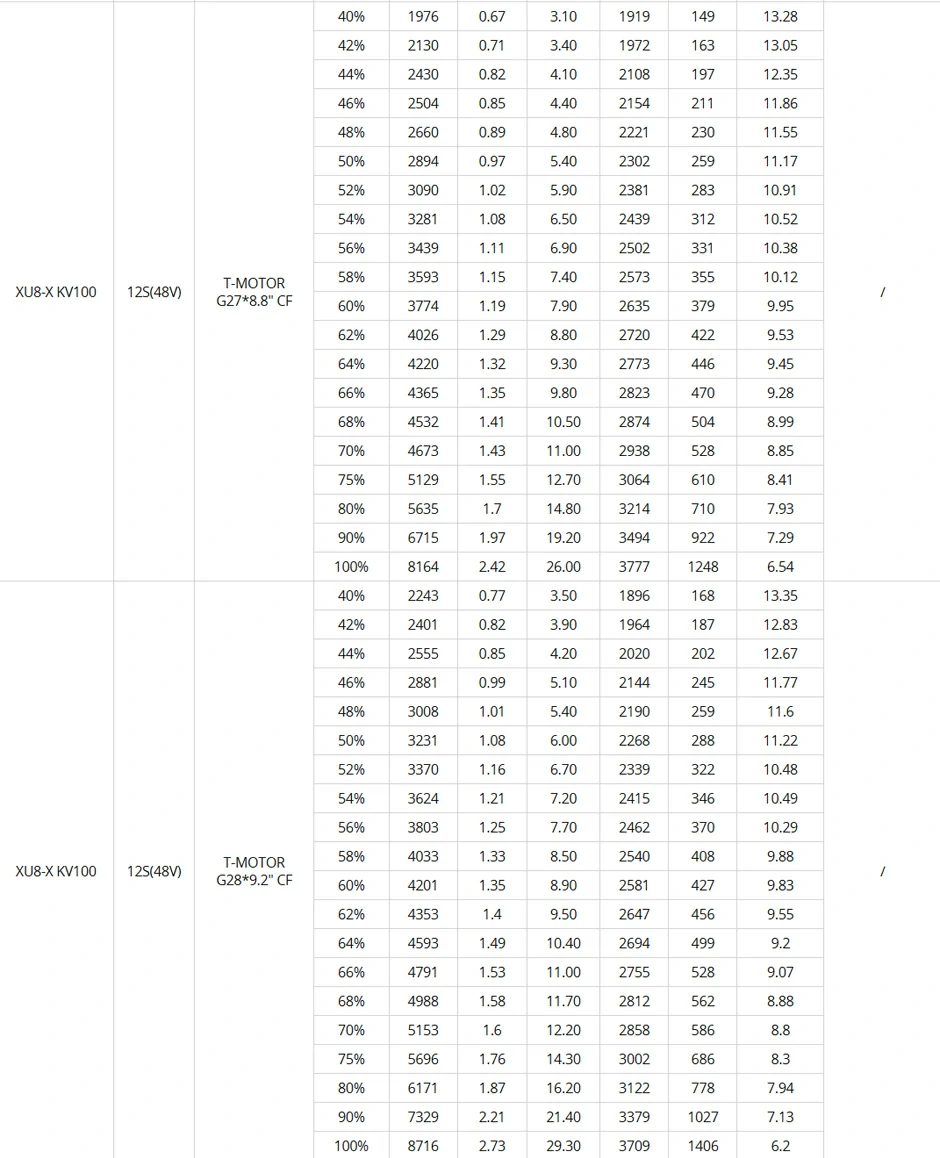

XU8-X KV100 12S(48V) T-MOTOR
G27*8.8” CF		 40% 1976 0.67 3.10 1919 149 13.28 /
42% 2130 0.71 3.40 1972 163 13.05
44% 2430 0.82 4.10 2108 197 12.35
46% 2504 0.85 4.40 2154 211 11.86
48% 2660 0.89 4.80 2221 230 11.55
50% 2894 0.97 5.40 2302 259 11.17
52% 3090 1.02 5.90 2381 283 10.91
54% 3281 1.08 6.50 2439 312 10.52
56% 3439 1.11 6.90 2502 331 10.38
58% 3593 1.15 7.40 2573 355 10.12
60% 3774 1.19 7.90 2635 379 9.95
62% 4026 1.29 8.80 2720 422 9.53
64% 4220 1.32 9.30 2773 446 9.45
66% 4365 1.35 9.80 2823 470 9.28
68% 4532 1.41 10.50 2874 504 8.99
70% 4673 1.43 11.00 2938 528 8.85
75% 5129 1.55 12.70 3064 610 8.41
80% 5635 1.7 14.80 3214 710 7.93
90% 6715 1.97 19.20 3494 922 7.29
100% 8164 2.42 26.00 3777 1248 6.54
XU8-X KV100 12S(48V) T-MOTOR
G28*9.2” CF		 40% 2243 0.77 3.50 1896 168 13.35 /
42% 2401 0.82 3.90 1964 187 12.83
44% 2555 0.85 4.20 2020 202 12.67
46% 2881 0.99 5.10 2144 245 11.77
48% 3008 1.01 5.40 2190 259 11.6
50% 3231 1.08 6.00 2268 288 11.22
52% 3370 1.16 6.70 2339 322 10.48
54% 3624 1.21 7.20 2415 346 10.49
56% 3803 1.25 7.70 2462 370 10.29
58% 4033 1.33 8.50 2540 408 9.88
60% 4201 1.35 8.90 2581 427 9.83
62% 4353 1.4 9.50 2647 456 9.55
64% 4593 1.49 10.40 2694 499 9.2
66% 4791 1.53 11.00 2755 528 9.07
68% 4988 1.58 11.70 2812 562 8.88
70% 5153 1.6 12.20 2858 586 8.8
75% 5696 1.76 14.30 3002 686 8.3
80% 6171 1.87 16.20 3122 778 7.94
90% 7329 2.21 21.40 3379 1027 7.13
100% 8716 2.73 29.30 3709 1406 6.2
Note: Motor temperature is motor surface temperature @80% throttle running 10mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

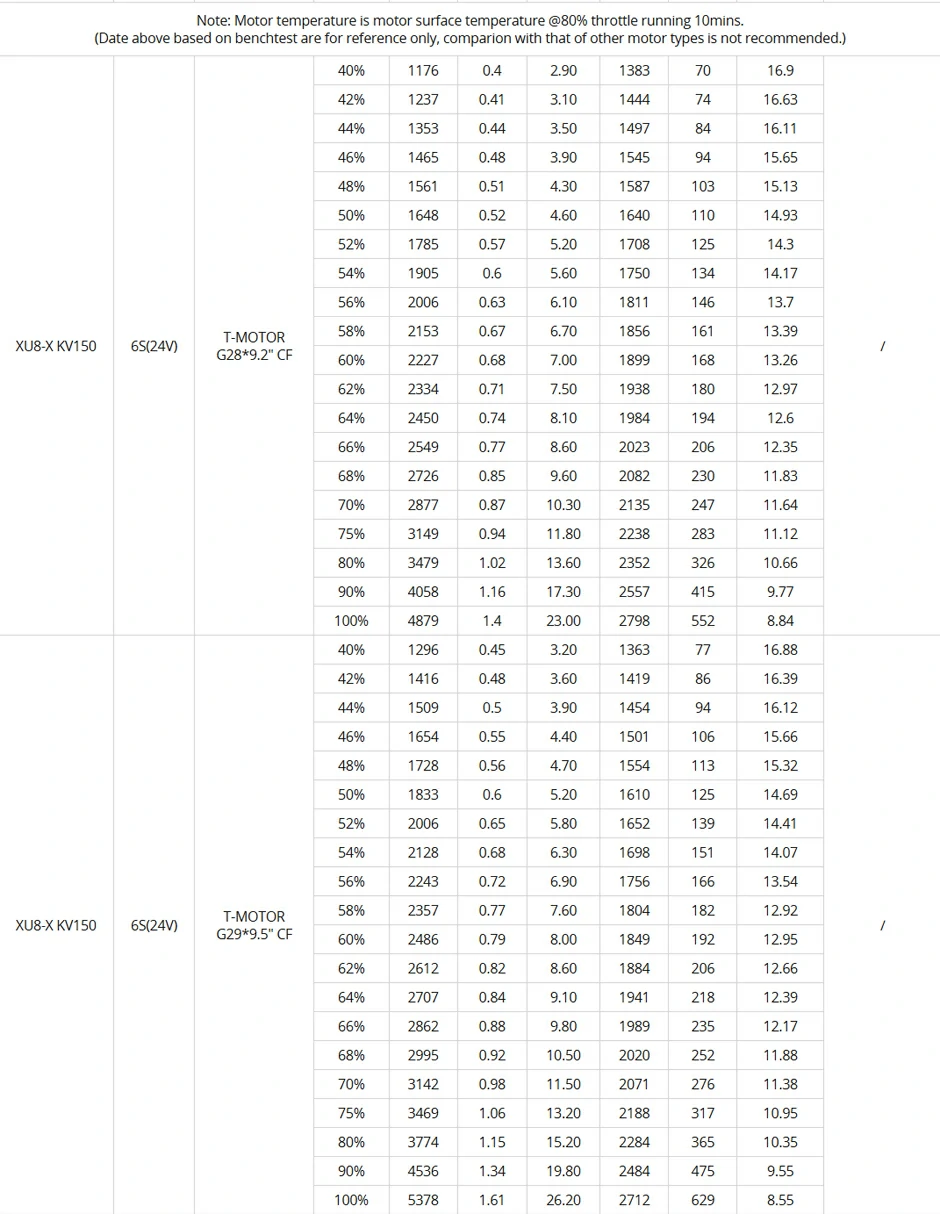

XU8-X KV150 6S(24V) T-MOTOR
G28*9.2” CF		 40% 1176 0.4 2.90 1383 70 16.9 /
42% 1237 0.41 3.10 1444 74 16.63
44% 1353 0.44 3.50 1497 84 16.11
46% 1465 0.48 3.90 1545 94 15.65
48% 1561 0.51 4.30 1587 103 15.13
50% 1648 0.52 4.60 1640 110 14.93
52% 1785 0.57 5.20 1708 125 14.3
54% 1905 0.6 5.60 1750 134 14.17
56% 2006 0.63 6.10 1811 146 13.7
58% 2153 0.67 6.70 1856 161 13.39
60% 2227 0.68 7.00 1899 168 13.26
62% 2334 0.71 7.50 1938 180 12.97
64% 2450 0.74 8.10 1984 194 12.6
66% 2549 0.77 8.60 2023 206 12.35
68% 2726 0.85 9.60 2082 230 11.83
70% 2877 0.87 10.30 2135 247 11.64
75% 3149 0.94 11.80 2238 283 11.12
80% 3479 1.02 13.60 2352 326 10.66
90% 4058 1.16 17.30 2557 415 9.77
100% 4879 1.4 23.00 2798 552 8.84
XU8-X KV150 6S(24V) T-MOTOR
G29*9.5” CF		 40% 1296 0.45 3.20 1363 77 16.88 /
42% 1416 0.48 3.60 1419 86 16.39
44% 1509 0.5 3.90 1454 94 16.12
46% 1654 0.55 4.40 1501 106 15.66
48% 1728 0.56 4.70 1554 113 15.32
50% 1833 0.6 5.20 1610 125 14.69
52% 2006 0.65 5.80 1652 139 14.41
54% 2128 0.68 6.30 1698 151 14.07
56% 2243 0.72 6.90 1756 166 13.54
58% 2357 0.77 7.60 1804 182 12.92
60% 2486 0.79 8.00 1849 192 12.95
62% 2612 0.82 8.60 1884 206 12.66
64% 2707 0.84 9.10 1941 218 12.39
66% 2862 0.88 9.80 1989 235 12.17
68% 2995 0.92 10.50 2020 252 11.88
70% 3142 0.98 11.50 2071 276 11.38
75% 3469 1.06 13.20 2188 317 10.95
80% 3774 1.15 15.20 2284 365 10.35
90% 4536 1.34 19.80 2484 475 9.55
100% 5378 1.61 26.20 2712 629 8.55

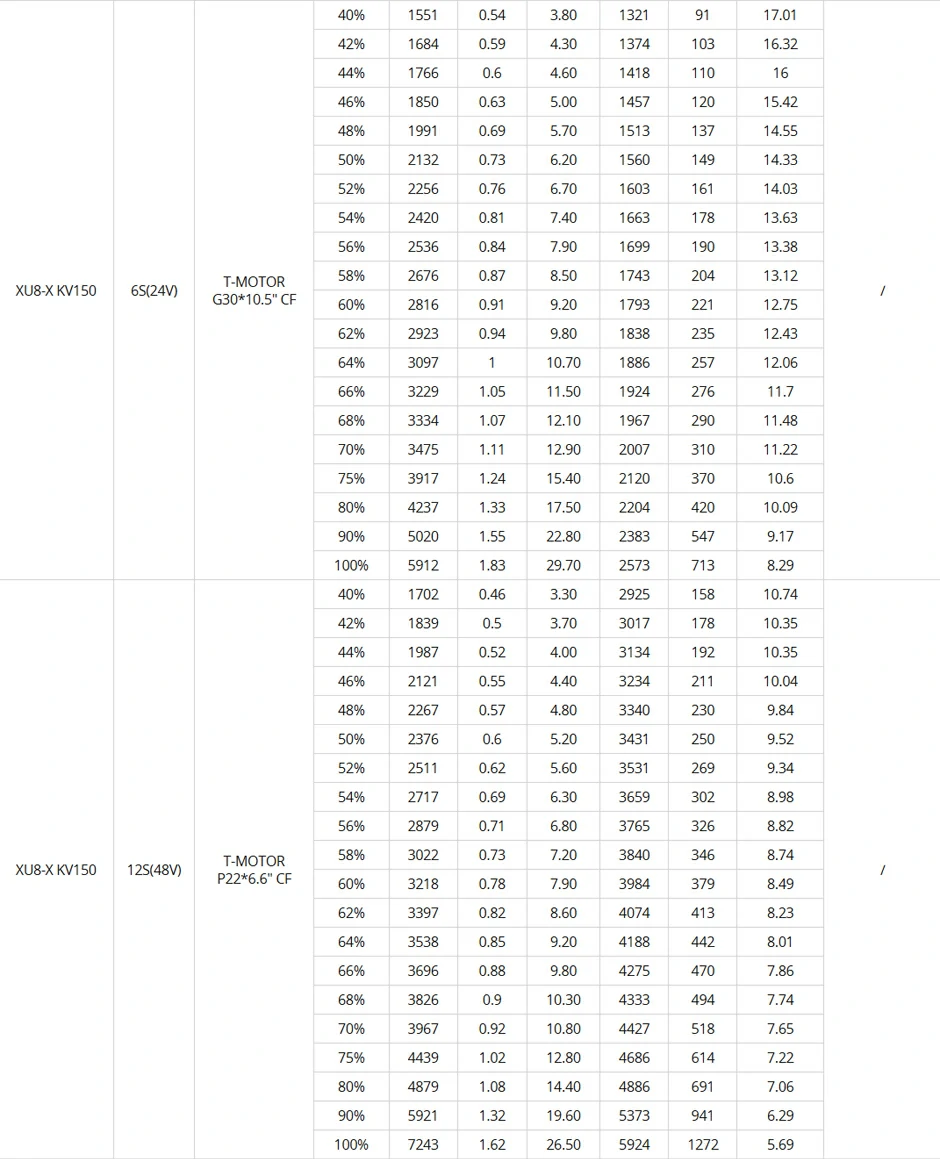

XU8-X KV150 6S(24V) T-MOTOR
G30*10.5” CF		 40% 1551 0.54 3.80 1321 91 17.01 /
42% 1684 0.59 4.30 1374 103 16.32
44% 1766 0.6 4.60 1418 110 16
46% 1850 0.63 5.00 1457 120 15.42
48% 1991 0.69 5.70 1513 137 14.55
50% 2132 0.73 6.20 1560 149 14.33
52% 2256 0.76 6.70 1603 161 14.03
54% 2420 0.81 7.40 1663 178 13.63
56% 2536 0.84 7.90 1699 190 13.38
58% 2676 0.87 8.50 1743 204 13.12
60% 2816 0.91 9.20 1793 221 12.75
62% 2923 0.94 9.80 1838 235 12.43
64% 3097 1 10.70 1886 257 12.06
66% 3229 1.05 11.50 1924 276 11.7
68% 3334 1.07 12.10 1967 290 11.48
70% 3475 1.11 12.90 2007 310 11.22
75% 3917 1.24 15.40 2120 370 10.6
80% 4237 1.33 17.50 2204 420 10.09
90% 5020 1.55 22.80 2383 547 9.17
100% 5912 1.83 29.70 2573 713 8.29
XU8-X KV150 12S(48V) T-MOTOR
P22*6.6” CF		 40% 1702 0.46 3.30 2925 158 10.74 /
42% 1839 0.5 3.70 3017 178 10.35
44% 1987 0.52 4.00 3134 192 10.35
46% 2121 0.55 4.40 3234 211 10.04
48% 2267 0.57 4.80 3340 230 9.84
50% 2376 0.6 5.20 3431 250 9.52
52% 2511 0.62 5.60 3531 269 9.34
54% 2717 0.69 6.30 3659 302 8.98
56% 2879 0.71 6.80 3765 326 8.82
58% 3022 0.73 7.20 3840 346 8.74
60% 3218 0.78 7.90 3984 379 8.49
62% 3397 0.82 8.60 4074 413 8.23
64% 3538 0.85 9.20 4188 442 8.01
66% 3696 0.88 9.80 4275 470 7.86
68% 3826 0.9 10.30 4333 494 7.74
70% 3967 0.92 10.80 4427 518 7.65
75% 4439 1.02 12.80 4686 614 7.22
80% 4879 1.08 14.40 4886 691 7.06
90% 5921 1.32 19.60 5373 941 6.29
100% 7243 1.62 26.50 5924 1272 5.69

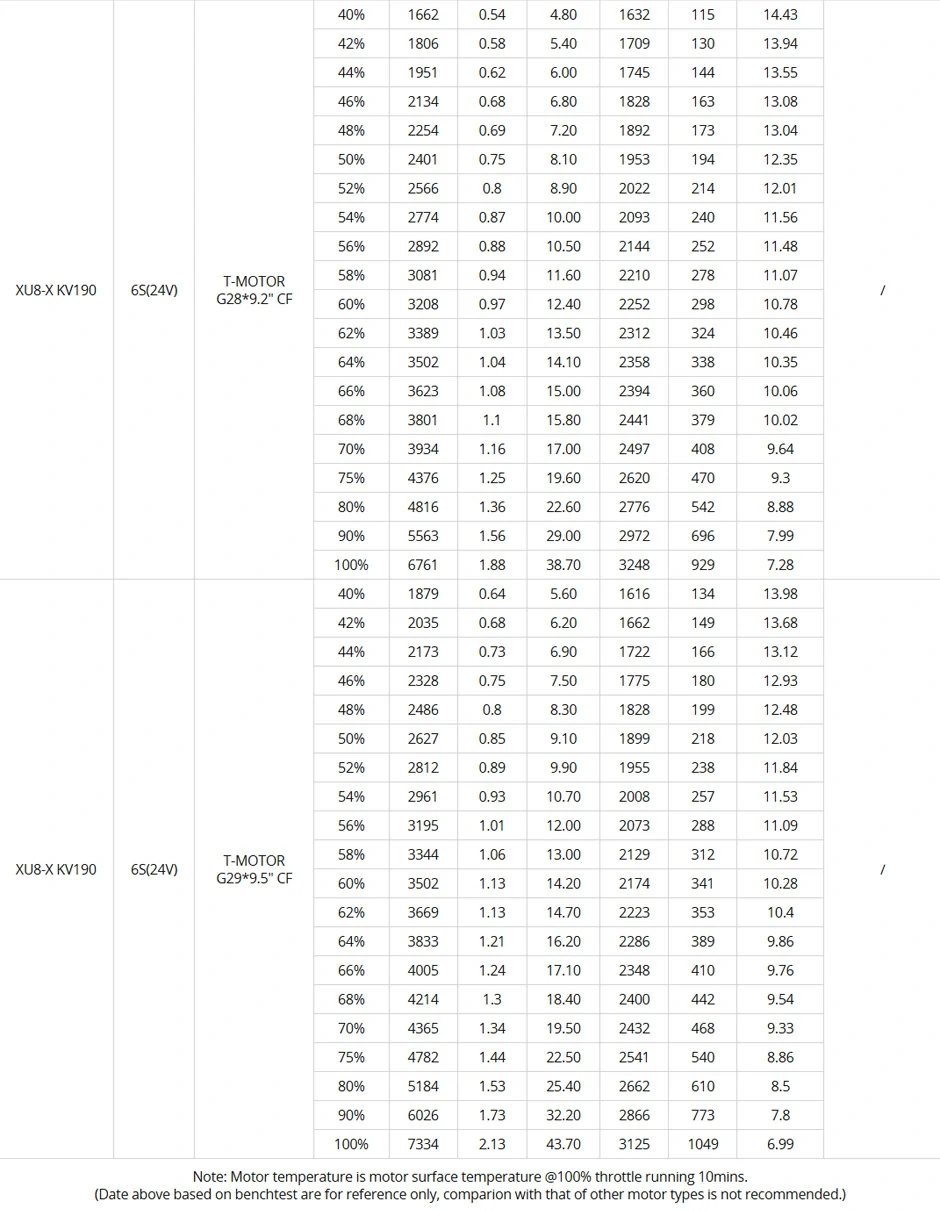

XU8-X KV190 6S(24V) T-MOTOR
G28*9.2” CF		 40% 1662 0.54 4.80 1632 115 14.43 /
42% 1806 0.58 5.40 1709 130 13.94
44% 1951 0.62 6.00 1745 144 13.55
46% 2134 0.68 6.80 1828 163 13.08
48% 2254 0.69 7.20 1892 173 13.04
50% 2401 0.75 8.10 1953 194 12.35
52% 2566 0.8 8.90 2022 214 12.01
54% 2774 0.87 10.00 2093 240 11.56
56% 2892 0.88 10.50 2144 252 11.48
58% 3081 0.94 11.60 2210 278 11.07
60% 3208 0.97 12.40 2252 298 10.78
62% 3389 1.03 13.50 2312 324 10.46
64% 3502 1.04 14.10 2358 338 10.35
66% 3623 1.08 15.00 2394 360 10.06
68% 3801 1.1 15.80 2441 379 10.02
70% 3934 1.16 17.00 2497 408 9.64
75% 4376 1.25 19.60 2620 470 9.3
80% 4816 1.36 22.60 2776 542 8.88
90% 5563 1.56 29.00 2972 696 7.99
100% 6761 1.88 38.70 3248 929 7.28
XU8-X KV190 6S(24V) T-MOTOR
G29*9.5” CF		 40% 1879 0.64 5.60 1616 134 13.98 /
42% 2035 0.68 6.20 1662 149 13.68
44% 2173 0.73 6.90 1722 166 13.12
46% 2328 0.75 7.50 1775 180 12.93
48% 2486 0.8 8.30 1828 199 12.48
50% 2627 0.85 9.10 1899 218 12.03
52% 2812 0.89 9.90 1955 238 11.84
54% 2961 0.93 10.70 2008 257 11.53
56% 3195 1.01 12.00 2073 288 11.09
58% 3344 1.06 13.00 2129 312 10.72
60% 3502 1.13 14.20 2174 341 10.28
62% 3669 1.13 14.70 2223 353 10.4
64% 3833 1.21 16.20 2286 389 9.86
66% 4005 1.24 17.10 2348 410 9.76
68% 4214 1.3 18.40 2400 442 9.54
70% 4365 1.34 19.50 2432 468 9.33
75% 4782 1.44 22.50 2541 540 8.86
80% 5184 1.53 25.40 2662 610 8.5
90% 6026 1.73 32.20 2866 773 7.8
100% 7334 2.13 43.70 3125 1049 6.99
Note: Motor temperature is motor surface temperature @100% throttle running 10mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
