Product Overview

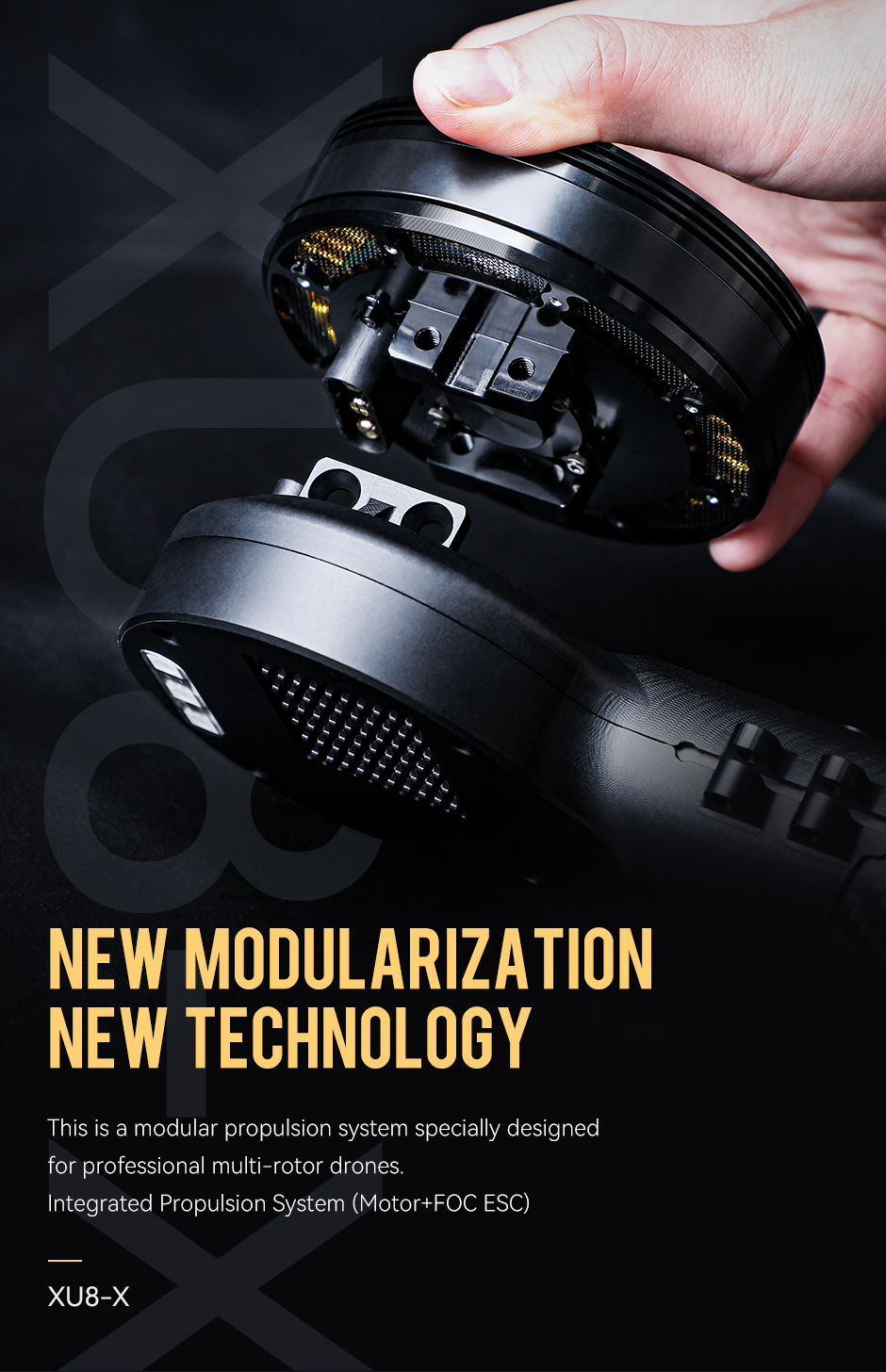

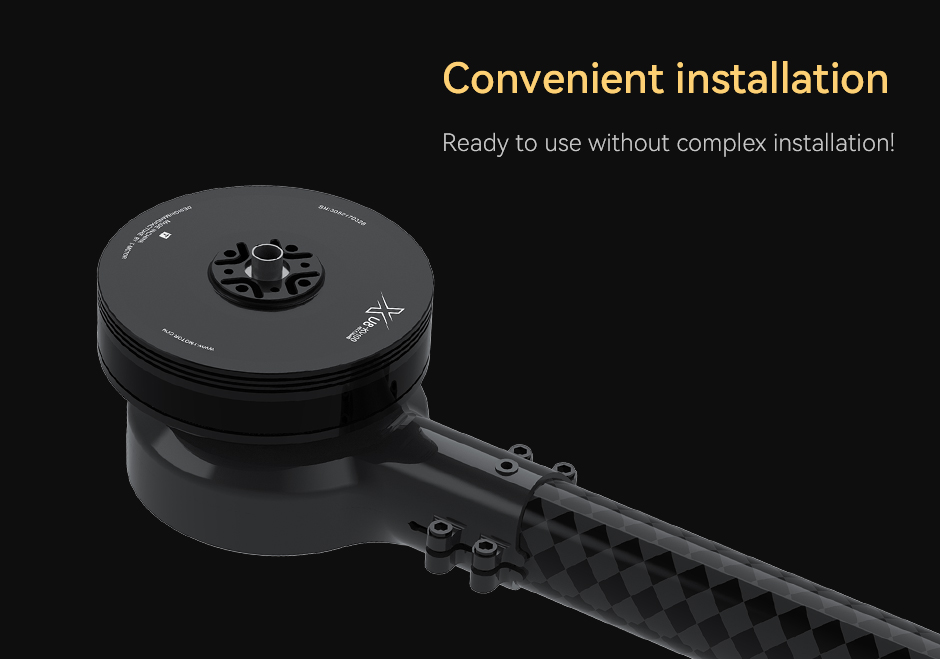

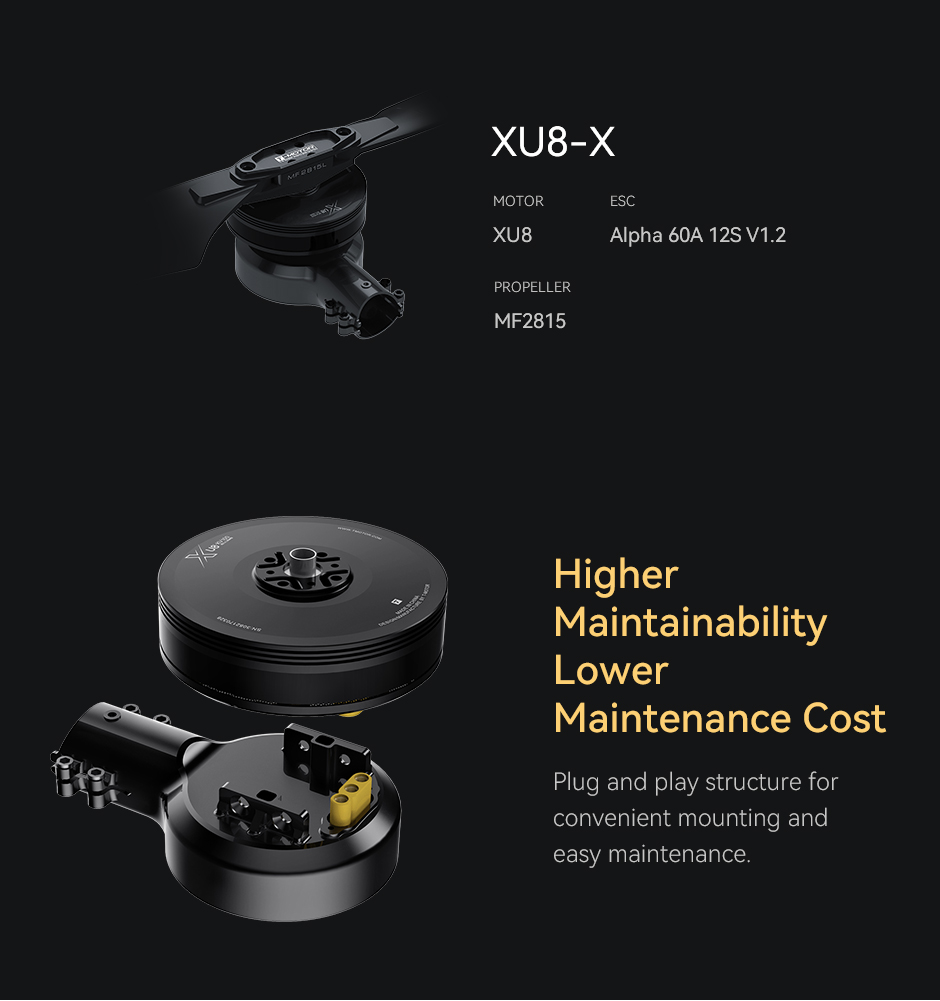

XU8-X Integrated Drone Arm: Modular UAV Propulsion System for Effortless Maintenance

The T-MOTOR XU8-X integrated motor system redefines UAV efficiency with its plug-and-play modular design. Featuring a tool-free, detachable motor and FOC ESC connection, this modular drone propulsion system slashes maintenance costs and downtime, ideal for commercial UAV fleets and industrial applications.

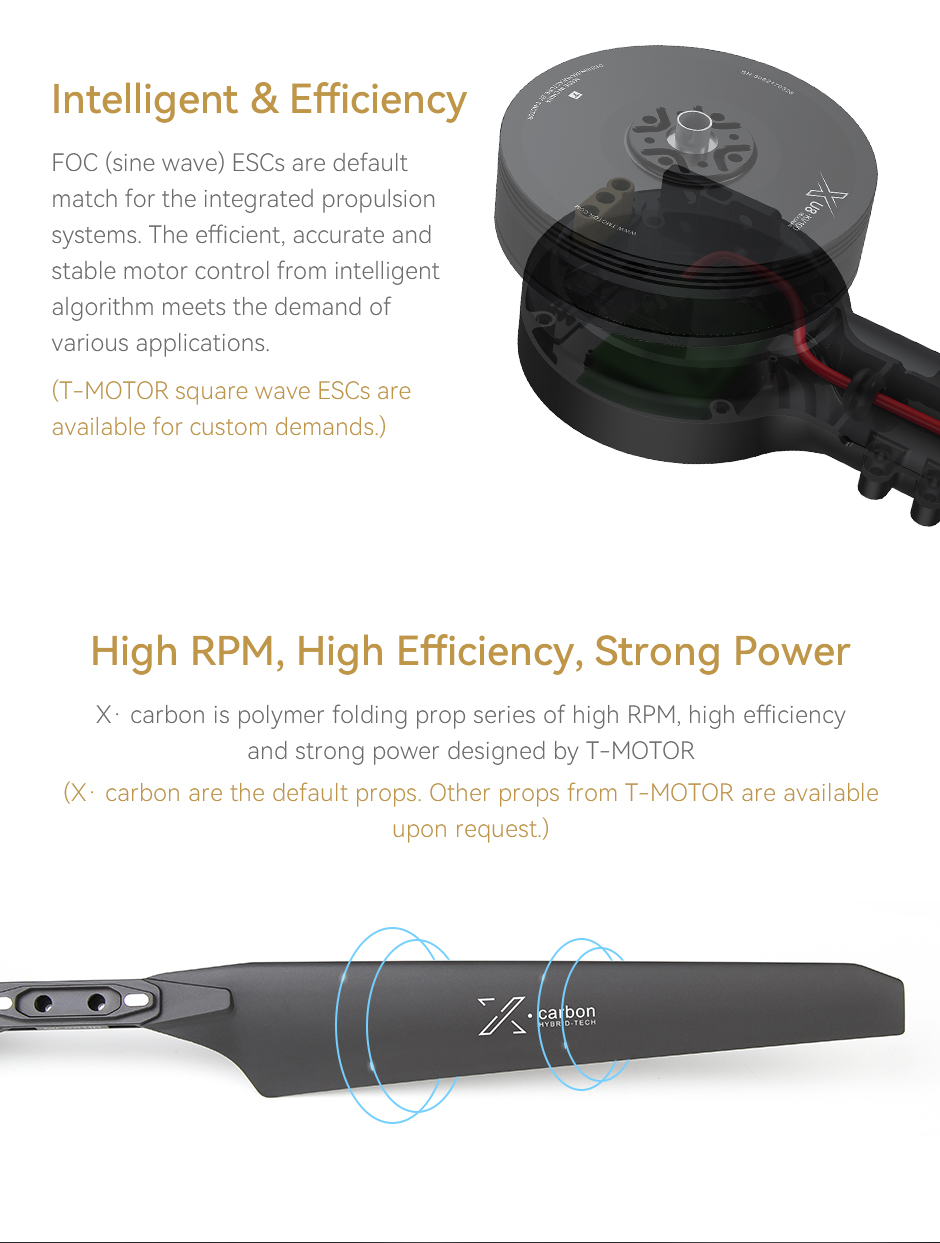

FOC ESC Technology: Precision Control for Smooth Drone Performance

Experience unmatched efficiency with the XU8-X FOC ESC (Field-Oriented Control). Engineered for minimal heat and noise, this sine-wave electronic speed controller outperforms traditional square-wave ESCs, ensuring smoother operation for aerial photography, surveying, and heavy-lift drones.

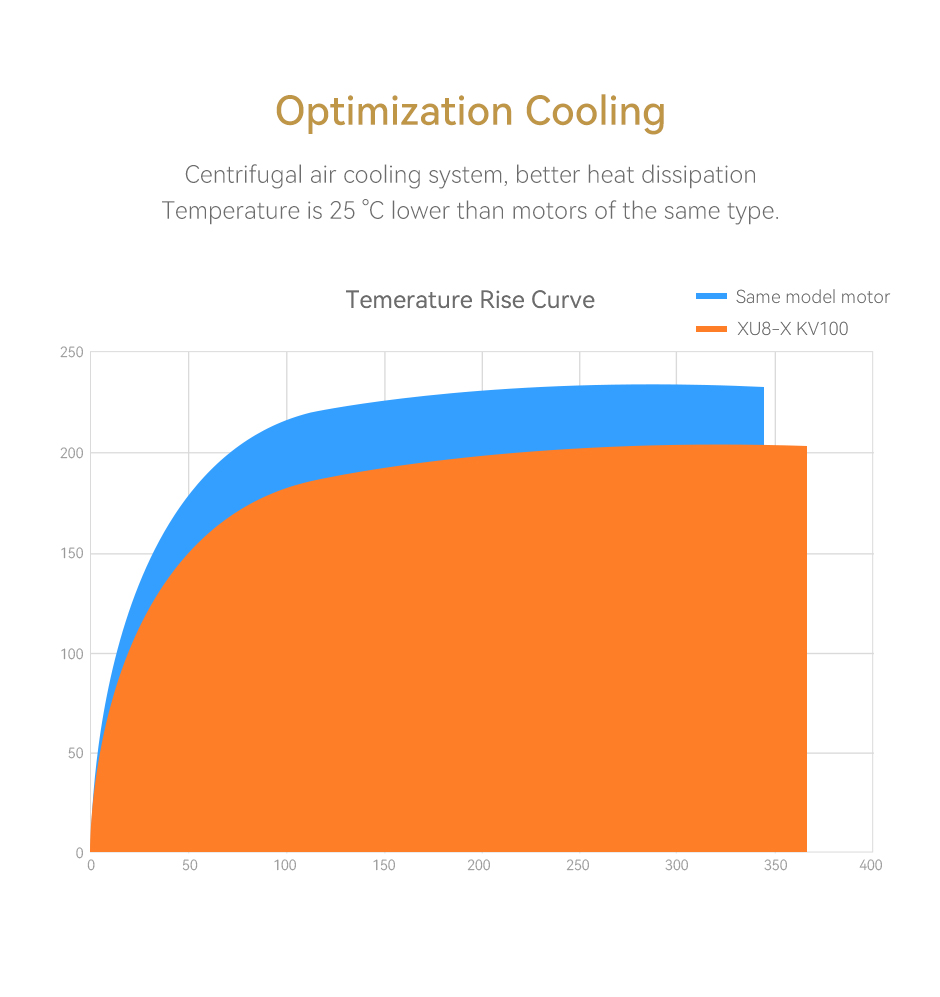

Centrifugal Cooling System: 25°C Cooler Than Competing Motors

The XU8-X centrifugal cooling system sets a new standard in thermal management. With a 25°C temperature reduction compared to conventional motors, this innovation extends lifespan and reliability—perfect for prolonged agricultural spraying or surveillance missions.

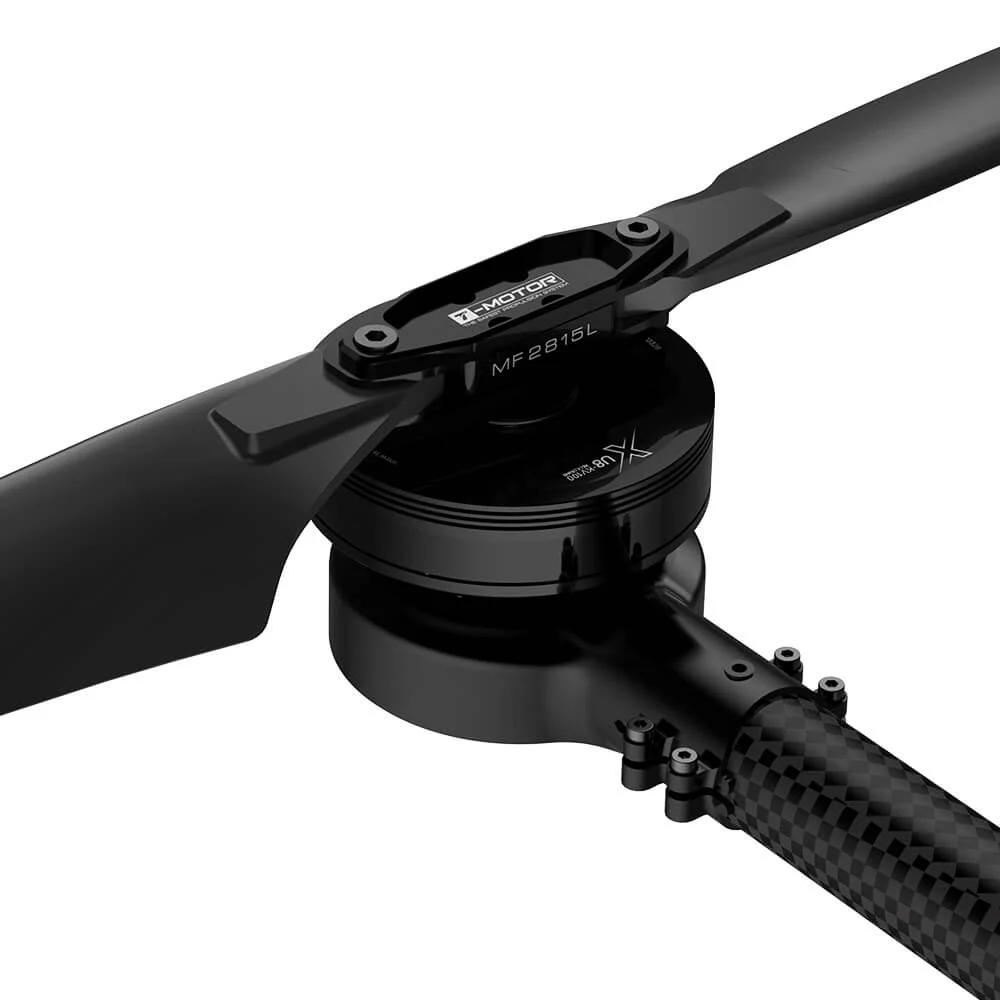

High-Thrust Polymer Folding Props: Optimized for MF2815 Compatibility

Unlock maximum thrust with the XU8-X high-RPM polymer folding propellers. Designed for MF2815 propeller compatibility, these lightweight, durable blades deliver industry-leading lift-to-weight ratios. Swap effortlessly with same-size alternatives for specialized UAV workflows. Of course, you can also customize it with our G28*9.2-inch glossy one-piece carbon fiber propeller.

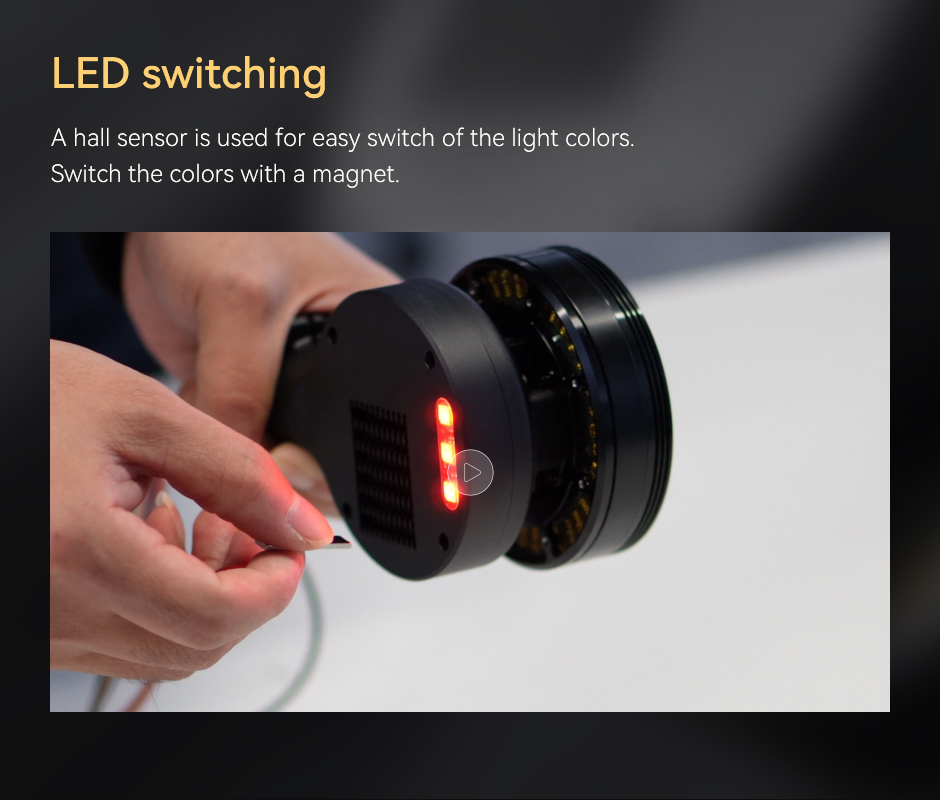

Smart LED & Hall Sensor Integration: Customizable Drone Feedback

Improve Operational Visibility with Hall Sensors and LED Systems on the XU8-X Arm. Magnet-triggered color-switching LEDs provide real-time status updates, while Hall sensor precision ensures flawless motor synchronization for cinematography or inspection drones.

KV85-KV190 Motor Options: 6S/12S Voltage Flexibility

Tailor your drone’s power with XU8-X KV85, KV100, KV150, or KV190 motor variants. Paired with ALPHA 60A 6S or ALPHA 60A 12S voltage configurations, this drone arm adapts to payload demands—from lightweight delivery drones to heavy-lift industrial UAVs.

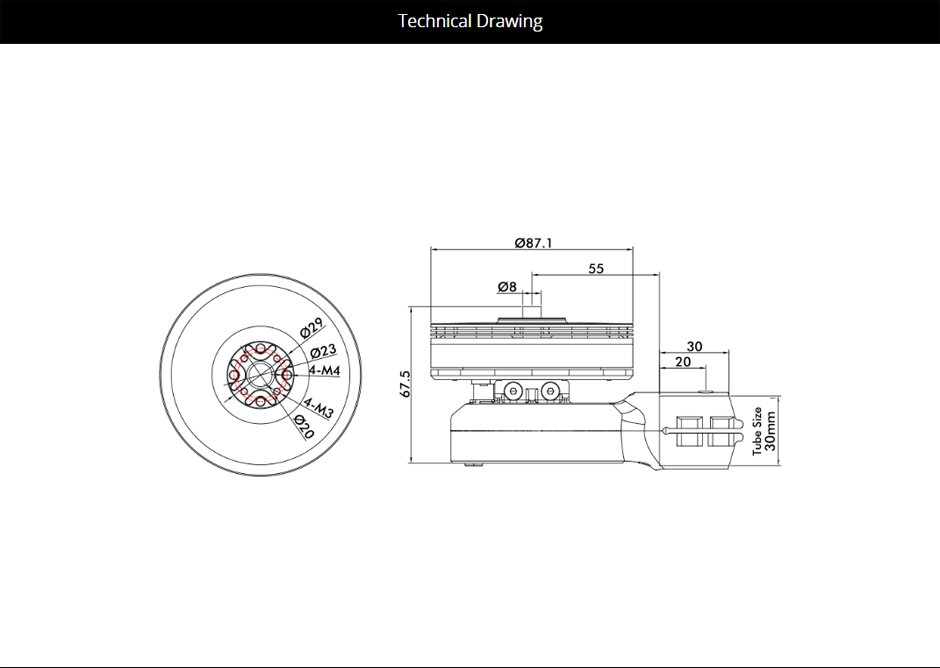

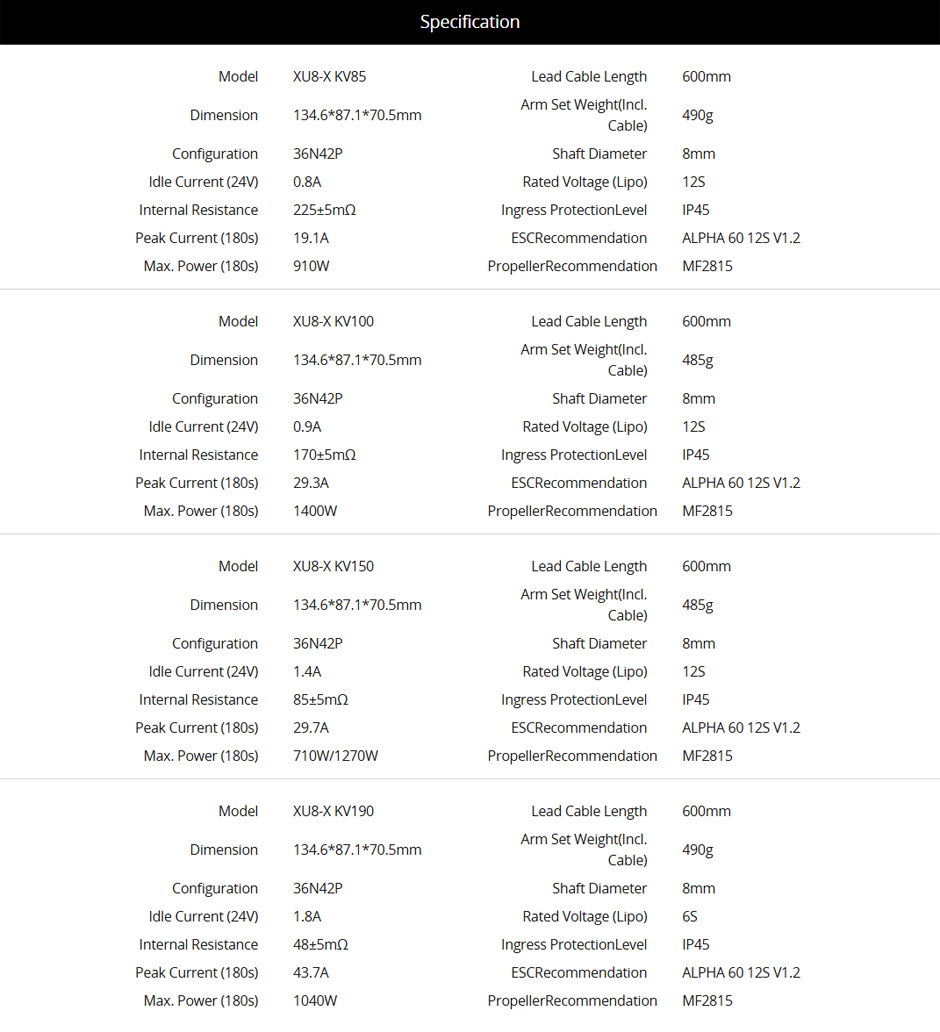

Technical Specifications: Lightweight Arm Design for Agile Drones

Arm Dimensions: 134.6 x 87.1 x 70.5 mm (compact, aerodynamic profile)
Weight: 490g (arm + wires)
8mm Motor Shaft: High strength and durable construction
600mm Exposed Wires: Simplified integration with multirotor frames

Why Choose the T-MOTOR XU8-X Integrated Drone Arm?

From FOC ESC efficiency to modular maintenance, the XU8-X is built for professionals. Reduce costs, boost thrust, and future-proof your fleet with plug-and-play drone upgrades—available in pairs for balanced performance.
