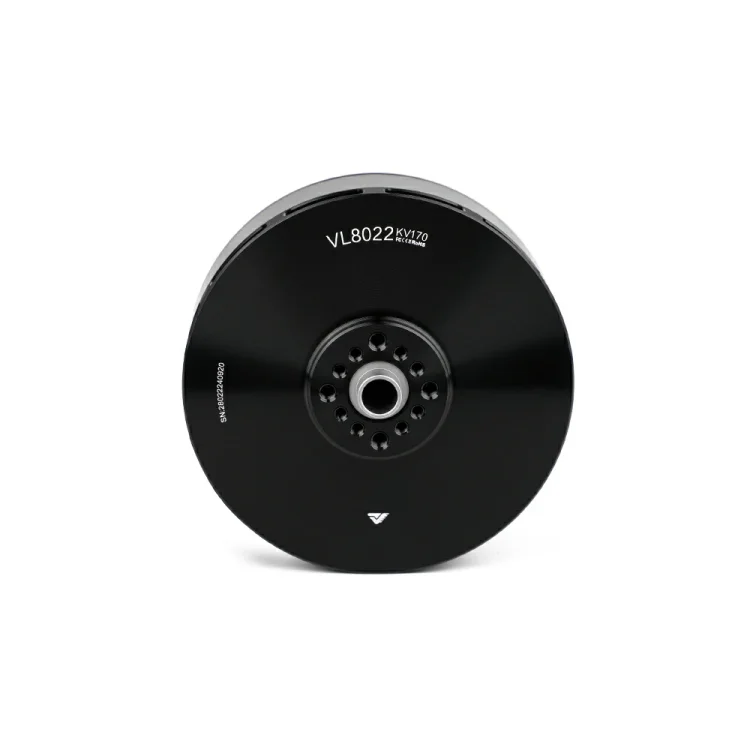

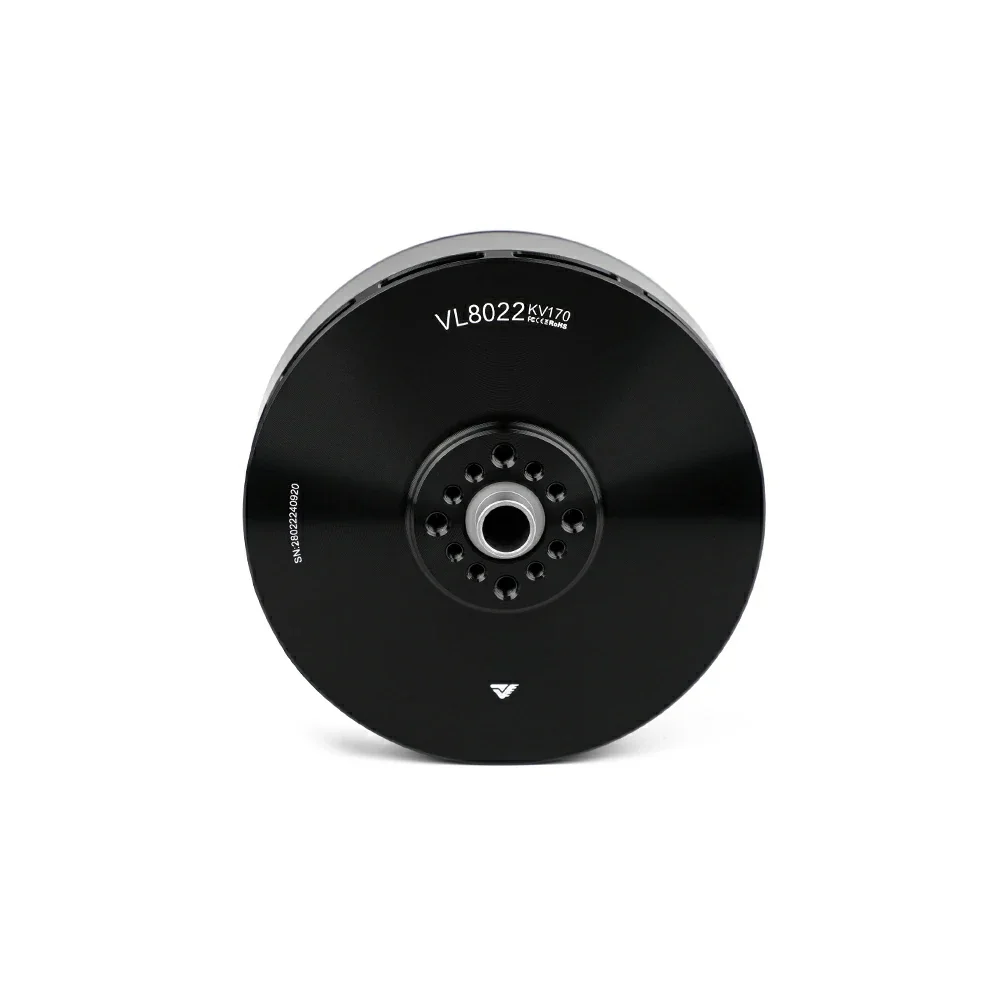

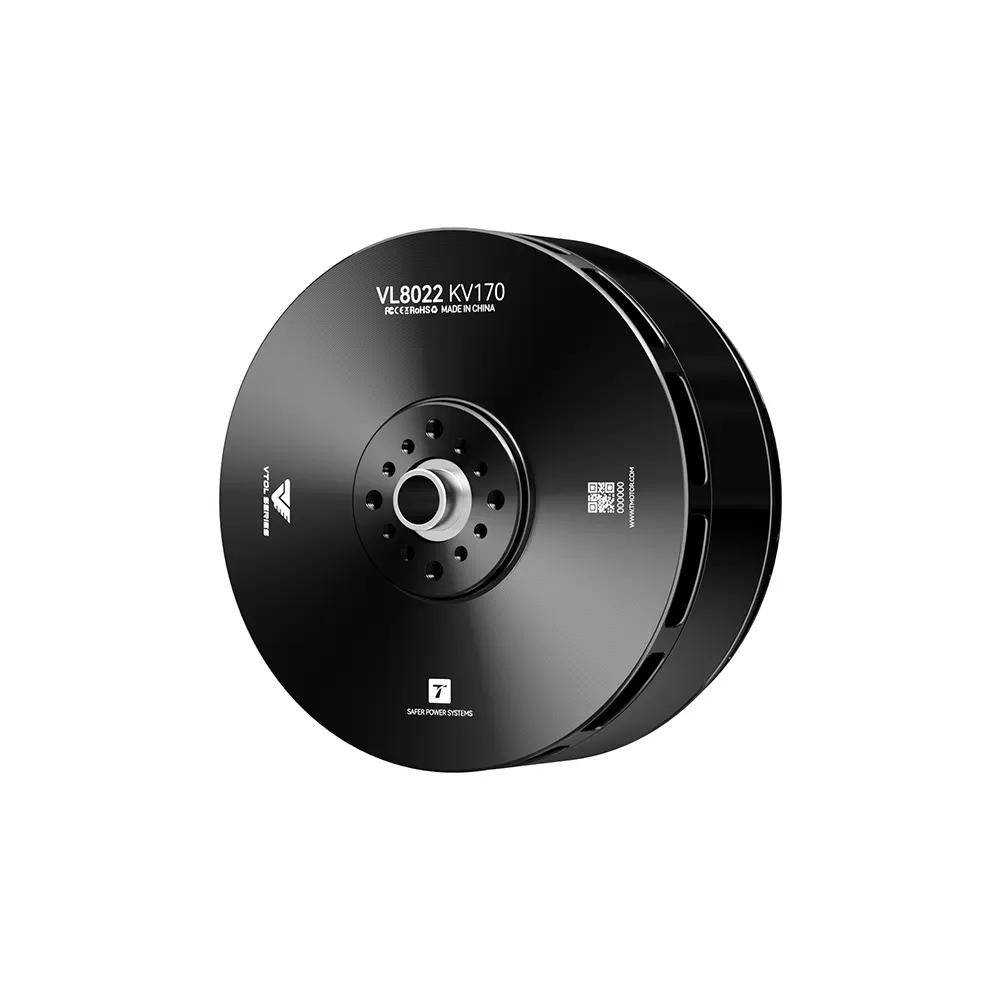

T-MOTOR VL8022 Heavy-Lift VTOL Drone Motor

The VL8022 is a Large Drone Motor designed for VTOL and multirotor UAV platforms. Optimized for 12S power systems, it delivers up to 22.2kg of thrust per axis, providing stable and efficient power for industrial aerial applications, mapping missions, and medium payload transport.

VL8022 Motor Highlights

  • 360° Electronic Propeller Locking System: Works with compatible ESCs to lock propellers during cruise flight, reducing drag and improving aerodynamic efficiency.
  • Performance & Application Range: Delivers up to 22.2kg thrust per motor on 12S systems, suitable for 40kg MTOW (quadrotor UAV).
  • High-Temperature Resistance Design: Built with 180°C magnets, 220°C enameled wire, and 150°C stator coating for stable operation under continuous load.
  • Thermal Management System: Integrated centrifugal cooling design improves airflow and reduces temperature rise during sustained operation.
  • High-Precision Structure: ≤10mg dynamic balance standard with imported 6901 bearings ensures smooth rotation and low vibration.
  • IPX5 Protection Rating: Provides resistance against rain, snow, and humidity for reliable outdoor performance.

Recommended Solution

VL8022 VTOL Propulsion Kit

Includes motor, V150A ESC, and VZ29×11 propeller, providing a fully matched propulsion system optimized for medium-lift VTOL UAV platforms with stable performance, efficiency, and reliability.

T-MOTOR VL8022 VTOL drone motorT-MOTOR VL8022 VTOL motor propeller locking: fast and economicalT-MOTOR VL8022 VTOL motor 360° custom propeller lockingT-MOTOR VL8022 VTOL drone motor for 40kg UAV (quad)T-MOTOR VL8022 VTOL drone motor technical drawing and mounting dimensionsT-MOTOR V150A ESC technical drawingT-MOTOR VZ29×11 propeller technical drawingT-MOTOR VL8022 KV170 drone motor specificationT-MOTOR V150A drone motor specificationT-MOTOR VL8022 KV170 drone motor test reportT-MOTOR VL8022 KV170 drone motor test reportT-MOTOR VL8022 VTOL drone motor packing list
