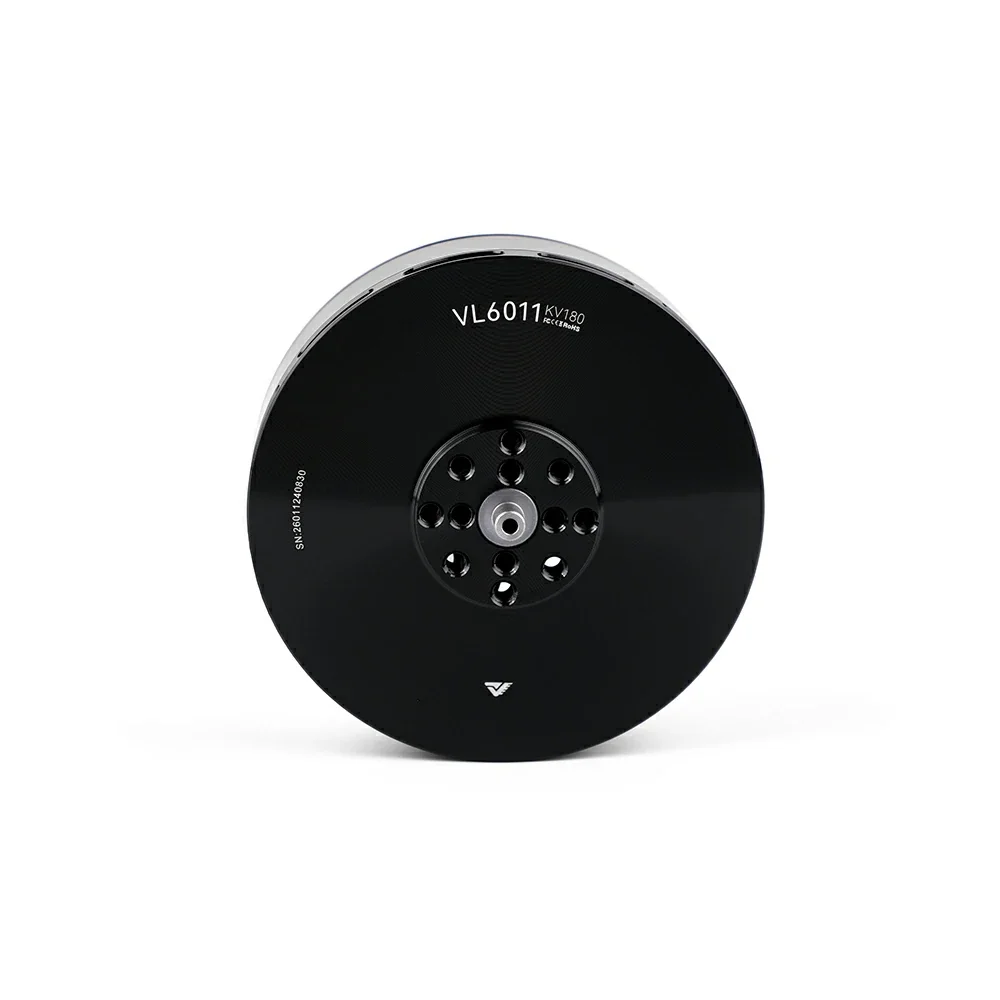

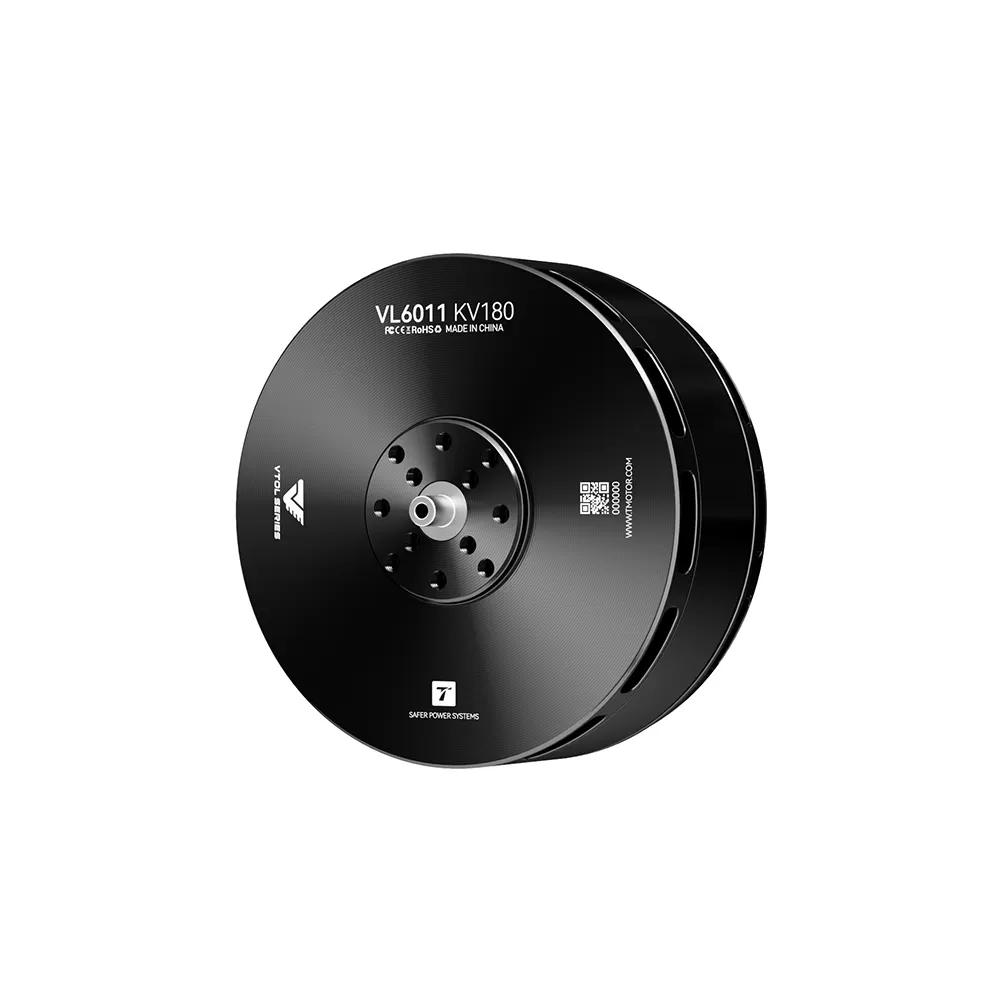

T-MOTOR VL6011 KV180 VTOL Drone Motor

The VL6011 is a high-performance VTOL drone motor designed for light-lift VTOL UAV platforms. Optimized for 12S power systems, it delivers up to 10.1kg of thrust per axis, providing stable and efficient propulsion for lightweight industrial drones, mapping missions, and short-endurance aerial applications.

Core Technical Highlights

360° Electronic Propeller Locking System: Works with compatible ESCs to enable electronic propeller locking during cruise flight, reducing aerodynamic drag and improving flight efficiency.
Light-Lift Performance Stability: elivers up to 10.5kg thrust per motor on 12S systems, suitable for 15–18kg MTOW quadrotor UAV platforms.
High-Temperature Resistance Design: Built with 180°C magnets, 220°C copper wire, and 150°C stator coating for stable operation under continuous load.
Thermal Management System: Integrated centrifugal cooling design improves airflow and reduces temperature rise during sustained operation.
High-Precision Structure: ≤10mg dynamic balance standard with imported 696 bearings ensures smooth rotation and low vibration.
IPX5 Protection Rating: Provides resistance against rain, snow, and humidity for reliable outdoor performance.
