T-MOTOR VL1040 VTOL Propulsion Kit Overview

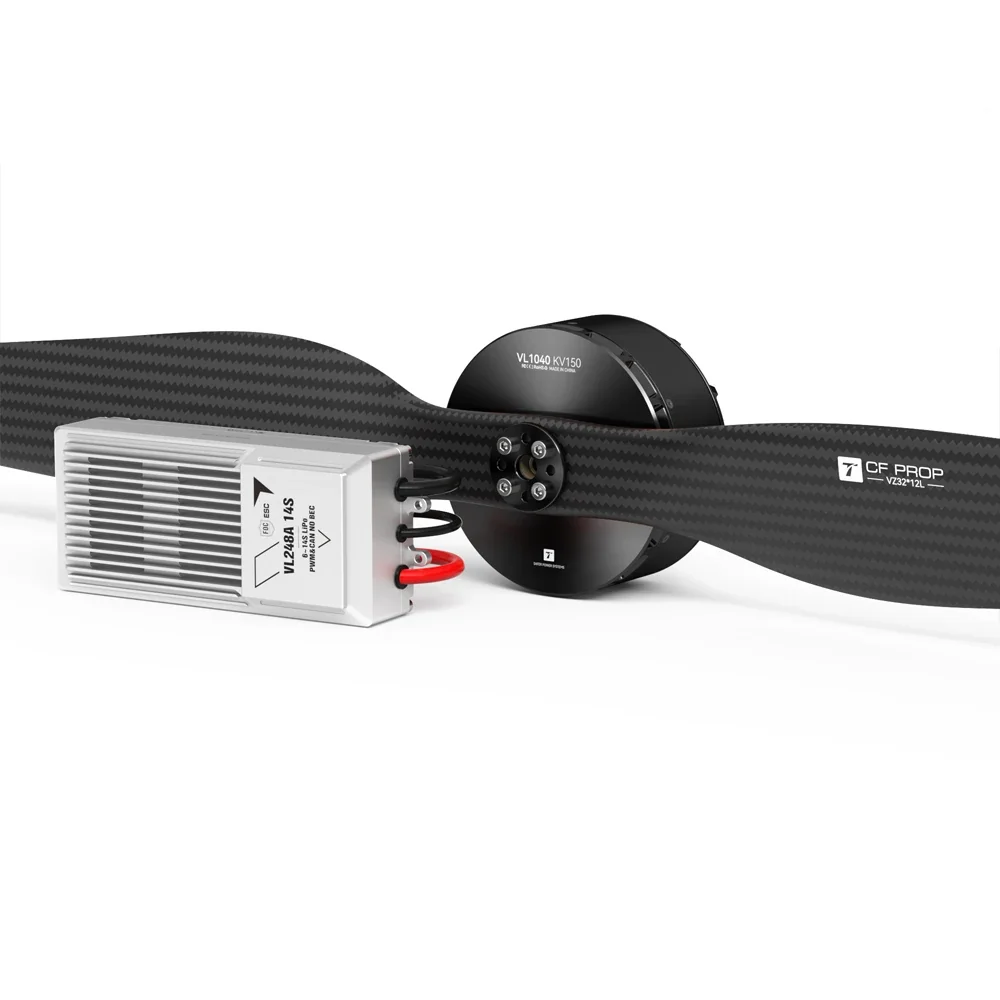

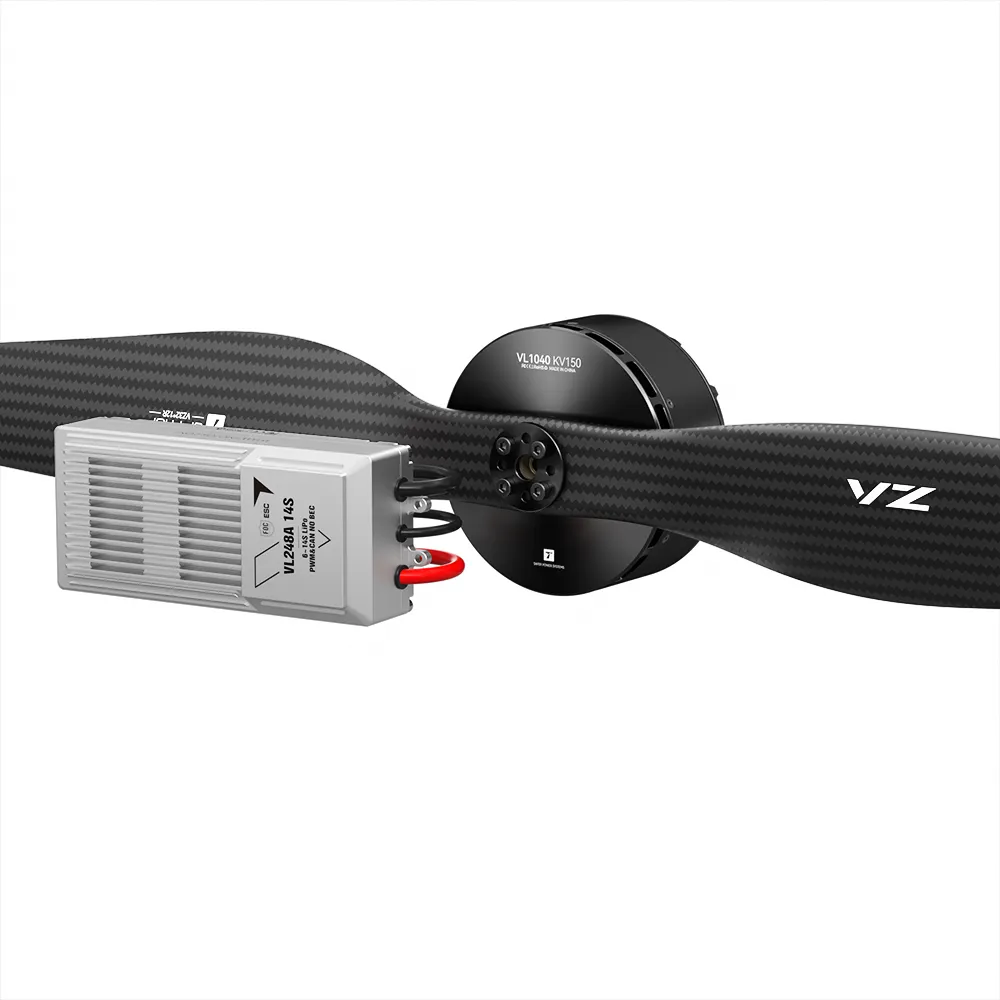

T-MOTOR VL1040 VTOL propulsion kit delivers 45.7 kg max thrust per arm and supports 65–70 kg MTOW, providing strong lift performance for industrial VTOL drones. The system integrates a high-efficiency KV150 high-power motor, VL248A 14S ESC, and VZ32 propeller for stable, reliable operation.

Why Choose the VL1040 VTOL Propulsion Kit

  • KV150 high-power motor: 200°C high-temp wire, 2900 W continuous power, excellent thermal stability.
  • Efficient ESC: Precise control and optimized current management for takeoff and cruise.
  • Optimized propeller: Lightweight VZ32*12 blades tuned for lift efficiency and aerodynamic stability.

Smart Propeller Locking System

360° adaptive locking reduces airflow disturbance while intelligent torque control lowers power consumption and heat, ensuring stable and efficient VTOL operation.

Durable & Safe

  • IP45 dustproof design with enhanced motor protection.
  • Real-time temperature monitoring ensures stable operation under high load.

VL1040 VTOL drone propulsion systemVL1040 VTOL propulsion system with fast and economical propeller lockingVL1040 VTOL propulsion system with 360° custom angle propeller lockingVL1040 VTOL drone propulsion system, IP45 dustproof mesh designVL1040 VTOL propulsion system featuring real-time temperature monitoringVL1040 VTOL propulsion system for 65~70kg recommended mtow quad

T-MOTOR VL1040 VTOL motor technical drawing and mounting dimensionsT-MOTOR VL1040 VTOL propulsion system VL248A 14S ESC dimensions and technical drawingT-MOTOR VL1040 VTOL propulsion system VZ32×12 propeller technical drawingT-MOTOR VL1040 VTOL propulsion system motor specificationT-MOTOR VL1040 VTOL propulsion system ESC and propeller specifications

Test Data
Type Voltage
(V)		 Throttle Thrust
(gf)		 Torque
(N·m)		 Current
(A)		 RPM Power
(W)		 Effciency
(gf/W)		 Operating
Temperature
(℃)
VL1040 KV150
+
VL248A 14S
+
VZ32*12		 50 30% 5657 2.24 13.48 2224 675 8.38 109
(Ambient
Temperature: 25)
35% 7465 2.93 19.65 2538 983 7.59
40% 9692 3.72 27.38 2846 1371 7.07
45% 12071 4.60 36.69 3144 1836 6.58
50% 14472 5.52 47.33 3434 2368 6.11
55% 17124 6.52 60.29 3714 3016 5.68
60% 19707 7.50 74.87 3983 3743 5.26
65% 22575 8.60 91.76 4229 4585 4.92
70% 25339 9.66 109.63 4462 5474 4.63
75% 27992 10.70 128.91 4689 6434 4.35
80% 30733 11.79 149.32 4892 7453 4.12
85% 33050 12.71 170.75 5063 8512 3.88
90% 35945 13.82 193.73 5242 9648 3.73
95% 38226 14.78 215.32 5389 10722 3.57
100% 39300 15.20 227.43 5471 11329 3.47
VL1040 KV150
+
VL248A 14S
+
VZ32*12		 60 30% 8657 3.30 19.19 2665 1152 7.51 /
35% 11358 4.30 27.91 3033 1675 6.78
40% 14346 5.42 38.73 3388 2323 6.17
45% 17588 6.66 52.05 3732 3123 5.63
50% 20928 7.93 67.47 4058 4049 5.17
55% 24299 9.25 85.27 4363 5111 4.75
60% 27874 10.65 105.49 4643 6319 4.41
65% 31269 11.96 126.71 4904 7587 4.12
70% 34527 13.26 149.26 5141 8935 3.86
75% 37718 14.52 172.21 5347 10302 3.66
80% 40561 15.69 195.86 5524 11710 3.46
85% 42800 16.64 216.43 5660 12932 3.31
90% 45022 17.57 235.15 5778 14057 3.20
100% 45797 17.84 245.86 5812 14695 3.12
Note: The motor temperature refers to the coil temperature after 10 minutes of operation under a 50V voltage and 20kg load.
（Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）
