Description

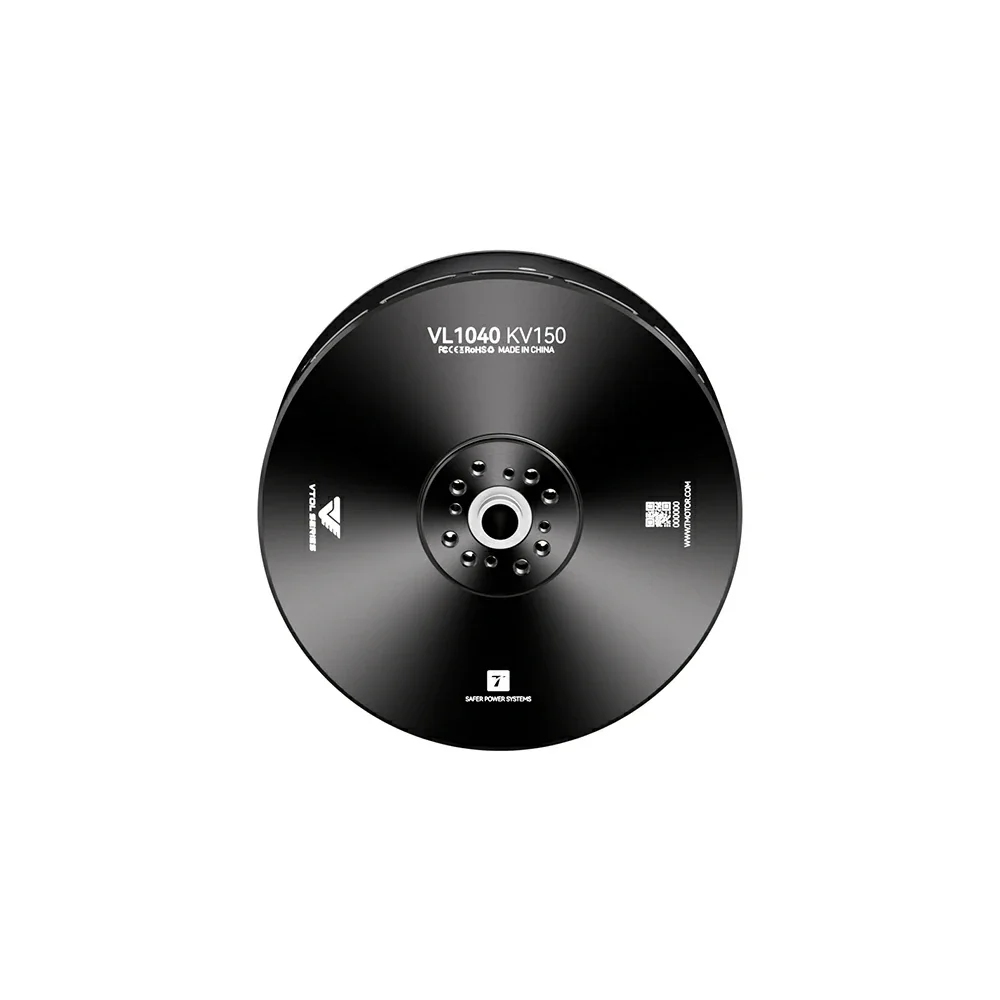

T-MOTOR VL1040 Heavy Lift VTOL Brushless Drone Motor

T-MOTOR VL1040 is a High-Power brushless drone motor designed for heavy-lift VTOL and hybrid wing UAV platforms. Optimized for 14S power systems, it delivers up to 45.7kg static thrust per axis, providing robust and stable power support for ultra-heavy payload transport, long-endurance missions, and high-reliability industrial operations.

VL1040 Brushless Motor Highlights

360° Electronic Propeller Locking System: Works with compatible ESCs to lock propellers during cruise flight, lowering drag and improving aerodynamic efficiency.

Ultra Heavy-Lift Performance Stability: Delivers up to 45.7kg thrust per motor on 14S systems, suitable for 65–70kg class quadrotor and hybrid-wing VTOL UAV platforms.

High-Voltage Power System Design: Optimized for 14S high-voltage operation with 1000V insulation rating for stable performance under extreme electrical load.

High-Temperature Resistance Design: Built with 200°C enameled wire and 150°C stator coating to ensure stable operation under high thermal stress.

Precision Mechanical Structure: Features ≤20mg dynamic balance standard and imported 6001 bearings for smooth operation and reduced vibration.

IPX5 Protection Rating: Provides resistance against rain, snow, and moisture for reliable outdoor and industrial applications.
