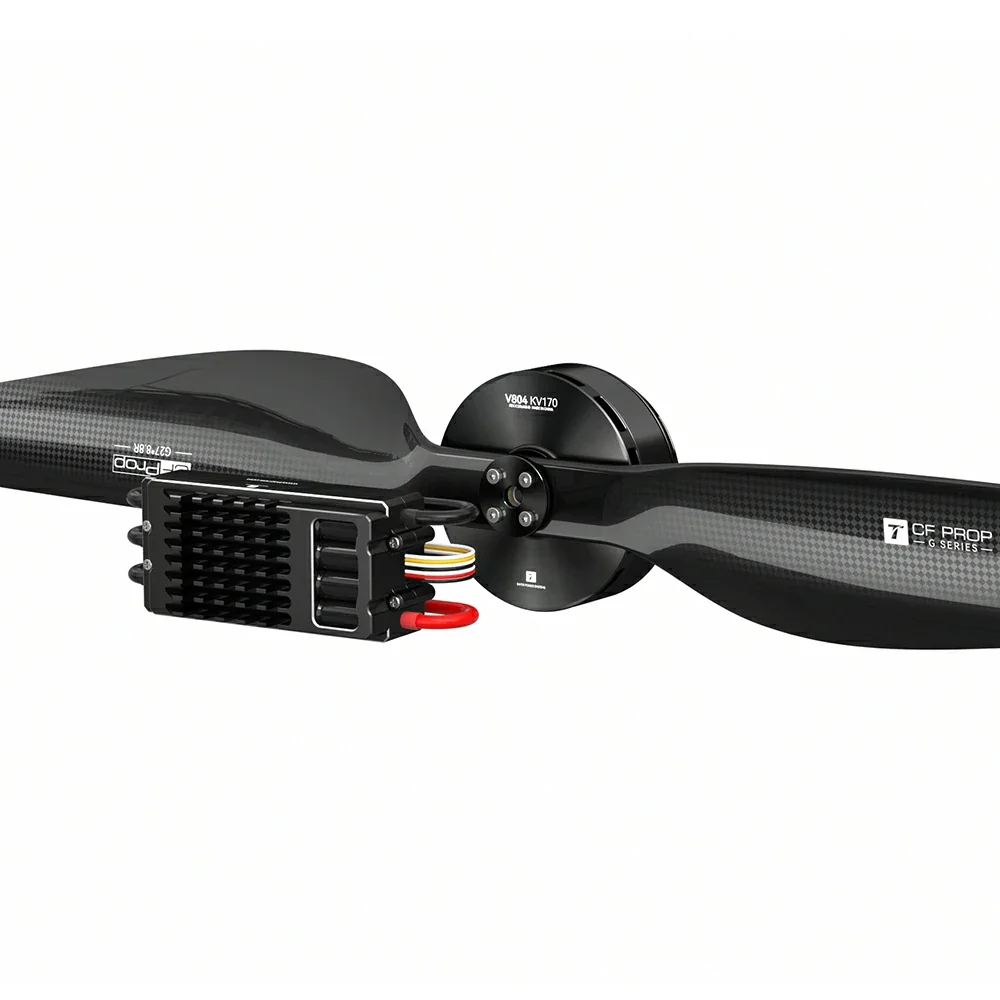

T-MOTOR V804 VTOL Propulsion System – 17kg Max Thrust

The T-MOTOR V804 propulsion kit delivers up to 17kg of maximum thrust, providing strong overload capability, excellent load-to-weight ratio, and stable performance for heavy-lift VTOL drones. Its heat-optimized motor design and efficient cooling system ensure reliable power even in demanding environments.

Key Features

  • High Thrust Output: 17kg max thrust with strong environmental adaptability and power margin.
  • Thermal-Optimized Motor Design: High-temperature–resistant enamelled wire and curved magnets enhance passive heat resistance.
  • Enhanced Cooling: Built-in centrifugal fan improves active heat dissipation for stable long-duration performance.
  • FLAME 180A 12S V2.0 ESC: 180A continuous / 200A peak (10s), efficient heat dissipation, and safeguards including overload, stall, and signal-loss protection.
  • G28×9.2 Glossy Propellers: Gloss-finish carbon fiber propeller engineered for high efficiency under heavy payloads, delivering both strength and performance.

Complete Propulsion Kit Includes:

For UAVs requiring higher thrust requirements, consider the T-MOTOR V807 VTOL Propulsion System, which delivers 21kg max thrust.

V804 motor for V804 VTOL drone propulsion systemV804 VTOL propulsion system maximum thrust 17 kgV804 propulsion system with efficient heat dissipationV804 motor VTOL composite wing solution recommendation

V804 VTOL propulsion system motor technical drawingV804 VTOL propulsion system ESC technical drawingV804 VTOL propulsion system motor specificationsV804 VTOL propulsion system ESC and propeller specifications

Test Data
Item No. Prop Throttle Voltage
(V)		 Thrust
(g)		 Torque
(N*m)		 Current
(A)		 RPM Inputpower
(W)		 Efficiency
(g/W)		 Operating
Temperature
℃)
V804
KV170		 G26*8.5 40% 47.65 3369.87 1.01 8.39 2781 399.54 8.43 107℃

(Ambient

Temperature:

35℃)
45% 47.58 4165.79 1.24 11.18 3082 531.83 7.83
50% 47.49 5211.17 1.55 15.58 3441 739.95 7.04
55% 47.38 6252.56 1.85 20.45 3773 968.79 6.45
60% 47.29 7303.10 2.16 25.66 4066 1213.43 6.02
65% 47.12 8648.58 2.57 33.94 4439 1599.33 5.41
70% 47.00 9816.86 2.90 40.59 4699 1907.78 5.15
75% 46.82 10991.48 3.26 48.58 4957 2274.76 4.83
80% 46.69 11987.70 3.57 55.69 5188 2600.20 4.61
90% 46.37 14023.32 4.18 72.01 5583 3338.89 4.20
100% 46.00 16015.50 4.80 90.16 5928 4147.46 3.86
G27*8.8 40% 47.63 3853.06 1.21 9.76 2733 464.80 8.29 112℃

(Ambient

Temperature:

35℃)
45% 47.55 4773.38 1.49 12.97 3023 616.58 7.74
50% 47.46 5951.92 1.85 18.39 3366 872.92 6.82
55% 47.30 7193.36 2.23 24.39 3683 1153.88 6.23
60% 47.19 8385.79 2.59 30.39 3964 1434.03 5.85
65% 47.07 9515.57 2.95 37.07 4213 1744.98 5.45
70% 46.86 11051.81 3.43 47.89 4532 2244.26 4.92
75% 46.70 12222.21 3.79 56.23 4753 2625.68 4.66
80% 46.51 13294.33 4.13 64.97 4948 3022.21 4.40
90% 46.11 15476.38 4.80 84.33 5261 3888.62 3.98
100% 45.68 17271.50 5.39 105.89 5546 4837.44 3.57
G28*9.2 40% 47.62 4152.97 1.29 10.63 2675 506.07 8.21 HOT
45% 47.54 5118.47 1.58 14.14 2961 672.04 7.62
50% 47.39 6342.50 1.96 20.07 3298 951.19 6.67
55% 47.28 7635.81 2.35 26.64 3610 1259.78 6.06
60% 47.14 8907.64 2.73 33.45 3881 1576.89 5.65
65% 47.02 10052.39 3.09 39.85 4104 1873.54 5.37
70% 46.74 11746.82 3.59 52.73 4418 2464.81 4.77
75% 46.59 12851.29 3.93 61.57 4624 2868.36 4.48
80% 46.41 13819.99 4.25 70.19 4811 3257.09 4.24
90% 46.01 15862.38 4.85 90.55 5122 4166.17 3.81
100% 45.53 17357.91 5.35 113.72 5380 5177.43 3.35
Notes：Motor temperature is the motor surface temperature aftering running at 80% for 10 mins.
(Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
