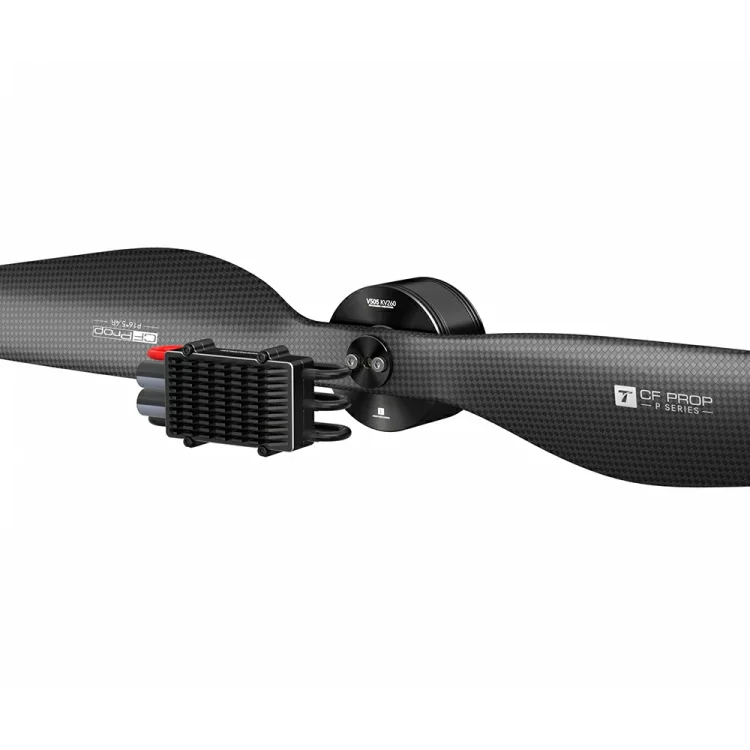

T-MOTOR V505 VTOL Propulsion System – Maximum Thrust 8.7kg

 T-MOTOR V505 VTOL Propulsion System delivers up to 8.7kg of thrust per motor, offering strong power margin and reliable performance for medium-sized VTOL UAVs. It combines excellent overload capability with stable operation in demanding environments.

Key Features:

High-Efficiency Motor Performance
The T-MOTOR V505 KV260 motor delivers strong power output, a high load-to-weight ratio, and excellent overload capability, making it ideal for VTOL UAV rotor propulsion.

FLAME 60A 12S V2.0 ESC
Features an optimized thermal design with a layered structure for efficient heat dissipation, along with multiple protections including start-up, overcurrent, overtemperature, and stall protection for enhanced reliability and safety.

Durable and Lightweight Propeller
Equipped with a P17×5.8 high-strength propeller, engineered for durability, wear resistance, and stable performance during long-duration flights.

Ideal for Professional VTOL Applications
Suitable for medium-sized VTOL UAVs, aerial inspection platforms, and other professional applications requiring stable power, long endurance, and reliable operation.

Propulsion Kit Includes:

Recommended Propeller (Sold Separately):

Note: The motor and ESC are included in the kit. The propeller is not included and must be purchased separately if needed.

V505 motor for V505 VTOL drone propulsion systemV505 motor VTOL composite wing solution recommendationV505 VTOL propulsion system maximum thrust 8700gV505 propulsion system with efficient heat dissipation

V505 VTOL propulsion system motor technical drawingV505 VTOL propulsion system ESC technical drawingV505 VTOL propulsion system motor specificationsV505 VTOL propulsion system ESC and propeller specifications

Test Data
Item No. Prop Throttle Voltage
(V)		 Thrust
(g)		 Torque
(N*m)		 Current
(A)		 RPM Inputpower
(W)		 Efficiency
(g/W)		 Operating
Temperature
(℃)

V505

KV260

T-MOTOR

P16*5.4

 40% 47.92 1892 0.31 6.13 5509 293.65 6.44 85℃

(Ambient

Temperature:

22℃)
42% 47.92 2052 0.32 6.62 5698 317.36 6.47
44% 47.90 2172 0.34 7.18 5852 344.03 6.31
46% 47.88 2350 0.37 7.92 6051 379.12 6.20
48% 47.88 2494 0.41 8.53 6221 408.61 6.10
50% 47.87 2660 0.44 9.16 6397 438.36 6.07
52% 47.85 2774 0.46 9.78 6524 468.08 5.93
54% 47.83 2893 0.49 10.37 6694 496.26 5.83
56% 47.82 3039 0.52 11.10 6872 530.63 5.73
58% 47.80 3180 0.54 11.89 7050 568.12 5.60
60% 47.78 3372 0.57 12.83 7225 613.04 5.50
62% 47.75 3574 0.60 13.86 7409 661.86 5.40
64% 47.73 3779 0.64 14.87 7598 709.85 5.32
66% 47.71 3926 0.71 15.83 7769 755.24 5.20
68% 47.69 4028 0.88 16.80 7937 801.30 5.03
70% 47.67 4246 0.87 17.91 8114 853.77 4.97
80% 47.54 5301 0.85 24.09 8953 1145.40 4.63
90% 47.38 6299 1.11 31.57 9737 1496.04 4.21
100% 47.16 7500 1.55 42.21 10606 1990.36 3.77
T-MOTOR
P17*5.8		 40% 47.89 2329 0.47 7.51 5293 359.81 6.47 107℃

(Ambient

Temperature:

22℃)
42% 47.88 2513 0.50 8.25 5463 395.07 6.36
44% 47.86 2663 0.52 8.93 5644 427.23 6.23
46% 47.84 2806 0.55 9.76 5830 466.88 6.01
48% 47.82 2979 0.59 10.64 6023 508.63 5.86
50% 47.80 3203 0.63 11.68 6202 558.10 5.74
52% 47.78 3379 0.67 12.61 6367 602.67 5.61
54% 47.77 3476 0.69 12.99 6442 620.46 5.60
56% 47.75 3677 0.74 14.12 6629 674.11 5.45
58% 47.72 3900 0.78 15.30 6816 730.18 5.34
60% 47.70 4093 0.82 16.37 6993 780.69 5.24
62% 47.67 4288 0.86 17.54 7165 836.19 5.13
64% 47.65 4502 0.90 18.81 7332 896.11 5.02
66% 47.62 4721 0.94 20.07 7500 955.79 4.94
68% 47.60 4927 0.98 21.42 7669 1019.57 4.83
70% 47.56 5149 1.02 22.88 7817 1087.99 4.73
80% 47.40 6292 1.25 30.61 8580 1451.23 4.34
90% 47.20 7349 1.47 39.85 9291 1881.00 3.91
100% 46.93 8741 1.76 52.93 10075 2483.87 3.52
Notes：Motor temperature is the motor surface temperature aftering running at 80% for 10 mins.
(Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
