T-MOTOR U15XXL KV29 100kg Thrust Motor for Heavy-Lift Drones

T-MOTOR U15XXL KV29 BLDC motor delivers up to 100kg thrust, engineered for ultra heavy-lift UAVs and manned aircraft. Operating at 24S, with 3300W rated power and 300A peak current, it ensures stable, high-efficiency performance for extreme missions such as heavy payload transport and emergency rescue.

Key Features

  • Extreme Thrust – up to 100kg for ultra heavy-lift applications
  • High Power Output – 3300 W rated power for maximum load capacity
  • Stable & Reliable – consistent performance under extreme load
  • Industrial-Grade Use – ideal for heavy payload transport and rescue missions
  • Optimized Compatibility – supports matched propulsion systems

Recommended Kit

U15XXL Manned Aircraft Kit

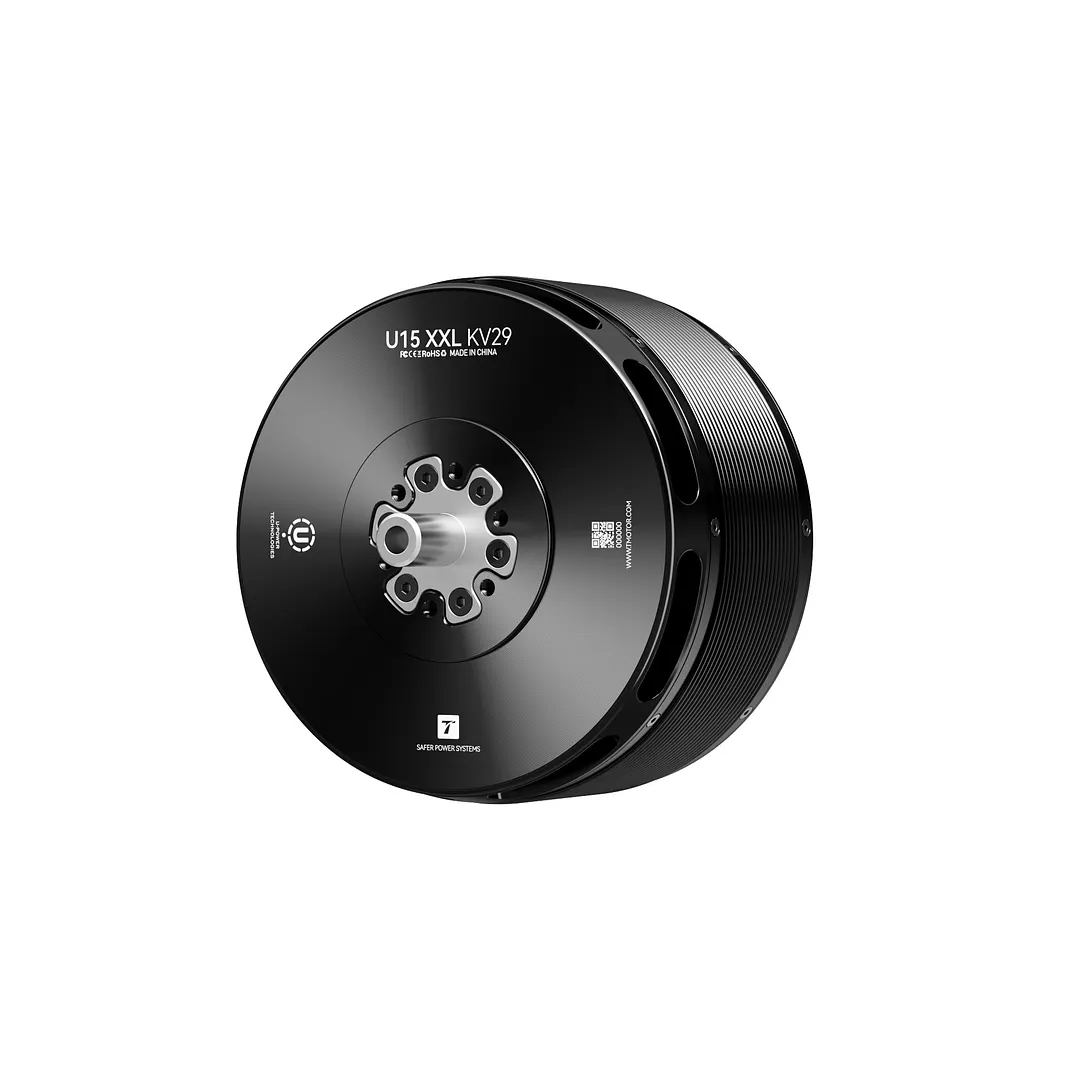

 T-MOTOR U15XXL KV29 100kg thrust motor for heavy-lift UAVs

T-MOTOR U15XXL KV29 motor product drawing

Specifications
Motor Item U15XXL KV29 Weight (Incl. Cable) 5130g
Motor Dimensions Φ151.5*106mm Internal Resistance 20mΩ
Lead Enameled Wire200mm Configuration 36N42P
Shaft Diameter 25mm Rated Voltage(LiPo) 24S
Idle Current(10V) 3.3A Peak Current(80s) 210A
Rated Power 3300W

Test Data
Type Propeller Throttle Voltage
(V)		 Thrust
(g)		 Torque
(N*m)		 Current
(A)		 RPM Power
(W)		 Efficiency
(g/W)

Operating
Temperature

(℃)

U15XXL
KV29

 57*22" 30% 99 11804 8.41 10.01 864 987 12.00 158
（Ambient

Temperature：

32℃）
35% 99 16098 11.37 14.82 1032 1461 11.00
40% 98 19557 13.84 19.31 1134 1900 10.30
45% 98 23319 16.46 24.62 1224 2425 9.60
50% 98 29643 20.92 34.43 1374 3382 8.80
55% 98 34191 24.25 42.37 1512 4160 8.20
60% 98 40059 28.46 53.44 1596 5238 7.60
65% 98 48710 34.64 71.27 1770 6962 7.00
70% 98 55823 39.87 87.08 1878 8491 6.60
75% 97 59448 42.63 96.22 1950 9377 6.30
80% 97 64474 46.35 108.79 2022 10590 6.10
85% 97 69449 50.22 122.32 2112 11875 5.80
90% 97 74318 53.78 136.07 2172 13184 5.60
95% 97 80266 58.08 153.89 2232 14890 5.40
100% 97 85493 61.72 169.42 2310 16395 5.20
Note: Temperature is motor coiling temperature at 100% throttle running 2mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

U15XXL
KV29

 62*24" 30% 99 13633 9.80 11.20 834 1104 12.30 184
（Ambient

Temperature：

32℃）
35% 98 19599 14.01 18.15 996 1787 11.00
40% 98 23521 16.94 23.37 1122 2299 10.20
45% 98 27670 20.02 29.22 1212 2876 9.60
50% 98 33170 24.10 37.94 1296 3727 8.90
55% 98 40488 29.59 50.66 1437 4971 8.10
60% 98 48312 35.40 65.63 1560 6421 7.50
65% 98 53443 39.10 75.88 1635 7414 7.20
70% 97 67606 50.04 109.04 1800 10613 6.40
75% 97 72109 53.46 119.37 1890 11591 6.20
80% 97 76707 57.09 132.01 1950 12796 6.00
85% 97 82635 61.78 148.66 2010 14390 5.70
90% 97 88756 66.85 167.53 2085 16180 5.50
95% 96 95211 72.18 188.35 2130 18153 5.20
100% 96 101449 76.97 209.09 2203 20089 5.00
Note: Temperature is motor coiling temperature at 100% throttle running 1mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
