T-MOTOR U15XXL Manned Propulsion Kit – 100kg Thrust Electric Motor for eVTOL Drones

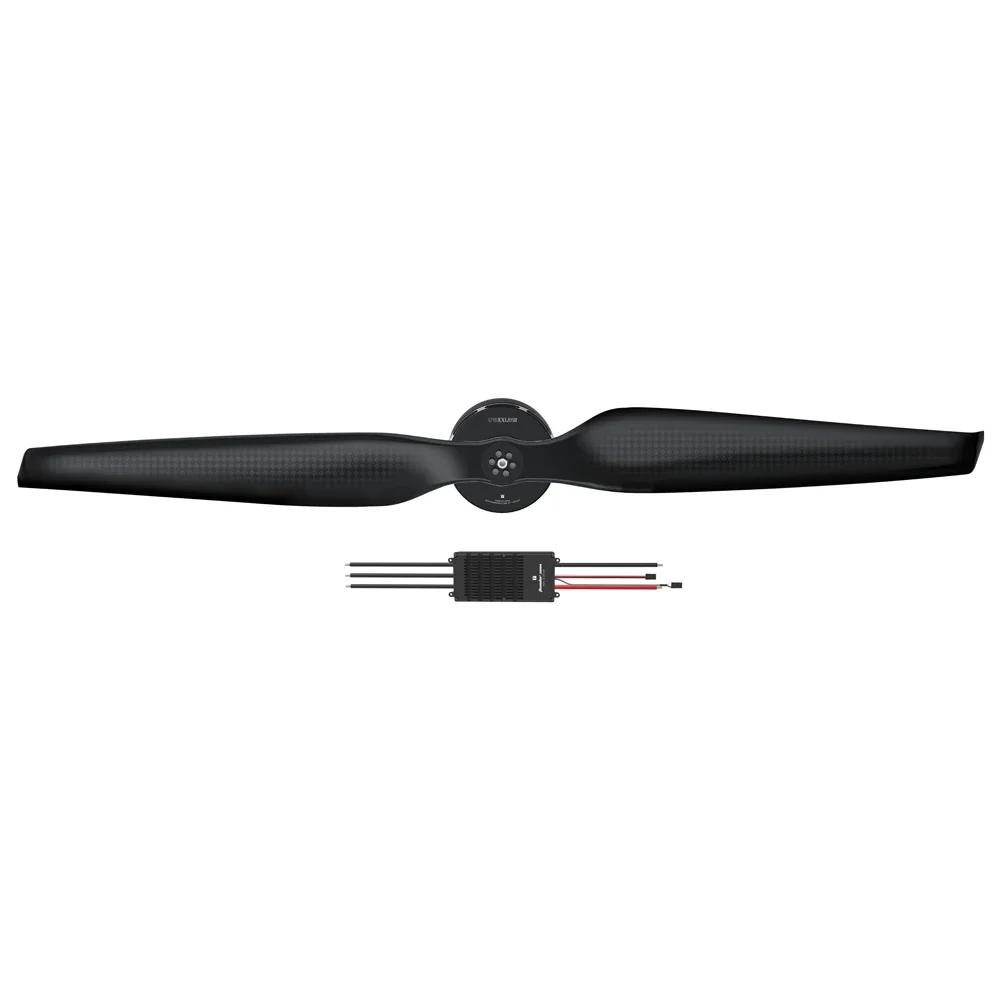

T-MOTOR U15XXL UAV Propulsion System Overview The T-MOTOR U15XXL propulsion kit is a high-thrust electric motor system delivering up to 100 kg of thrust. It features a 24S motor, Thunder 300A ESC, and carbon fiber propeller, engineered for manned flight and eVTOL drones as well as heavy industrial UAVs requiring reliable power.

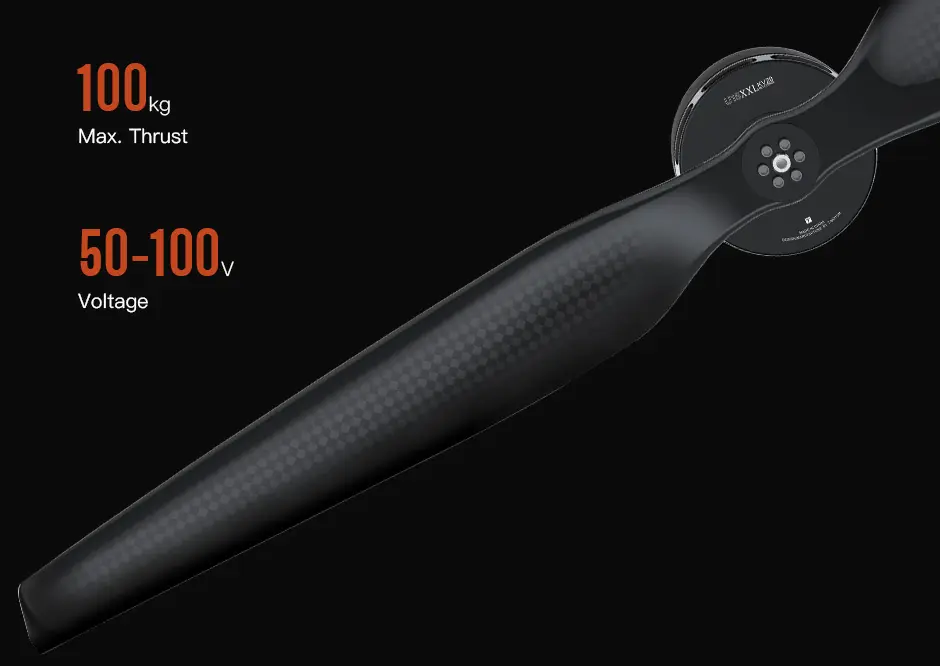

U15XXL Propulsion Kit – Key Highlights Big Power Motor The U15XXL KV29 motor delivers a maximum thrust of 100 kg, enabling sustained heavy-load operation suitable for agricultural spraying, logistics, and search and rescue missions.
24S High-Power ESC The Thunder 300A 24S high-power manned aircraft ESC provides 240A continuous current/300A peak current, enabling rapid throttle response and overload protection.
Ultra-Lightweight Carbon Fiber Propeller It can be freely paired with NS57×22 and NS62×24 propellers for optimal thrust-to-weight ratio.
Perfect For
Manned eVTOLs with ultra-heavy payloads
Industrial cargo drones handling extreme loads
Large-scale UAVs managing logistics, emergency delivery, and professional operations with ease
T-MOTOR Manned Aircraft Propulsion Systems – Product Comparison
Feature
U15L Propulsion Sysetm U15XL Propulsion Sysetm U15XXL Propulsion Sysetm
Motor
U15L KV43
U15XL KV38
U15XXL KV29
Max Thrust
63KG
81KG
100KG
ESC
Thunder 300A 24S
Thunder 300A 24S
Thunder 300A 24S
Propeller
NS47×18
NS52×20
NS57×22 / NS62×24
Ideal Payload
Heavy-lift UAVs
Ultra heavy-lift Drones
Ultra-heavy industrial UAVs
Recommended Applications
Manned eVTOLs, cargo drones, industrial UAVs
Larger eVTOLs, heavy cargo drones, industrial UAVs
Ultra-heavy manned eVTOLs, industrial logistics, emergency delivery
