T-MOTOR U15XL Drone Propulsion System Overview

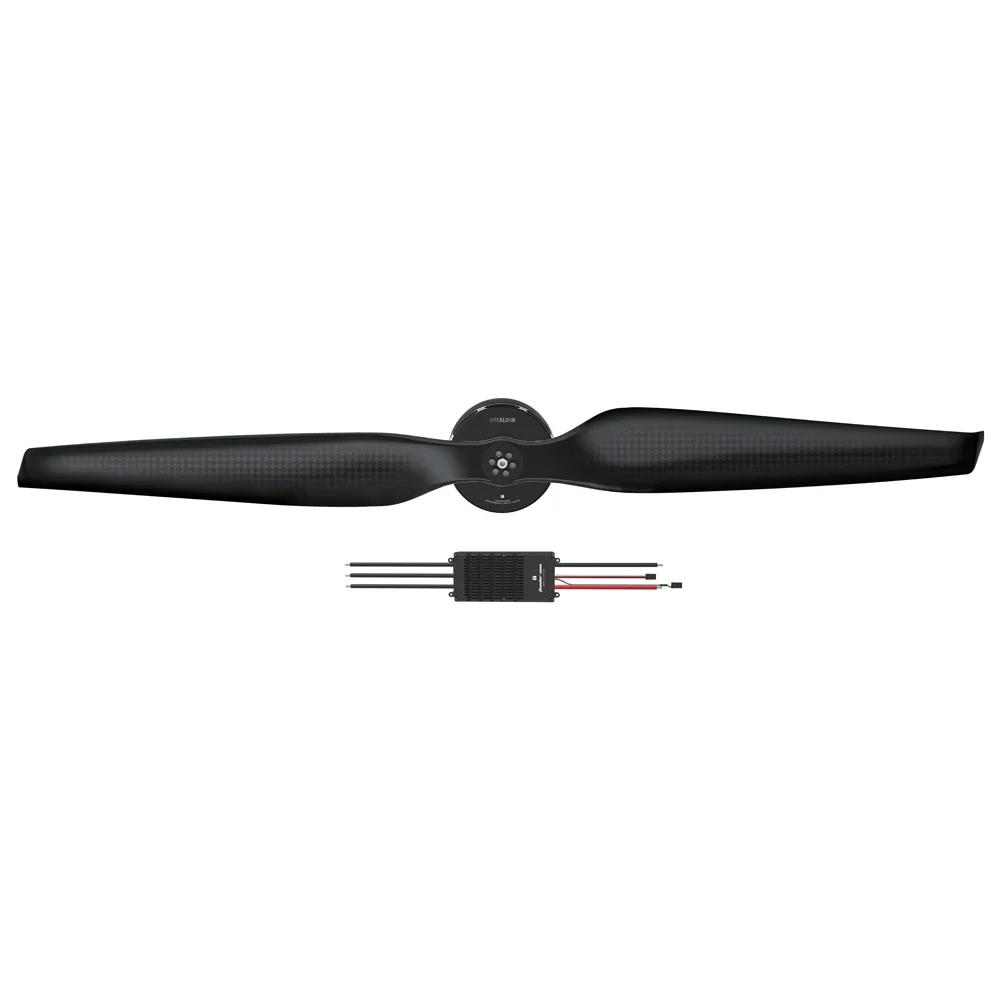

The U15XL Propulsion Kit provides 81kg max thrust using a KV38 heavy-lift drone motor, 24S 300 A ESC, and NS52×20 ultra-light carbon propeller. Built for heavy-lift VTOL applications, it delivers professional-grade stability, lift, and power for industrial drones and manned aircraft.

U15XL Propulsion Kit – Key Highlights

Unmatched Heavy-Lift Capability

The T-MOTOR U15XL KV38 motor generates up to 81kg of thrust, enabling drones to carry heavier payloads with exceptional efficiency and stable performance.

Precision Power Control

The Thunder 300A 24S ESC provides smooth, accurate throttle response, ensuring stable and safe flight performance even under extreme loads.

Larger Ultra-Light Propeller for High Efficiency

The NS52×20 carbon fiber propeller offers low inertia, fast responsiveness, and durable construction, improving aerodynamic efficiency and extending flight time.

Perfect For

  • Manned eVTOLs (electric Vertical Take-Off and Landing)
  • Heavy-lift cargo drones for extended flight missions
  • Industrial UAVs for logistics, emergency delivery, and large-scale operations

Related Propulsion Systems

U15L Propulsion System – 63kg Max Thrust for Manned Aircraft and Heavy-Lift Drones

U15XXL Propulsion System – 100kg Max Thrust for Ultra-Heavy Payload Drones and Manned Aircraft

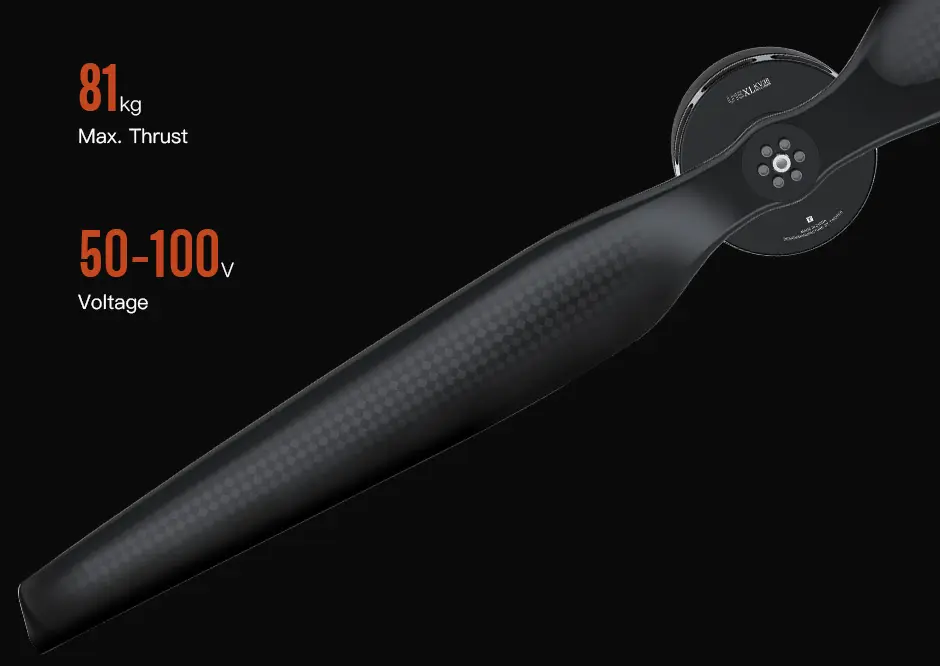

T-MOTOR U15XL UAV propulsion system with 81kg max thrustT-MOTOR U15XL Propulsion Kit motor technical drawingT-MOTOR U15XL Propulsion Kit ESC technical drawingT-MOTOR U15XL Propulsion Kit propeller technical drawing

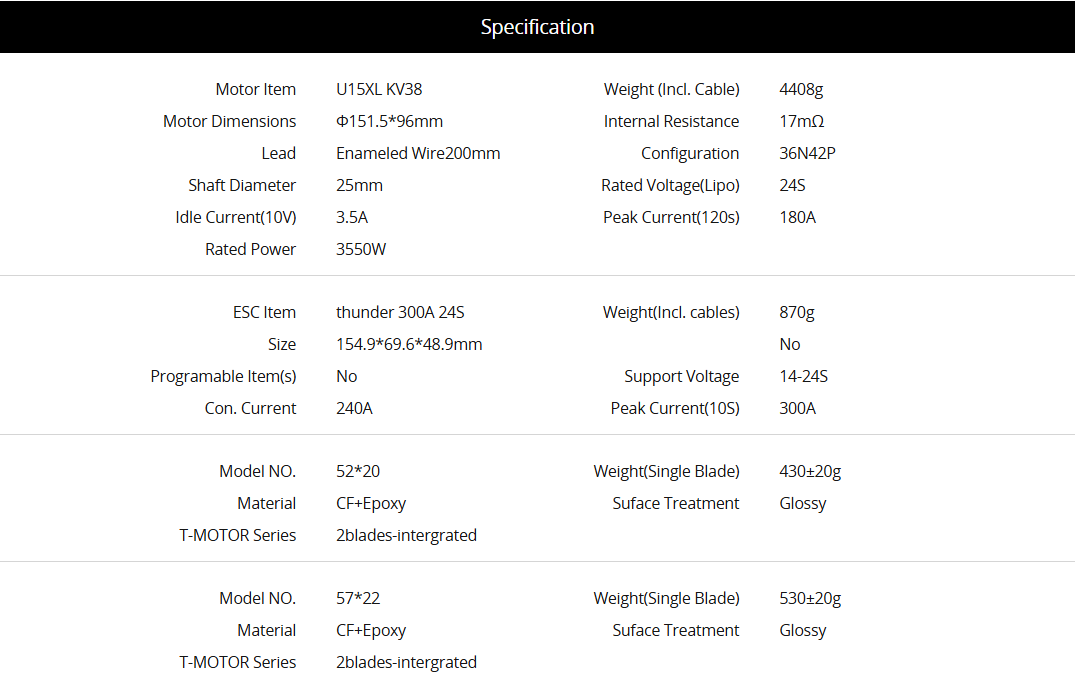

Specifications-U15XL KV38
Motor Item U15XL KV38 Weight (Incl. Cable) 4408g
Motor Dimensions Φ151.5*96mm Internal Resistance 17mΩ
Lead Enameled Wire200mm Configuration 36N42P
Shaft Diameter 25mm Rated Voltage(Lipo) 24S
Idle Current(10V) 3.5A Peak Current(120s) 180A
Rated Power 3550W
Specifications-Thunder 300A 24S
ESC Item thunder 300A 24S Weight(Incl. cables) 870g
Size 154.9*69.6*48.9mm BEC No
Programable Item(s) No Support Voltage 14-24S
Con. Current 150A Peak Current(10S) 300A
Specifications-NS52*20 Inch Propeller
Model NO. 52*20 Weight(Single Blade) 430±20g
Material CF+Epoxy Suface Treatment Glossy
T-MOTOR Series 2blades-intergrated
Specifications-NS57*22 Inch Propeller
Model NO. 57*22 Weight(Single Blade) 530±20g
Material CF+Epoxy Suface Treatment Glossy
T-MOTOR Series 2blades-intergrated

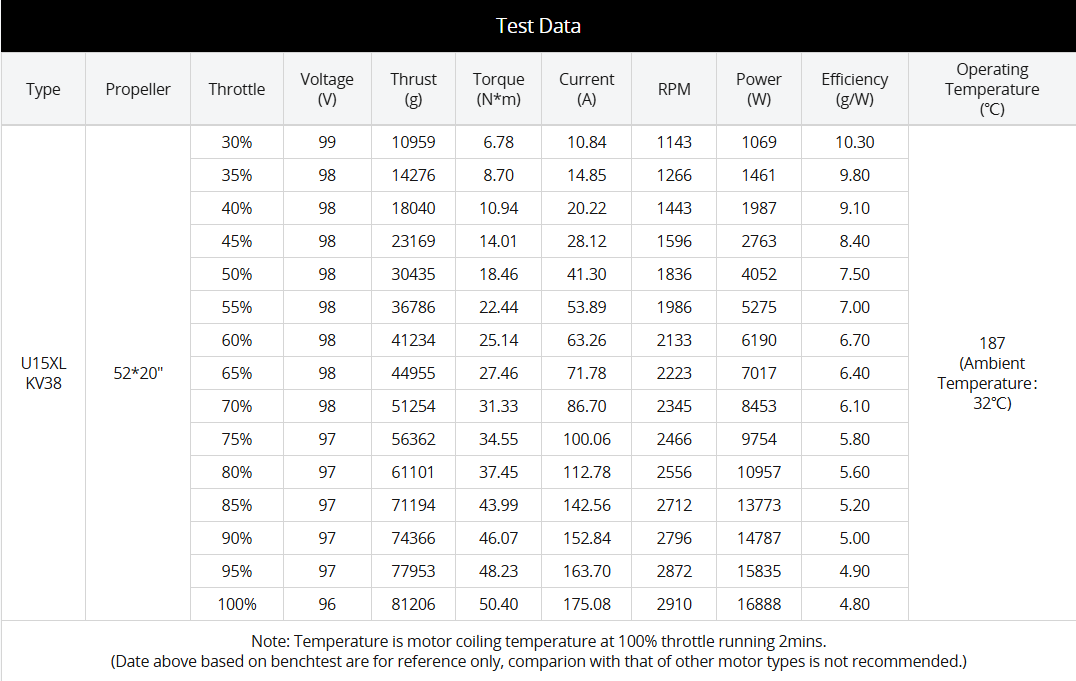

Test Data
Type Propeller Throttle Voltage
(V)		 Thrust
(g)		 Torque
(N*m)		 Current
(A)		 RPM Power
(W)		 Efficiency
(g/W)

Operating
Temperature

(℃)

U15XL

KV38

 52*20“ 30% 99 10959 6.78 10.84 1143 1069 10.30 187
（Ambient

Temperature：

32℃）
35% 98 14276 8.70 14.85 1266 1461 9.80
40% 98 18040 10.94 20.22 1443 1987 9.10
45% 98 23169 14.01 28.12 1596 2763 8.40
50% 98 30435 18.46 41.30 1836 4052 7.50
55% 98 36786 22.44 53.89 1986 5275 7.00
60% 98 41234 25.14 63.26 2133 6190 6.70
65% 98 44955 27.46 71.78 2223 7017 6.40
70% 98 51254 31.33 86.70 2345 8453 6.10
75% 97 56362 34.55 100.06 2466 9754 5.80
80% 97 61101 37.45 112.78 2556 10957 5.60
85% 97 71194 43.99 142.56 2712 13773 5.20
90% 97 74366 46.07 152.84 2796 14787 5.00
95% 97 77953 48.23 163.70 2872 15835 4.90
100% 96 81206 50.40 175.08 2910 16888 4.80
Note: Temperature is motor coiling temperature at 100% throttle running 2mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
