T-MOTOR U15L KV43 Heavy-Lift Drone Motor

T-MOTOR U15L KV43 BLDC motor delivers up to 63.3kg thrust, designed for heavy-lift UAVs and manned aircraft. Operating at 24S, with 2800W rated power and 135A peak current, it ensures stable, efficient performance for demanding missions such as logistics and rescue operations.

Key Features

  • High Thrust – up to 63.3kg for heavy-lift applications
  • Powerful Output – 2800 W rated power with strong load capacity
  • Stable & Reliable – consistent performance under high load
  • Industrial-Grade Use – suitable for logistics, rescue, and aerial operations
  • Optimized Compatibility – supports matched propulsion systems

Recommended Kit

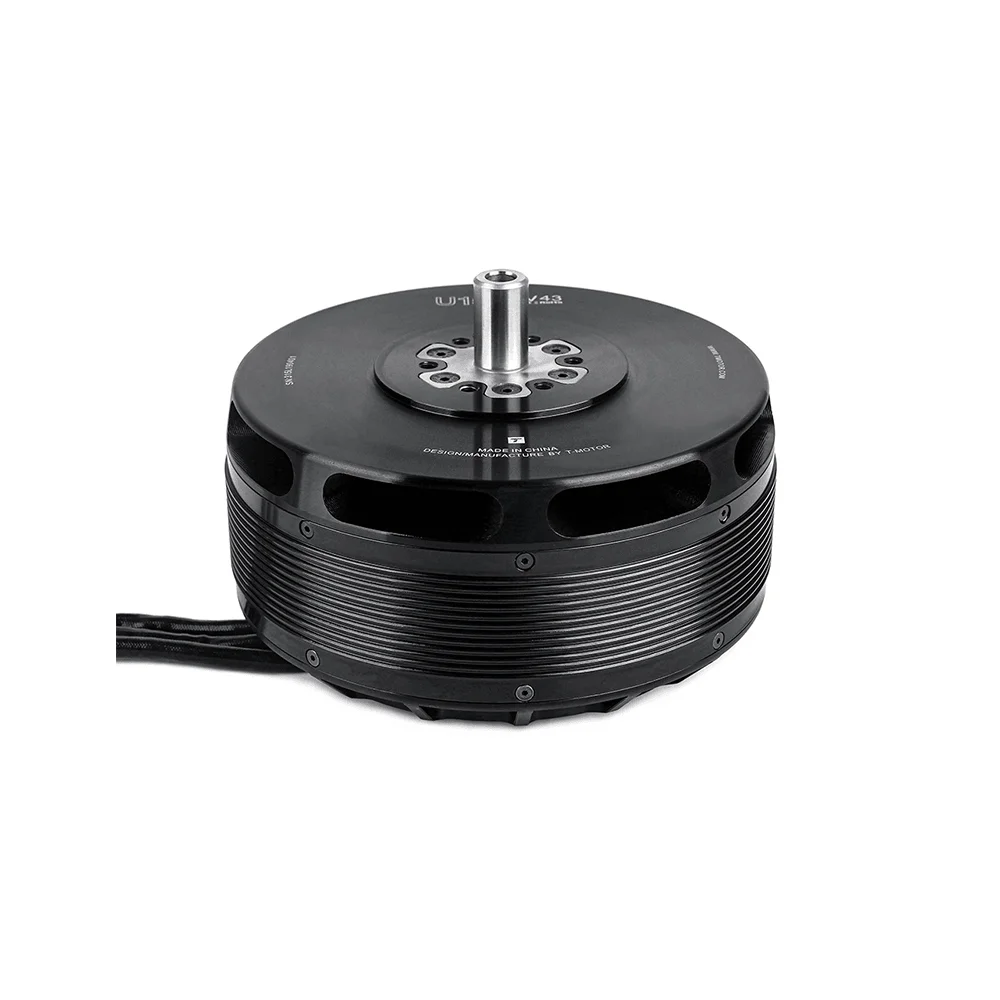

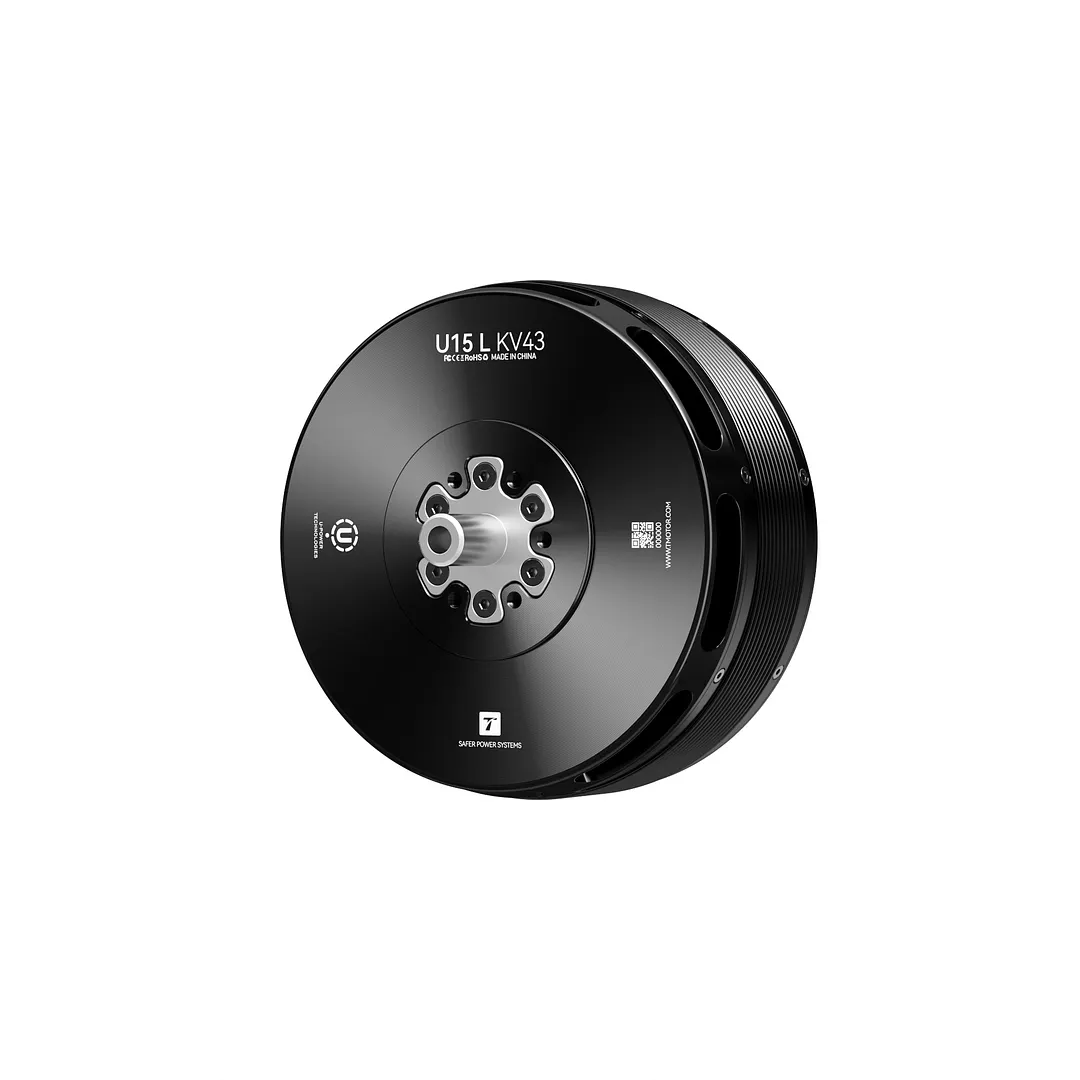

T-MOTOR U15L KV43 BLDC motor with 63kg thrust for heavy-lift UAVs

T-MOTOR U15L KV43 motor technical drawing

Specifications-U15L KV43
Motor Item U15L KV43 Weight (Incl. Cable) 3600g
Motor Dimensions Φ151.5*86mm Internal Resistance 20mΩ
Lead Enameled Wire200mm Configuration 36N42P
Shaft Diameter 25mm Rated Voltage(LiPo) 24S
Idle Current(10V) 4.0A Peak Current(120s) 135A
Rated Power 2800W

Test Data
Type Propeller Throttle Voltage
(V)		 Thrust
(g)		 Torque
(N*m)		 Current
(A)		 RPM Power
(W)		 Efficiency
(g/W)

Operating
Temperature

(℃)

U15L

KV43

 NS47*18" 30% 99 9563 5.22 9.43 1239 929 10.30 155
（Ambient
Temperature：
32）
35% 98 11668 6.30 12.11 1413 1192 9.80
40% 98 14955 8.06 16.72 1566 1646 9.10
45% 98 20009 10.77 24.74 1809 2434 8.20
50% 98 24767 13.33 33.35 2019 3279 7.60
55% 98 28438 15.34 40.56 2193 3984 7.10
60% 98 31314 16.94 46.64 2313 4572 6.80
65% 98 36747 19.95 58.94 2469 5769 6.40
70% 98 38966 21.22 64.97 2580 6359 6.10
75% 98 48025 26.26 87.88 2799 8580 5.60
80% 97 50683 27.84 95.31 2913 9286 5.50
85% 97 53225 29.28 102.47 2973 9976 5.30
90% 97 56197 30.90 110.95 3060 10788 5.20
95% 97 60146 33.17 123.93 3156 12036 5.00
100% 97 63383 35.04 134.64 3210 13109 4.80
Note: Temperature is motor coiling temperature at 100% throttle running 2mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
