T-MOTOR U15L Drone Propulsion System Overview

The T-MOTOR U15L heavy-duty drone propulsion system integrates a high-thrust drone motor, a 24S 300A ESC, and an ultra-lightweight NS47×18 carbon fiber propeller. This system can provide up to 63kg of thrust at a voltage of 50-100V, suitable for heavy-load applications such as manned aircraft and heavy-lift cargo drones.

U15XL Propulsion Kit – Key Highlights

Unstoppable Thrust Power

The T-MOTOR U15L KV43 motor unleashes 63kg of thrust, enabling heavy-payload operations with exceptional efficiency and dependable thermal performance.

Precision Power Control

The Thunder 300A 24S ESC provides smooth, accurate throttle response—ensuring stable and safe flight performance even under extreme loads.

Ultra-Light Propeller, Ultra-High Efficiency

The NS47×18 carbon fiber propeller offers low inertia, fast responsiveness, and durable construction, reducing energy consumption and improving overall flight time.

Perfect For

  • Manned eVTOLs (electric Vertical Take-Off and Landing)
  • Cargo drones requiring extended flight times
  • Industrial UAVs for logistics and emergency delivery

Related Propulsion Systems

U15XL Propulsion System – 81kg Max Thrust for Manned Aircraft and Heavy Logistics Drones

U15XXL Propulsion System – 100kg Max Thrust for Manned Aircraft and Heavy-Lift Dronese

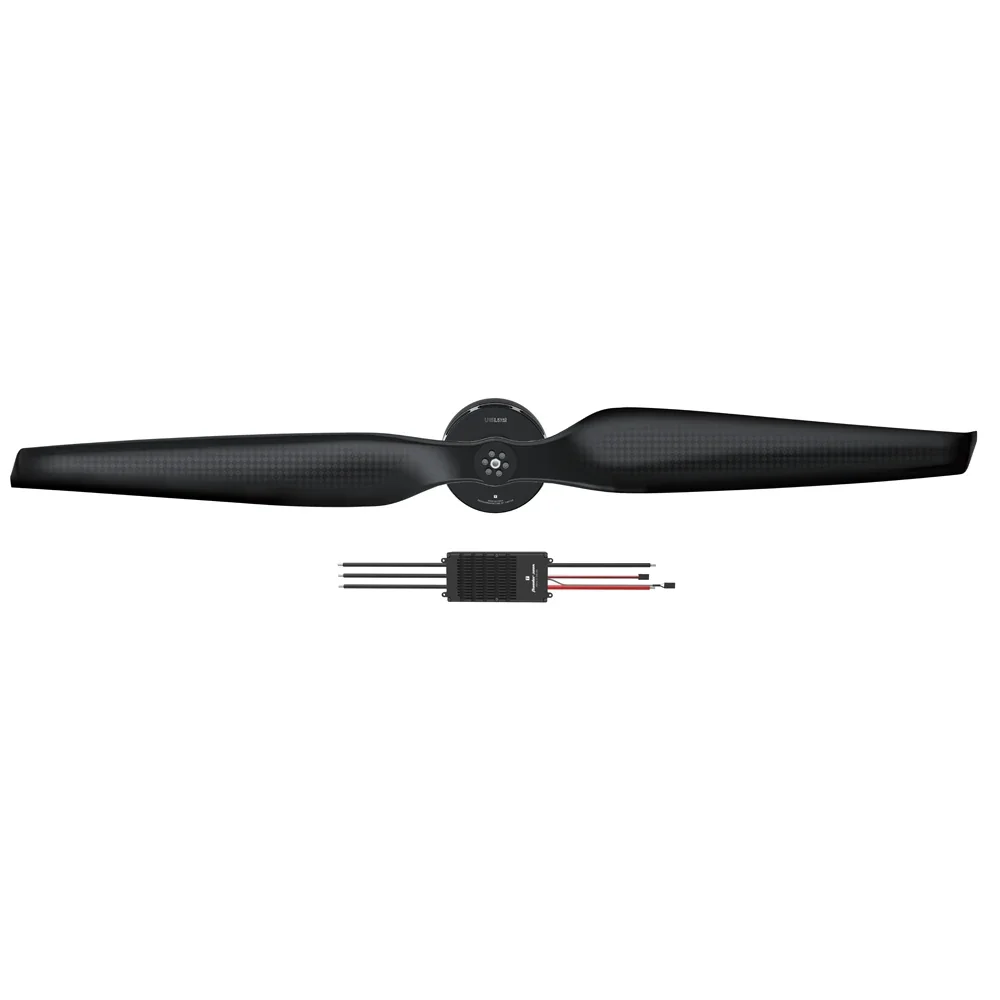

T-MOTOR U15L UAV propulsion system with 63kg max thrust

T-MOTOR U15L UAV propulsion system product drawingT-MOTOR U15L UAV propulsion system with propeller product drawing

Specifications-U15L KV43
Motor Item U15L KV43 Weight (Incl. Cable) 3600g
Motor Dimensions Φ151.5*86mm Internal Resistance 20mΩ
Lead Enameled Wire200mm Configuration 36N42P
Shaft Diameter 25mm Rated Voltage(LiPo) 24S
Idle Current(10V) 4.0A Peak Current(120s) 135A
Rated Power 2800W
Specifications-Thunder 300A 24S
ESC Item thunder 300A 24S Weight(Incl. cables) 870g
Size 154.9*69.6*48.9mm BEC No
Programable Item(s) No Support Voltage 14-24S
Con. Current 150A Peak Current(10S) 300A
Specifications-NS47*18 Inch Propeller
Model NO. 47*18 Weight(Single Blade) 320±20g
Material CF+Epoxy Suface Treatment Glossy
T-MOTOR Series 2blades-intergrated

Test Data
Type Propeller Throttle Voltage
(V)		 Thrust
(g)		 Torque
(N*m)		 Current
(A)		 RPM Power
(W)		 Efficiency
(g/W)

Operating
Temperature

(℃)

U15L

KV43

 47*18" 30% 99 9563 5.22 9.43 1239 929 10.30 155
（Ambient
Temperature：
32）
35% 98 11668 6.30 12.11 1413 1192 9.80
40% 98 14955 8.06 16.72 1566 1646 9.10
45% 98 20009 10.77 24.74 1809 2434 8.20
50% 98 24767 13.33 33.35 2019 3279 7.60
55% 98 28438 15.34 40.56 2193 3984 7.10
60% 98 31314 16.94 46.64 2313 4572 6.80
65% 98 36747 19.95 58.94 2469 5769 6.40
70% 98 38966 21.22 64.97 2580 6359 6.10
75% 98 48025 26.26 87.88 2799 8580 5.60
80% 97 50683 27.84 95.31 2913 9286 5.50
85% 97 53225 29.28 102.47 2973 9976 5.30
90% 97 56197 30.90 110.95 3060 10788 5.20
95% 97 60146 33.17 123.93 3156 12036 5.00
100% 97 63383 35.04 134.64 3210 13109 4.80
Note: Temperature is motor coiling temperature at 100% throttle running 2mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
