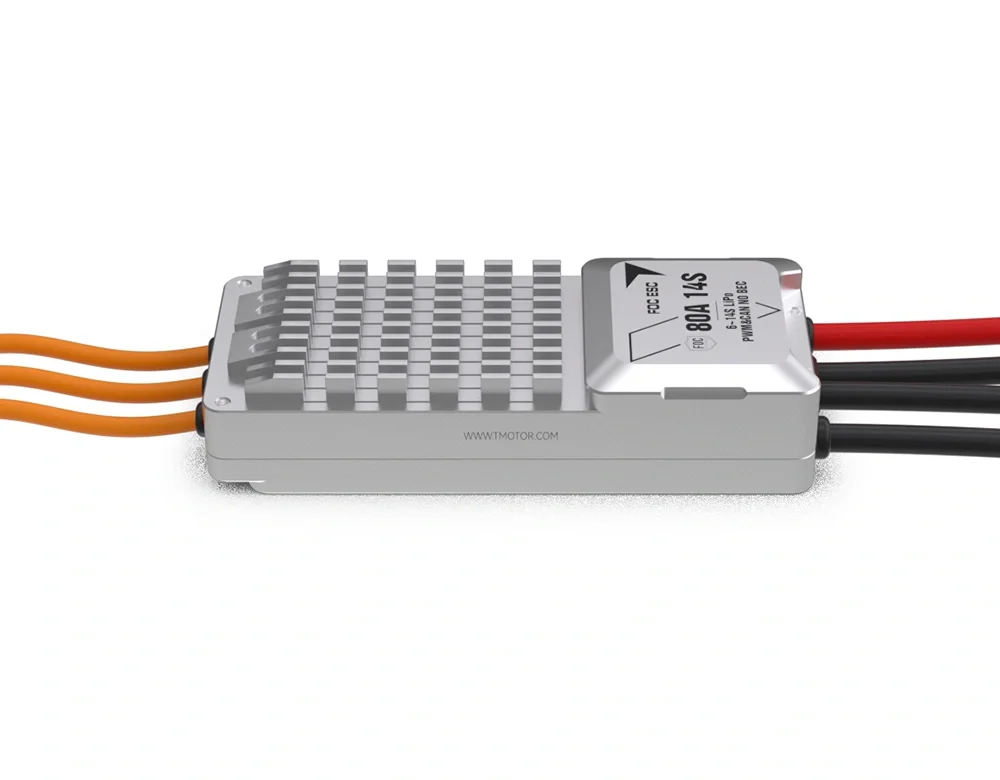

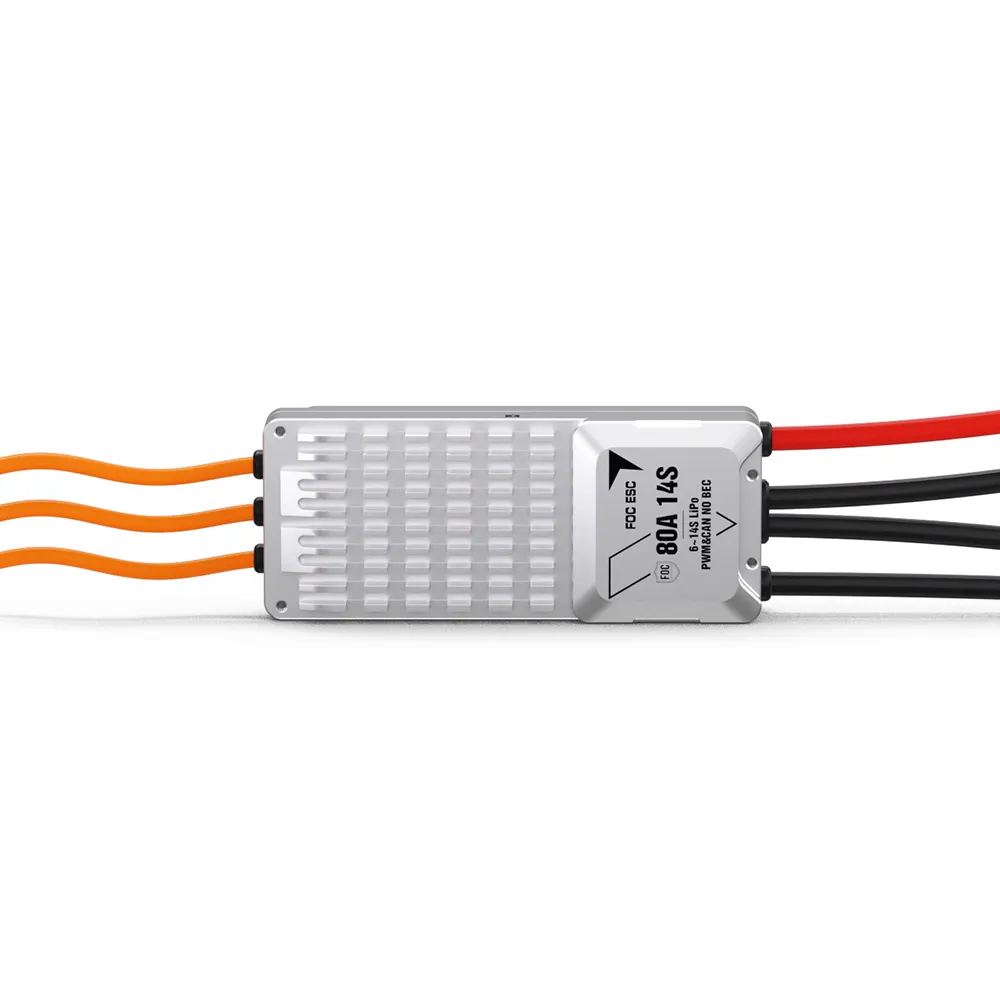

T-MOTOR V80A 14S FOC Drone ESC

T-MOTOR V80A FOC drone ESC supports 6–14S (18–60V) input with PWM and CAN control, delivering 40A continuous and 80A peak current for precise and responsive high-power drone performance.

Key Features

  • Stable and reliable FOC vector control
  • Supports DroneCAN (CAN 2.0), compatible with PX4
  • Intelligent magnetic propeller locking
  • Dual throttle redundancy (CAN + PWM)
  • Shielded signal cable for stable communication
  • Isolated throttle design for signal safety

Specifications

  • Support Voltage: 6–14S
  • Continuous Current: 40A
  • Peak Current: 80A (10s)
  • Weight: 78g (excluding cable) / 110g (with cable)
  • Dimensions: 84 × 35 × 19 mm

Recommended Kits

👉 VL6013 VTOL Kit / VL7015 VTOL Kit / VL8015 VTOL Kit

T-MOTOR V80A 14S drone ESCT‑MOTOR V80A 14S ESC specifications
T‑MOTOR V80A 14S ESC technical drawing

Specification
Model No. V80A 14S Input Cable Silicone Wire-Red/
Black-12AWG-180mm
Size 84*35*19mm (L*W*H) Signal Cable Shielded Cables-Black-
OD4.2-5C-450mm-JP-
3P*2-Black Blank White-
Green Yellow Gray
Weight (Incl. Cables) 110g Encoder Cables Shielded Cables-Black-24AWG-5C-450mm-
M6 Aviation Connector
Output Cable Silicone Wire-Orange-
14AWG-110mm		 Protocol PWM/CAN
Support Voltage 18~60V (6~14S) BEC NO
Continuous Current 40A Throttle Pos. Range 1040~1940
Peak Current (<10s) 80A Throttle Refresh
Frequency		 50~500Hz
Standby Consumption ≤50mA@48V Throttle
Response Speed		 300ms

T-MOTOR V80A 14S drone ESC with packaging
