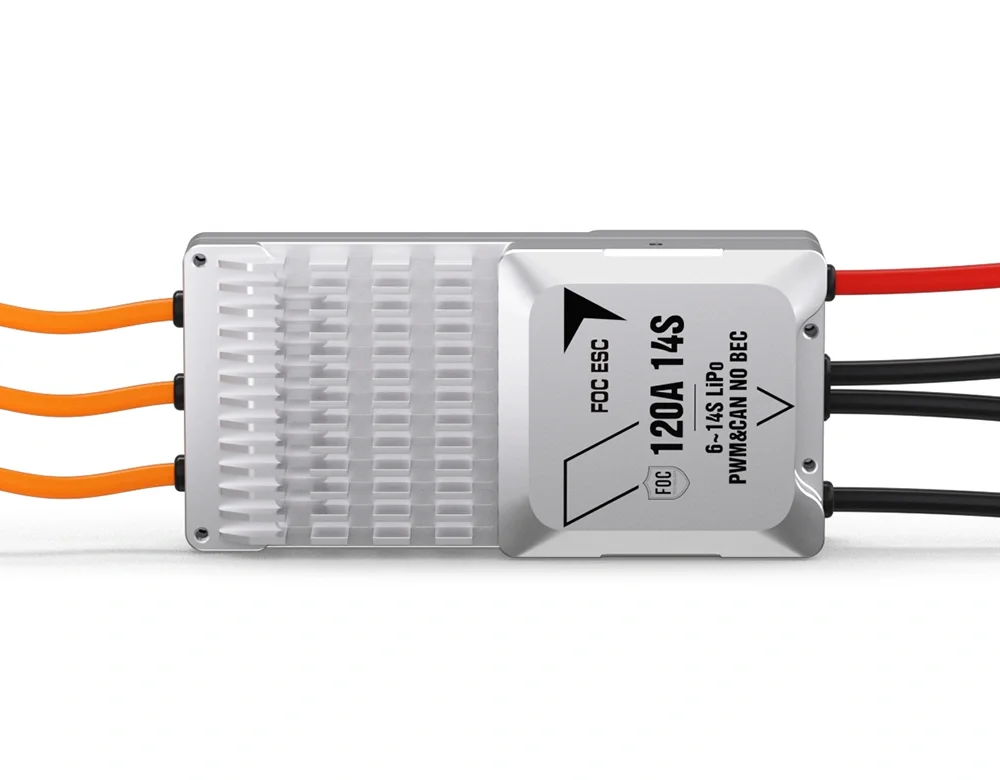

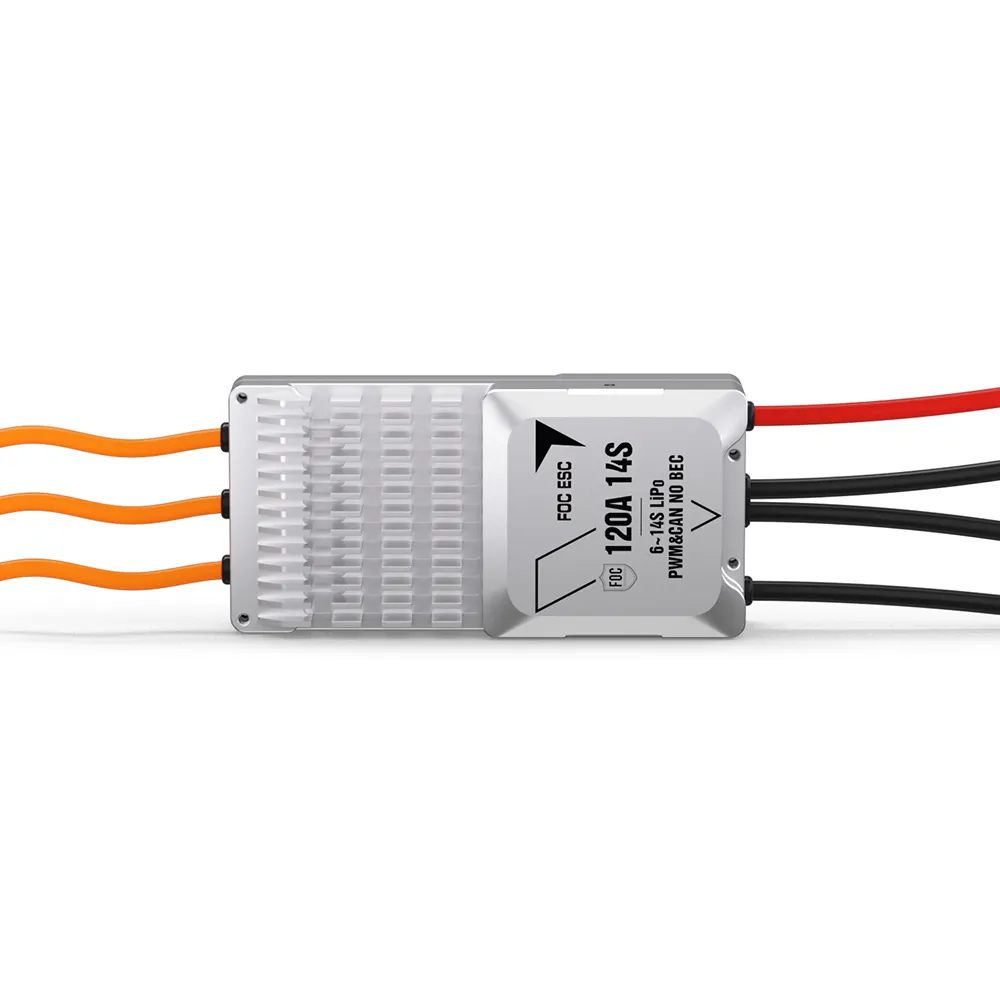

T-MOTOR V120A 14S FOC Drone ESC

T-MOTOR V120A FOC drone ESC supports 6–14S (18–60V) input with PWM and CAN control, delivering 60A continuous and 130A peak current for fast response and precise UAV motor control.

Key Features

  • Stable and reliable FOC vector control
  • Supports DroneCAN (CAN 2.0), compatible with PX4
  • Intelligent magnetic propeller locking
  • Dual throttle redundancy (CAN + PWM)
  • Shielded signal cable for stable communication
  • Isolated throttle design for signal safety

Specifications

  • Support Voltage: 6–14S
  • Continuous Current: 60A
  • Peak Current: 130A (3s)
  • Weight: 130g (excluding cable) / 170g (with cable)
  • Dimensions: 103 × 50 × 26 mm

Recommended Kits

VL8018 VTOL Propulsion Kit

T-MOTOR V120A 14S FOC ESCT‑MOTOR V120A 14S FOC ESC recommended motor and propellerT‑MOTOR V120A 14S ESC technical drawing

Specification
Model No. V120A 14S Input Cable Silicone Wire-Red/
Black-12AWG-120mm
Size 103*50*26mm (L*W*H) Signal Cable Shielded Cables-Black-
OD4.2-5C-470mm-JP-
3P*2-Black Blank White-
Green Yellow Gray
Weight (Incl. Cables) 170g Encoder Cables Shielded Cables-Black-
24AWG-5C-420mm-
M6 Aviation Connector
Output Cable Silicone Wire-Orange-
12AWG-75mm		 Protocol PWM/CAN
Support Voltage 18~60V (6~14S) BEC NO
Continuous Current 60A Throttle Pos. Range 1040~1940
Peak Current (<10s) 130A Throttle Refresh
Frequency		 50~500Hz
Standby Consumption ≤50mA@48V Throttle
Response Speed		 300ms

T-MOTOR V120A 14S drone ESC with packaging
