T-MOTOR AT8025 Fixed-Wing UAV Propulsion System Kit – 40 kg Takeoff Weight, Equivalent to 70CC Gasoline Engine

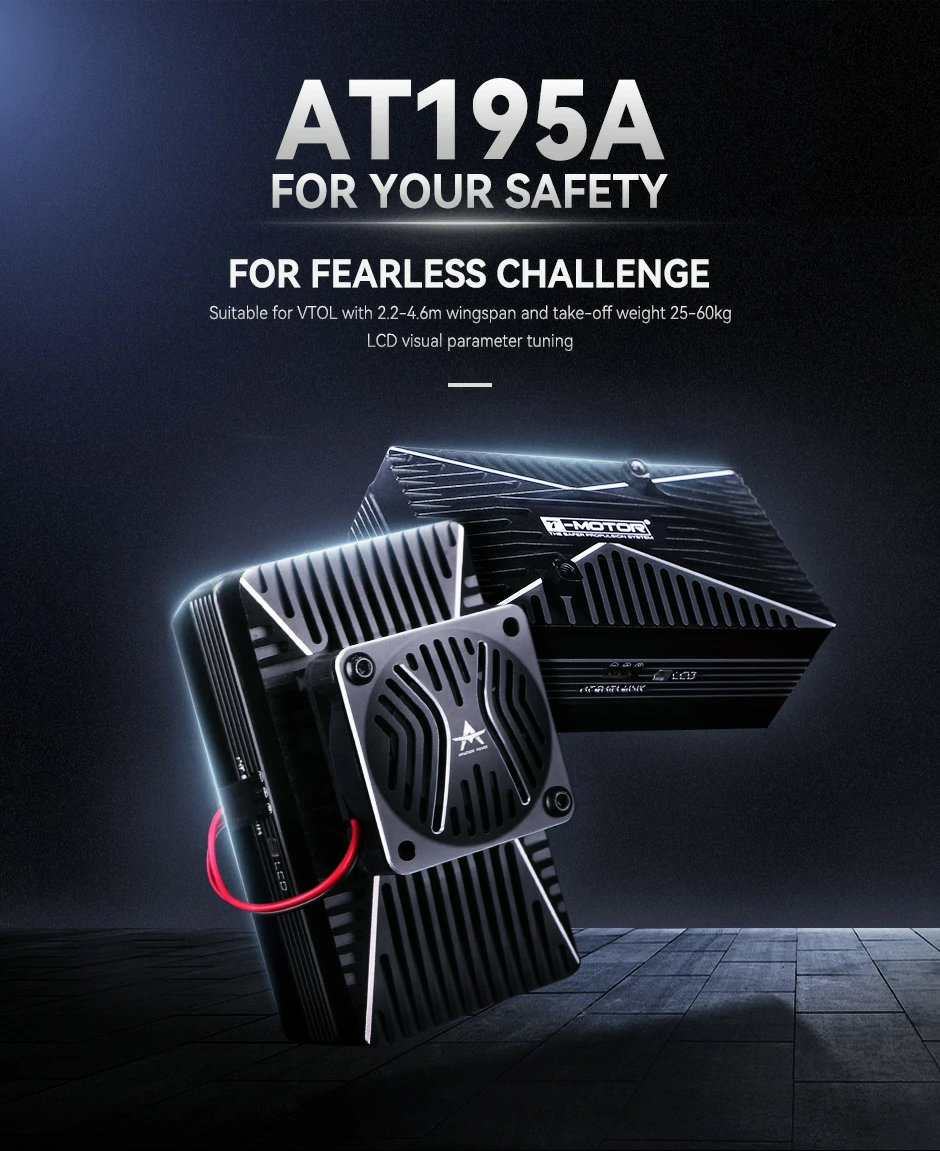

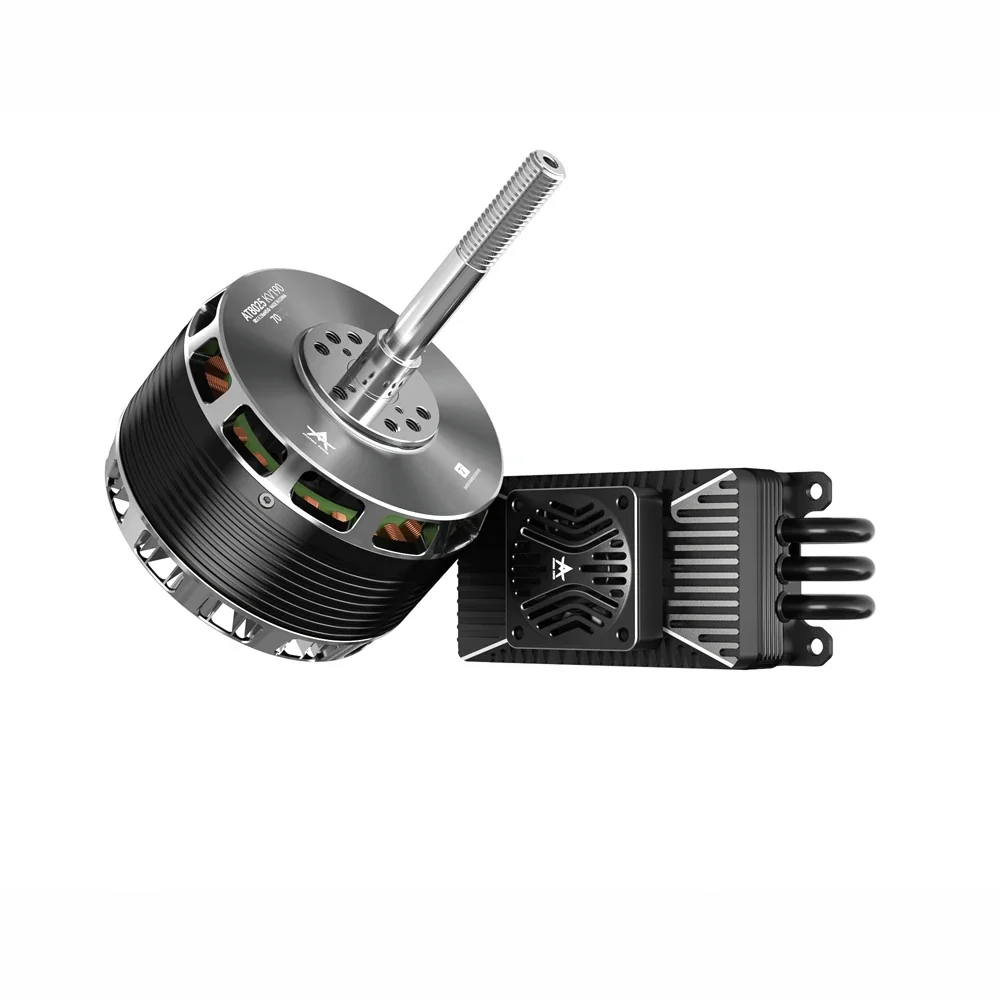

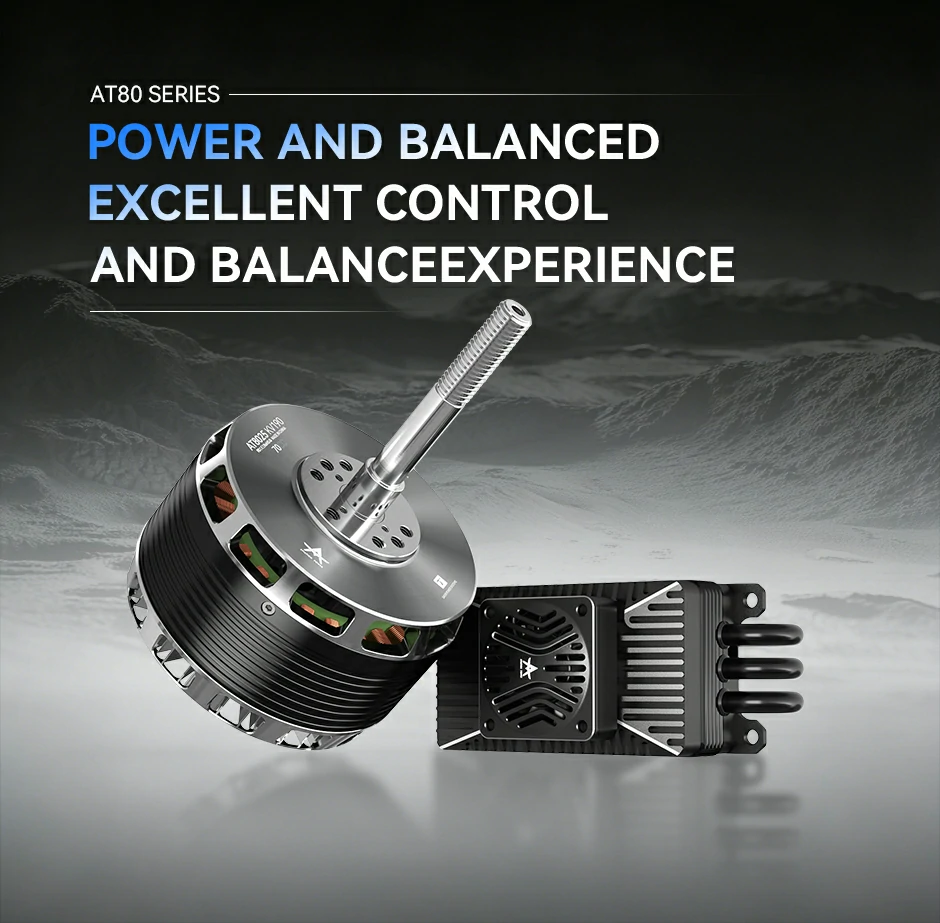

T-MOTOR AT8025 Fixed-Wing UAV Propulsion System Overview The T-MOTOR AT8025 Fixed-Wing UAV Propulsion System features a long-shaft motor paired with an AT 195A ESC supporting 6–14S LiPo batteries. Supporting a maximum takeoff weight of 40 kg, it delivers performance comparable to a 70cc gasoline engine, making it suitable for large fixed-wing UAVs.
AT8025 Propulsion Kit – Key Highlights Ideal alternative solutions for engines Delivers efficient flight comparable to a 70cc gasoline engine and high-speed, heavy-load performance similar to an 85cc engine.
Real-Time Motor Speed Monitoring Optional encoder enables real-time monitoring and control of motor speed for safer flight.
Built-In Anti-Spark Circuit Eliminates electrical sparks during power-on, preventing plug damage and overheating.

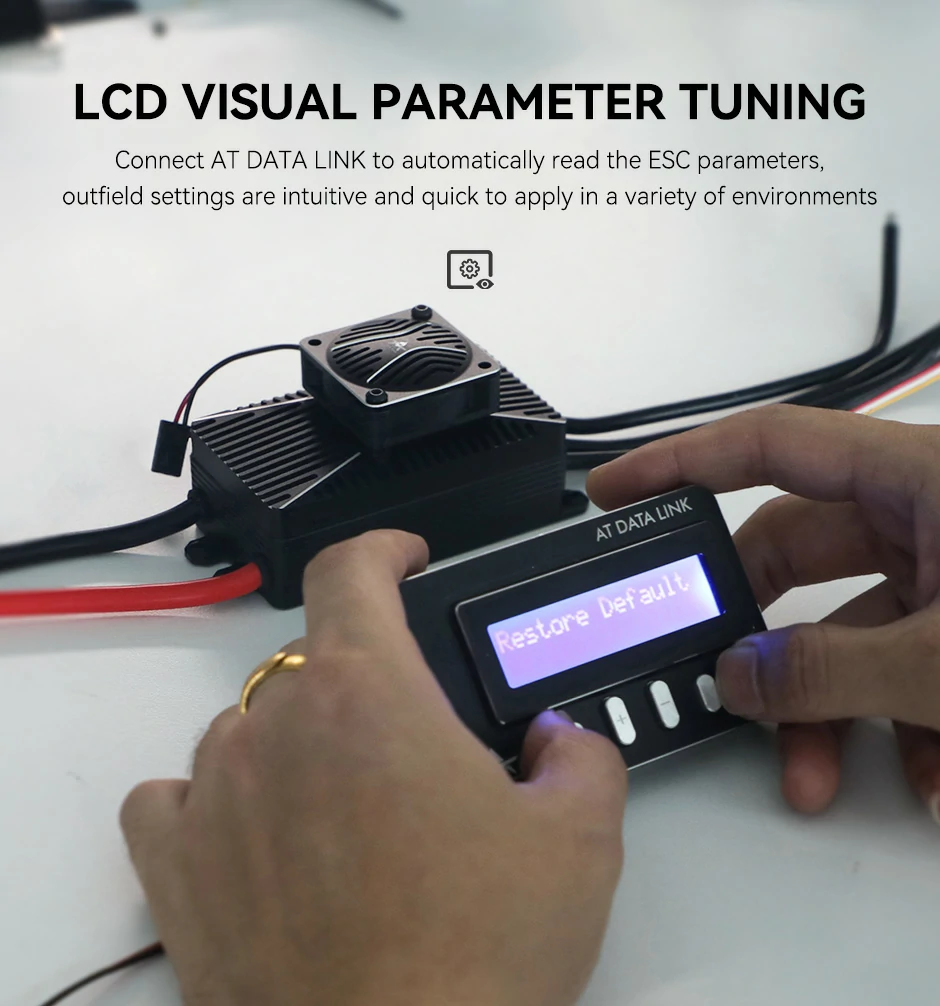

LCD Visual Parameter Adjustment Connect to AT DATA LINK to automatically read ESC parameters, enabling intuitive and quick field configuration.
Multiple Protection Mechanisms Integrated protections—including motor desynchronization, over-temperature, low voltage, and signal loss—ensure safe UAV operation.
High-Speed Throttle Response Hardware filtering and synchronous rectification enable fast and precise throttle response, allowing smooth and stable speed adjustments during flight.
Recommended Propeller
T-MOTOR 25×10 propeller (tested and recommended for optimal performance)
