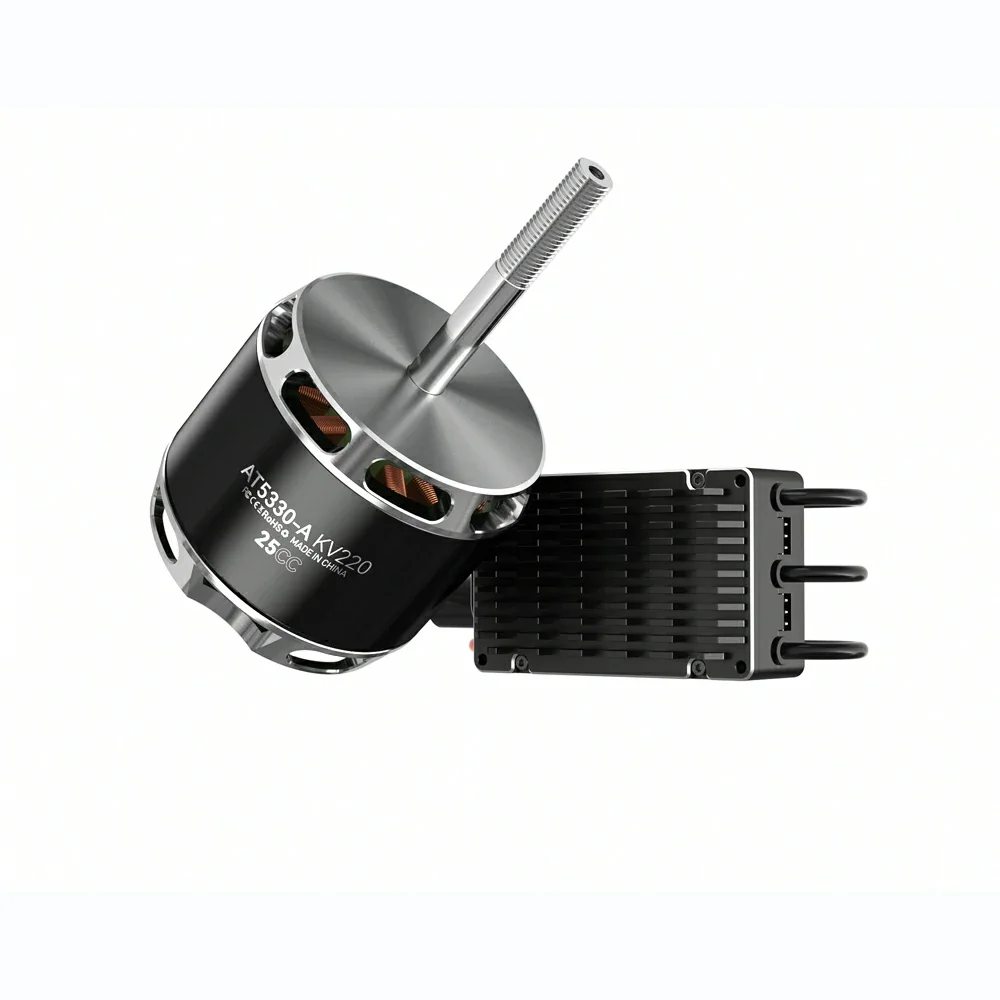

T-MOTOR AT5330 Fixed-Wing UAV Propulsion System Kit – 22–24kg Takeoff Weight, Equivalent to 35CC Gasoline Engine
T-MOTOR AT5330 Fixed-Wing UAV Propulsion System Overview The T-MOTOR AT5330 propulsion system features a powerful long-shaft brushless motor, capable of supporting a maximum takeoff weight of 22-24kg, equivalent to a 35CC gasoline engine. Paired with a 115A ESC that supports 6-14S lithium batteries, it provides reliable and stable power for fixed-wing UAVs.
AT5330 Propulsion System – Key Highlights High Efficiency and Energy Saving The AT5330 motor boasts fast response speed and linear throttle output, ensuring precise flight and long flight duration.
Excellent Heat Dissipation Bottom air intake and a centrifugal fan structure on the upper cover enhance the motor's active cooling capabilities.
Optimized ESC PCB Layout The included ESC utilizes a dedicated fixed-wing core algorithm program and optimized software architecture, resulting in more precise motor control.
Original imported components and a carefully designed PCB layout ensure the ESC's quality, stability, and cost-effectiveness.
Stable and Efficient BEC Output The stable and efficient BEC module ensures safe operation of the ESC in various power supply environments.
High-Speed Throttle Response Hardware filtering and synchronous rectification functions make throttle control faster and more reliable.
Built-in Multiple Software Protection Functions: Including voltage anomaly protection, overheat protection, battery low voltage protection, throttle signal loss, and other functions, significantly increasing the safety of the UAV during debugging and flight.
Recommended Propeller:
T-MOTOR 20*10 propeller
