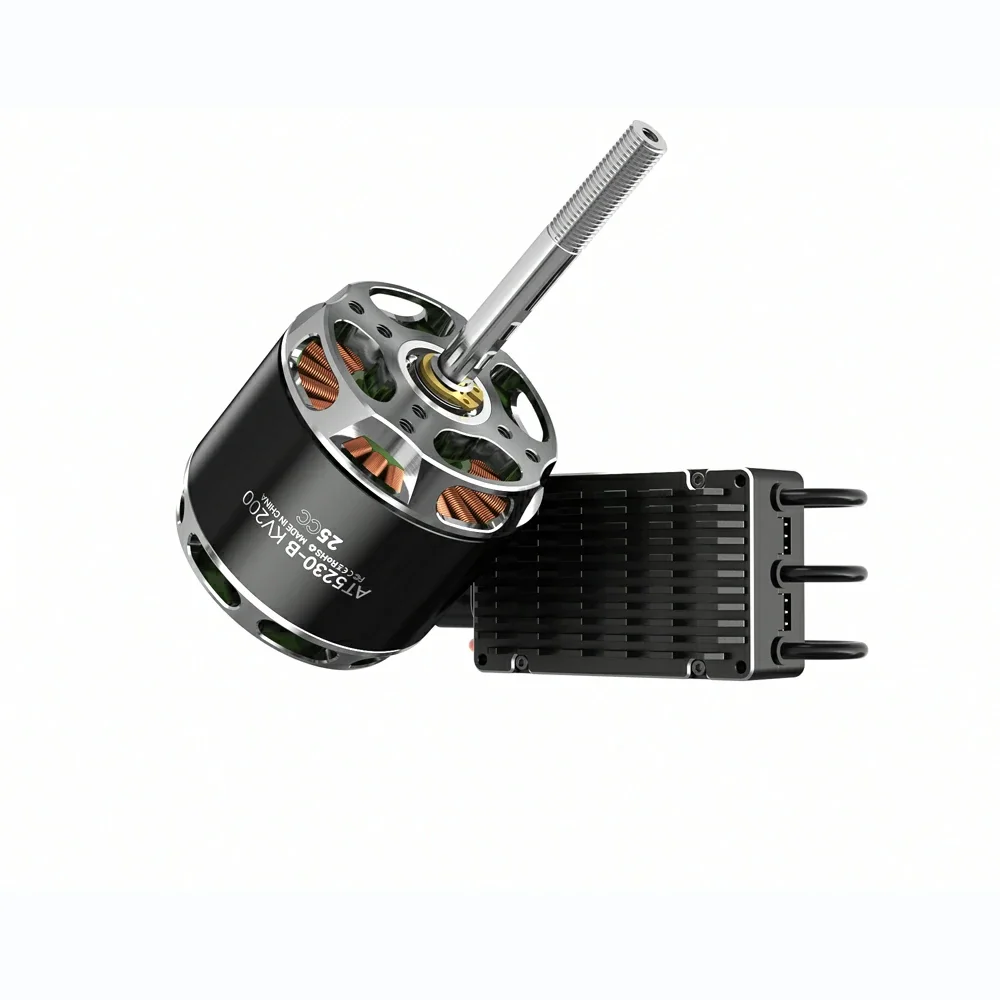

T-MOTOR AT5230 Fixed-Wing UAV Propulsion System Overview

The T-MOTOR AT5230 propulsion system features a powerful long-shaft brushless motor, supporting a maximum takeoff weight of 20-22kg. It is suitable for 90E-140E class aircraft, equivalent to a 25-30CC gasoline engine. Paired with a 115A ESC that supports 6-14S lithium batteries, it provides reliable and stable power for fixed-wing UAVs.

AT5230 Propulsion System – Key Highlights

Powerful and Excellent Heat Dissipation

The AT5230 long-shaft brushless motor features high torque and an optimized heat dissipation structure, ensuring powerful flight performance without overheating concerns.

Enhanced Control

Linear throttle response and excellent power balance ensure smooth operation in various flight attitudes.

Optimized ESC PCB Layout

The included ESC utilizes a dedicated fixed-wing core algorithm program and optimized software architecture, resulting in more precise motor control.

Original imported components and a carefully designed PCB layout ensure the ESC's quality, stability, and cost-effectiveness.

Stable and Efficient BEC Output

The stable and efficient BEC module ensures safe operation of the ESC in various power supply environments.

High-Speed ​​Throttle Response

Hardware filtering and synchronous rectification functions make throttle control faster and more reliable.

Built-in multiple software protection functions: including voltage anomaly protection, overheat protection, battery low voltage protection, throttle signal loss, and other functions, significantly increasing the safety of the UAV during debugging and flight.

Recommended Propeller:

T-MOTOR 20*10 propeller

T-MOTOR AT5230 fixed-wing UAV propulsion systemAT5230 fixed-wing UAV propulsion system with fixed-wing ESC supporting 6–14S batteryAT5230 fixed-wing UAV propulsion system features stable performance and reliable qualityAT5230 fixed-wing UAV propulsion system ESC with BEC output supportAT5230 fixed-wing UAV propulsion system with high speed throttle responseAT5230 fixed-wing UAV propulsion system with LED programming card for setting parameters

AT5230 fixed-wing UAV propulsion system motor product drawingAT5230 fixed-wing UAV propulsion motor specificationsAT5230 fixed-wing UAV propulsion system ESC specificationsAT5230 fixed-wing UAV propulsion system test reportAT5230 fixed-wing UAV propulsion kit test reportAT5230 fixed-wing drone propulsion system test report
