Product Overview

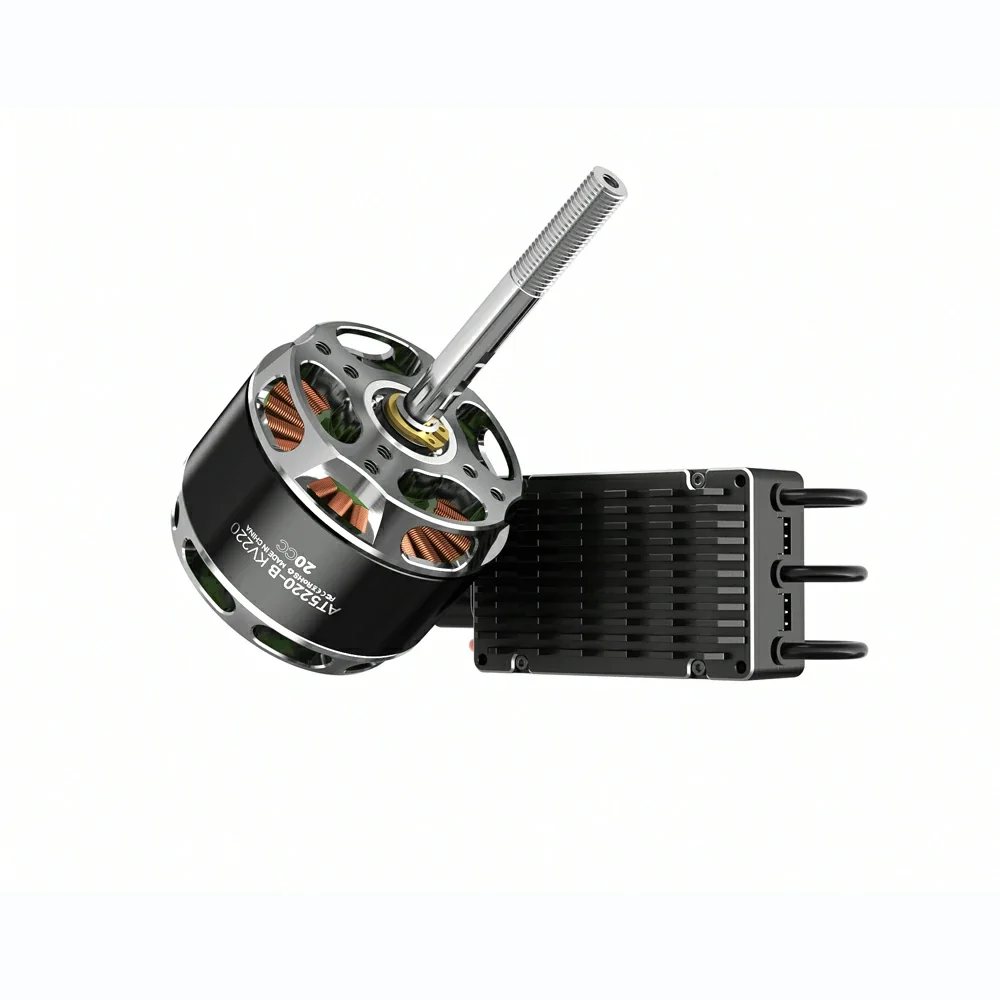

T-MOTOR AT5220 Fixed-Wing UAV Power System Overview

The T-MOTOR AT5220 propulsion system utilizes the second-generation AT series long-shaft brushless motor, with a maximum takeoff weight of 15-18kg. It is suitable for 90E-140E class aircraft, equivalent to a 20-25CC gasoline engine. The AT5220, paired with a 115A ESC supporting 6-14S lithium batteries, provides reliable and stable power for fixed-wing UAVs.

AT5220 Propulsion System – Key Highlights

Second-Generation AT Series Drone Motor

The AT5220 long-shaft brushless motor is designed for fixed-wing aircraft models, UAVs, and industrial drive applications. Military-grade high-temperature resistant enameled wire, efficient and stable endurance, and anti-shedding design allow for more confident flight.

Optimized ESC PCB Layout

The included ESC uses a dedicated fixed-wing core algorithm program and optimized software architecture, making motor control more precise and responsive.

Original imported components and meticulous PCB layout ensure the quality, stability, and cost-effectiveness of the ESC.

Stable and Efficient BEC Output

The stable and efficient BEC module ensures safe use of the ESC in various power supply environments.

High-Speed Throttle Response

Hardware filtering and synchronous rectification functions make throttle control faster and more reliable.

Built-in multiple software protection functions: including voltage anomaly protection, overheat protection, battery low voltage protection, throttle signal loss, and other functions, significantly increasing the safety of the UAV during debugging and flight.

Recommended Propeller:

T-MOTOR 19*12 propeller
