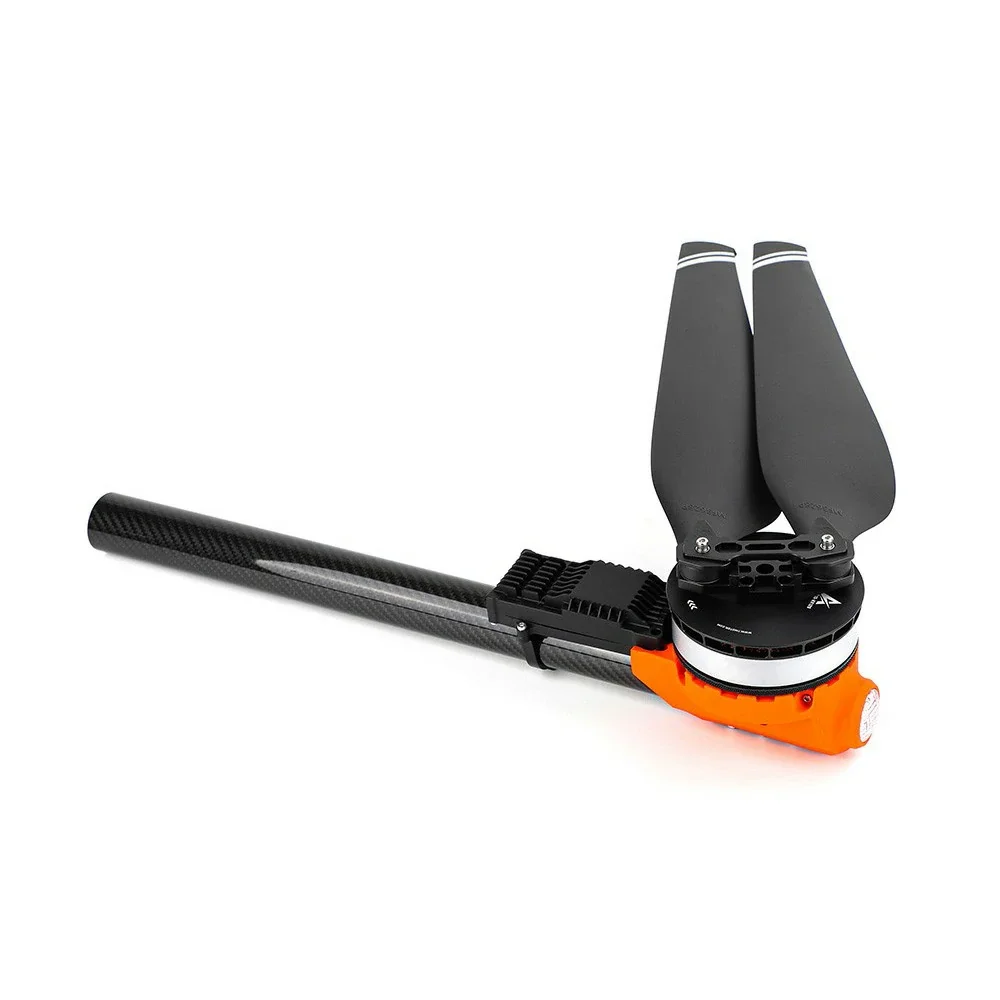

T-MOTOR A10 agricultural drone arm orange side view with folded MF3424P propellers

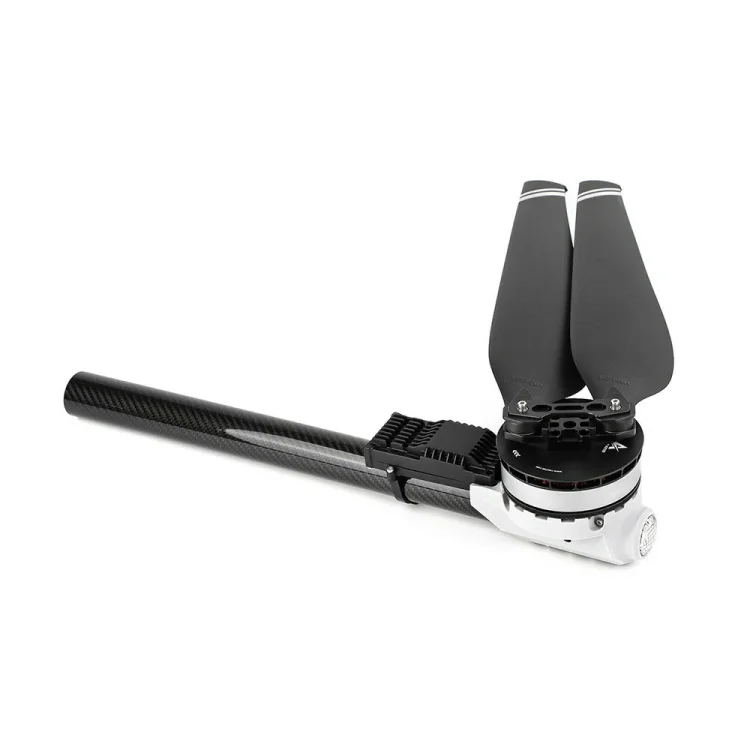

T-MOTOR A10 agricultural drone arm white side view with folded MF3424P propellers
T-MOTOR A10 modular agricultural UAV propulsion system orange view with MF3424P carbon propellers open
T-MOTOR A10 modular agricultural drone propulsion system white view with propellers spread
T-MOTOR A10 agricultural drone arm orange side profile horizontal propellers with 14S FOC 100A ESC
T-MOTOR A10 agricultural drone arm white side profile horizontal propellers with 14S FOC 100A ESC
T-MOTOR A10 agricultural drone propulsion system orange direct front view with MF3424P carbon propellers
T-MOTOR A10 agricultural drone propulsion system white direct front view with MF3424P carbon propellers
T-MOTOR A10 agricultural drone arm orange side profile horizontal propellers with 14S FOC 100A ESC
T-MOTOR A10 agricultural drone arm white side profile horizontal propellers with 14S FOC 100A ESC
T-MOTOR A10L agricultural drone arm orange front top view with MF3424P propellers
T-MOTOR A10 agricultural drone arm white front top view with MF3424P propellers
T-MOTOR A10 agricultural drone propulsion system parts bag
T-MOTOR A10 agricultural drone arm orange side view with folded MF3424P propellers
T-MOTOR A10 agricultural drone arm white side view with folded MF3424P propellers
T-MOTOR A10 modular agricultural UAV propulsion system orange view with MF3424P carbon propellers open
T-MOTOR A10 modular agricultural drone propulsion system white view with propellers spread
T-MOTOR A10 agricultural drone arm orange side profile horizontal propellers with 14S FOC 100A ESC
T-MOTOR A10 agricultural drone arm white side profile horizontal propellers with 14S FOC 100A ESC
T-MOTOR A10 agricultural drone propulsion system orange direct front view with MF3424P carbon propellers
T-MOTOR A10 agricultural drone propulsion system white direct front view with MF3424P carbon propellers
T-MOTOR A10 agricultural drone arm orange side profile horizontal propellers with 14S FOC 100A ESC
T-MOTOR A10 agricultural drone arm white side profile horizontal propellers with 14S FOC 100A ESC
T-MOTOR A10L agricultural drone arm orange front top view with MF3424P propellers
T-MOTOR A10 agricultural drone arm white front top view with MF3424P propellers
T-MOTOR A10 agricultural drone propulsion system parts bag

T-MOTOR A10 Modular Agricultural UAV Propulsion System for 16L–25L Drones

Price

$192.90 $192.90
Save $0.00
/** * 优惠码组件模型类 * 处理优惠码的显示和交互逻辑 */ class SpzCustomDiscountCodeModel extends SPZ.BaseElement { constructor(element) { super(element); // 复制按钮和内容的类名 this.copyBtnClass = "discount_code_btn" this.copyClass = "discount_code_value" } isLayoutSupported(layout) { return layout == SPZCore.Layout.LOGIC; } buildCallback() { // 初始化服务 this.action_ = SPZServices.actionServiceForDoc(this.element); this.templates_ = SPZServices.templatesForDoc(this.element); this.xhr_ = SPZServices.xhrFor(this.win); } /** * 渲染优惠码组件 * @param {Object} data - 渲染数据 */ doRender_(data) { return this.templates_ .findAndRenderTemplate(this.element, Object.assign(this.getDefaultData(), data) ) .then((el) => { this.clearDom(); this.element.appendChild(el); // 绑定复制代码功能 this.copyCode(el, data); }); } /** * 获取渲染模板 * @param {Object} data - 渲染数据 */ getRenderTemplate(data) { const renderData = Object.assign(this.getDefaultData(), data); return this.templates_ .findAndRenderTemplate(this.element, renderData) .then((el) => { this.clearDom(); return el; }); } /** * 清除DOM内容 */ clearDom() { const children = this.element.querySelector('*:not(template)'); children && SPZCore.Dom.removeElement(children); } /** * 获取默认数据 * @returns {Object} 默认数据对象 */ getDefaultData() { return { isMobile: appDiscountUtils.judgeMobile(), isRTL: appDiscountUtils.judgeRTL(), image_domain: this.win.SHOPLAZZA.image_domain, copyBtnClass: this.copyBtnClass, copyClass: this.copyClass } } /** * 复制优惠码功能 * @param {Element} el - 当前元素 */ copyCode(el) { const copyBtnList = el.querySelectorAll(`.${this.copyBtnClass}`); if (copyBtnList.length > 0) { copyBtnList.forEach(item => { item.onclick = async () => { // 确保获取正确的元素和内容 const codeElement = item.querySelector(`.${this.copyClass}`); if (!codeElement) return; // 获取纯文本内容 const textToCopy = codeElement.innerText.trim(); // 尝试使用现代API,如果失败则使用备用方案 try { if (navigator.clipboard && navigator.clipboard.writeText) { await navigator.clipboard.writeText(textToCopy); } else { throw new Error('Clipboard API not available'); } // 显示复制成功提示 this.showCopySuccessToast(textToCopy, el); } catch (err) { console.error('Modern clipboard API failed, trying fallback...', err); // 使用备用复制方案 this.fallbackCopy(textToCopy, el); } const discountId = item.dataset["discountId"]; // 跳转决策: is_redirection + link(可选覆盖) const setting = { is_redirection: item.dataset["redirection"] === "true", link: item.dataset["link"], }; const landingUrl = `/promotions/discount-default/${discountId}`; const finalUrl = appDiscountUtils.resolveDiscountHref(setting, landingUrl); if (finalUrl && appDiscountUtils.inProductBody(this.element)) { this.win.open(finalUrl, '_blank', 'noopener'); } } }) } } /** * 使用 execCommand 的复制方案 * @param {string} codeText - 要复制的文本 * @param {Element} el - 当前元素 */ fallbackCopy(codeText, el) { const textarea = this.win.document.createElement('textarea'); textarea.value = codeText; // 设置样式使文本框不可见 textarea.style.position = 'fixed'; textarea.style.left = '-9999px'; textarea.style.top = '0'; // 添加 readonly 属性防止移动端虚拟键盘弹出 textarea.setAttribute('readonly', 'readonly'); this.win.document.body.appendChild(textarea); textarea.focus(); textarea.select(); try { this.win.document.execCommand('copy'); // 显示复制成功提示 this.showCopySuccessToast(codeText, el); } catch (err) { console.error('Copy failed:', err); } this.win.document.body.removeChild(textarea); } /** * 创建 Toast 元素 * @returns {Element} 创建的 Toast 元素 */ createToastEl_() { const toast = document.createElement('ljs-toast'); toast.setAttribute('layout', 'nodisplay'); toast.setAttribute('hidden', ''); toast.setAttribute('id', 'discount-code-toast'); toast.style.zIndex = '1051'; return toast; } /** * 挂载 Toast 元素到 body * @returns {Element} 挂载的 Toast 元素 */ mountToastToBody_() { const existingToast = this.win.document.getElementById('discount-code-toast'); if (existingToast) { return existingToast; } const toast = this.createToastEl_(); this.win.document.body.appendChild(toast); return toast; } /** * 复制成功的提醒 * @param {string} codeText - 要复制的文本 * @param {Element} el - 当前元素 */ showCopySuccessToast(codeText, el) { const $toast = this.mountToastToBody_(); SPZ.whenApiDefined($toast).then(toast => { toast.showToast("Discount code copied !"); this.codeCopyInSessionStorage(codeText); }); } /** * 复制优惠码成功后要存一份到本地存储中,购物车使用 * @param {string} codeText - 要复制的文本 */ codeCopyInSessionStorage(codeText) { try { sessionStorage.setItem('other-copied-coupon', codeText); } catch (error) { console.error(error) } } } // 注册自定义元素 SPZ.defineElement('spz-custom-discount-code-model', SpzCustomDiscountCodeModel);
/** * Custom discount code component that handles displaying and managing discount codes * @extends {SPZ.BaseElement} */ class SpzCustomDiscountCode extends SPZ.BaseElement { constructor(element) { super(element); // API endpoint for fetching discount codes this.getDiscountCodeApi = "\/api\/storefront\/promotion\/code\/list"; // Debounce timer for resize events this.timer = null; // Current variant ID this.variantId = "c8e835fb-9984-41e8-8989-1b4ded353c13"; // Store discount code data this.discountCodeData = {} } /** * Check if layout is supported * @param {string} layout - Layout type * @return {boolean} */ isLayoutSupported(layout) { return layout == SPZCore.Layout.LOGIC; } /** * Initialize component after build */ buildCallback() { this.templates_ = SPZServices.templatesForDoc(); this.viewport_ = this.getViewport(); // Bind methods to maintain context this.render = this.render.bind(this); this.resize = this.resize.bind(this); this.switchVariant = this.switchVariant.bind(this); } /** * Setup component when mounted */ mountCallback() { this.getData(); // Add event listeners this.viewport_.onResize(this.resize); this.win.document.addEventListener('dj.variantChange', this.switchVariant); } /** * Cleanup when component is unmounted */ unmountCallback() { this.viewport_.removeResize(this.resize); this.win.document.removeEventListener('dj.variantChange', this.switchVariant); // 清除定时器 if (this.timer) { clearTimeout(this.timer); this.timer = null; } } /** * Handle resize events with debouncing */ resize() { if (this.timer) { clearTimeout(this.timer) this.timer = null; } this.timer = setTimeout(() => { if (appDiscountUtils.inProductBody(this.element)) { this.render(); } else { this.renderSkeleton(); } }, 200); } /** * Handle variant changes * @param {Event} event - Variant change event */ switchVariant(event) { const variant = event.detail.selected; if (variant.product_id == '8c9c9d6d-d84b-4c56-adba-2c32efc6d50b' && variant.id != this.variantId) { this.variantId = variant.id; this.getData(); } } /** * Fetch discount code data from API */ getData() { if (appDiscountUtils.inProductBody(this.element)) { const reqBody = { product_id: "8c9c9d6d-d84b-4c56-adba-2c32efc6d50b", variant_id: this.variantId, product_type: "default", } if (!reqBody.product_id || !reqBody.variant_id) return; this.discountCodeData = {}; this.win.fetch(this.getDiscountCodeApi, { method: "POST", body: JSON.stringify(reqBody), headers: { "Content-Type": "application/json" } }).then(async (response) => { if (response.ok) { let data = await response.json(); if (data.list && data.list.length > 0) { data.list[0].product_setting.template_config = JSON.parse(data.list[0].product_setting.template_config); // Format timestamps to local timezone const zone = this.win.SHOPLAZZA.shop.time_zone; data.list = data.list.map(item => { if(+item.ends_at !== -1) { item.ends_at = appDiscountUtils.convertTimestampToFormat(+item.ends_at, zone); } item.starts_at = appDiscountUtils.convertTimestampToFormat(+item.starts_at, zone); return item; }); } this.discountCodeData = data; this.render(); } else { this.clearDom(); } }).catch(err => { console.error("discount_code", err) this.clearDom(); }); } else { this.renderSkeleton(); } } /** * Clear component DOM except template */ clearDom() { const children = this.element.querySelector('*:not(template)'); children && SPZCore.Dom.removeElement(children); } /** * Render discount codes with formatted dates */ render() { // Render using discount code model SPZ.whenApiDefined(document.querySelector('#spz_custom_discount_code_model')).then(renderApi => { renderApi.doRender_({ discountCodeData: this.discountCodeData }) }).catch(err => { this.clearDom(); }) } renderSkeleton() { // Render template for non-product pages this.templates_ .findAndRenderTemplate(this.element, { isMobile: appDiscountUtils.judgeMobile() }) .then((el) => { this.clearDom(); this.element.appendChild(el); }) .catch(err => { this.clearDom(); }); } } // Register custom element SPZ.defineElement('spz-custom-discount-code', SpzCustomDiscountCode);

arm set

Please select a arm set

Quantity

Prices do not include customs duties, taxes, or clearance fees.
12 months warranty from date of purchase (valid proof required).

T-MOTOR A10 Modular Propulsion System Overview

The T-MOTOR A10 is a modular propulsion system for agricultural drones, supporting 16L quadcopters and 25L hexacopters. It combines an A10 KV120 motor, 14S FOC 100A ESC, and MF3424P polymer folding propeller.

Key Features

  • Recommended liquid payload: 16L for agricultural quadcopters / 25L for agricultural hexacopters
  • Recommended take-off weight: 28–44kg for quadcopters / 42–66kg for hexacopters
  • Integrated propulsion system: A10 KV120 motor, 14S FOC 100A ESC, and MF2311P polymer folding propeller
  • ESC control: PWM/CAN Supported protocols: DRONE CAN, UAV CAN, and CUBE CAN
  • Silicone protective cover: available in fluorescent orange and industrial gray
  • Ingress protection rating: IPX6

What's Included

  • A10 Modular Propulsion System x1 (Excl. Carbon Tube)
  • Parts Bag x1

A10 drone propulsion system for 16L and 25L agricultural dronesA10 drone propulsion systemA10 drone propulsion system payload and takeoff weight recommendationsA10 drone propulsion system with two color options

Specifications

A10 drone propulsion system technical drawingA10 drone propulsion system specificationA10 drone propulsion system test dataA10 drone propulsion system load curveA10 drone propulsion system packing list
