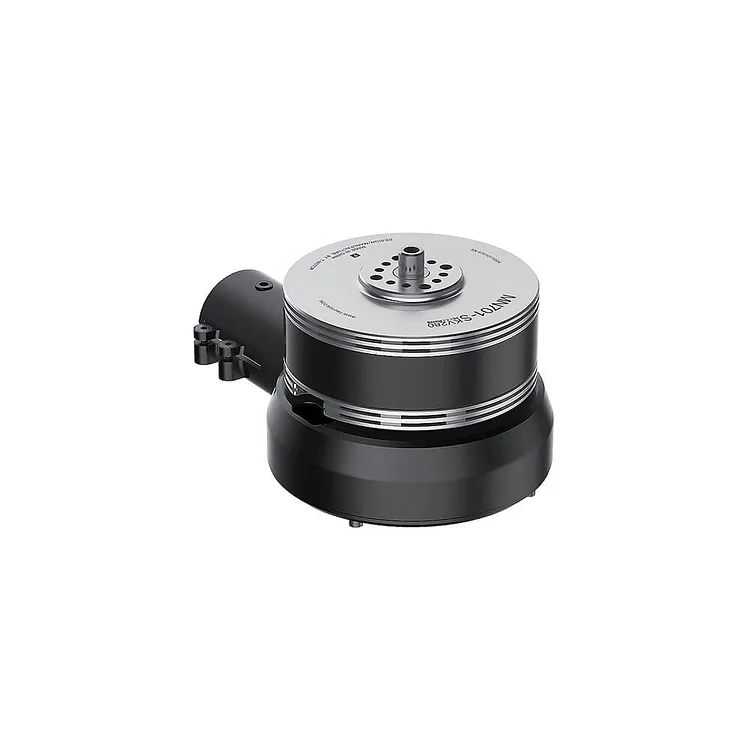

T-MOTOR 701-X Standard Integrated Propulsion System

The T-MOTOR 701-X Standard Integrated Propulsion System is a modular multirotor UAV propulsion solution designed for industrial and heavy-lift drone platforms. It combines the MN701-S brushless motor, Alpha 80A FOC ESC, and MF2614 carbon fiber folding propeller into an integrated UAV power system for stable thrust output, simplified installation, and reliable industrial UAV operation.

Suitable for cargo drones, aerial surveying, mapping, inspection, and heavy-load multirotor UAV applications.

701-X Integrated Propulsion System Core Advantages:

  • Integrated motor, FOC ESC, and carbon folding propeller design for simplified UAV installation and improved multirotor propulsion system compatibility.
  • Alpha 80A HV FOC ESC optimized for 12S battery systems, providing efficient and stable motor control for industrial UAV and heavy-lift drone applications.
  • MF2614 carbon fiber folding propeller delivers high RPM efficiency and stable thrust output for industrial multirotor UAV operation.
  • Modular 30mm and 25mm UAV arm compatibility with included adapter ring for flexible drone propulsion system integration.
  • Built-in LED light improves visibility and maneuverability during low-light industrial UAV operations.

Technical Specifications

  • Motor: MN701-S KV135 Brushless Motor
  • ESC: Alpha 80A HV Round FOC ESC
  • Propeller: MF2614 Carbon Fiber Folding Propeller
  • Voltage: 12S
  • System Type: Integrated Multirotor UAV Propulsion System
  • Tube Size: Compatible with 30mm and 25mm tubes via adapter ring switching

701-X standard UAV propulsion system with motors, FOC ESCs, and carbon propellers701-X standard UAV propulsion system with motors, FOC ESCs, and carbon propellers701-X standard UAV propulsion system with recommended motor, ESC and propeller701-X standard UAV propulsion system with smart FOC ESCs for stable and efficient UAV power control701-X standard UAV propulsion system with carbon propeller701-X standard UAV propulsion system with carbon propeller701-X standard drone propulsion system with LED light for better maneuverability701-X standard UAV propulsion system for easy installation

Specifications

701-X standard UAV propulsion system technical drawing

Specification
Product Model 701-XKV135 Exposed wire length 600mm
Arm size 143*90.6*70.2mm Boom weight (incl. wire) 628g
Configu ration 24N28P Shaft Diameter IN:8mm OUT:8mm
Idle Current（24V） 0.9A Rated Voltage(Lipo) 12S
Internal Resistance 94mΩ IP /
Peak Current(180s) 42A ESC ALPHA 80A 12S
Max Power (180S) 2100W Propeller Recommendation MF2614
Test Data
Type Propeller Throttle
(%)		 Voltage
(V)		 Current
(A)		 Power
(W)		 RPM Torque
(N·m)		 Thrust
(g)		 Efficiency
(g/W)		 Operating
Temperature
(℃)
701-X
KV135（Alpha 80A 12S ）		 MF2614 40% 47.95 5.50 264 2283 0.90 2843 10.78 74
（Ambient
Temperature：
25）
45% 47.92 7.39 354 2531 1.10 3477 9.82
50% 47.85 9.60 459 2768 1.32 4165 9.07
55% 47.79 12.18 582 2998 1.54 4877 8.38
60% 47.70 15.22 726 3221 1.78 5664 7.80
65% 47.61 18.67 889 3438 2.02 6455 7.26
70% 47.50 22.55 1071 3648 2.27 7273 6.79
75% 47.37 26.99 1279 3850 2.53 8114 6.35
80% 47.23 31.87 1505 4039 2.79 8930 5.93
85% 47.09 37.18 1751 4205 3.02 9701 5.54
90% 46.93 42.58 1998 4340 3.22 10352 5.18
95% 46.88 45.21 2119 4386 3.30 10631 5.02
100% 46.88 45.35 2126 4381 3.28 10581 4.98
Notes：Motor temperature is the motor surface temperature aftering running at 100% for 10 mins.
(Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)
Matching Table
Arm Set Compatible
Tube Size		 Motor KV Default ESC Default
Propeller		 Propeller Options Custom ESC
501-X 25mm/30mm
(25mm=30mm+
adapter)		 MN501-S KV240 ALPHA 60A 12S V1.2 MF1503 P15*5, FA15.2*5 FLAME 60A 12S
KV300 ALPHA 40A 6S MF2009 P20*6, FA20.2*6.6 ALPHA 60A 12S V1.2,
AIR 40A
KV360 MF1806 P18*6.1, FA18.2*5.9
505-X MN505-S KV320 ALPHA 60A 6S MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV380 MF1806 P18*6.1, FA18.2*5.9
601-X MN601-S KV170 ALPHA 60A 12S V1.2 MF2009 P20*6, FA20.2*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S P20*6, FA20.2*6.6
605-X MN605-S KV170 ALPHA 60A 12S V1.2 MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV320 ALPHA 60A 6S
701-X MN701-S KV135 ALPHA 80A 12S
Round		 MF2614 P24*7.2-10mm Hole,
G24*7.8, FA24.2*7.9		 /
705-X MN705-S KV125 ALPHA 80A 12S
Round		 MF2614 G26*8.5, FA26.2*8.5 /
U8Ⅱ-X
U8 Lite-X
XU8-X		 U8Ⅱ
U8 Lite
XU8		 KV85 ALPHA 60A 12S V1.2 MF2815 G28*9.2, FA28.2*9.2 FLAME 60A 12S
KV100
KV150 ALPHA 60A 6S
KV190
6007Ⅱ-X 25mm/28mm 6007Ⅱ KV160 ALPHA 60A 12S V1.2 MF2211 FA22.2*7.2,
NS22*6.6, P22*6.6		 FLAME 60A 12S
KV320 ALPHA 60A 6S
P60-X 25mm/30mm
(25mm=30mm+
adapter)		 P60 KV170 FLAME 60A 12S MF2211 P22*6.6, G22*7.2 /
P80-X 30mm/35mm
or 40mm
(Notify us your tube size)		 P80 KV100/KV120 ALPHA 80A 12S MF3016 P30*10, G30*10.5 FLAME 80A 12S,
FLAME 100A 14S
X-501 25mm/30mm
(25mm=30mm+
adapter)		 MN501-S KV240 ALPHA 60A 12S V1.2 P15*5 / FLAME 60A 12S
KV300 ALPHA 40A 6S P20*6 / ALPHA 60A 6S,
AIR 40A
KV360 P18*6.1 /
X-505 MN505-S KV320 ALPHA 60A 6S P22*6.6 / FLAME 60A 12S
KV380 P18*6.1 /
X-601 MN601-S KV170 ALPHA 60A 12S V1.2 P20*6 / FLAME 60A 12S
KV320 ALPHA 60A 6S /
X-605 MN605-S KV170 ALPHA 60A 12S V1.2 P22*6.6 / FLAME 60A 12S
KV320 ALPHA 60A 6S /
X-U8Ⅱ
X-U8 Lite		 U8Ⅱ
U8 Lite		 KV85 ALPHA 60A 12S V1.2 G28*9.2 / FLAME 60A 12S
KV100 /
KV150 ALPHA 60A 6S /
KV190 /
X-701 30mm/35mm
(30mm=35mm+
adapter)		 MN701-S KV135 ALPHA 80A 12S
Round		 P24*7.2
-10mmHole		 G24*7.8 /
X-705 MN705-S KV125 ALPHA 80A 12S
Round		 G26*8.5 / /
  * NOTE : order qty should be an EVEN number.
