T-MOTOR 505-X Standard Integrated Propulsion System

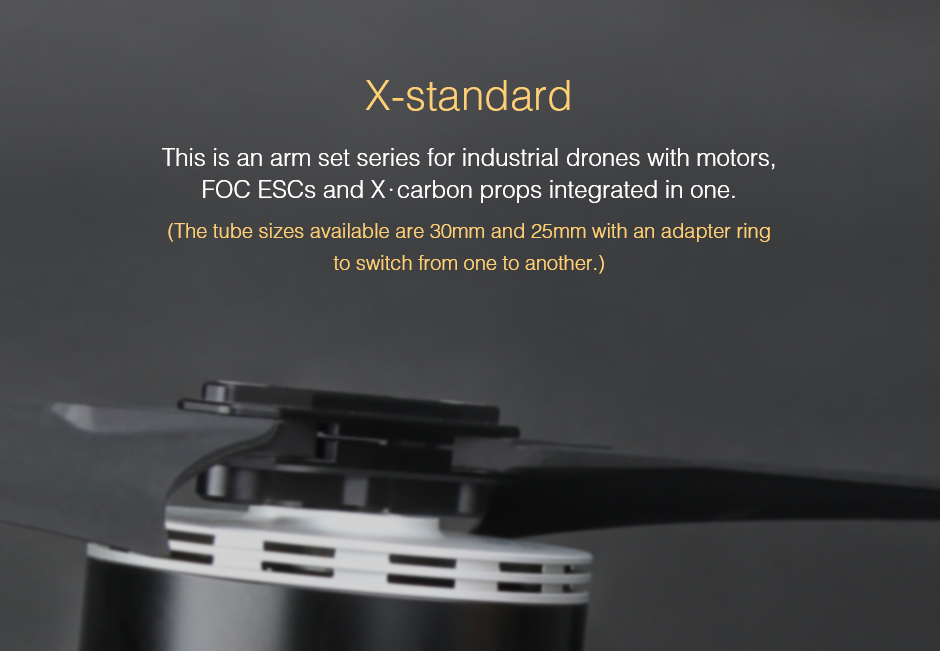

T-MOTOR 505-X Standard Integrated Propulsion System is a modular multirotor UAV propulsion solution designed for industrial drone platforms. It combines the MN501-S brushless motor, Alpha 60A FOC ESC, and MF2211 / MF1806 folding propeller into an integrated UAV power system for stable thrust output, simplified installation, and reliable industrial UAV operation.

505-X Propulsion System Core Advantages

  • Integrated motor, FOC ESC, and folding propeller design for simplified UAV installation and improved propulsion system compatibility.

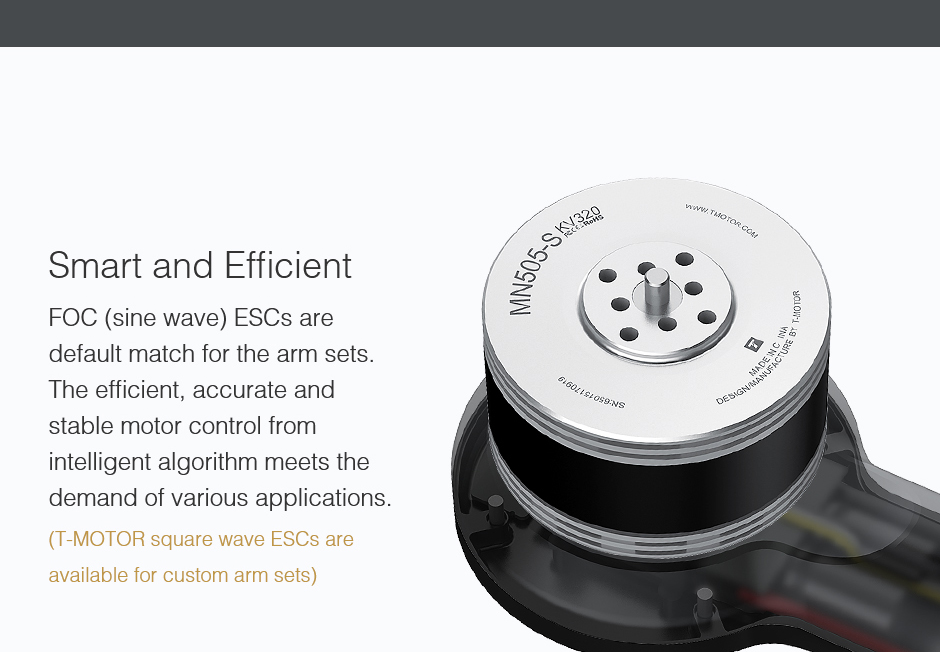

  • Alpha 60A FOC (sine wave) ESC provides efficient, accurate, and stable motor control for industrial multirotor UAV applications.
  • MF2211 / MF1806 folding propeller delivers high efficiency and stable thrust output for multirotor UAV operation.
  • Available in KV320 and KV380 versions for flexible UAV platform compatibility.
  • Compatible with 30mm and 25mm UAV arm tubes for flexible drone integration.

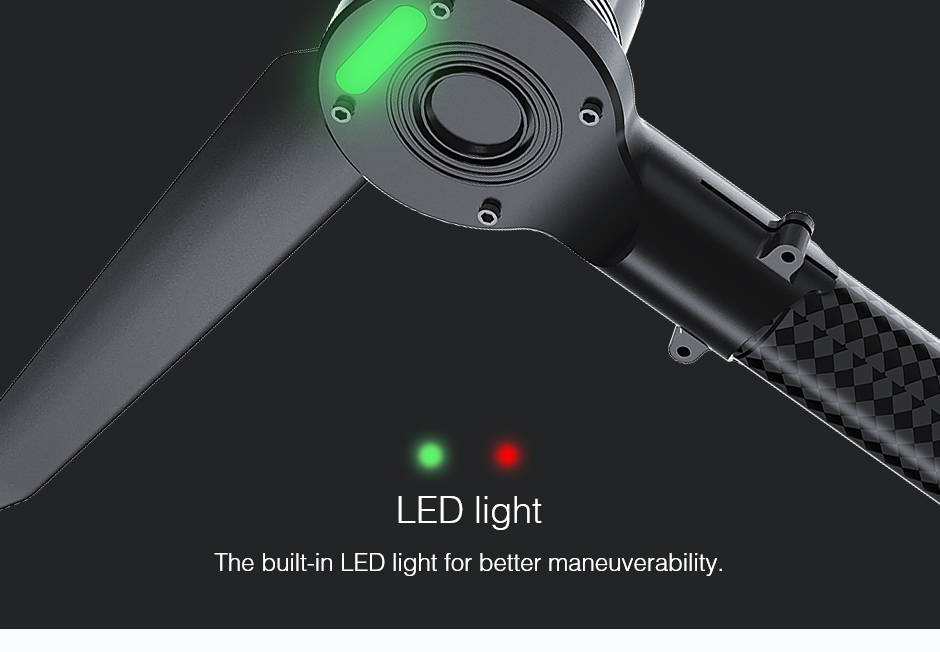

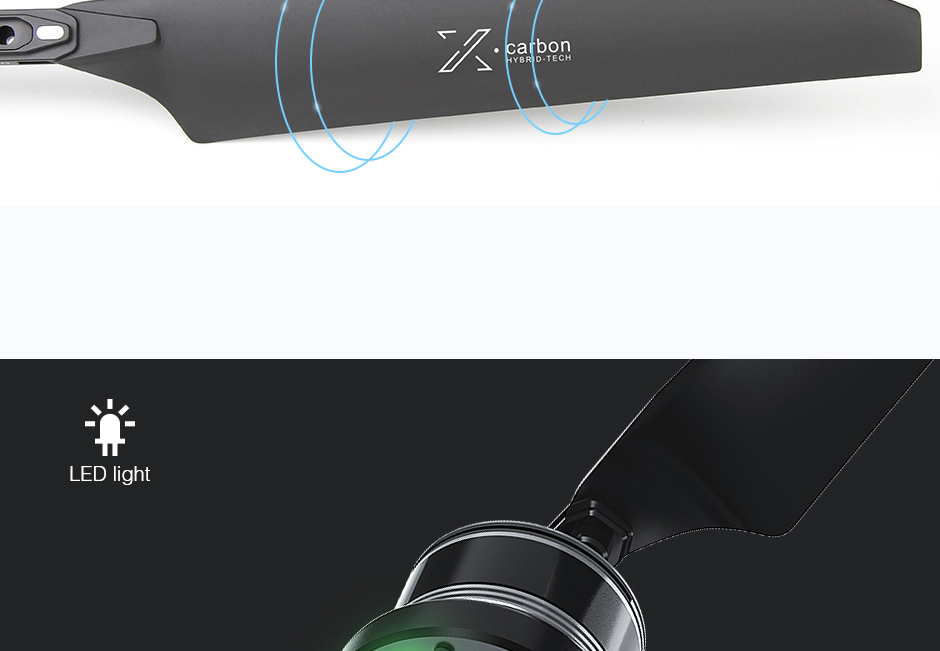

  • Built-in LED light improves visibility and maneuverability during low-light UAV operations.

Technical Specifications

  • Motor: MN505-S Brushless Motor
  • ESC: Alpha 60A FOC ESC
  • Propeller: MF2211 / MF1806 Folding Propeller
  • Voltage: 6S
  • System Type: Integrated Multirotor UAV Propulsion System
  • Tube Size: Compatible with 30mm and 25mm tubes via adapter ring switching

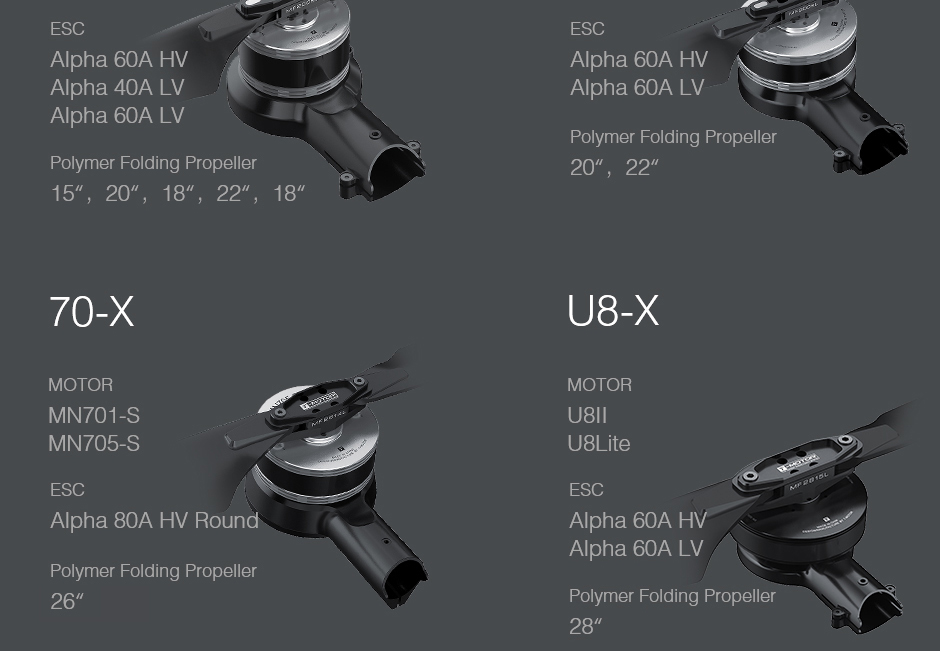

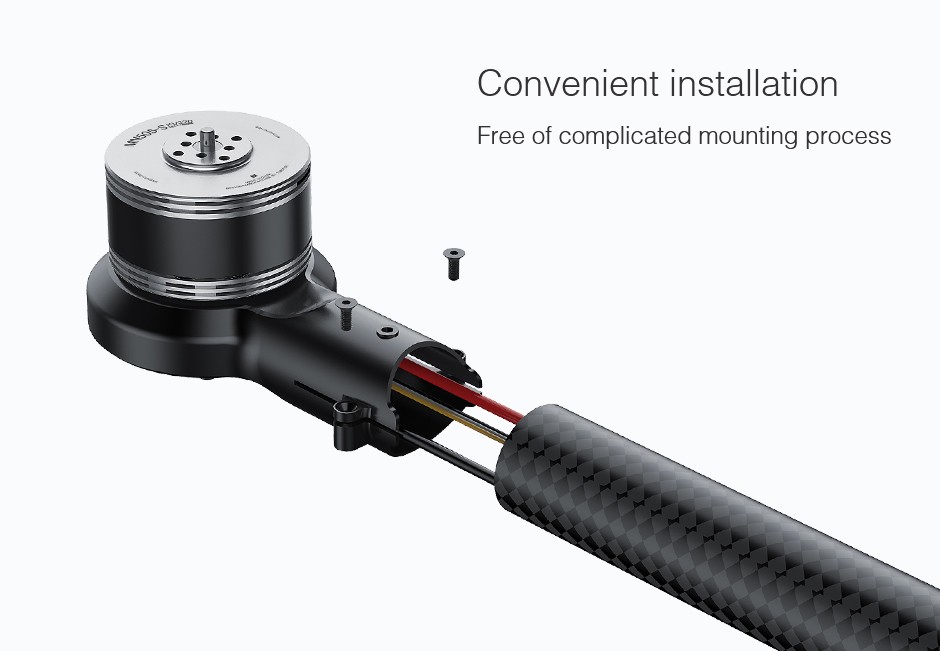

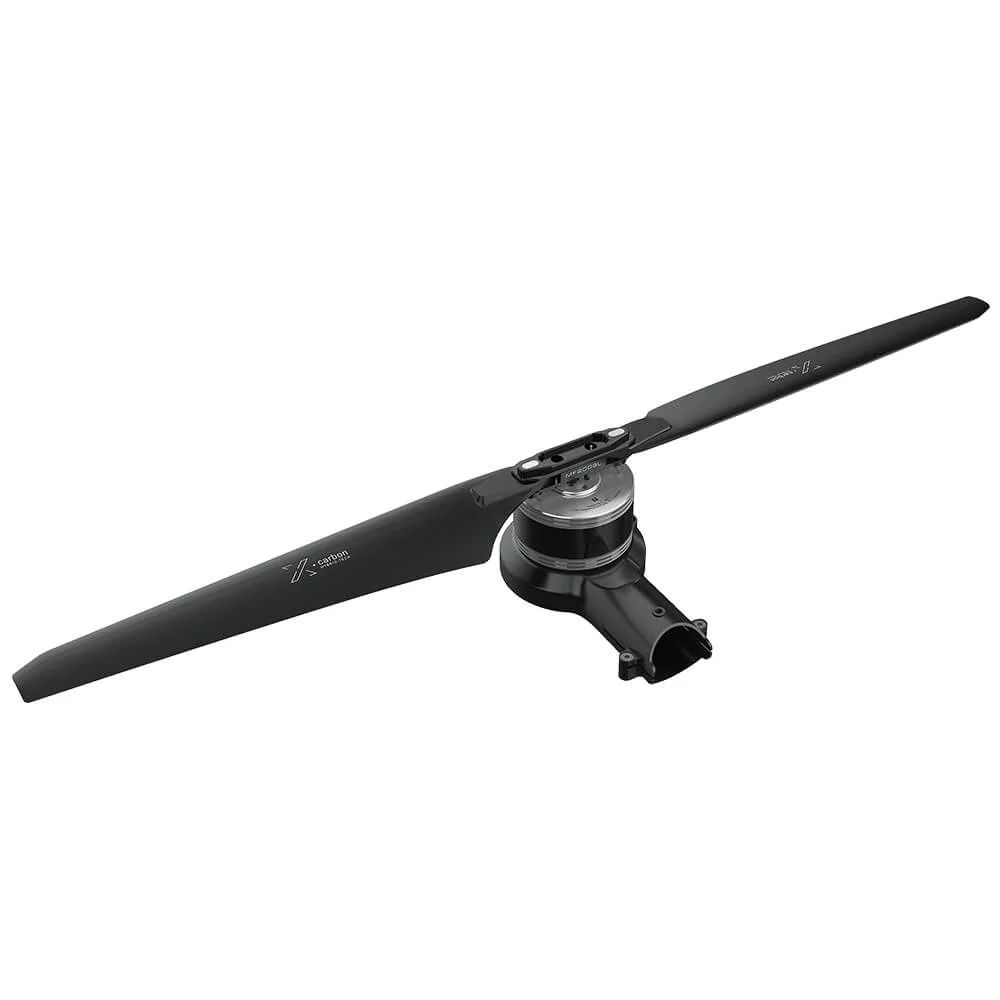

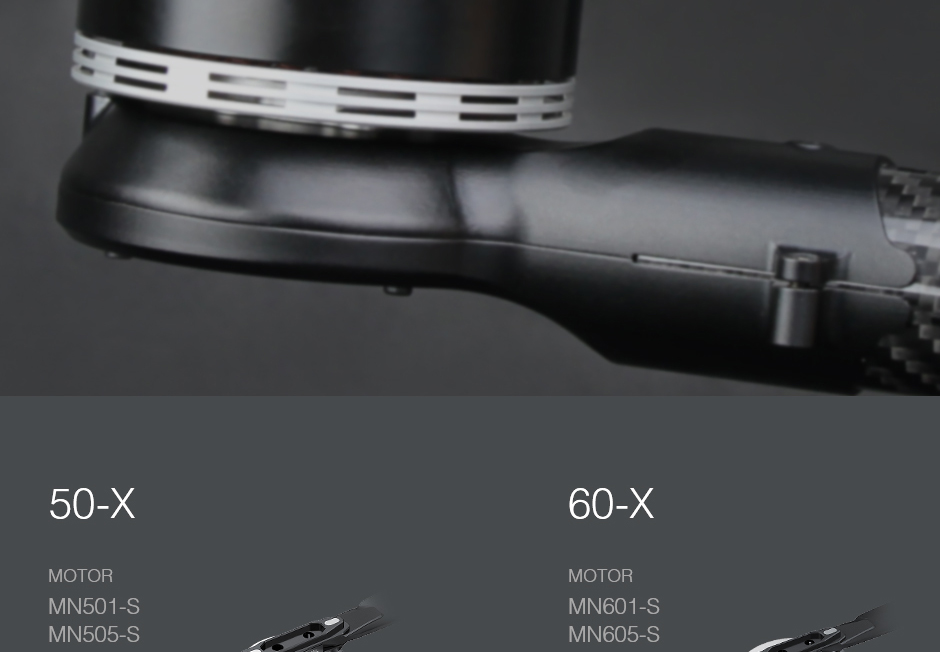

505-X standard UAV propulsion system with motors, FOC ESCs, and carbon propellers505-X standard UAV propulsion system with motors, FOC ESCs, and carbon propellers505-X standard UAV propulsion system with recommended motor, ESC and propeller505-X standard UAV propulsion system with smart FOC ESCs for stable and efficient UAV power control505-X standard UAV propulsion system with carbon propeller505-X propulsion system with carbon propeller505-X standard UAV propulsion system with LED light for better maneuverability505-X standard UAV propulsion system for easy installation

Specifications

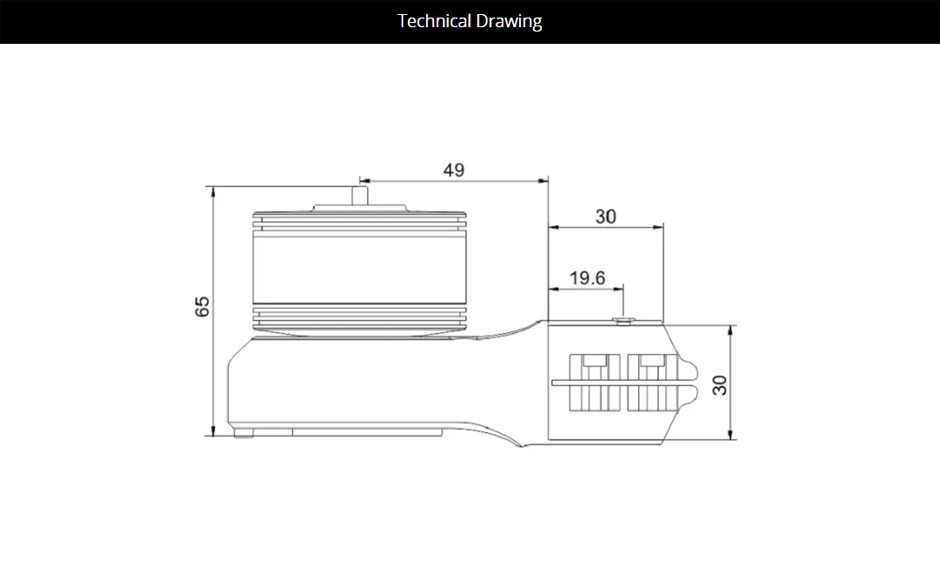

505-X standard UAV propulsion system technical drawing

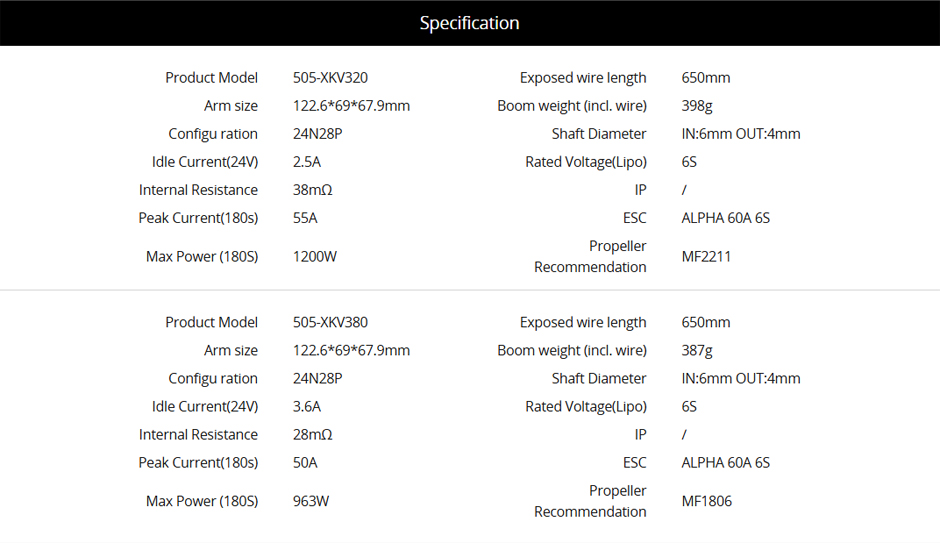

Specification
Product Model 505-X KV320 Exposed wire length 650mm
Arm size 122.6*69*67.9mm Boom weight (incl. wire) 398g
Configu ration 24N28P Shaft Diameter IN:6mm OUT:4mm
Idle Current（24V） 2.5A Rated Voltage(Lipo) 6S
Internal Resistance 38mΩ IP /
Peak Current(180s) 55A ESC ALPHA 60A 6S
Max Power (180S) 1200W Propeller Recommendation MF2211
Product Model 505-X KV380 Exposed wire length 650mm
Arm size 122.6*69*67.9mm Boom weight (incl. wire) 387g
Configu ration 24N28P Shaft Diameter IN:6mm OUT:4mm
Idle Current（24V） 3.6A Rated Voltage(Lipo) 6S
Internal Resistance 28mΩ IP /
Peak Current(180s) 50A ESC ALPHA 60A 6S
Max Power (180S) 963W Propeller Recommendation MF1806

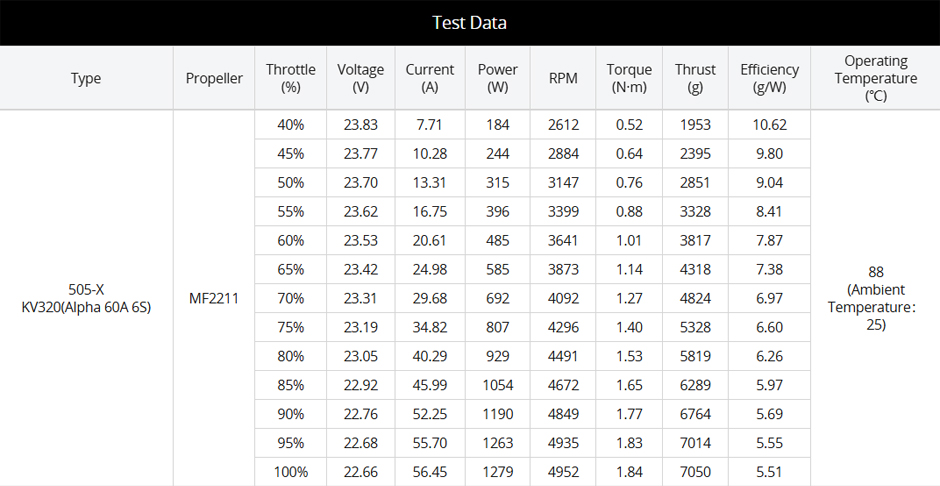

Test Data
Type Propeller Throttle
(%)		 Voltage
(V)		 Current
(A)		 Power
(W)		 RPM Torque
(N·m)		 Thrust
(g)		 Efficiency
(g/W)		 Operating
Temperature
(℃)
505-X
KV320（Alpha 60A 6S）		 MF2211 40% 23.83 7.71 184 2612 0.52 1953 10.62 88
（Ambient
Temperature：
25）
45% 23.77 10.28 244 2884 0.64 2395 9.80
50% 23.70 13.31 315 3147 0.76 2851 9.04
55% 23.62 16.75 396 3399 0.88 3328 8.41
60% 23.53 20.61 485 3641 1.01 3817 7.87
65% 23.42 24.98 585 3873 1.14 4318 7.38
70% 23.31 29.68 692 4092 1.27 4824 6.97
75% 23.19 34.82 807 4296 1.40 5328 6.60
80% 23.05 40.29 929 4491 1.53 5819 6.26
85% 22.92 45.99 1054 4672 1.65 6289 5.97
90% 22.76 52.25 1190 4849 1.77 6764 5.69
95% 22.68 55.70 1263 4935 1.83 7014 5.55
100% 22.66 56.45 1279 4952 1.84 7050 5.51
505-X

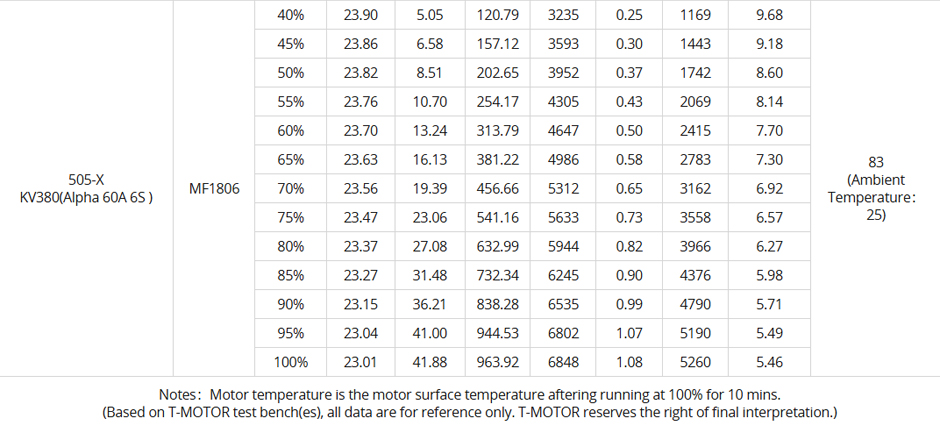

KV380（Alpha 60A 6S ）		 MF1806 40% 23.90 5.05 120.79 3235 0.25 1169 9.68 83
（Ambient
Temperature：
25）
45% 23.86 6.58 157.12 3593 0.30 1443 9.18
50% 23.82 8.51 202.65 3952 0.37 1742 8.60
55% 23.76 10.70 254.17 4305 0.43 2069 8.14
60% 23.70 13.24 313.79 4647 0.50 2415 7.70
65% 23.63 16.13 381.22 4986 0.58 2783 7.30
70% 23.56 19.39 456.66 5312 0.65 3162 6.92
75% 23.47 23.06 541.16 5633 0.73 3558 6.57
80% 23.37 27.08 632.99 5944 0.82 3966 6.27
85% 23.27 31.48 732.34 6245 0.90 4376 5.98
90% 23.15 36.21 838.28 6535 0.99 4790 5.71
95% 23.04 41.00 944.53 6802 1.07 5190 5.49
100% 23.01 41.88 963.92 6848 1.08 5260 5.46
Notes：Motor temperature is the motor surface temperature aftering running at 100% for 10 mins.
(Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)

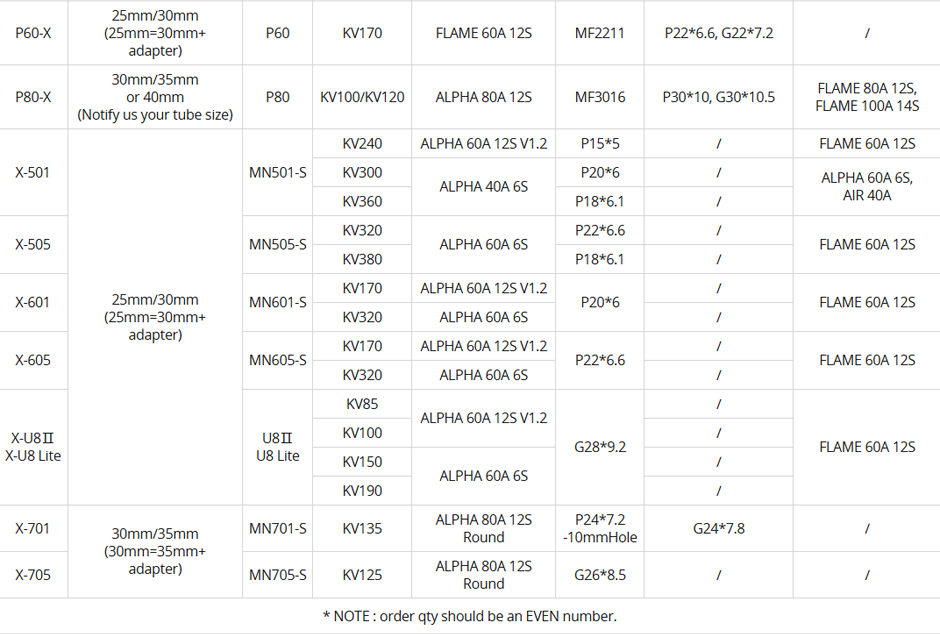

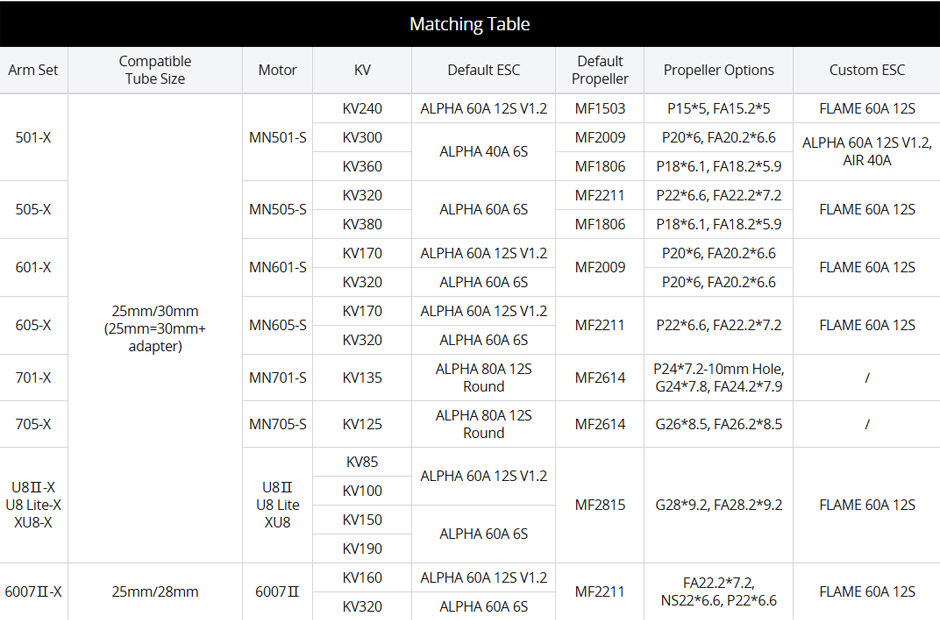

Matching Table
Arm Set Compatible
Tube Size		 Motor KV Default ESC Default
Propeller		 Propeller Options Custom ESC
501-X 25mm/30mm
(25mm=30mm+
adapter)		 MN501-S KV240 ALPHA 60A 12S V1.2 MF1503 P15*5, FA15.2*5 FLAME 60A 12S
KV300 ALPHA 40A 6S MF2009 P20*6, FA20.2*6.6 ALPHA 60A 12S V1.2,
AIR 40A
KV360 MF1806 P18*6.1, FA18.2*5.9
505-X MN505-S KV320 ALPHA 60A 6S MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV380 MF1806 P18*6.1, FA18.2*5.9
601-X MN601-S KV170 ALPHA 60A 12S V1.2 MF2009 P20*6, FA20.2*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S P20*6, FA20.2*6.6
605-X MN605-S KV170 ALPHA 60A 12S V1.2 MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV320 ALPHA 60A 6S
701-X MN701-S KV135 ALPHA 80A 12S
Round		 MF2614 P24*7.2-10mm Hole,
G24*7.8, FA24.2*7.9		 /
705-X MN705-S KV125 ALPHA 80A 12S
Round		 MF2614 G26*8.5, FA26.2*8.5 /
U8Ⅱ-X
U8 Lite-X
XU8-X		 U8Ⅱ
U8 Lite
XU8		 KV85 ALPHA 60A 12S V1.2 MF2815 G28*9.2, FA28.2*9.2 FLAME 60A 12S
KV100
KV150 ALPHA 60A 6S
KV190
6007Ⅱ-X 25mm/28mm 6007Ⅱ KV160 ALPHA 60A 12S V1.2 MF2211 FA22.2*7.2,
NS22*6.6, P22*6.6		 FLAME 60A 12S
KV320 ALPHA 60A 6S
P60-X 25mm/30mm
(25mm=30mm+
adapter)		 P60 KV170 FLAME 60A 12S MF2211 P22*6.6, G22*7.2 /
P80-X 30mm/35mm
or 40mm
(Notify us your tube size)		 P80 KV100/KV120 ALPHA 80A 12S MF3016 P30*10, G30*10.5 FLAME 80A 12S,
FLAME 100A 14S
X-501 25mm/30mm
(25mm=30mm+
adapter)		 MN501-S KV240 ALPHA 60A 12S V1.2 P15*5 / FLAME 60A 12S
KV300 ALPHA 40A 6S P20*6 / ALPHA 60A 6S,
AIR 40A
KV360 P18*6.1 /
X-505 MN505-S KV320 ALPHA 60A 6S P22*6.6 / FLAME 60A 12S
KV380 P18*6.1 /
X-601 MN601-S KV170 ALPHA 60A 12S V1.2 P20*6 / FLAME 60A 12S
KV320 ALPHA 60A 6S /
X-605 MN605-S KV170 ALPHA 60A 12S V1.2 P22*6.6 / FLAME 60A 12S
KV320 ALPHA 60A 6S /
X-U8Ⅱ
X-U8 Lite		 U8Ⅱ
U8 Lite		 KV85 ALPHA 60A 12S V1.2 G28*9.2 / FLAME 60A 12S
KV100 /
KV150 ALPHA 60A 6S /
KV190 /
X-701 30mm/35mm
(30mm=35mm+
adapter)		 MN701-S KV135 ALPHA 80A 12S
Round		 P24*7.2
-10mmHole		 G24*7.8 /
X-705 MN705-S KV125 ALPHA 80A 12S
Round		 G26*8.5 / /
  * NOTE : order qty should be an EVEN number.
