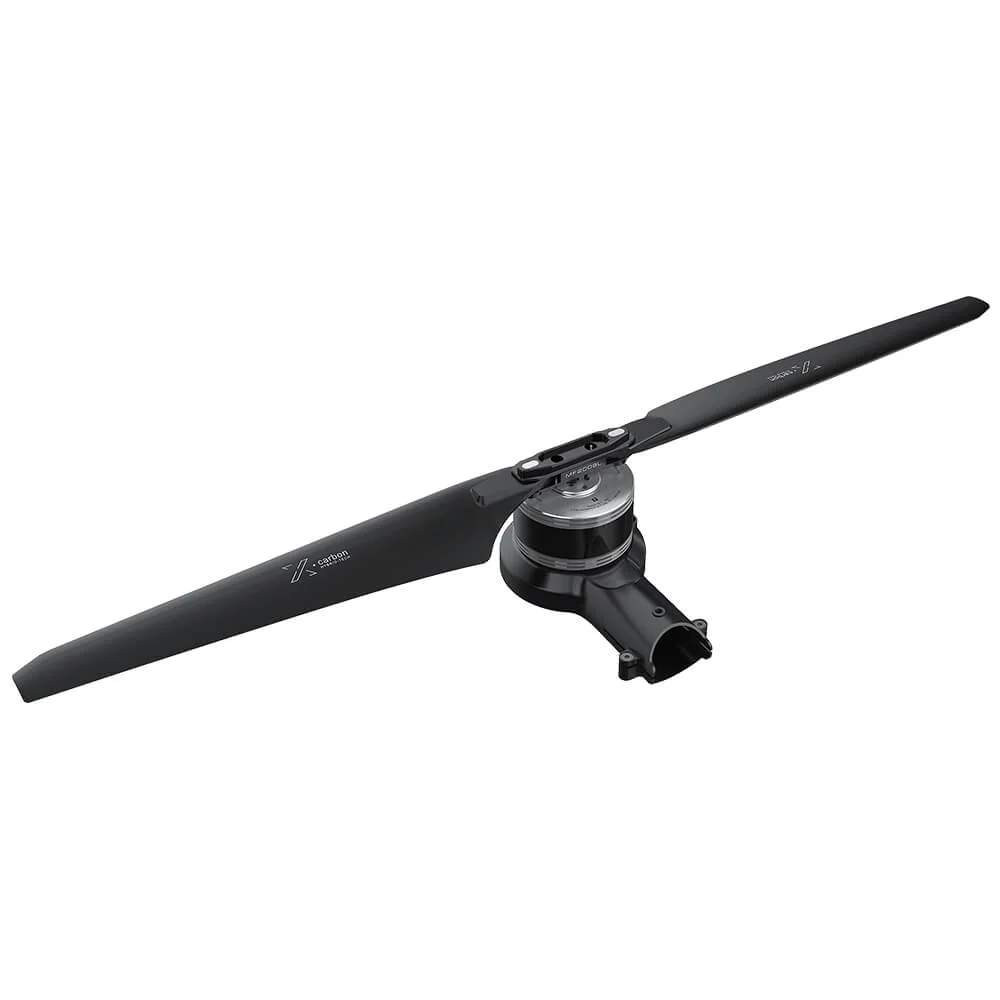

T-MOTOR 501-X integrated propulsion system with MF1503 carbon fiber folding propeller
T-MOTOR 501-X propulsion system bottom view with built-in LED indicator
T-MOTOR 501-X integrated propulsion arm unit without propeller
T-MOTOR 501-X integrated propulsion system with MF1503 carbon fiber folding propeller
T-MOTOR 501-X propulsion system bottom view with built-in LED indicator
T-MOTOR 501-X integrated propulsion arm unit without propeller

T-MOTOR 501-X Integrated Propulsion System Drone Arms for 6S / 12S UAVs

Price

$220.00 $220.00
Save $0.00
/** * 优惠码组件模型类 * 处理优惠码的显示和交互逻辑 */ class SpzCustomDiscountCodeModel extends SPZ.BaseElement { constructor(element) { super(element); // 复制按钮和内容的类名 this.copyBtnClass = "discount_code_btn" this.copyClass = "discount_code_value" } isLayoutSupported(layout) { return layout == SPZCore.Layout.LOGIC; } buildCallback() { // 初始化服务 this.action_ = SPZServices.actionServiceForDoc(this.element); this.templates_ = SPZServices.templatesForDoc(this.element); this.xhr_ = SPZServices.xhrFor(this.win); } /** * 渲染优惠码组件 * @param {Object} data - 渲染数据 */ doRender_(data) { return this.templates_ .findAndRenderTemplate(this.element, Object.assign(this.getDefaultData(), data) ) .then((el) => { this.clearDom(); this.element.appendChild(el); // 绑定复制代码功能 this.copyCode(el, data); }); } /** * 获取渲染模板 * @param {Object} data - 渲染数据 */ getRenderTemplate(data) { const renderData = Object.assign(this.getDefaultData(), data); return this.templates_ .findAndRenderTemplate(this.element, renderData) .then((el) => { this.clearDom(); return el; }); } /** * 清除DOM内容 */ clearDom() { const children = this.element.querySelector('*:not(template)'); children && SPZCore.Dom.removeElement(children); } /** * 获取默认数据 * @returns {Object} 默认数据对象 */ getDefaultData() { return { isMobile: appDiscountUtils.judgeMobile(), isRTL: appDiscountUtils.judgeRTL(), image_domain: this.win.SHOPLAZZA.image_domain, copyBtnClass: this.copyBtnClass, copyClass: this.copyClass } } /** * 复制优惠码功能 * @param {Element} el - 当前元素 */ copyCode(el) { const copyBtnList = el.querySelectorAll(`.${this.copyBtnClass}`); if (copyBtnList.length > 0) { copyBtnList.forEach(item => { item.onclick = async () => { // 确保获取正确的元素和内容 const codeElement = item.querySelector(`.${this.copyClass}`); if (!codeElement) return; // 获取纯文本内容 const textToCopy = codeElement.innerText.trim(); // 尝试使用现代API，如果失败则使用备用方案 try { if (navigator.clipboard && navigator.clipboard.writeText) { await navigator.clipboard.writeText(textToCopy); } else { throw new Error('Clipboard API not available'); } // 显示复制成功提示 this.showCopySuccessToast(textToCopy, el); } catch (err) { console.error('Modern clipboard API failed, trying fallback...', err); // 使用备用复制方案 this.fallbackCopy(textToCopy, el); } const discountId = item.dataset["discountId"]; // 跳转决策: is_redirection + link(可选覆盖) const setting = { is_redirection: item.dataset["redirection"] === "true", link: item.dataset["link"], }; const landingUrl = `/promotions/discount-default/${discountId}`; const finalUrl = appDiscountUtils.resolveDiscountHref(setting, landingUrl); if (finalUrl && appDiscountUtils.inProductBody(this.element)) { this.win.open(finalUrl, '_blank', 'noopener'); } } }) } } /** * 使用 execCommand 的复制方案 * @param {string} codeText - 要复制的文本 * @param {Element} el - 当前元素 */ fallbackCopy(codeText, el) { const textarea = this.win.document.createElement('textarea'); textarea.value = codeText; // 设置样式使文本框不可见 textarea.style.position = 'fixed'; textarea.style.left = '-9999px'; textarea.style.top = '0'; // 添加 readonly 属性防止移动端虚拟键盘弹出 textarea.setAttribute('readonly', 'readonly'); this.win.document.body.appendChild(textarea); textarea.focus(); textarea.select(); try { this.win.document.execCommand('copy'); // 显示复制成功提示 this.showCopySuccessToast(codeText, el); } catch (err) { console.error('Copy failed:', err); } this.win.document.body.removeChild(textarea); } /** * 创建 Toast 元素 * @returns {Element} 创建的 Toast 元素 */ createToastEl_() { const toast = document.createElement('ljs-toast'); toast.setAttribute('layout', 'nodisplay'); toast.setAttribute('hidden', ''); toast.setAttribute('id', 'discount-code-toast'); toast.style.zIndex = '1051'; return toast; } /** * 挂载 Toast 元素到 body * @returns {Element} 挂载的 Toast 元素 */ mountToastToBody_() { const existingToast = this.win.document.getElementById('discount-code-toast'); if (existingToast) { return existingToast; } const toast = this.createToastEl_(); this.win.document.body.appendChild(toast); return toast; } /** * 复制成功的提醒 * @param {string} codeText - 要复制的文本 * @param {Element} el - 当前元素 */ showCopySuccessToast(codeText, el) { const $toast = this.mountToastToBody_(); SPZ.whenApiDefined($toast).then(toast => { toast.showToast("Discount code copied !"); this.codeCopyInSessionStorage(codeText); }); } /** * 复制优惠码成功后要存一份到本地存储中，购物车使用 * @param {string} codeText - 要复制的文本 */ codeCopyInSessionStorage(codeText) { try { sessionStorage.setItem('other-copied-coupon', codeText); } catch (error) { console.error(error) } } } // 注册自定义元素 SPZ.defineElement('spz-custom-discount-code-model', SpzCustomDiscountCodeModel);
/** * Custom discount code component that handles displaying and managing discount codes * @extends {SPZ.BaseElement} */ class SpzCustomDiscountCode extends SPZ.BaseElement { constructor(element) { super(element); // API endpoint for fetching discount codes this.getDiscountCodeApi = "\/api\/storefront\/promotion\/code\/list"; // Debounce timer for resize events this.timer = null; // Current variant ID this.variantId = "c53551a8-1de5-4057-875d-392f8ce3a543"; // Store discount code data this.discountCodeData = {} } /** * Check if layout is supported * @param {string} layout - Layout type * @return {boolean} */ isLayoutSupported(layout) { return layout == SPZCore.Layout.LOGIC; } /** * Initialize component after build */ buildCallback() { this.templates_ = SPZServices.templatesForDoc(); this.viewport_ = this.getViewport(); // Bind methods to maintain context this.render = this.render.bind(this); this.resize = this.resize.bind(this); this.switchVariant = this.switchVariant.bind(this); } /** * Setup component when mounted */ mountCallback() { this.getData(); // Add event listeners this.viewport_.onResize(this.resize); this.win.document.addEventListener('dj.variantChange', this.switchVariant); } /** * Cleanup when component is unmounted */ unmountCallback() { this.viewport_.removeResize(this.resize); this.win.document.removeEventListener('dj.variantChange', this.switchVariant); // 清除定时器 if (this.timer) { clearTimeout(this.timer); this.timer = null; } } /** * Handle resize events with debouncing */ resize() { if (this.timer) { clearTimeout(this.timer) this.timer = null; } this.timer = setTimeout(() => { if (appDiscountUtils.inProductBody(this.element)) { this.render(); } else { this.renderSkeleton(); } }, 200); } /** * Handle variant changes * @param {Event} event - Variant change event */ switchVariant(event) { const variant = event.detail.selected; if (variant.product_id == 'a6a27f27-bbcf-4c52-88b7-5738aa6ee168' && variant.id != this.variantId) { this.variantId = variant.id; this.getData(); } } /** * Fetch discount code data from API */ getData() { if (appDiscountUtils.inProductBody(this.element)) { const reqBody = { product_id: "a6a27f27-bbcf-4c52-88b7-5738aa6ee168", variant_id: this.variantId, product_type: "default", } if (!reqBody.product_id || !reqBody.variant_id) return; this.discountCodeData = {}; this.win.fetch(this.getDiscountCodeApi, { method: "POST", body: JSON.stringify(reqBody), headers: { "Content-Type": "application/json" } }).then(async (response) => { if (response.ok) { let data = await response.json(); if (data.list && data.list.length > 0) { data.list[0].product_setting.template_config = JSON.parse(data.list[0].product_setting.template_config); // Format timestamps to local timezone const zone = this.win.SHOPLAZZA.shop.time_zone; data.list = data.list.map(item => { if(+item.ends_at !== -1) { item.ends_at = appDiscountUtils.convertTimestampToFormat(+item.ends_at, zone); } item.starts_at = appDiscountUtils.convertTimestampToFormat(+item.starts_at, zone); return item; }); } this.discountCodeData = data; this.render(); } else { this.clearDom(); } }).catch(err => { console.error("discount_code", err) this.clearDom(); }); } else { this.renderSkeleton(); } } /** * Clear component DOM except template */ clearDom() { const children = this.element.querySelector('*:not(template)'); children && SPZCore.Dom.removeElement(children); } /** * Render discount codes with formatted dates */ render() { // Render using discount code model SPZ.whenApiDefined(document.querySelector('#spz_custom_discount_code_model')).then(renderApi => { renderApi.doRender_({ discountCodeData: this.discountCodeData }) }).catch(err => { this.clearDom(); }) } renderSkeleton() { // Render template for non-product pages this.templates_ .findAndRenderTemplate(this.element, { isMobile: appDiscountUtils.judgeMobile() }) .then((el) => { this.clearDom(); this.element.appendChild(el); }) .catch(err => { this.clearDom(); }); } } // Register custom element SPZ.defineElement('spz-custom-discount-code', SpzCustomDiscountCode);

choose configuration

Please select a choose configuration

rotation direction

Please select a rotation direction

Quantity

Prices do not include customs duties, taxes, or clearance fees.
12 months warranty from date of purchase (valid proof required).
Support: WhatsApp: +86 180 7928 0718 | onlinesales@tmotor.com

About 501-X Integrated Propulsion System – Modular Drone Arm Set for Industrial UAV Performance

T-MOTOR 501-X Combo Pack revolutionizes industrial drone propulsion with its fully integrated arm system, combining motor and ESC into one seamless unit. Designed for durability and flexibility, it supports 6S/12S battery systems and offers six customizable configurations to match payload, flight time, and power requirements.

Key Features

  • All-in-One Integration: Motor + FOC ESC + Carbon Propeller pre-installed for plug-and-play reliability.
  • Switchable Tube Sizes: 30mm or 25mm arms with adapter rings for quick compatibility adjustments.
  • 6 Configurations: Optimize for power, efficiency, or specialized tasks (see options below).
  • Industrial-Grade Build: Carbon fiber props and corrosion-resistant materials for harsh environments.
  • Built-in LED light improves visibility and maneuverability during low-light UAV operations.

6 Configurable Options

  1. MN501-S KV240 + ALPHA 60A 12S: High-voltage power for 6-12S industrial drones.
  2. MN501-S KV240 + ALPHA 60A 12S + MF1503: Extreme-duty cooling for continuous high-load operations.
  3. MN501-S KV300 + ALPHA 40A 6S: Lightweight efficiency for long-endurance flights.
  4. MN501-S KV300 + ALPHA 40A 6S + MF2009: Heavy-lift stability for payloads up to 5.2kg.
  5. MN501-S KV360 + ALPHA 40A 6S: High-speed agility for rapid-response missions.
  6. MN501-S KV360 + ALPHA 40A 6S + MF1806: Enhanced thrust with auxiliary cooling.

Technical Specifications

  • Arm Set: MN501-S Brushless Motor + Alpha 60A / 40A  FOC ESC
  • Propeller: MF1503 / MF1806 / MF2009 Folding Propeller (Optional, Sold Separately)
  • Voltage: 6S / 12S
  • System Type: Integrated Multirotor UAV Propulsion System
  • Tube Size: Compatible with 30mm and 25mm tubes via adapter ring switching

501-X standard UAV propulsion system with motors, FOC ESCs, and carbon propellers501-X standard UAV propulsion system with motors, FOC ESCs, and carbon propellers501-X Standard UAV Propulsion System with recommended motor, ESC and propeller501-X standard UAV propulsion system with smart FOC ESCs for stable and efficient UAV power control501-X standard UAV propulsion system with carbon propeller501-X standard UAV propulsion system with carbon propeller501-X standard UAV propulsion system with LED light for better maneuverability501-X standard UAV propulsion system for easy installation

Specifications

501-X standard UAV propulsion system technical drawing

Specification
Product Model 501-X KV240 Exposed wire length 650mm
Arm size 122.6*69*60.2mm Boom weight (incl. wire) 350g
Configu ration 24N28P Shaft Diameter IN:6mm OUT:4mm
Idle Current（24V） 1.1A Rated Voltage(Lipo) 6-12S
Internal Resistance 85mΩ IP /
Peak Current(180s) 25A ESC ALPHA 60A 12S V1.2
Max Power (180S) 989W Propeller Recommendation MF1503
Product Model 501-X KV300 Exposed wire length 650mm
Arm size 122.6*69*60.2mm Boom weight (incl. wire) 330g
Configu ration 24N28P Shaft Diameter IN:6mm OUT:4mm
Idle Current（24V） 1.2A Rated Voltage(Lipo) 6S
Internal Resistance 63mΩ IP /
Peak Current(180s) 40A ESC ALPHA 40A 6S
Max Power (180S) 665W Propeller Recommendation MF2009
Product Model 501-X KV360 Exposed wire length 650mm
Arm size 122.6*69*60.2mm Boom weight (incl. wire) 333g
Configu ration 24N28P Shaft Diameter IN:6mm OUT:4mm
Idle Current（24V） 1.7A Rated Voltage(Lipo) 6S
Internal Resistance 45mΩ IP /
Peak Current(180s) 40A ESC ALPHA 40A 6S
Max Power (180S) 772W Propeller Recommendation MF1806
Test Data
Type Propeller Throttle
(%)		 Voltage
(V)		 Current
(A)		 Power
(W)		 RPM Torque
(N·m)		 Thrust
(g)		 Efficiency
(g/W)		 Operating
Temperature
(℃)
501-X
KV240（Alpha 60A 12S ）		 MF1503 40% 47.93 2.12 102 3847 0.17 901 8.88 78
（Ambient
Temperature：
25）
45% 47.92 2.78 133 4289 0.21 1118 8.38
50% 47.90 3.58 172 4724 0.25 1356 7.90
55% 47.88 4.52 216 5160 0.30 1615 7.47
60% 47.85 5.62 269 5591 0.35 1902 7.08
65% 47.82 6.87 329 6020 0.41 2202 6.70
70% 47.78 8.31 397 6439 0.46 2535 6.38
75% 47.75 9.93 474 6860 0.52 2850 6.01
80% 47.70 11.70 558 7271 0.59 3201 5.73
85% 47.65 13.69 653 7676 0.65 3562 5.46
90% 47.60 15.92 758 8072 0.72 3935 5.19
95% 47.54 18.34 872 8456 0.79 4323 4.96
100% 47.48 20.83 989 8820 0.86 4689 4.74
501-X
KV300（Alpha 40A 6S ）		 MF2009 40% 23.95 3.42 82 2405 0.25 1024 12.52 86
（Ambient
Temperature：
25）
45% 23.92 4.53 108 2667 0.30 1262 11.64
50% 23.89 5.88 140 2928 0.36 1519 10.82
55% 23.85 7.43 177 3176 0.42 1794 10.13
60% 23.81 9.21 219 3421 0.49 2084 9.50
65% 23.76 11.24 267 3660 0.56 2392 8.96
70% 23.70 13.54 321 3894 0.63 2714 8.45
75% 23.64 16.09 380 4119 0.71 3044 8.01
80% 23.58 18.84 444 4338 0.78 3380 7.61
85% 23.50 21.82 513 4547 0.86 3712 7.24
90% 23.43 25.05 587 4751 0.94 4048 6.90
95% 23.36 27.92 652 4913 1.00 4338 6.65
100% 23.34 28.49 665 4944 1.01 4392 6.60
501-X
KV360（Alpha 40A 6S ）		 MF1806 40% 23.93 4.26 102 3127 0.23 1083 10.63 86
（Ambient
Temperature：
25）
45% 23.89 5.68 136 3473 0.28 1336 9.85
50% 23.85 7.27 173 3805 0.34 1607 9.26
55% 23.81 9.13 217 4134 0.39 1893 8.70
60% 23.76 11.28 268 4455 0.46 2196 8.19
65% 23.70 13.71 325 4766 0.52 2515 7.74
70% 23.63 16.43 388 5074 0.59 2841 7.32
75% 23.56 19.47 459 5366 0.66 3181 6.93
80% 23.48 22.78 535 5647 0.73 3536 6.61
85% 23.40 26.30 615 5916 0.80 3883 6.31
90% 23.30 30.25 705 6181 0.87 4269 6.06
95% 23.24 32.73 761 6338 0.91 4472 5.88
100% 23.23 33.22 772 6367 0.92 4514 5.85
Notes：Motor temperature is the motor surface temperature aftering running at 100% for 10 mins.
(Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)
Matching Table
Arm Set Compatible
Tube Size		 Motor KV Default ESC Default
Propeller		 Propeller Options Custom ESC
501-X 25mm/30mm
(25mm=30mm+
adapter)		 MN501-S KV240 ALPHA 60A 12S V1.2 MF1503 P15*5, FA15.2*5 FLAME 60A 12S
KV300 ALPHA 40A 6S MF2009 P20*6, FA20.2*6.6 ALPHA 60A 12S V1.2,
AIR 40A
KV360 MF1806 P18*6.1, FA18.2*5.9
505-X MN505-S KV320 ALPHA 60A 6S MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV380 MF1806 P18*6.1, FA18.2*5.9
601-X MN601-S KV170 ALPHA 60A 12S V1.2 MF2009 P20*6, FA20.2*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S P20*6, FA20.2*6.6
605-X MN605-S KV170 ALPHA 60A 12S V1.2 MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV320 ALPHA 60A 6S
701-X MN701-S KV135 ALPHA 80A 12S
Round		 MF2614 P24*7.2-10mm Hole,
G24*7.8, FA24.2*7.9		 /
705-X MN705-S KV125 ALPHA 80A 12S
Round		 MF2614 G26*8.5, FA26.2*8.5 /
U8Ⅱ-X
U8 Lite-X
XU8-X		 U8Ⅱ
U8 Lite
XU8		 KV85 ALPHA 60A 12S V1.2 MF2815 G28*9.2, FA28.2*9.2 FLAME 60A 12S
KV100
KV150 ALPHA 60A 6S
KV190
6007Ⅱ-X 25mm/28mm 6007Ⅱ KV160 ALPHA 60A 12S V1.2 MF2211 FA22.2*7.2,
NS22*6.6, P22*6.6		 FLAME 60A 12S
KV320 ALPHA 60A 6S
P60-X 25mm/30mm
(25mm=30mm+
adapter)		 P60 KV170 FLAME 60A 12S MF2211 P22*6.6, G22*7.2 /
P80-X 30mm/35mm
or 40mm
(Notify us your tube size)		 P80 KV100/KV120 ALPHA 80A 12S MF3016 P30*10, G30*10.5 FLAME 80A 12S,
FLAME 100A 14S
X-501 25mm/30mm
(25mm=30mm+
adapter)		 MN501-S KV240 ALPHA 60A 12S V1.2 P15*5 / FLAME 60A 12S
KV300 ALPHA 40A 6S P20*6 / ALPHA 60A 6S,
AIR 40A
KV360 P18*6.1 /
X-505 MN505-S KV320 ALPHA 60A 6S P22*6.6 / FLAME 60A 12S
KV380 P18*6.1 /
X-601 MN601-S KV170 ALPHA 60A 12S V1.2 P20*6 / FLAME 60A 12S
KV320 ALPHA 60A 6S /
X-605 MN605-S KV170 ALPHA 60A 12S V1.2 P22*6.6 / FLAME 60A 12S
KV320 ALPHA 60A 6S /
X-U8Ⅱ
X-U8 Lite		 U8Ⅱ
U8 Lite		 KV85 ALPHA 60A 12S V1.2 G28*9.2 / FLAME 60A 12S
KV100 /
KV150 ALPHA 60A 6S /
KV190 /
X-701 30mm/35mm
(30mm=35mm+
adapter)		 MN701-S KV135 ALPHA 80A 12S
Round		 P24*7.2
-10mmHole		 G24*7.8 /
X-705 MN705-S KV125 ALPHA 80A 12S
Round		 G26*8.5 / /
  * NOTE : order qty should be an EVEN number.
