How to Properly Match Motors, ESCs, and Propellers in a UAV Propulsion System

　　Designing a high-performance UAV propulsion system is not only about choosing powerful parts—it is about ensuring that the motor, ESC, and propeller work together in perfect balance. Whether you are building a multirotor drone, a long-endurance VTOL, or integrating a complete drone propulsion kit, proper component matching directly affects:

•  Efficiency
•  Stability
•  Flight safety
•  Endurance and payload capability

　　Below is a clear, engineer-friendly guide to help you correctly match motors, ESCs, and propellers in any UAV propulsion system.

1. Matching the Motor and ESC

　　The motor and ESC form the electrical core of every drone propulsion system. Ensuring correct compatibility prevents overheating, shutdowns, and performance loss.

　　Key Factors for Motor–ESC Matching

　　✔Current Rating (Most Critical)

　　The ESC must support a higher continuous current than the motor requires.

　　Rule of thumb:

　　ESC continuous current ≥ motor max continuous current × 1.2–1.4

　　This safety margin prevents thermal overload during rapid throttle changes or heavy-lift flights.

　　✔ Voltage Compatibility

　　Motor, ESC, and battery voltage must match (e.g., 6S, 14S, 24S).

　   Incorrect voltage leads to:

• 　Power loss
• 　Excessive ESC current
• 　Motor damage

　　✔ Control Protocol (PWM / CAN / DShot)

　　Modern ESCs provide better precision, telemetry, and reliability with advanced protocols.

　　CAN ESCs are especially useful for industrial or VTOL UAV propulsion systems requiring real-time data feedback and adaptive control.

　2. Matching the Motor and Propeller

　　The motor–propeller pairing defines thrust, efficiency, noise level, and endurance.

　　Key Matching Principles

　　✔ Motor KV vs. Propeller Size

• 　Low KV motors → Larger propellers → Heavy-lift, high-efficiency
• 　High KV motors → Smaller propellers → High-speed, agile drones

　　The goal is to keep the motor running within its optimal torque/RPM range.

　　✔ Propeller Load vs. Motor Torque

　　Large propellers generate more lift but require more torque.

　　Exceeding the motor’s power limit will:

• 　Increase heat
• 　Reduce efficiency
• 　Shorten lifespan

　　✔ Propeller Material & Aerodynamics

　　Carbon-fiber propellers are preferred for UAVs because they offer:

　　High stiffness

• 　Stable geometry under load
• 　Low vibration
• 　Better aerodynamic performance
• 　Well-tuned airfoils also significantly improve endurance and hovering stability.

　3. Achieving Synergy: Motor, ESC, and Propeller

　A properly matched drone propulsion system ensures:

• 　Maximum flight efficiency
• 　Lower heat build-up
• 　Stable performance in demanding conditions
• 　Longer endurance and higher payload capacity

　　Optimization Tips:

• 　ESC tuning & propeller load balance: Prevents current spikes during VTOL transitions or rapid throttle changes.
• 　Temperature management: Integrated monitoring in kits like VL Series prevents overheating and maintains stable output.
• 　System testing: Factory-tested kits ensure the motor, ESC, and propeller work harmoniously, saving time during integration.

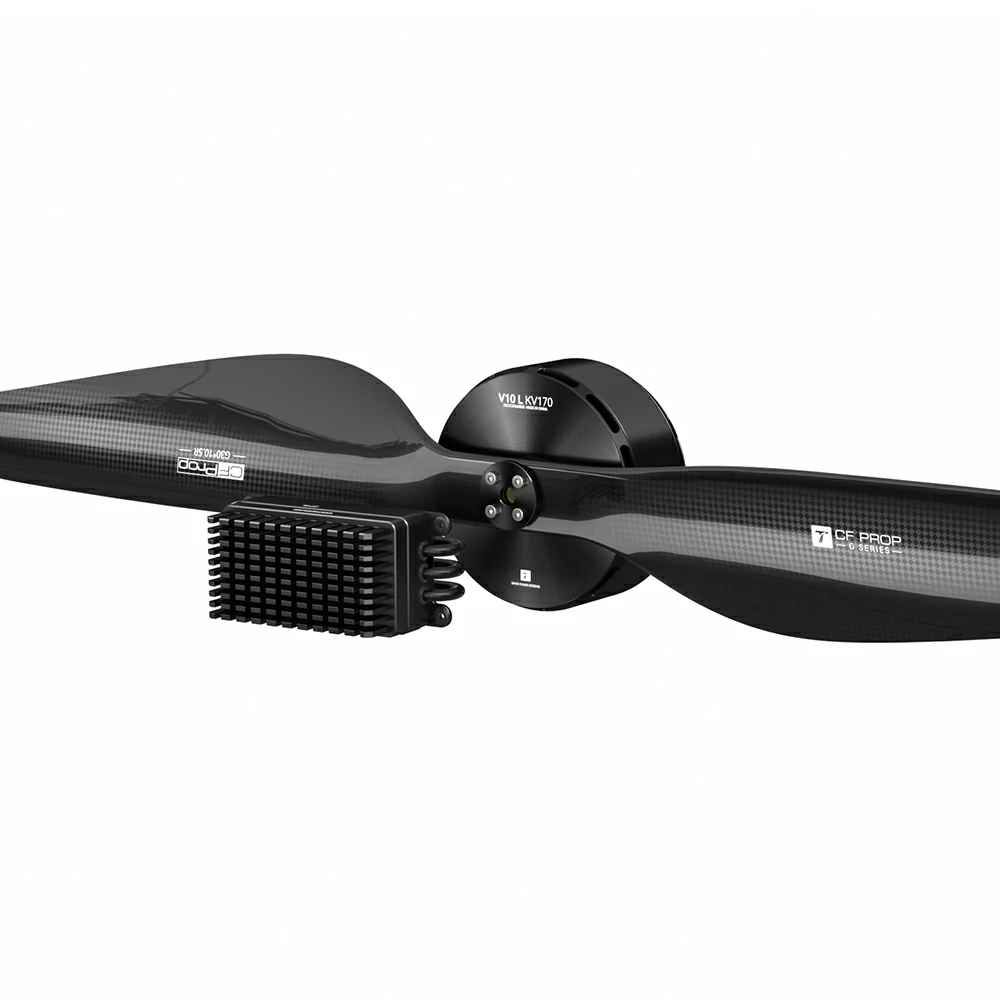

　4. How to Choose the Right UAV Propulsion Kit

　　When selecting or designing a drone propulsion kit, consider:

　　✔ Required Thrust / MTOW

　　Ensure the system can provide sufficient hover thrust with at least 20–30% safety margin.

　　✔ Voltage & Efficiency

　　Higher voltages (12S–24S) reduce current and improve efficiency—ideal for commercial drones.

　　✔ Propeller Diameter & Pitch

　　Match with your goals:

• 　Heavy lift → Large diameter
• 　Long endurance → Mid-size, high-efficiency blades
• 　High speed → Smaller props with higher pitch

　　✔ Environmental Factors

　　Look for:

• 　IP protection
• 　High-temperature winding
• 　Dust-proof structure
• 　Corrosion resistance

　　These features are crucial for industrial, mapping, or agricultural UAVs.

　　✔ Telemetry & Communication

　　CAN-enabled ESCs and temperature feedback systems help ensure stable, controlled flight—especially for VTOL UAV propulsion systems.

　5. DIY Matching vs. Pre-Matched Propulsion Kits

　　Choosing between individual components or a pre-matched drone propulsion kit affects both performance and integration time.

　　Why Pre-Matched Kits Matter: They save time, minimize technical risk, and provide reliable performance — especially important for industrial and professional UAV applications.

　　Final Thoughts

　　A well-designed drone propulsion system depends on precise coordination between the motor, ESC, and propeller. By understanding the electrical, mechanical, and aerodynamic relationships among these components, drone engineers can achieve superior flight efficiency, reliability, and mission-ready performance.

　　If you're building a UAV from scratch, this guide provides the essential principles to follow. If you prefer a faster, more reliable path, you may explore factory-tested, pre-matched propulsion solutions that ensure optimal compatibility and reduce development time.
