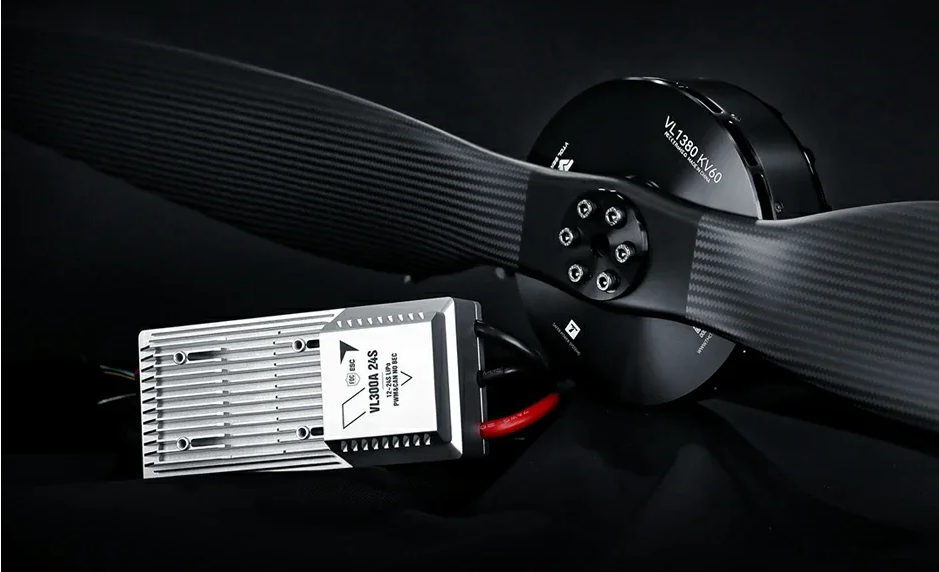

UAV Propulsion Kit vs DIY System: Which One Should You Choose?

There are typically two ways to build a drone propulsion system:

• Using a pre-matched propulsion kit
• Selecting motors, ESCs, and propellers independently

Each approach has its own advantages and is suited to different types of projects. For teams looking to shorten development cycles and prepare for large-scale deployment, a pre-matched propulsion kit can reduce the work involved in component selection and system integration. For teams engaged in prototype development, those with specific performance requirements, or those with strong R&D capabilities, DIY propulsion systems offer greater flexibility. This article will compare these approaches in terms of system compatibility, development cycle, cost, performance verification, and customization capabilities.

What Is the Difference Between a UAV Propulsion Kit and a DIY Propulsion System?

Why Choose a UAV Propulsion Kit?

Motor, ESC, and Propeller Matching

Properly matching the motor, ESC, and propellers helps optimize propulsion efficiency, power output, and system operational stability. Pre-matched propulsion kits reduce the work involved in component selection and compatibility checks while providing a tested configuration for system integration.

Shorten the UAV Development Cycle

A matched propulsion kit can save time during the early stages of UAV development. Instead of researching different motors, ESCs, and propellers and testing multiple combinations, engineers can start with an established configuration and move more quickly toward system integration and flight testing.

Improve Propulsion System Consistency

Using a standardized combination of motors, ESCs, and propellers helps ensure consistent propulsion configurations during mass production and the deployment of multiple drones, facilitating subsequent performance tuning, maintenance, and batch management.

Reduce System Integration Complexity

Pre-matched propulsion kits reduce the need for component selection, compatibility checks, and basic matching of motors, ESCs, and propellers, lowering the complexity of propulsion system integration and enabling R&D teams to complete system development and testing more quickly.

When is a DIY propulsion system the better choice?

High level of customization required

When a standard propulsion configuration cannot meet specific requirements for payload, range, maneuverability, or operating environment, a DIY solution provides more flexibility. For example, this might involve customizing a high-torque powertrain for heavy-payload logistics drones, or operating in environments with special conditions such as high altitudes, extremely low temperatures, or highly corrosive conditions.

Prototype development stage

DIY configurations are particularly useful during the prototype stage. Engineers can test different motor KV ratings, ESC parameters, and propeller sizes to see how each combination affects thrust, power consumption, efficiency, and flight performance.

Specific cost control or supply chain requirements

For teams that already possess mature propulsion system R&D capabilities and supply chain management expertise, procuring components such as motors, ESCs, and propellers independently allows for flexible combinations based on project budgets, suppliers, and component specifications. Under bulk purchasing conditions, it may also be possible to achieve more competitive unit costs for individual components.

Strong propulsion system R&D capabilities

A DIY system requires engineers to handle tasks such as UAV ESC parameter tuning, motor thrust testing, and system validation. Teams with the necessary equipment and propulsion experience can take advantage of this flexibility while maintaining control over the final configuration.

Are UAV propulsion kits really more expensive than DIY solutions?

By purchasing motors, ESCs, and propellers separately, you can compare suppliers and component prices to reduce the initial purchase cost. On paper, the initial purchase cost per component does indeed appear lower.

However, DIY solutions often come with significant hidden time and financial costs:

Time spent on selection and matching: Integrating motors, ESCs, and propellers from various brands and models requires a comprehensive analysis of parameters such as KV ratings, voltage, current, load characteristics, and control protocols. Engineers must invest time in research, calculations, and compatibility verification.

Costs of Repeated Testing:

• Matching tests: Do the purchased components actually work together? Is the power output linear? Bench testing (torque, power, and efficiency tests) is required.
• Flight tests: If issues such as power system overheating, overcurrent, or unstable performance arise during actual flight, retesting or component replacement is often necessary, which also increases the risk of project delays.

Debugging and optimization costs: The parameter tuning process is complex and time-consuming. To achieve the ideal flight attitude and energy efficiency, R&D personnel must continuously adjust ESC parameters and filter settings.

Therefore, when comparing the costs of kits versus DIY builds, one should not merely compare the purchase prices of motors, ESCs, and propellers; one must also consider the comprehensive costs associated with component selection, testing, debugging, maintenance, and development cycles.

What parameters must be matched for a DIY propulsion system?

The core propulsion components include the motor, ESC, and propellers. It is also important to ensure proper compatibility between the battery and the power supply system, as improper parameter matching can lead to system overheating, insufficient power, overcurrent, or hardware damage.

• Match the motor KV rating with the propeller size and pitch to prevent motor overload;
• Ensure the motor's operating voltage range is compatible with the battery voltage and cell count (S rating);
• Ensure the ESC's continuous and peak current ratings meet the motor's actual operating current requirements, while maintaining an appropriate safety margin;
• Ensure the ESC's voltage rating is compatible with the battery voltage range;
• Ensure signal protocol compatibility between the flight controller and the ESC;
• Ensure the battery's continuous discharge capability can support the propulsion system's current requirements;
• Verify the overall thrust-to-weight ratio to ensure it meets flight payload and maneuverability requirements.

The motor, ESC, and propeller should not be selected as three independent components; instead, they should be matched as an integrated propulsion system. For more details on motor and propeller matching, see our [Drone Motor and Propeller Matching Guide].

How do you choose between a kit and a DIY approach for a drone project?

Which approach is better suited for industrial-grade drones?

For mature industrial UAV projects, a well-matched propulsion kit is often the more practical option. These projects usually place more emphasis on repeatability, validation, maintenance, and long-term supply than a one-off prototype does. For heavy-lift applications, our [Heavy-Lift UAV Propulsion System Selection Guide] provides more detailed guidance on choosing the right propulsion system.

Industrial drones typically prioritize the following:

• System matching: Motors, ESCs, and propellers should be matched as an integrated system rather than evaluated based on individual component specifications alone.
• Development efficiency: Reducing the time engineers spend on iterative component selection, matching, and testing can help shorten the development cycle.
• Performance consistency: Consistent propulsion system performance across different aircraft is particularly important during mass production and fleet deployment.
• Reliability and validation: Industrial applications usually require rigorous system testing; mature propulsion kits can reduce the workload associated with initial matching and validation.
• Maintenance and supply: Commercial projects require consideration of long-term bulk procurement, replacement, and maintenance, rather than focusing solely on the cost of the initial prototype.

Why Choose T-MOTOR UAV Propulsion Kits?

T-MOTOR offers matched UAV propulsion kits consisting of motors, ESCs, and propellers, covering applications such as multirotors, VTOLs, fixed-wing drones, agricultural drones, and heavy-lift drones. Developers can select the appropriate propulsion solution based on the drone platform, takeoff weight, and thrust requirements.

Propulsion Solutions for Diverse UAV Applications

Different types of drones have varying performance requirements for propulsion systems. T-MOTOR offers propulsion solutions covering a wide range of application scenarios, including:

• Multirotor UAV Propulsion Systems: Suitable for multirotor platforms with varying thrust and payload requirements.
• VTOL UAV Propulsion Systems: Provide lift and cruise propulsion solutions for VTOL and hybrid-wing drones.
• Fixed-wing UAV Propulsion Systems: Provide propulsion systems tailored to the flight characteristics and propulsion needs of fixed-wing aircraft.
• Agricultural UAV Propulsion Systems: Suitable for agricultural operations, where drones require extended runtime and high propulsion efficiency.
• Heavy-lift UAV Propulsion Systems: Provide high-thrust propulsion solutions for drones with higher takeoff weights and larger payload requirements.

Through various series and configurations, developers can select the appropriate propulsion kit based on the drone platform, takeoff weight, thrust requirements, and application scenario, reducing the need to build and validate a propulsion system from individual components for every project.

Conclusion

The choice between a UAV propulsion kit and a DIY propulsion system ultimately depends on the specific requirements of the drone project.

If the project prioritizes development efficiency, system integration, propulsion system consistency, and large-scale deployment, a pre-configured UAV propulsion kit is typically the more suitable choice, especially for commercial and industrial-grade drone projects.

If the project prioritizes high customization, prototype validation, or complete autonomy in selecting motors, ESCs, and propellers, a DIY propulsion system offers greater flexibility and is better suited for R&D testing and specialized application needs.

There is no one-size-fits-all solution for all drone projects. The key is to select the most suitable propulsion system based on the drone platform, takeoff weight, thrust requirements, application scenarios, development cycle, and R&D capabilities.
