Integrated vs Modular UAV Propulsion Systems: Selection Guide for Industrial Drones

In the field of industrial drones, the choice of UAV propulsion system directly affects operational efficiency, maintenance costs, flight performance, and long-term reliability.

Currently, industrial UAV propulsion systems are mainly divided into two architectures: integrated propulsion systems and modular propulsion systems.

Integrated systems combine the motor, ESC, and propeller into a pre-matched propulsion module, while modular UAV propulsion systems allow engineers to select and configure individual components based on specific aircraft requirements, including thrust, efficiency, weight, and thermal performance.

This guide explains how to choose the right UAV propulsion system from an engineering and application perspective.

1. What Are Integrated and Modular UAV Propulsion Systems?

Before comparing and selecting between the two types of systems, let's clarify the core definitions to avoid confusion:

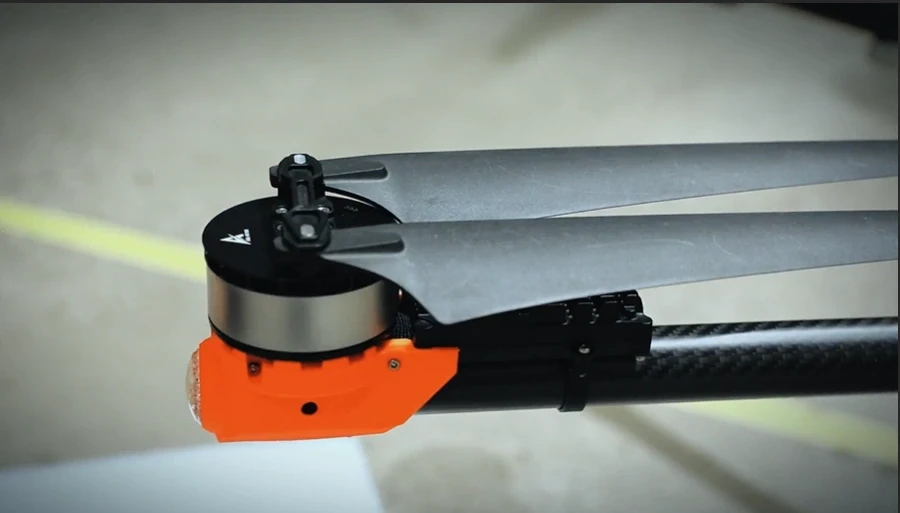

Integrated UAV Propulsion System:

An integrated UAV propulsion system combines the motor, ESC, and propeller into a pre-matched and tested propulsion module. By optimizing the interaction between each component, this plug-and-play solution delivers consistent thrust output, improved efficiency, and reliable performance for industrial drones.

Compared with individually selected components, integrated propulsion systems reduce development time, simplify installation, and minimize compatibility issues during UAV integration.

This architecture is commonly used in standardized industrial UAV platforms where reliability, fast deployment, and consistent performance are required.

Typical application scenarios include:

• Industrial-grade multi-rotor drones
• VTOL fixed-wing drones
• Coaxial propulsion systems
• Commercial, mass-produced drone platforms

Modular UAV Propulsion System:

A modular UAV propulsion system allows engineers to select motors, ESCs, and propellers independently and configure them according to specific aircraft requirements.

This flexible architecture enables customized optimization of thrust, efficiency, weight distribution, and thermal performance, making it suitable for specialized UAV platforms and research projects.

Common application scenarios include:

• Customized industrial drone projects
• Extreme environment applications (high altitude, high temperature, low temperature)
• Aircraft models where the propulsion system is a core competitive advantage

2. Integrated vs Modular UAV Propulsion System Comparison:

The differences between integrated and modular UAV propulsion systems can be evaluated across several key factors, including efficiency, installation, reliability, maintenance, and customization.

Which UAV Propulsion System Should You Choose?

Choosing between an integrated and modular UAV propulsion system depends on the aircraft design, operating environment, and production requirements.

Choose an integrated UAV propulsion system when:

• Fast deployment is required
• Reliability and consistency are priorities
• The UAV platform uses a standardized configuration
• Maintenance simplicity is important

Choose a modular UAV propulsion system when:

• Aircraft customization is required
• Engineers need independent component selection
• Thermal optimization is critical
• The UAV platform is still under development

3. How to Choose the Right UAV Propulsion System for Industrial Drone Applications?

The core of industrial drone selection is "scenario adaptation." Discussing advantages and disadvantages without considering actual operational needs is meaningless. Below, we provide more valuable insights based on mainstream industrial drone application scenarios:

Applications Best Suited for Integrated UAV Propulsion Systems

The reliability, optimized performance, and simplified deployment of integrated UAV propulsion systems make them the preferred choice for many commercial industrial drone applications where operational stability and reduced maintenance are priorities.

Long-duration UAV inspection (power grids, oil & gas, and infrastructure inspection): These applications require stable flight performance and high endurance. Integrated UAV propulsion systems provide optimized motor, ESC, and propeller matching, helping improve energy efficiency while reducing the risk of propulsion failures during extended operations.

Agricultural drone operations powered by agricultural drone propulsion systems: Agricultural drones require reliable propulsion systems for frequent takeoff, landing, and continuous field operation. Integrated UAV propulsion systems reduce installation complexity and improve consistency, making them suitable for agricultural spraying and plant protection applications.

Heavy-lift UAV and logistics applications: These scenarios require high demands on fuselage space and thrust density. The small size and sufficient thrust of integrated systems improve load capacity, while redundant design enhances flight safety and prevents failures during cargo transportation.

Coaxial dual-rotor/compact models: the optimized matching of integrated propulsion systems helps reduce propeller interference, optimize power distribution, and improve flight stability.

Due to aerodynamic and structural constraints, such configurations often rely on coaxial integrated propulsion systems.

Applications Best Suited for Modular UAV Propulsion Systems

The flexibility of modular UAV propulsion systems makes them ideal for customized aircraft development, research platforms, and applications requiring specific performance optimization.

Special modifications/scientific research testing platforms: Scientific research testing or special operations (such as special environment detection) require frequent replacement of motors, ESCs, and propellers to test different parameters. The flexible configuration capability of modular UAV propulsion systems allows engineers to test different motor, ESC, and propeller combinations according to specific requirements.

Large unmanned helicopters/heavy-duty platforms: These devices have large workloads and long operating times, generating significant heat. The distributed component design of modular UAV propulsion systems provides greater flexibility for thermal management in high-power applications. At the same time, damage to a single component does not affect the entire propulsion system, reducing the risk of operational interruptions and lowering maintenance costs.

High-frequency maintenance scenarios (mining areas/construction sites): Mining areas and construction sites have harsh environments, where dust and vibration can easily damage components, requiring frequent maintenance. Modular UAV propulsion systems allow individual replacement of faulty components, reducing maintenance costs and minimizing operational downtime while improving equipment utilization.

4. 3-Step Quick Selection Method:

If you are still unsure which type to choose, you can follow these three steps for quick decision-making:

Step 1: Clarify Task Priorities

If you prioritize "long flight time, high reliability, and easy deployment," choose the integrated propulsion system.

If your core needs are "customization, low-cost maintenance, and extreme heat dissipation," prioritize the modular UAV propulsion system.

Step 2: Evaluate the Operating Environment

If the operating environment involves harsh conditions such as corrosion, electromagnetic interference, or low temperatures, choose the integrated propulsion system.(better encapsulation and protection).

If the environment involves high temperatures, heavy loads, and continuous operation, choose a modular UAV propulsion system for greater thermal management flexibility.

Step 3: Calculate the Total Life Cycle Cost

For scenarios with batch deployment and low maintenance frequency, choose the integrated propulsion system (initial purchase cost is slightly higher, but long-term maintenance is easier and there are fewer failure losses).

For scenarios with single-unit customization and high-frequency maintenance, choose a modular UAV propulsion system (lower initial purchase cost, flexible maintenance, and more controllable long-term maintenance costs).

5. Industry Trends and Recommendations

A clear trend is:

The industrialization of drones is accelerating the adoption of modular and integrated UAV propulsion systems.

For commercial UAV manufacturers, integrated propulsion modules provide faster deployment and consistent performance. Meanwhile, modular UAV propulsion systems continue to play an important role in customized aircraft development and specialized applications.

Summary:

For industrial drone manufacturers and operators, selecting the right UAV propulsion system requires balancing thrust requirements, flight endurance, operating conditions, and maintenance strategies.

T-MOTOR provides modular UAV propulsion systems integrating high-performance motors, ESCs, and propellers for VTOL, multirotor, fixed-wing, and heavy-lift UAV applications.

Explore T-MOTOR UAV propulsion systems for VTOL, multirotor, fixed-wing, and heavy-lift drones to find the right solution for your aircraft platform.
