Heavy-Lift UAV Propulsion System Selection Guide (2026 Edition)

Why do some heavy-lift drones perform perfectly during testing, but struggle once they enter real-world operations?

It's a situation many UAV developers have experienced. On paper, everything looks right: the motors, ESCs, and propellers are properly matched, the airframe is structurally sound, and static thrust tests meet expectations.

However, real-world flight conditions are often very different from controlled testing environments. Once a drone begins carrying payloads, operating in wind, or flying extended missions, issues such as higher motor temperatures, reduced flight time, and lower overall efficiency may start to appear.

In many cases, the problem is not a defective component. Instead, it comes from how the propulsion system performs as a complete package. Small mismatches between the motor, propeller, ESC, and battery may have little impact during bench testing, but become much more noticeable when the aircraft is operating close to its intended workload.

Understanding these interactions is one of the most important steps in selecting a reliable propulsion system for heavy-lift UAV applications.

Key Factors in Heavy-Lift UAV Propulsion System Selection

1. Thrust Requirements

Thrust is the fundamental starting point for selection; the rated thrust per motor and the aircraft's MTOW (Maximum Take-Off Weight) must be clearly defined from the outset.

OEI (One Engine Inoperative) capability is a critical consideration. Taking a hexacopter as an example, if one propulsion unit fails, the remaining five motors must be capable of supporting a safe hover or an emergency landing. Therefore, the propulsion system must maintain sufficient thrust redundancy to handle scenarios such as takeoff, climbing, wind resistance, maneuvering, and unexpected malfunctions.

Recommended calculation for heavy-lift UAV propulsion systems:

Maximum thrust per motor ≈ MTOW ÷ Number of motors × 2.2–2.5

Example: For a hexacopter with an MTOW of 80 kg, the rated thrust per motor should ideally be at least 13–15 kg to ensure an adequate safety margin and OEI capability.

Important Recommendation: Prioritize motors that can achieve the required thrust at 50%–70% throttle, avoiding prolonged operation at high throttle levels (above 80%). This approach not only significantly improves system efficiency, reduces heat generation, and extends motor lifespan, but also preserves greater power reserves for complex flight missions.

2. Propeller Selection

The propeller is a critical component that converts motor torque into lift, significantly impacting load capacity and system efficiency.

Large-diameter propellers deliver higher aerodynamic efficiency at lower RPM, making them ideal for heavy-lift UAV propulsion systems that require long endurance and stable hovering.

High-pitch propellers are more suitable for high-speed UAV applications but increase motor load and energy consumption.

Carbon fiber propellers are widely used in industrial UAV propulsion systems due to their high rigidity, low vibration, and excellent durability.

Folding propellers: Convenient for transport and deployment but require higher structural strength.

Matching Principles:

• Heavy load & long endurance → Large propeller diameter + Low-KV motor
• High speed & light load → Small propeller diameter + High-KV motor
• Carbon fiber propellers are the preferred choice for industrial-grade heavy-lift platforms.

3. System Efficiency

In a heavy-lift UAV propulsion system, efficiency (g/W) directly impacts flight endurance, payload capacity, and operational cost.

High efficiency is not achieved by optimizing a single component, but by ensuring system-level matching between motor, propeller, ESC, and battery under real operating conditions.

Recommendations for improving efficiency:

• Use low-KV, high-torque motors paired with large-diameter propellers.
• Prioritize high-voltage platforms (to reduce current, heat generation, and line losses).
• Select motors featuring centrifugal fans or open heat-dissipation structures to prevent thermal degradation.

For industrial applications, reliability is often more critical than maximum thrust.

Selection Process for Heavy-Duty UAV Propulsion Systems

1. Define Requirements

• Platform type (multi-rotor, VTOL, eVTOL, etc.)
• Maximum Take-Off Weight (MTOW) (airframe + payload)
• Rated thrust per axis (including safety margin)

2. Propeller Selection

Select size and type based on application scenarios and transport constraints, balancing efficiency and practicality.

3. System-Wide Matching and Verification

Ensure the motor, ESC, propeller, and battery work together effectively under actual operating conditions.

T-MOTOR Heavy-Duty Propulsion System Recommendations

1. A Series — Modular Coaxial Propulsion for Multirotors

A series is a new modular power system developed based on MPET technology for multi-rotor UAVs

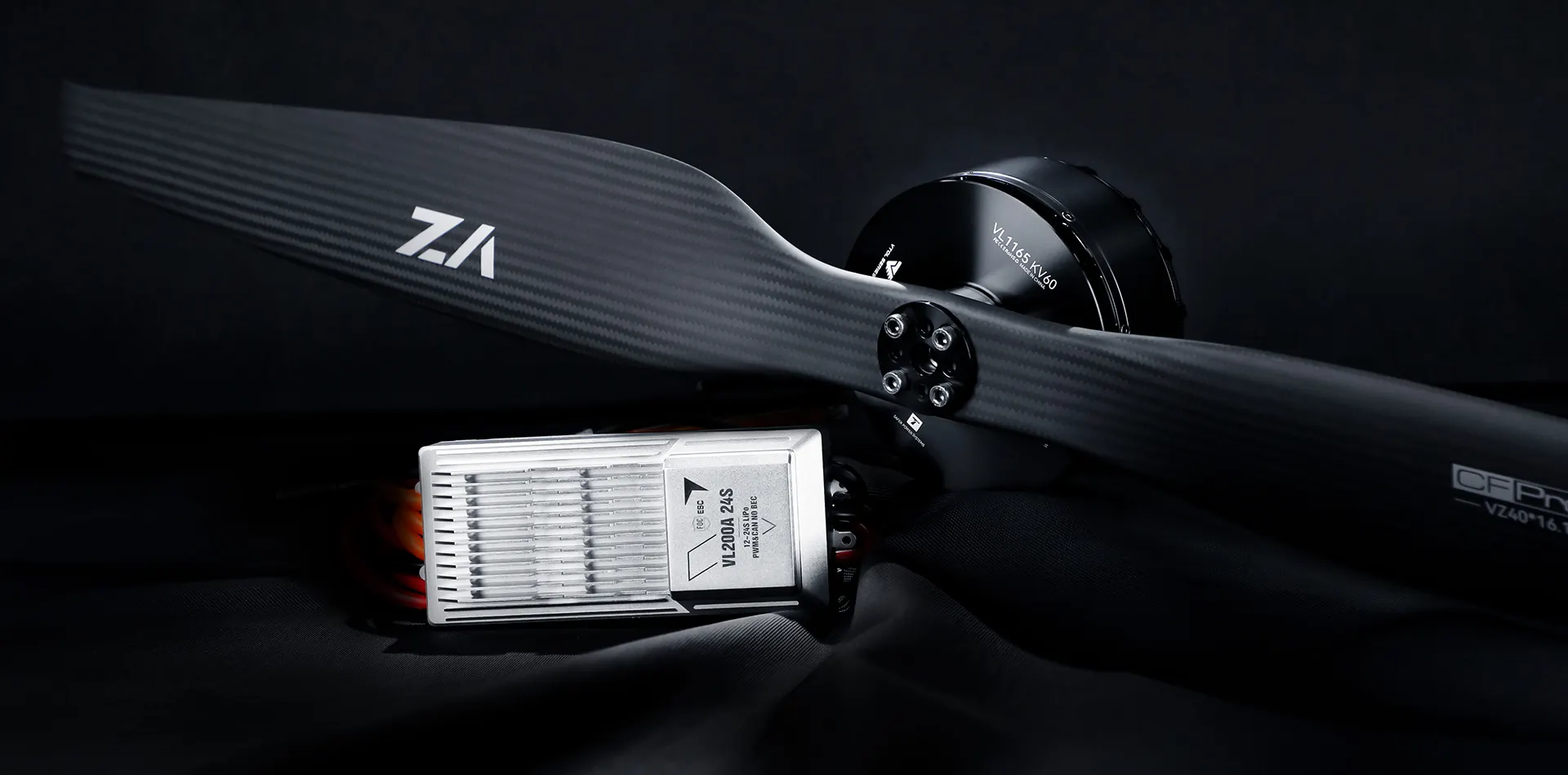

2. VL Series Kit — Professional VTOL Solutions

Designed specifically for VTOL aircraft, the VL Series combines efficient lift performance with a magnetic-encoder propeller locking system for improved operational reliability.

3. U Series — High-Performance Drone Motors

FAQ

1. How do I choose the right propulsion system for a heavy-lift UAV?

Start by defining three key parameters: maximum take-off weight (MTOW), required thrust per motor, and the intended mission profile.

For most heavy-lift UAVs, maintaining sufficient thrust reserve is essential. A common design approach is to target a maximum thrust capability of approximately 2.2–2.5 times the expected hover thrust. In practical applications, the aircraft should be able to hover at around 50%–70% throttle, providing additional control authority, improved efficiency, and lower thermal loading on the propulsion system.

2. What is the most common mistake when selecting motors for a heavy-lift drone?

Choosing a motor that operates too close to its maximum output during normal flight conditions.

When thrust reserve is limited, the propulsion system is more likely to experience increased temperatures, reduced efficiency, and higher electrical loading under demanding operating conditions. For industrial UAV applications, it is generally preferable to select a propulsion system that can deliver the required thrust without operating near its continuous performance limits.

3. Why are high-voltage propulsion systems becoming more common in heavy-lift UAVs?

As aircraft weight and payload requirements increase, the benefits of a high-voltage platform become more significant.

For a given power output, increasing system voltage reduces current draw. This helps minimize heat generation, reduce electrical losses, and improve overall power transmission efficiency. In larger UAV platforms, high-voltage architectures are often adopted to improve system efficiency, reliability, and scalability.

Summary

Selecting a propulsion system for a heavy-lift UAV is not simply a matter of choosing the highest thrust motor or the largest propeller. Reliable performance comes from achieving the right balance between thrust, efficiency, thermal management, and system reliability.

A well-matched combination of motor, propeller, ESC, and battery can significantly improve flight endurance, payload capability, and operational stability. For commercial UAV applications such as logistics, agricultural spraying, emergency response, and infrastructure inspection, system reliability and sufficient performance margin are often more important than maximum output alone.

Looking at the propulsion system as a complete package rather than a collection of individual components is often the difference between a drone that merely flies and one that performs reliably in the field.
