FOC vs BLDC Drone ESC: Key Differences and Selection Guide

In industrial drones, the Electronic Speed Controller (ESC) is a core component of the propulsion system, directly affecting flight stability, efficiency, and reliability. the overall performance of the drone propulsion system. Different ESC control methods result in different performance and application scenarios. Currently, the two most commonly used technologies are FOC (Field-Oriented Control) and BLDC (Brushless DC Motor Control). This article details the core differences, advantages, disadvantages, and selection logic of these two types of ESCs to help quickly match power solutions.

For a deeper understanding of complete UAV propulsion systems and how ESC works with motors and propellers, see our How to Match Drone Motors, ESCs & Propellers.

1. Core Definition of ESC

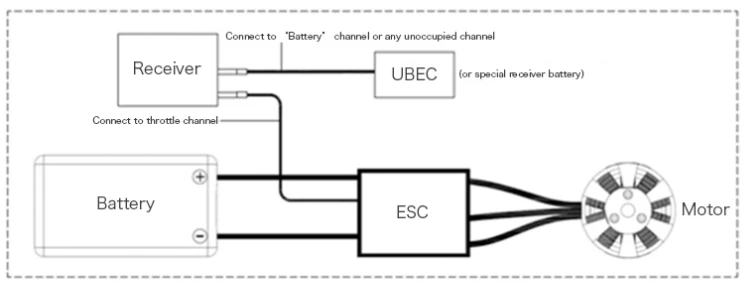

The Electronic Speed Controller (ESC) is the "bridge" between the electronic control system and the UAV propulsion system of an industrial drone. Its core function is to receive control signals from the flight controller and convert the DC power provided by the drone battery into a drive current/voltage that the motor can recognize. This allows for precise adjustment of the speed and torque of the brushless motor, indirectly controlling the drone's thrust, attitude, and flight trajectory. It is a core power control component that ensures stable and efficient flight of the drone.

2. FOC ESC — Precise Control for Smoother Flight

FOC (Field Oriented Control) is an advanced vector control algorithm that generates high-quality sinusoidal drive signals by real-time detection of the motor rotor position. It decomposes the stator current into excitation current and torque current, achieving independent and precise control of motor torque and speed. Compared to traditional control methods, FOC ESC allows for smoother drone flight and more precise attitude adjustments, making it the preferred control solution for mid-to-high-end industrial drones.

The core advantages of FOC ESC include:

Precise Torque and Speed Control: The motor output responds precisely to the controller signal, achieving smooth and linear power output without noticeable power jerking, making the drone more stable during hovering or attitude adjustments.

Fast Dynamic Response: When load changes or external interference occurs, ESC can adjust the motor output in milliseconds, quickly compensating for power differences, significantly improving flight stability and anti-interference capabilities, making it suitable for complex operating conditions.

High-Efficiency Operation: By precisely controlling the magnetic field direction, current loss is reduced, improving the overall efficiency of the motor, extending the drone's flight time by 10%-20% with the same battery capacity. Low vibration and low noise: Smooth current output reduces torque fluctuations and vibrations, providing a more stable platform for flight missions. This is especially beneficial for precision tasks requiring high image/data accuracy, such as aerial photography and surveying, reducing errors caused by vibration.

Integrated safety protection: Modern FOC ESCs generally integrate multi-layer protection mechanisms, including voltage protection, start-up and stall protection, over-temperature power reduction, overcurrent limiting, and runaway protection (safe throttle reduction after signal loss), comprehensively ensuring the reliability of the power system under complex operating conditions.

FOC ESCs are particularly suitable for high-performance UAV propulsion systems and integrated propulsion kit solutions that require high flight stability, efficiency, and accuracy:

Aerial surveying and mapping (requiring stable flight attitude and reducing data errors)

Aerial photography and film shooting (low vibration ensures smooth footage without motion blur)

Scientific research UAVs (requiring precise control of flight parameters to meet experimental needs)

Agricultural plant protection UAVs (stable low-speed hovering ensures uniform spraying)

Logistics transport UAVs (long endurance, high stability, ensuring cargo safety)

If you want guidance on how to choose a propulsion system for specific applications like agriculture or mapping, refer to How to Choose an Agricultural Drone Propulsion System.

3. BLDC ESC — Rapid Thrust, Wide Compatibility

Unlike the sinusoidal vector control of FOC ESC, BLDC ESC typically uses square wave six-step commutation control. Its control method is relatively simple, making it more suitable for cost-sensitive applications or those requiring instantaneous thrust response.

Key features of BLDC ESC include:

Strong Compatibility: No complex parameter calibration is required (such as motor parameter identification in FOC), allowing it to match various models and different KV values ​​of brushless motors. It has wide adaptability, a simple commissioning process, and a low learning curve.

High Thrust Response: Direct and rapid power output, especially suitable for high KV motors, performing excellently in applications requiring rapid acceleration or instantaneous thrust.

Mature, Reliable, and Low-Cost: Mature technology iteration, relatively simple circuit design (no need for complex vector control chips), low component cost, low mass production difficulty, convenient maintenance, simple troubleshooting, and outstanding cost-effectiveness.

Additional notes: The drawbacks of BLDC ESCs include larger torque fluctuations in the square wave current, higher vibration and noise levels during operation compared to FOC ESCs, slightly lower efficiency (5%-15% lower than FOC), and poorer hovering stability, making them unsuitable for scenarios requiring precise control.

Based on its performance characteristics, common applications of BLDC ESCs include:

High-speed racing drones (emphasizing instantaneous acceleration and thrust response)

Entry-level multi-rotor and fixed-wing drones (controlling costs and meeting basic flight requirements)

Underwater propulsion systems and electric surfboards (low sensitivity to vibration, prioritizing dynamic response)

Remote-controlled model cars and airplanes (hobby-level applications, prioritizing cost-effectiveness)

In summary, the core advantages of BLDC ESCs lie in thrust response speed and cost control within cost-sensitive drone propulsion systems. However, they lag behind FOC ESCs in terms of precise control, flight stability, and energy efficiency. The two complement each other, making them suitable for different levels and needs of drone applications.

Also see our Common Drone Propulsion System Problems and Solutions Guide to troubleshoot issues that involve motors, ESCs, and propellers.

4. Selection Guide for FOC and BLDC ESCs for Drones

There is no absolute superiority or inferiority in ESC type selection; the key is the mission requirements of the drone. Please refer to the following summary table:

In short: If the mission emphasizes smooth flight, efficiency, and precise control, FOC ESC is the preferred choice; if the requirements are rapid response, broad compatibility, and cost control, BLDC ESC is more suitable.

5. Supplementary Considerations

Additional Selection Reference: In addition to the control method, the ESC should be selected based on the overall UAV propulsion system configuration, including motor KV value, propeller size, propulsion kit thrust requirements, and the drone's takeoff weight—for example, heavy-payload agricultural drones require high-current FOC ESCs, while small racing drones can use low-current BLDC ESCs.

For detailed matching strategies across motors, ESCs, and propellers, check our Drone Motor and Propeller Matching Guide.

Debugging Points: FOC ESCs require prior motor parameter calibration (such as phase resistance and back EMF), otherwise their precise control advantages cannot be realized; BLDC ESCs do not require complex calibration, but the number of motor poles must be matched to avoid abnormal commutation.

Industry Trends: As industrial drones demand higher stability and longer flight times, FOC ESCs are gradually moving towards lower costs, gradually replacing BLDC ESCs in mid-to-high-end scenarios; while BLDC ESCs still dominate entry-level, hobby-level, and racing scenarios.

Recommended Propulsion System Matching

When selecting an ESC, it is recommended to evaluate the complete UAV propulsion system, including motor KV rating, propeller size, and total propulsion kit thrust requirements. Proper matching of ESC, motor, and propeller ensures optimal efficiency, reliability, and flight stability for industrial drone applications.

For optimal performance, industrial drone manufacturers typically evaluate the ESC together with the motor and propeller as a complete UAV propulsion system or propulsion kit to ensure efficiency, reliability, and long service life.

To explore complete propulsion selection frameworks including VTOL and industrial UAVs, see our VTOL Propulsion System Selection Guide.

6. Summary

As a core component of the UAV propulsion system, the ESC control method (FOC/BLDC) directly determines flight performance, mission completion quality, endurance, and the overall efficiency of the drone propulsion kit. Understanding the differences between FOC and BLDC, and selecting the appropriate ESC type based on specific application requirements, can maximize the UAV's power performance and stability, providing reliable assurance for various industrial UAV missions. In the future, as industrial UAVs upgrade towards higher payload, longer endurance, and higher precision, FOC and BLDC ESCs will be further differentiated and adapted to precisely cover different levels of power requirements.
