Fixed-Wing vs Multirotor UAVs: Choosing the Right Propulsion System

Introduction:

Choosing the wrong UAV propulsion system can cost you flight time, efficiency, and even mission success.

If you're planning a drone project—whether for mapping, inspection, or agriculture—you’ll likely face a key question: Should you choose a fixed-wing or a multirotor?

With the same battery capacity and payload, the range difference between the two can be several times; and if the power system doesn't match the mission, even the strongest performance parameters cannot translate into actual efficiency.

This article helps you determine in the simplest way: for your mission, should you choose a fixed-wing or multirotor?

• For longer and farther flight → Choose a fixed-wing
• For hovering operations and precise maneuvers → Choose a multirotor

If you already have the answer, you can directly read on for the corresponding solutions.

UAV Propulsion System Guide: Fixed-Wing vs Multirotor UAV

Flight Methods and Energy Consumption Differences: Why Such a Large Difference in Endurance?

This is where the real difference comes from—and why flight time can vary by several times.

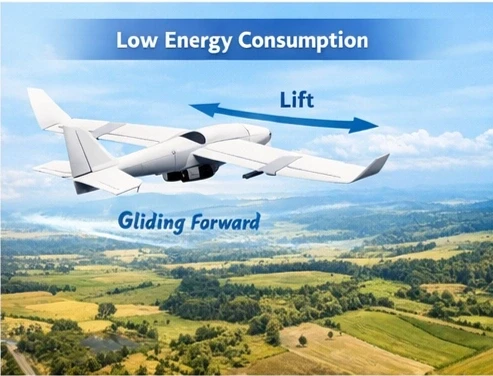

Fixed-wing Propulsion System: Fixed-wing drones primarily rely on the shape of their wings and aerodynamic principles to generate lift during flight. This results in extremely low energy consumption during cruise, allowing for extended flight without frequent recharging.

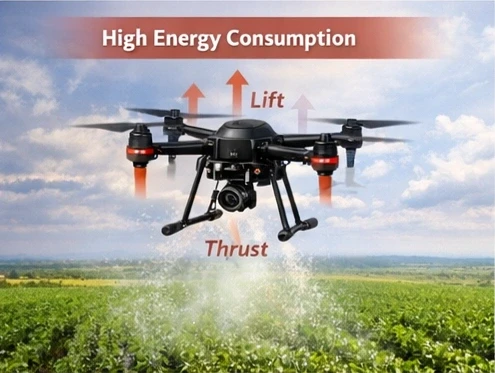

Multirotor Propulsion System: Multirotors rely entirely on the high-speed rotation of multiple rotors to counteract gravity. Hovering and maneuvering require continuous power consumption, making it a "labor-intensive flight." This increases energy consumption to some extent, but also gives them unparalleled flexibility and hovering capabilities.

Payload Capacity and Mission Adaptability: UAV Propulsion System Comparison

Payload capacity is not simply about "how heavy it can carry," but also about stability under mission attitude.

Fixed-wing UAVs are ideal for surveying and inspection with light payloads over large areas. However, they cannot perform precise, low-altitude operations.

Multirotor UAVs, with advanced UAV propulsion systems, can hover, fly slowly at low altitudes, and adapt to spraying, hoisting, or close-range inspections. Heavy loads reduce endurance significantly.

Stability, Control, and Maneuverability: Scenario Determines Needs

Fixed-wing UAVs offer stable flight attitude and stronger wind resistance, making them suitable for open areas and long-duration high-altitude operations. However, their poor maneuverability prevents them from navigating confined spaces or hovering for observation.

Multi-rotor drone offer flexible control and rapid response, enabling vertical takeoff and landing and stationary rotation. They can operate freely in confined spaces such as between buildings, near power poles, and in farmland. Stability is ensured by coordinated flight control and propulsion, making them suitable for precise, close-range missions.

Task-Based Selection: Which to Choose for Different Scenarios?

Long-Endurance Mapping/Large-Area Inspection: Fixed-Wing Propulsion is the First Choice

If your task involves mapping, inspection, and monitoring, and the core requirements are long flight time, wide coverage, and high efficiency, a fixed-wing propulsion system is the optimal solution.

Its low energy consumption maximizes endurance, reduces battery replacement frequency, and allows you to cover several times the area of a multi-rotor system in a single day, avoiding repeated takeoffs and landings that could delay the project. It is especially suitable for remote, open, large-area operations.

Agricultural Plant Protection Spraying: Multi-Rotor Propulsion is the Choice

Agricultural plant protection requires low-altitude flight, precise spraying, agile turning, and even flying close to the top of crops. The advantages of multi-rotor propulsion are irreplaceable.

It can hover precisely and fly at a constant speed, ensuring even spraying of pesticides. Especially in high-temperature summer operations, the continuous thrust and heat dissipation efficiency of the motor directly determine the success or failure of the operation.

Industrial Precision Inspection: Multi-rotor Power is More Practical

To inspect minute cracks in wind turbine blades or the condition of bolts at the base of a bridge, close-up observation, fixed-point photography, and gap detection are required. This necessitates hovering and agile maneuverability, making multi-rotor power essential.

Even for long-distance industrial pipelines, where VTOL hybrid models are used in some scenarios, the core precision inspection still relies on the maneuverability of multi-rotor power. Fixed-wing aircraft cannot perform this kind of close-range precision work.

T-MOTOR Power Solutions: Precisely Matching Your drone

Choosing the right power type is essential, but a reliable power kit is equally important to maximize range and performance. T-MOTOR has created dedicated product series to meet the different needs of fixed-wing and multi-rotor aircraft, adapting to various industry tasks:

Fixed-wing Dedicated: AT Series Power Kits

Designed specifically for long-endurance fixed-wing aircraft, covering takeoff weights from 12kg to 60kg, these kits offer a complete match of motor, ESC, and propellers, eliminating the hassle of adjustments. Built-in multiple protection mechanisms maximize cruise efficiency while balancing stability and range. A suitable model can be found for both small surveying aircraft and large fixed-wing models. View the full AT series >>

Multi-rotor Dedicated: U Series/P Series Power Kits

X Series: The top choice for industrial-grade multi-rotors, balancing efficiency and durability. Available in power and efficiency versions, suitable for inspection, surveying, logistics, and other scenarios. Remains cool during extended operation, ensuring longer battery life. View X-series products >>

P series: Customized agricultural plant protection models, featuring a waterproof and dustproof design, modular installation for easier installation, high tensile strength, low energy consumption, and adaptability to the spraying needs of plant protection machines. They can operate stably even in harsh field environments. View P-series products >>

To make your decision even easier, here’s a quick comparison table:

FAQ:

Q1: Should a VTOL UAV be classified as fixed-wing or multirotor?

VTOL UAVs use multirotor power during takeoff and landing, and fixed-wing UAV power during cruise. When choosing, prioritize the cruise phase..

Q2: Balancing long endurance and heavy payload for UAVs

Endurance and payload are inversely proportional. For long-endurance UAV missions, reduce payload and choose a fixed-wing UAV + high-efficiency power (AT series).

Q3: Can the same power system be used on both fixed-wing and multi-rotor aircraft?

It is not recommended.

Fixed-wing and multi-rotor aircraft have completely different motor requirements: Fixed-wing aircraft require high-efficiency cruise, and the motors typically operate at medium throttle for extended periods; multi-rotor aircraft require frequent speed adjustments and hovering, placing higher demands on motor heat dissipation and response speed. Mixing them will lead to decreased efficiency and even overheating risks.

Q4: What to do if the motors easily overheat during high-temperature operations in summer?

High temperatures in summer are indeed a major challenge for drone operations. We recommend addressing this from three aspects:

Choose the right motor: Select industrial-grade motors with better heat dissipation design (such as the T-MOTOR U series), and avoid using consumer-grade motors for extended periods under heavy loads.

Allow Redundancy: When selecting a power system based on "maximum thrust," it is recommended to retain a 20%-30% margin to avoid prolonged full-load operation of the motor.

Schedule Operating Times Appropriately: Try to avoid operating during the midday heat, or allow the motor sufficient cooling time during breaks.

Q5: I am an individual developer/small team with limited debugging experience. Are there any ready-to-use power solutions?

Yes. T-MOTOR's fixed-wing and multi-rotor offer complete solutions—motors, ESCs, and propellers are pre-matched, and parameters have been tested and verified. You don't need to troubleshoot the matching yourself; simply select the recommended model weight. For special requirements, you can also contact technical support for customization advice.

Conclusion:

In conclusion, here's a key selection tip: For long endurance and large-area operations, choose fixed-wing propulsion; for flexible hovering and precise operations, choose multi-rotor propulsion.

There is no single best propulsion system, only the most suitable one. Whether fixed-wing or multi-rotor, matching the mission scenario and ensuring stable endurance are crucial to maximizing the value of the drone.

Still not sure which system fits your drone?

Explore our dedicated propulsion solutions:

• Fixed-wing propulsion: AT Series
• Multirotor propulsion: A & P Series

Or contact the T-MOTOR technical team for personalized recommendations.
