Drone Motor Kit Buying Guide: How to Choose the Right Drone Propulsion System

Introduction

The UAV propulsion system of a drone largely determines its overall flight performance, and a high-quality drone motor kit is one of its core components. It directly affects flight stability, endurance, payload capacity, and overall operational safety, making it a crucial factor in DIY drone builds, FPV racing drones, commercial aerial photography UAVs, and industrial drone system integration.

Compared to purchasing drone motors, ESCs, and propellers separately, more and more drone developers are opting for original equipment manufacturer (OEM) motor kits. This significantly reduces the risk of incorrect selection or parameter mismatches and eliminates the need for complex setup and tuning. This allows both beginners and professionals to deploy the system quickly.

一、What Is a Drone Motor Kit?

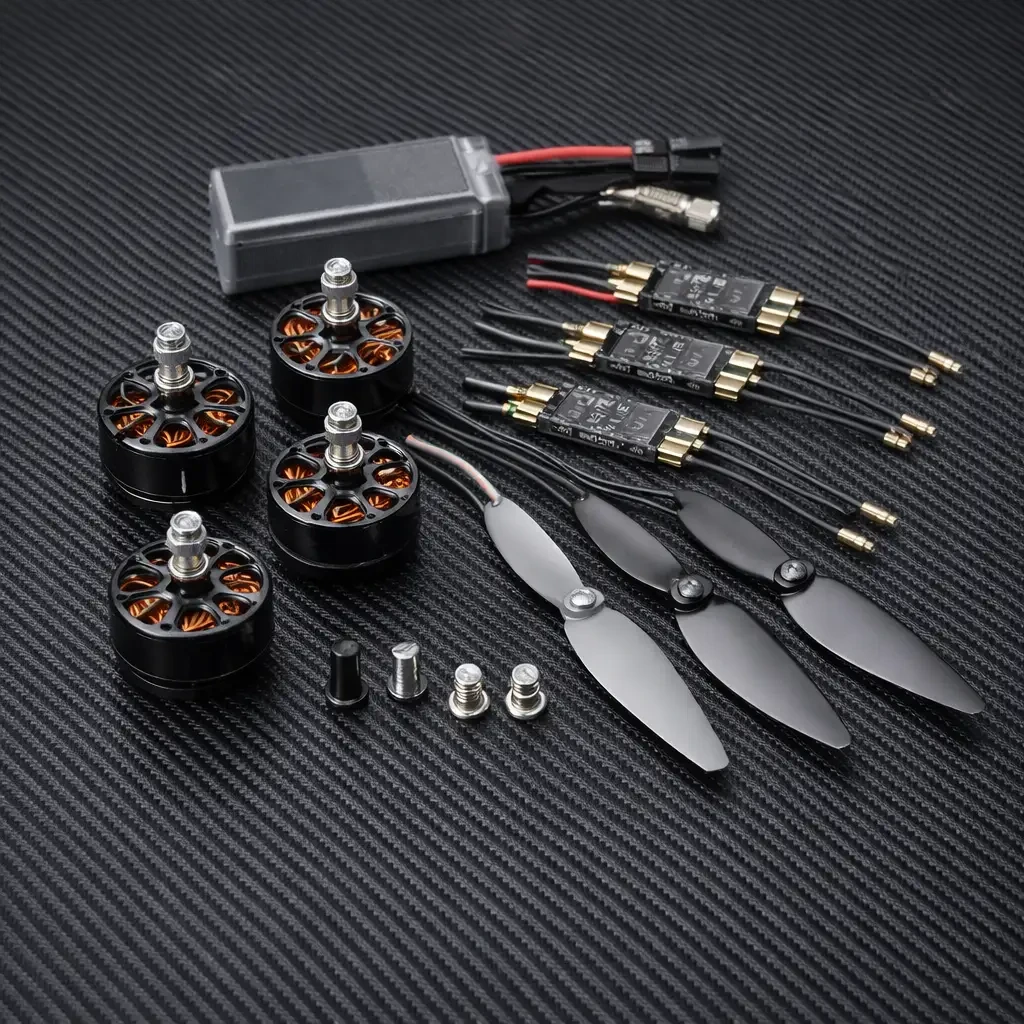

A drone motor kit is a complete UAV propulsion system assembly, typically containing the following three core components:

• Drone Motor
• Electronic SpeedController (ESC)
• Propeller

These three core components together constitute a complete UAV propulsion system. Through energy conversion, speed control, and thrust output, they enable the drone to perform flight maneuvers such as takeoff, hovering, acceleration, and turning. Each of these components plays an essential role in the propulsion system.

The basic workflow of a drone propulsion system is as follows:

Battery → Flight Controller → drone ESC → Brushless Drone Motor → Drone Propeller → Thrust Generation

1. Drone Motors: The Core Power Source

The motor is the core component that converts battery electrical energy into mechanical energy to drive the propeller blades. Currently, brushless DC drone motors (BLDC) are the mainstream choice for drones. Compared to traditional brushed motors, they offer advantages such as higher efficiency, longer lifespan, more precise control, and lower heat generation. Their performance directly determines the drone's thrust, load capacity, and response speed.

Key motor selection parameters:

• KV Value (Speed Constant): Indicates rotational speed (RPM/V) per 1V input under no-load conditions. High KV is for racing/light-load, low KV is for heavy-load/long-endurance drones.
• Stator Size: Models like 2207 or 4014 indicate stator diameter and height. Larger stators support larger propellers.
• Rated Voltage and Current: Must match battery and drone ESC to avoid damage or weak power.

2. Drone ESC: The Bridge to Power Control

The drone ESC acts as the "intermediate hub" connecting the battery, flight controller, and motors. It receives flight controller signals, converts DC power into multi-phase AC pulse signals, and precisely adjusts motor speed in real time. It also plays a role in voltage stabilization and protection. Its response speed and stability directly affect the drone's handling.

When selecting a drone ESC:

• Rated Current: Should be higher than the motor's peak current. It is recommended to leave a 20%-30% margin to avoid overheating and burnout during high-load flights.
• Supported Voltage: Should be consistent with the rated voltage of the motor and battery. Commonly used ESCs are 2S-6S for entry-level/racing models, and 12S-24S for industrial/heavy-duty models.
• Communication Protocol: The mainstream BLHeli_32 protocol offers faster response and is suitable for racing; high-quality ESCs have built-in overcurrent, overtemperature, and undervoltage protection to prevent flight malfunctions.

3. Propeller: Thrust Conversion Component

The propeller blades are responsible for converting the motor's rotational kinetic energy into air thrust, directly affecting the drone's climb rate, level flight speed, endurance, and handling stability. It is the final link in the power output chain and must be perfectly matched to the motor parameters.

Key propeller selection parameters:

• Size and Pitch: Larger size means stronger thrust, but a larger pitch means higher drag. Propeller size and pitch must be matched with the motor KV and power output.
• Number of Blades: Two-blade propellers are highly efficient and energy-saving, suitable for long-haul flights; three-blade propellers balance thrust and sensitivity, making them a common choice for many drone platforms; four-blade or higher propellers offer strong thrust but higher power consumption, making them suitable for heavy payloads.
• Material: Nylon propellers are shock-resistant and inexpensive, suitable for beginners; carbon fiber propellers offer high rigidity and fast response, suitable for professional applications; composite material propellers balance durability and efficiency, suitable for aerial photography and industrial operations.

Further Reading: A Complete Guide to Matching Drone Motors and Propellers – Learn how to perfectly match motors and propellers for optimal UAV performance and efficiency.

二、Choosing the Right Drone Motor Kit for Different Application Scenarios

The core principle for selecting a drone motor kit is to first determine the application scenario, then choose the parameters. It's crucial to avoid blindly pursuing high KV, large size, or expensive products. Different scenarios require different levels of power output, stability, range, and payload capacity. Clearly defining your own usage needs is essential to avoid making the wrong choice from the outset.

1. Entry-Level DIY/Recreational Aerial Photography (Beginner's Choice)

Core requirements: Lightweight, cost-effective, smooth operation without shaking, easy installation and setup, balancing basic range and aerial photography stability. Primarily for everyday recreational flying, beginner practice, and small-scale indoor aerial photography. Not pursuing extreme performance; low failure rate and ease of use are prioritized.

2. FPV Racing/Aerial Flight

Core requirements: Extremely rapid power response, strong instantaneous power output, lightweight body, impact and durability, supporting high-load extreme flight, eliminating power lag, precise speed control. Primarily for track racing and aerobatic flight, requiring extremely high responsiveness and overload capacity.

3. Lightweight Aerial Photography/Short-Range Film and Television Shooting

Core Requirements: Stable flight, low noise, gentle thrust, strong shock resistance, suitable for indoor and outdoor short-range film and television shooting and close-range aerial photography. Equipped with a lightweight camera, prioritizing hovering stability to avoid image shake.

4. Professional Long-Range Aerial Photography/Surveying/Inspection (Commercial Grade)

Core Requirements: Smooth, vibration-free power output, high energy conversion efficiency, long endurance, dust and water resistant. Can carry professional loads such as cameras, surveying instruments, and inspection probes. Suitable for long-term outdoor operations. Stability and endurance are prioritized over maximum power.

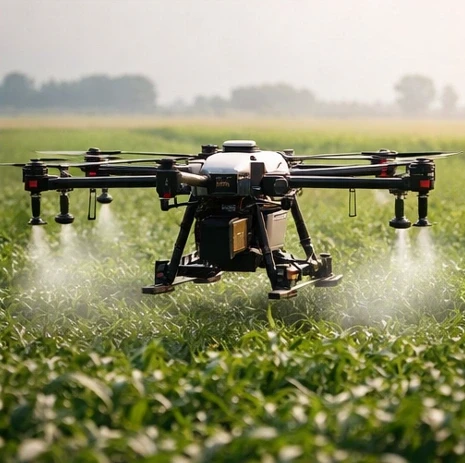

5. Agricultural Plant Protection/Industrial Heavy Duty/Emergency Rescue (Heavy-Duty Grade)

Core Requirements: High tensile strength, high torque, high reliability, high protection level, corrosion resistance, dust resistance. Can carry heavy loads of tens of kilograms or large-capacity medicine boxes. Supports high-intensity continuous operation. Suitable for harsh scenarios such as field rescue, logistics transportation, and agricultural plant protection. Sufficient power redundancy to prevent overload and loss of control.

三、In-depth Analysis of Key Performance Parameters

When purchasing, you should look beyond the marketing parameters and understand the following core indicators and their interrelationships.

Size and KV Value: Motor model numbers such as "2306 2450KV" indicate the stator diameter (mm) and stator height (mm), directly affecting torque potential. The KV value represents the idle speed per volt, which needs to be matched with the battery voltage (e.g., 4S, 6S) and propeller size. High KV motors are suitable for small propellers for high speed, while low KV motors are suitable for large propellers for increased thrust.

Torque Density and Power-to-Weight Ratio: This is the core of measuring a motor's "power" and "lightweight." Drones especially prioritize an optimal power-to-weight ratio to improve overall thrust-to-weight ratio, which relies on advanced electromagnetic design and material processing.

Efficiency Map: Motor efficiency is not constant. Focus should be placed on the motor's efficiency at typical operating points (e.g., cruise speed and torque), as high efficiency directly determines flight range. Leading manufacturers usually provide an efficiency map across the entire speed-torque range.

Thermal Characteristics and Overload Capacity: Continuous stall torque, short-term overload capacity, and the corresponding allowable operating time are key indicators of motor reliability.

四、Why Choose a Complete Drone Motor Kit?

Compared to purchasing motors, ESCs, and propellers separately, original equipment manufacturer (OEM) kits offer significant advantages:

• Parameters are already matched
• Installation is simpler
• Reliability is higher
• Performance has been tested and verified

Therefore, for novice users and commercial drone platforms, choosing a complete power system is generally safer and more reliable.

五、2026 Purchasing Trends and Final Recommendations

1. Core Purchasing Trends in 2026

Complete Kits Become Mainstream: Original equipment manufacturer (OEM) kits are completely replacing piecemeal purchases, eliminating the hassle of adaptation and debugging, and becoming the first choice for novice and commercial users.

High Protection + High Efficiency: With the explosive growth of outdoor industry applications, high protection (IP55 and above) and high pull-to-weight ratio are becoming essential, balancing durability and battery life.

Modular Design Becomes Popular: Industry-grade models adopt modular kits, facilitating installation and maintenance. Single-axis failures can be replaced individually, reducing maintenance costs.

Increased Demand for Heavy-Duty Power: The expansion of emergency rescue, logistics, and agricultural spraying scenarios continues to increase the demand for high-lift, high-redundancy heavy-duty kits.

2. Final Purchasing Recommendations for Different User Groups

Novices/Recreational Users: Directly choose entry-level OEM complete kits, prioritizing lightweight, cost-effective models, avoiding parameter traps, and focusing on ease of use and installation.

Professional Commercial/Aerial Photography Users: Focus on commercial-grade kits with high protection, high pull-to-weight ratio, and long battery life, prioritizing reputable brands and authorized channels to ensure stable operation.

Industrial/Heavy-duty users: Choose industrial-grade heavy-duty complete kits to ensure power redundancy and high protection, adapt to harsh environments, and eliminate safety hazards.

General principles: Reject low-priced, no-name brands; prioritize complete kit procurement; choose reputable channels; and strictly adhere to the principle of power redundancy.

六、Frequently Asked Questions

FAQ 1. Can a beginner install a drone motor kit themselves?

Yes, original factory kits come with complete wiring diagrams and instructions; they are plug-and-play and beginners can install them directly. It is recommended to start with the beginner model.

FAQ 2. Does the kit need to be compatible with the flight controller?

Yes, the ESC protocol must match the flight controller. Before purchasing, confirm the signal formats supported by the flight controller. Original kits can solve most compatibility issues.

FAQ 3. Can I mix and match parts from different brands?

Theoretically, yes, but it is not recommended for beginners. Different brands have different parameter curves, which can easily lead to decreased efficiency. Original factory kits are recommended.

FAQ 4. Which components need to be replaced when upgrading the kit?

When replacing with a high-KV or large-size motor, the corresponding current ESC and battery need to be upgraded simultaneously to avoid insufficient power supply and severe overheating.

FAQ 5. How to judge the quality of the kit?

High-quality kits have neat winding, good dynamic balance, and high blade rigidity. Branded products have comprehensive after-sales service and testing data. Counterfeit products often have falsely advertised parameters and use inferior materials.
