Drone ESC Not Working? Causes, Fixes & Prevention
Why Drone ESC Failures Matter
Your drone powers on. The system arms normally. But one motor refuses to spin—or worse, it jitters, overheats, or shuts down mid-flight.
In hobby drones, this is inconvenient.
In industrial UAV operations, it often means grounded equipment, delayed missions, and potential safety risks.
From field experience, ESC (Electronic Speed Controller) issues are not only common—they are often underestimated until a failure actually happens.
This guide explains common drone ESC problems, what causes ESC failure, and how to fix a drone ESC that is not working in real-world UAV operations.
Why ESC Failures Matter More in Industrial UAVs
In high-demand UAV applications, ESC reliability directly affects mission outcomes.
For example, in agricultural spraying drones, ESCs are often exposed to sustained high current over long flight durations. In mapping or surveying UAVs, even minor RPM instability can affect data accuracy. Heavy-lift platforms push ESCs close to their electrical and thermal limits almost constantly.
In these scenarios, ESC failure is rarely an isolated component issue—it is usually a system-level weakness showing up under stress.
Common Drone ESC Problems and Symptoms
In real-world operations, ESC issues tend to show up in a few recognizable ways:
- A motor that doesn’t spin at all after arming
- Twitching motors that fail to start smoothly
- Unexpected reverse rotation
- ESC overheating within minutes of takeoff
- Continuous beeping without throttle response
- Unstable lift or drifting during takeoff
Individually, these may seem minor. Together, they usually point to deeper issues in power delivery, signal stability, or internal ESC damage.
What Causes ESC Failure in Drones?
Most ESC failures are not random. They are the result of accumulated stress over time.
Electrical Stress
Electrical overload is one of the most common root causes, especially in high-power UAV systems.
Aggressive throttle inputs, incorrect battery configurations (such as mismatched cell counts), or operating consistently near maximum current can gradually degrade ESC components—even before visible failure occurs.
Signal Instability
Signal issues are often overlooked because they are harder to diagnose.
Loose PWM or DShot cables, poor soldering, or inconsistent output from the flight controller can lead to desynchronization. In practice, this is a common reason behind motor twitching or erratic startup behavior.
Thermal Overload
In many industrial drone designs, thermal management is not given enough attention early on.
ESCs installed in enclosed spaces, combined with limited airflow and long-duration high-throttle operation, will accumulate heat quickly. Over time, this leads to MOSFET stress, reduced efficiency, and eventual failure.
In field conditions, thermal + electrical stress combined is by far the most common failure pattern.
Hardware Degradation
Even under normal conditions, ESC components age.
Capacitors can swell, MOSFETs degrade, and PCB traces can weaken—especially in environments with vibration, humidity, or temperature fluctuations.

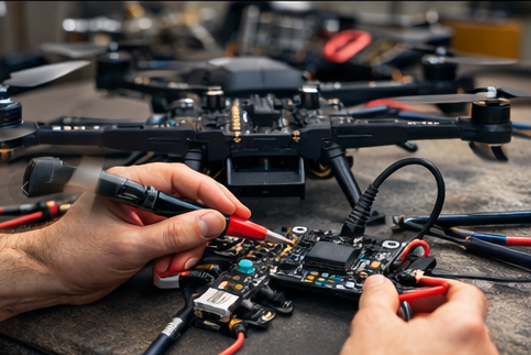

How to Troubleshoot a Drone ESC (Step-by-Step Guide)
When diagnosing ESC issues in the field, a structured approach saves time and avoids misjudgment.
Step 1: Check the Power System
Start with the basics. Measure battery voltage and confirm it matches your setup.
For example, a 6S LiPo should read around 22.2V nominal and 25.2V when fully charged. Also verify that the BEC output is stable (typically around 5V).
Step 2: Verify Signal Integrity
Inspect all signal connections carefully.
In many real cases, intermittent faults are caused by slightly loose connectors or poor solder joints rather than major component failure.
Step 3: Inspect Motor Wiring
Check the three-phase wires between ESC and motor.
If the motor spins in reverse, swapping any two wires will correct the direction—this is normal behavior and not a fault.
Step 4: Use Diagnostic Software
Tools like Mission Planner or BLHeli Suite can reveal issues that are not visible physically.
Focus on monitoring voltage, current draw, temperature trends, and ESC response consistency.
Step 5: Swap Components (Fastest Confirmation)
In practice, the fastest way to isolate the issue is still component swapping.
Replacing the suspected ESC with a known working unit can quickly confirm whether the problem lies in the ESC, motor, or flight controller.
This method is widely used in professional UAV maintenance because it reduces guesswork.
ESC Calibration & Firmware Optimization
In many cases, ESC issues are not hardware failures but configuration problems.
Throttle Calibration
Incorrect throttle range is a common cause of beeping or non-responsive ESCs.
A proper calibration ensures that the ESC correctly interprets minimum and maximum throttle signals.
Firmware Tuning
Using tools like BLHeli Suite, adjusting parameters such as startup power and throttle response can significantly improve stability—especially for heavy-load drones.
In some industrial setups, disabling braking or fine-tuning response curves can also reduce stress on the system.
Well-tuned ESCs not only perform better but also last longer.
Can You Repair an ESC?
Repair is possible, but not always practical.
Minor issues such as damaged capacitors or MOSFETs can be fixed by experienced technicians. However, in many industrial scenarios, replacement is more reliable and time-efficient.
If repair is attempted, always work in an anti-static environment and ensure all replacement components match the original specifications.
After repair, testing under load (around 70–80%) is essential. If overheating persists, internal damage is likely still present.
How to Prevent ESC Failure in Industrial UAVs
Preventing ESC issues is far more effective than fixing them later.
Focus on Thermal Design
Ensure ESCs have proper airflow. Avoid enclosing them in tight compartments unless active cooling is provided.
Build Electrical Margin
A practical rule in industrial UAV design is maintaining at least a 20–30% current margin. Running components continuously at their limits significantly shortens lifespan.
Maintain Regular Inspection
Routine checks on wiring, connectors, and cleanliness can prevent many avoidable failures.
Consider Environmental Factors
Humidity, dust, and electromagnetic interference all contribute to long-term degradation. These are often underestimated in early system design.
How to Choose the Right ESC for Your Drone
ESC selection is not just about matching specifications—it directly affects system reliability.
Key considerations include:
- Sufficient current headroom
- Compatibility with your voltage setup (6S, 12S, HV)
- Effective cooling design
- Stable and reliable firmware
In many professional UAV platforms, integrated propulsion systems from manufacturers like T-Motor are increasingly preferred.
The reason is simple: matched systems reduce integration complexity and significantly lower the risk of ESC-related failures. For readers looking to optimize their system even further, see our guide on [UAV Propulsion System: How to Match Motors, ESCs & Propellers] for detailed best practices.
Still troubleshooting your ESC issue? Below are answers to the most common questions from UAV operators and field engineers.
FAQ: Drone ESC Troubleshooting & Selection
Why is my drone ESC beeping but not working?
In most cases, this is caused by incorrect throttle calibration or missing signal input. Check your transmitter calibration and ensure the ESC is receiving a valid signal from the flight controller.
Why is my drone motor twitching but not spinning?
This usually indicates ESC desynchronization, unstable signal, or internal MOSFET damage. It can also happen if startup power is too low for heavy-load applications.
What causes ESC overheating in drones?
ESC overheating is typically caused by poor airflow, continuous high current draw, or insufficient current margin. Enclosed installations without proper cooling are a common issue in industrial UAVs.
Can a drone ESC be repaired or should it be replaced?
Minor issues like damaged capacitors or MOSFETs can be repaired, but in most industrial scenarios, replacing the ESC is more reliable and time-efficient.
How do I choose the right ESC for my drone?
Select an ESC with at least 20–30% current headroom, proper voltage compatibility (6S/12S), and good thermal performance. For industrial UAVs, integrated propulsion systems are often the most reliable choice.
Final Thoughts: ESC Failure Is Usually a System Problem
In most real-world cases, ESC failure is not caused by a single mistake.
It is the result of:
- Thermal design limitations
- Electrical overload over time
- Inconsistent system integration
For mission-critical UAV operations, improving reliability means optimizing the entire propulsion system—not just replacing individual components.
