Optimized UAV Propulsion Systems for Better Drone Endurance

In drone applications, whether for surveying and mapping, industrial inspection, or logistics transportation, "endurance time" is always a crucial metric. Many users tend to attribute endurance problems simply to battery capacity, but in actual engineering, propulsion system efficiency is one of the key factors determining UAV efficiency and drone battery life.

This article will systematically explain how to effectively extend drone endurance through propulsion system optimization, from the perspectives of propulsion system components, power matching, flight parameters, and practical applications.

The Impact of Propulsion System Efficiency on Flight Endurance

The propulsion system mainly consists of a motor, an electronic speed controller (ESC), and a propeller, which together determine the efficiency with which the drone converts electrical energy into effective thrust.

From an engineering perspective, the efficiency of the propulsion system is not determined by a single component, but rather by the combined result of the following three factors:

Motor efficiency × Propeller efficiency × ESC efficiency

In actual flight tests, even a 5% improvement in overall propulsion efficiency can often lead to a significant increase in flight time for long-duration missions.

If the propulsion system efficiency is low, even with a larger capacity battery, the following problems may occur:

• Excessive current, leading to rapid battery degradation
• The motor operates in an inefficient range, resulting in severe overheating
• Limited improvement in actual flight endurance, while increasing the overall weight of the aircraft

From the perspective of UAV efficiency, the core objective of a highly efficient propulsion system is:

To maintain stable flight with lower power consumption while meeting the thrust requirements of the mission.

Motor and Propeller Matching Optimization

Examples of High-Efficiency Combinations

Motors and propellers are not simply a case of "bigger is better," but rather require matching their operating points.

Common characteristics of high-efficiency combinations include:

• Medium to low KV motor + large-sized, low-speed propeller
• Thrust range covers cruising conditions, not maximum thrust
• Maintaining high efficiency in the commonly used throttle range (40%–60%)

For example, in fixed-wing or long-endurance multirotor platforms, a properly matched power combination can often increase actual flight time by 10%–25% under the same battery conditions.

Thrust and Energy Consumption Balance

Pursuing maximum thrust does not necessarily mean optimal endurance. In many projects, due to "safety redundancy," the initial design often specifies an excessively high maximum thrust configuration, which actually moves the propulsion system away from its efficient operating range.

Practical experience shows that the optimal endurance point for a drone is usually in the range of 60%–75% of the motor's maximum continuous power.

Optimization suggestions include:

• Using cruising thrust rather than maximum thrust as the main design reference
• Avoiding prolonged operation of the motor in high current and high temperature ranges
• Adjusting propeller specifications based on actual test data rather than theoretical values

From the perspective of drone battery life, stable, low-power continuous output is more important than instantaneous high thrust.

The Impact of Flight Parameters on Endurance and Optimization

Besides hardware optimization, adjusting flight strategies through flight control can also effectively improve endurance.

Hovering and Cruising Mode Optimization

Modern flight controllers usually allow for setting multiple flight modes. Parameters can be configured specifically for an "endurance mode":

• Lowering hover RPM: Appropriately reduce the basic throttle value while maintaining stability.
• Optimizing PID parameters: Overly aggressive PID control can lead to frequent acceleration and deceleration of the motors, increasing energy consumption. In endurance mode, the proportional and derivative gains can be appropriately reduced to make the flight attitude smoother.
• Optimizing cruising speed: For fixed-wing or hybrid-wing drones, the optimal cruising speed is usually slightly higher than the maximum endurance speed, but far below the maximum speed.

Payload Control Suggestions

Every extra gram of weight requires additional energy to maintain flight.

Practical suggestions:

• Streamline unnecessary structural components and accessories.
• Position the payload's center of gravity as close to the power axis as possible.
• Avoid temporarily adding equipment that affects the aerodynamic structure.

In many cases, a 5% weight reduction often results in a greater increase in flight endurance than simply replacing the battery.

Recommended High-Efficiency Propulsion Systems for Drones

As a brand long focused on drone power systems, T-MOTOR has accumulated extensive real-world test data and application experience in the field of high-efficiency propulsion systems, suitable for various drone platforms with high endurance requirements.

Multi-Rotor Drone Propulsion System Kits

For applications such as aerial photography, inspection, and surveying, T-MOTOR offers multi-rotor propulsion system kits with optimized efficiency matching of motors, ESCs, and propellers. These kits prioritize power consumption optimization during hovering and cruising, making them ideal for multi-rotor platforms requiring stable and long flight times.

Fixed-Wing Drone Propulsion System Kits

Fixed-wing drones prioritize cruising efficiency.

T-MOTOR's fixed-wing propulsion system kits are designed for long-endurance and long-range missions, offering higher efficiency in the cruising speed range, effectively reducing continuous flight current, and suitable for surveying, patrolling, and other applications.

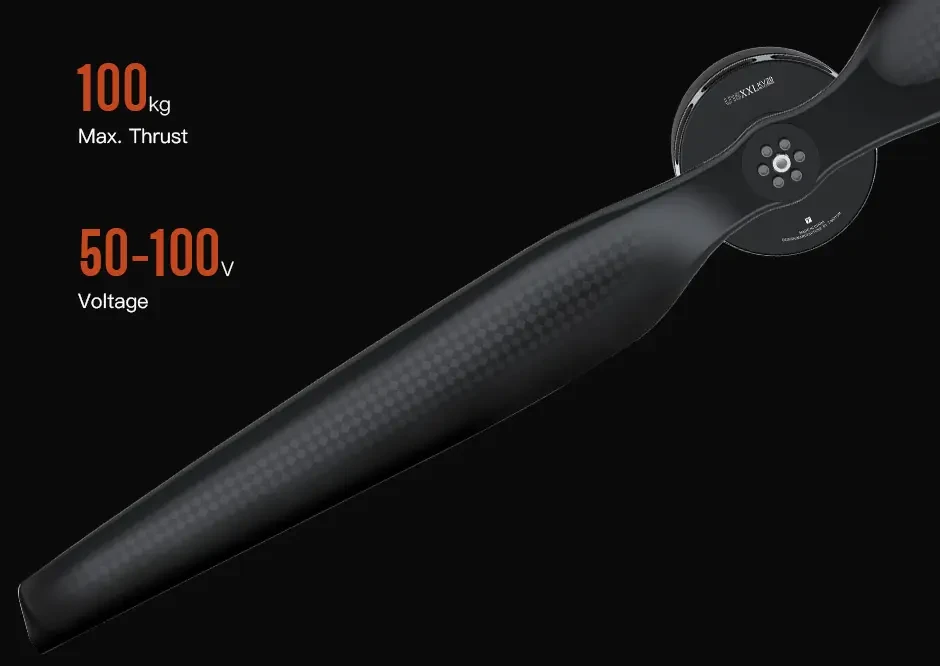

VTOL Drone Propulsion System Kits

For applications requiring both vertical takeoff and landing and cruising flight, T-MOTOR offers VTOL propulsion system kits that balance thrust requirements during takeoff and landing with energy efficiency during cruising, suitable for composite-wing platforms with high endurance and stability requirements.

FAQ – Common Questions About Drone Endurance

Q1: My drone’s endurance is insufficient. Should I upgrade the battery or optimize the propulsion system first?

A1: In practice, simply increasing battery capacity often yields limited benefits. Optimizing propulsion system efficiency—motor, ESC, propeller matching, proper thrust design, and flight parameters—usually delivers more predictable improvements. Battery upgrades can then provide additional gains if needed.

Q2: Is optimizing the propulsion system complicated?

A2: Using integrated propulsion kits (T-MOTOR multi-rotor, fixed-wing, or VTOL kits) significantly reduces setup complexity. Kits are pre-matched for efficiency, optimized for hovering and cruising, and shorten testing cycles while ensuring stable flight.

Q3: Can flight controller adjustments improve endurance?

A3: Yes. Lowering hover RPM, tuning PID gains, and configuring cruising speed in an endurance mode can reduce energy consumption. In real projects, these adjustments can improve flight time by 5%–10%, especially when combined with hardware optimization.

Q4: Does weight reduction impact endurance?

A4: Every additional gram increases energy demand. Practical tests show that 5% weight reduction often improves endurance more than upgrading to a larger battery. Streamlining structures and proper payload placement are recommended.

Q5: Where can I find high-efficiency propulsion kits?

A5: Visit the T-MOTOR UAV propulsion system kits collection to explore multi-rotor, fixed-wing, and VTOL solutions suitable for your mission requirements.

Why recommend using propulsion system kits?

From a systems engineering perspective, the advantages of using complete propulsion system kits are:

• lReduced energy waste due to matching errors
• lShorter testing and parameter tuning cycles
• lMore predictable and stable propulsion system efficiency

Conclusion

Improving drone endurance is not simply a matter of upgrading a single component, but rather the result of overall optimization of the propulsion system, flight parameters, and mission requirements.

Through scientific motor and propeller matching, reasonable thrust redundancy design, and refined flight and load management, it is possible to maximize UAV efficiency and significantly extend actual flight time under existing platform conditions.

If you are looking for a systematic solution to the drone endurance bottleneck, starting with propulsion system optimization is often the most rewarding step.
