EDF Motors vs Conventional Drone Motors: Differences and How to Choose

In discussions among model aircraft enthusiasts and drone industry professionals, the term "ducted fan motor" (often referred to as an EDF motor) is commonly used. However, many people easily confuse EDF motors with ordinary drone motors and are unclear about the use cases and core differences between the two. This article will provide a comprehensive analysis of EDF motors, clarify their key differences from traditional drone motors, and detail their typical application scenarios, helping you quickly understand the core logic of motor selection. For more UAV solutions, visit the T-MOTOR Official Shop

1. What is a ducted fan motor?(EDF motor)

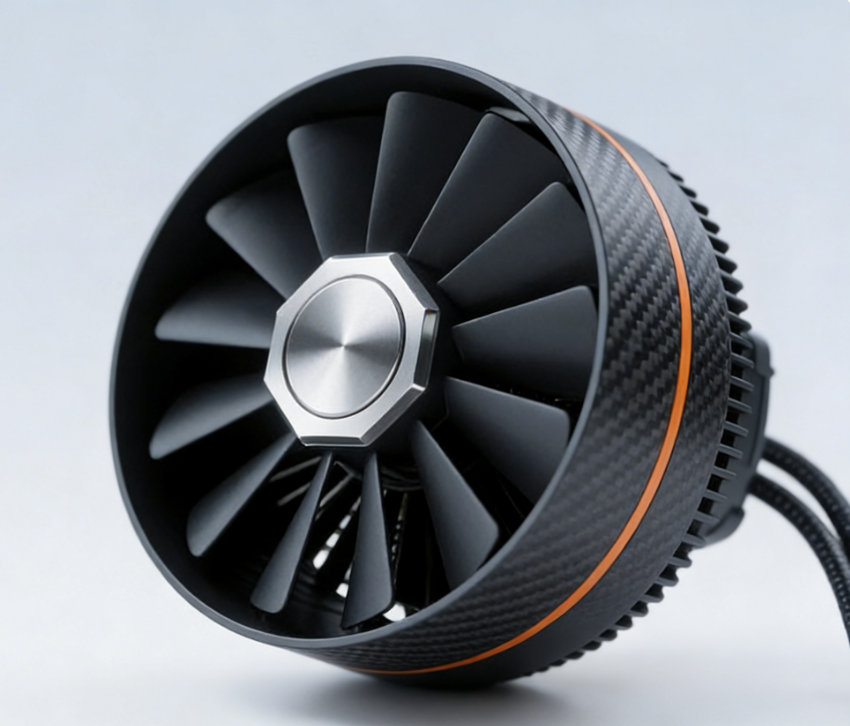

First, it's necessary to understand that a ducted fan motor (EDF motor) is not a traditional "single motor component," but rather an integrated electric propulsion system that integrates a brushless motor, multi-blade fan, duct housing, and airflow guidance structure into a single unit. Its core working principle is simple: powered by a high-discharge-rate lithium battery, the brushless motor drives the fan inside the duct at high speed—typically tens of thousands of revolutions per minute. The duct housing restricts the airflow to a fixed path: air is smoothly drawn in from the leading edge, pressurized and accelerated by the fan, and then expelled at high speed through the converging nozzle at the rear, generating forward thrust through the reaction force of the airflow.

In short, it is a "miniature electric-powered jet propulsion system."

In terms of core advantages, the most prominent features of the ducted fan motor are its concentrated thrust and high propulsion efficiency at high speeds. Furthermore, compared to designs with exposed blades, the ducted casing surrounding the high-speed rotating blades significantly improves safety; at the same time, the airflow jet noise generated during operation is very similar to that of a real jet engine, providing a highly realistic simulation effect. These characteristics determine that its applications are mainly concentrated in areas requiring high-speed performance, realistic simulation, or adaptation to specific environments.

2. Diverse Application Scenarios of EDF Motors

Based on their unique performance advantages, EDF motors are widely used in various fields. The following is an analysis of the main application scenarios and their characteristics:

2.1. Aviation Field

Drones and Multi-rotor Aircraft

Due to their small size, concentrated thrust, and high safety (blades are protected), ducted fan motors have been adopted in certain consumer and industrial drone designs, particularly where safety, compactness, or airflow control is critical. For example:

Consumer drones: used in some experimental or specialized consumer drone applications, such as aerial imaging or short-range logistics demonstrations

Industrial drones: Such as those used in agricultural plant protection, surveying, and inspection, EDF motors can be adapted to complex environments, and have strong wind resistance.

Vertical Take-Off and Landing (VTOL) aircraft: Combining the advantages of fixed-wing and rotorcraft, enabling short-distance take-off and landing, ducted fan motors provide vertical lift.

Model Aircraft and RC Models

Ducted fan motors simulate the appearance and performance of jet engines and are often used in high-speed model aircraft, providing a realistic flight experience.

2.2. Scientific Research and Experimental Aircraft: A Platform for Verifying Innovative Technologies

In the field of aerospace research, EDF motors are the core power source choice for many innovative aircraft designs. For example, in the development of electric vertical take-off and landing (eVTOL) aircraft prototypes, several companies have tested ducted fan solutions, using them as lift or propulsion modules to verify thrust distribution and noise control performance under complex configurations. In addition, some universities and research institutions also use EDF motors to develop high-speed experimental aircraft to study aerodynamic characteristics at extreme speeds, accumulating data for the development of new aviation technologies.

2.3. Industrial and Commercial Applications

Ventilation and Cooling Systems

Ducted fan–based motor systems are widely used in data centers, industrial equipment, and building ventilation. Their efficient airflow design can quickly dissipate heat or circulate air, reducing energy consumption. For example:

• Server rooms: Precisely control temperature to ensure stable equipment operation.
• Industrial plants: Large-volume ventilation to improve the working environment.

Air Purification Equipment

Integrated into air purifiers or fresh air systems, airflow systems based on similar ducted fan principles optimize airflow paths, improve purification efficiency, and reduce noise.

2.4. Special Civil Applications: Meeting Specific Needs in Complex Environments

In some civil scenarios with high requirements for safety and environmental adaptability, EDF motors also have their uses. For example, in the initial testing of urban air logistics, small EDF (Electric Ducted Fan) drones can utilize their compact structure and high safety features to maneuver flexibly between buildings; in emergency rescue scenarios, small drones equipped with EDF propulsion can quickly navigate through narrow forests or building gaps to transmit rescue signals or deliver lightweight supplies. However, these applications are currently mostly in the exploratory stage and have not yet been commercialized on a large scale.

3. Core Differences Between Ducted Fan Motors and Conventional Drone Motors

The "conventional drone motors" we often refer to, such as those used in multi-rotor drones (for aerial photography and inspection) and low-speed fixed-wing drones, are mostly independent brushless motor units that require an external propeller to function. The differences between the two types of motors cover multiple dimensions, including structure, principle, efficiency, and applicable scenarios, which can be more clearly distinguished in a table:

4. Shared Principles and Selection Pitfalls of EDF and Conventional Drone Motors

Many people mistakenly believe that these two are "completely different types of motors," but in fact, they share a core commonality: the core power source of a ducted fan motor is essentially a brushless motor, and its driving principle is the same as that of a conventional drone motor (both generate a rotating magnetic field through stator windings to drive the rotor's permanent magnets). The differences between the two lie more in their "aerodynamic structural design" and "suitability for different application scenarios," rather than in the core principles of the motors themselves.

When selecting a motor, avoid two common misconceptions:

Do not use ducted fan motors on multi-rotor drones: Ducted fans are extremely inefficient at low speeds/hovering, and cannot support the vertical takeoff and landing requirements of multi-rotor aircraft. Forcing their use will lead to a drastic reduction in flight time and insufficient power;

Do not use conventional motors with propellers to pursue high-speed performance: At high speeds, the airflow from propellers diffuses significantly, resulting in insufficient thrust and low efficiency, and failing to achieve the high-speed propulsion effect of a ducted fan.

5. Summary

Ducted fan motors: Integrated propulsion systems designed for high-speed applications; ideal for simulation experiences, high-speed performance, and specialized environments

Conventional drone motors: Versatile power cores; suited for low-speed stability, hovering, and vertical takeoff and landing

Motor selection guidance:

Prioritize high speed / jet-like simulation → choose EDF motor

Prioritize low-speed stability / long endurance / vertical takeoff → choose conventional drone motor

If you are a model aircraft enthusiast or a drone professional, you can further refine your selection parameters based on equipment specifications (such as aircraft size, weight, and target speed), including duct diameter, motor power, and battery discharge rate. We can discuss these aspects in more detail later.
