How to Choose an Agricultural Drone Propulsion System

In the rapidly developing agricultural sector, agricultural drones are becoming an indispensable aerial force in modern farming due to their unique advantages. Among the core components of every high-performance agricultural drone, UAV propulsion systems play a crucial role in ensuring stable flight, reliable operation, and high efficiency.

Today, we will discuss how to select an agricultural drone propulsion system and recommend two of the best options, each designed to meet the diverse needs of modern agriculture.

一. Why Propulsion Systems Are Crucial in Agricultural Drones

Choosing the right propulsion system for agricultural drones is crucial for many reasons. A well-matched propulsion system ensures stable performance, smoother handling, and higher reliability under various flight conditions. Whether spraying crops, monitoring fields, or collecting data, the propulsion system you choose will directly impact the efficiency of the drone in performing these tasks.

二. Key Factors in Selecting an Agricultural Drone Propulsion System

1. Matching the Operational Scenario: The selection of a propulsion system should primarily be based on the scale of the farmland, crop type, and terrain conditions.

2. Core Performance Parameters: The efficiency of the propulsion system directly affects the operational results; flight time, payload capacity, and spray width should be given special attention.

3. Intelligent and Safety Features: The system should be able to actively avoid obstacles, adapt to uneven terrain, and achieve precise spraying, thereby reducing operational difficulty and safety risks, especially valuable in complex environments.

4. Brand Reliability and After-Sales Service: Propulsion systems from well-known brands are typically validated through extensive real-world operations, reducing long-term usage risks and ensuring continuous operational efficiency.

三. T-MOTOR's Two Agricultural Drone Propulsion Systems

As the drone industry becomes increasingly segmented and standardized, and user demands for products rise, T-MOTOR, adhering to the principle of "providing customers with the safest propulsion systems," has specifically developed the professional-powered, high-performance P-series Agricultural drone propulsion system for the agricultural plant protection field. After extensive testing, it not only boasts high reliability and long service life but also withstands harsh operating environments.

1. P60-X Agricultural Drone Propulsion System - Designed for medium-payload agricultural spraying drones

Specific features are as follows:

Motor: The P60 agricultural drone's motor propulsion system is optimized for a powerful pull exceeding 8 kg, with a maximum power of 1800W. It employs a 24-slot, 28-pole structure, ensuring low noise and stable, reliable operation. Its robust structure provides impact resistance, effectively protecting core components. The motor boasts IP35 dust and water resistance and also ensures efficient heat dissipation, making it suitable for complex environments. The coil surface has a special coating to prevent pesticide corrosion and ensure durability.

ESC: Employs an electronic speed controller based on a FOC (sine wave) drive scheme. Intelligent algorithms ensure efficient, precise, and stable motor control, meeting the application needs of various industries.

Propeller: Utilizes a high-efficiency, high-speed, high-thrust polymer folding propeller specially developed by the T-MOTOR team.

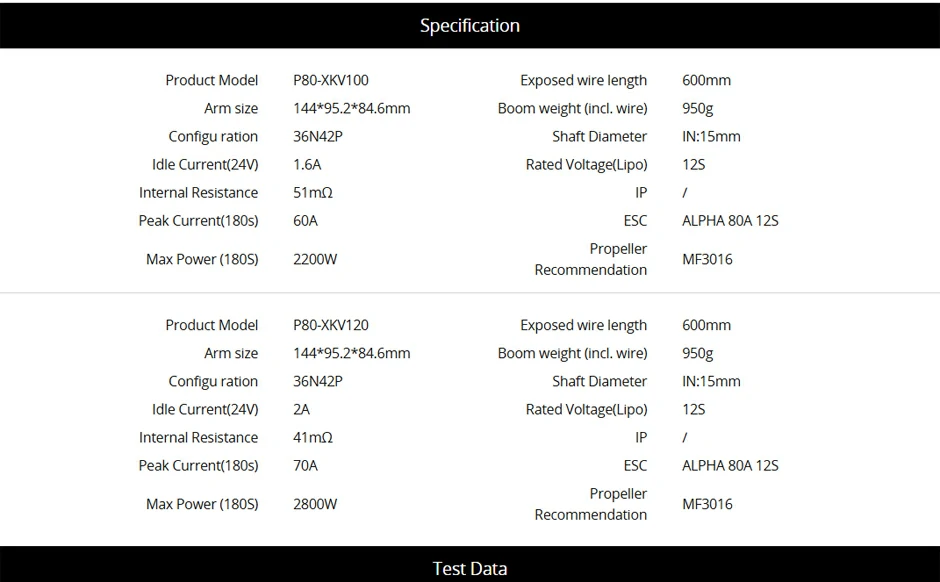

2. P80-X Agricultural Drone Propulsion System-Built for heavy-lift and high-efficiency agricultural UAVs

Specific features are as follows:

Motor: The P80 agricultural drone motor is optimized for a powerful pull exceeding 17 kg and a high power of 2800 W. It employs a 36-slot, 42-pole structure, ensuring stable operation and a long lifespan. The fully enclosed grid structure provides IP55 dust and water resistance. Special coatings and impregnation processes prevent pesticide corrosion. Military-grade high-temperature wires and a unique heat dissipation vent design enhance high-temperature resistance and overload capacity. The robust structure is shock-resistant and durable, with bearing covers protecting core components from collision damage.

ESC: Compared to traditional brushless DC ESCs (square wave drive), the Alpha ESC offers higher drive efficiency, multiple protection functions, and a longer lifespan. The newly added active braking function effectively extends flight time.

Propeller: The manually adjustable pitch propeller is designed to address the problem of low efficiency in high-speed, high-altitude flight. The propeller pitch can be quickly and manually adjusted simply by replacing the positioning block. Replacement is quick and requires no professional training; users can learn and use it immediately.

Both the P60 and P80 agricultural drone propulsion systems are equipped with LED indicator lights: improving maneuverability, eliminating concerns about nighttime operation, and also ensuring easy installation: they can be used immediately after purchase without complicated installation.

四. How to Maximize the Performance of Your Agricultural Drone Propulsion System

1. Regular Maintenance and Inspection: Regularly check for signs of wear and tear, and clean and lubricate moving parts to ensure smooth operation.

2. Using High-Quality Batteries and Components: High-quality batteries and components support motor performance. This will help extend flight time and improve overall efficiency.

3. Adjusting Settings According to Specific Task Requirements: Adjust the drone settings according to the specific requirements of each task. This includes adjusting flight speed, altitude, and payload capacity to optimize performance.

五. Summary

Choosing the right propulsion system for your agricultural drone is a critical decision that can significantly improve your drone's performance and agricultural operations and efficiency. T-MOTOR's two agricultural drone propulsion systems offer a range of features and benefits to meet diverse agricultural needs. To learn more about professional agricultural UAV propulsion solutions, you can explore T-MOTOR’s agricultural UAV propulsion system lineup.
